Parts for G1021X - 15" Extreme Series Spiral Cutterhead Planer

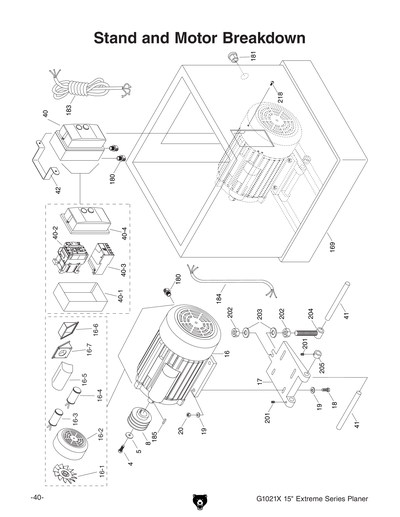

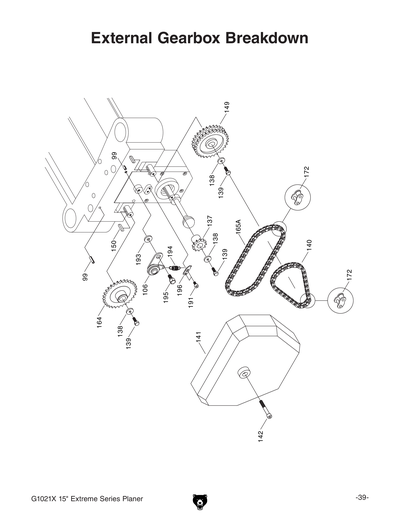

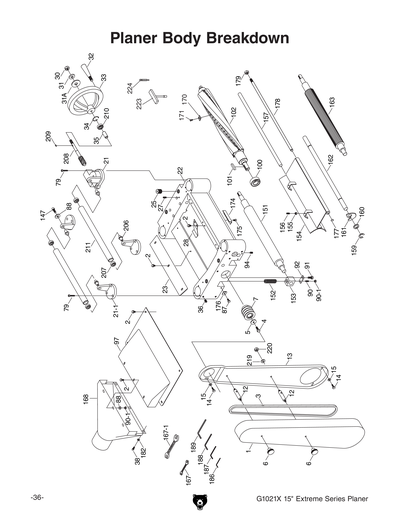

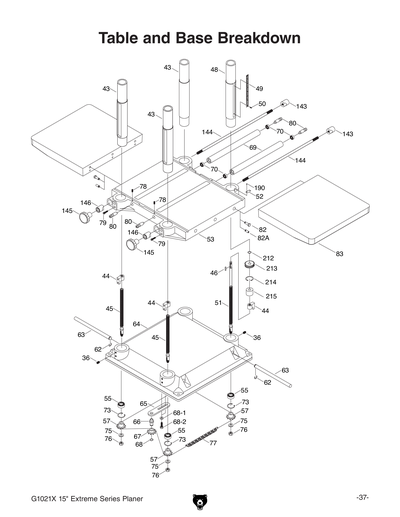

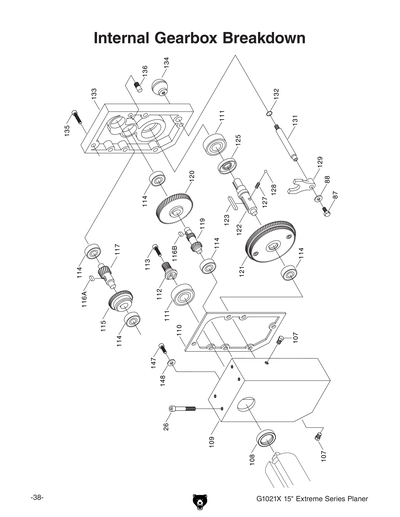

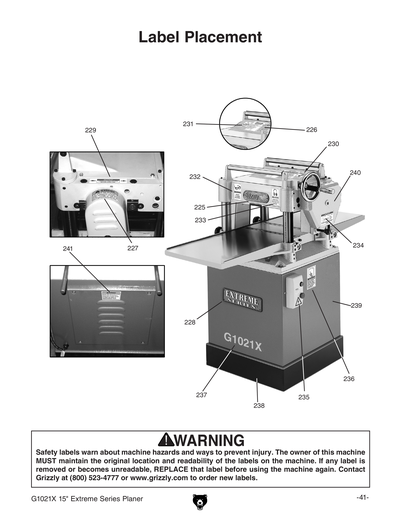

Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X
Part Diagram for G1021X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

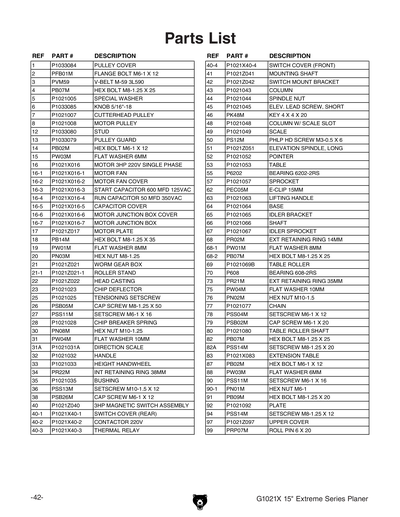

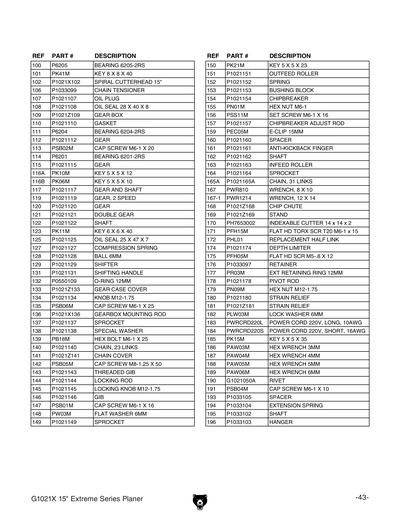

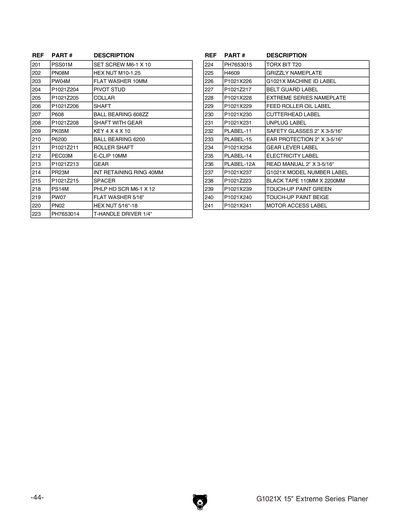

Ref #
Part #
Description
1
PULLEY COVER
Price
N/A
2
FLANGE BOLT M6-1 X 12
Price
N/A
3
V-BELT M59 3L590
Price
N/A
4
HEX BOLT M8-1.25 X 25
Price
N/A
5
FLAT WASHER 8MM
Price
N/A
6
KNOB 5/16-18, D1-3/4, ROUND
Price
N/A
7
CUTTERHEAD PULLEY
Price
N/A
8
MOTOR PULLEY 23MM BORE
Price
N/A
12
STANDOFF-HEX DE
Price
N/A
13
PULLEY GUARD
Price
N/A
14
HEX BOLT M6-1 X 12
Price
N/A
15
FLAT WASHER 6MM
Price
N/A
16
MOTOR 3HP 220V 1-PH
Price
$608.05
16-1
MOTOR FAN
Price
$3.65
16-2
MOTOR FAN COVER
Price
$10.35
16-3
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
16-4
R CAPACITOR 50M 350V 1-3/4 X 3-3/8
Price
N/A
16-5
CAPACITOR COVER
Item is no longer available
Price
N/A
16-6
MOTOR JUNCTION BOX COVER
Item is no longer available
Price
N/A
16-7
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
17
MOTOR MOUNT PLATE
Price
N/A
18
HEX BOLT M10-1.5 X 35
Price
N/A
19
FLAT WASHER 8MM
Price
N/A
20
HEX NUT M8-1.25
Price
N/A
21
WORM GEAR HOUSING
Price
N/A
21-1
RETURN ROLLER BRACKET
Price
N/A
22
HEAD CASTING
Price
N/A
23
CHIP DEFLECTOR
Price
N/A
25
TENSIONING SET SCREW M22-1.5 X 20
Price
N/A
26
CAP SCREW M8-1.25 X 50
Price
N/A
27
SET SCREW M6-1 X 16
Price
N/A
28
FLAT SPRING 84 X 46 X 0.6MM
Price
N/A
30
HEX NUT M10-1.25
Price
N/A
31
FLAT WASHER 10MM
Price
N/A
31A
DIRECTION SCALE
Price
N/A
32
REVOLVING HANDLE 1X3-9/16, 3/8-16X1/2
Price
N/A
33
ADJUSTING WHEEL
Price
N/A
34
INT RETAINING RING 38MM
Price
N/A
36
SET SCREW M10-1.5 X 12
Price
N/A
38
CAP SCREW M6-1 X 12
Price
N/A
40
***SEE EXT. DESCRIPTION***
Price
N/A
40-1
PLATE CONNECTING ROD
Price
N/A
40-2
SWITCH MOUNT BRACKET
Price
N/A
40-3
COLUMN 14-1/2
Price
N/A
40-4
SPINDLE NUT 16-4
Price
N/A
41
PLATE CONNECTING ROD
Price
N/A
42
SWITCH MOUNT BRACKET
Price
N/A
43
COLUMN 14-1/2
Price
N/A
44
SPINDLE NUT 16-4
Price
N/A
45
ELEVATION LEADSCREW SHORT 14-4
Price
N/A
46
KEY 4 X 4 X 20
Price
N/A
48
COLUMN 14-3/8 IN W/SLOT
Price
N/A
49
SCALE
Price
N/A
50
PHLP HD SCR M3-.5 X 6
Price
N/A
51
LEADSCREW, PRIMARY
Price
N/A
52
POINTER
Price
N/A
53
MAIN TABLE
Price
N/A
55
BALL BEARING 6202-2RS
Price
N/A
57
SPROCKET 10T
Price
N/A
62
E-CLIP 15MM
Price
N/A
63
LIFTING HANDLE
Price
N/A
64
BASE
Price
N/A
65
IDLER BRACKET
Price
N/A
66
SHAFT
Price
N/A
67
SPROCKET
Price
N/A
68
EXT RETAINING RING 14MM
Price
N/A
68-1
FLAT WASHER 8MM
Price
N/A
68-2
HEX BOLT M8-1.25 X 25
Price
N/A
69
TABLE ROLLER V3.05.99
Price
N/A
70
Bearing - 22mm x 8mm
Price
N/A
73
INT RETAINING RING 35MM
Price
N/A
75
FLAT WASHER 10MM
Price
N/A
76
HEX NUT M10-1.5
Price
N/A
77
CHAIN 65 LINK
Price
N/A
78
SET SCREW M6-1 X 12
Price
N/A
79
CAP SCREW M6-1 X 20
Price
N/A
80
TABLE ROLLER SHAFT
Price
N/A
82
HEX BOLT M8-1.25 X 25
Price
N/A
82A
SET SCREW M8-1.25 X 12
Price
N/A
83
EXTENSION TABLE
Price
$150.05
87
HEX BOLT M6-1 X 12
Price
N/A
88
FLAT WASHER 6MM
Price
N/A
90
SET SCREW M6-1 X 16
Price
N/A
90-1
HEX NUT M6-1
Price
N/A
91
HEX BOLT M8-1.25 X 20
Price
N/A
92
PLATE
Price
N/A
94
SET SCREW M8-1.25 X 12
Price
N/A
97
UPPER COVER
Price
N/A
99
ROLL PIN 6 X 20
Price
N/A
100
BALL BEARING 6205-2RS
Price
N/A
101
KEY 8 X 8 X 40
Price
N/A
102
SPIRAL CUTTERHEAD 15"
Item is no longer available
Price
N/A
106
CHAIN TENSIONER
Price
N/A
107
OIL PLUG
Price
N/A
108
OIL SEAL 28 X 40 X 8
Price
N/A
109
GEAR BOX V2.04.05
Price
N/A
110
GASKET
Price
N/A
111
BALL BEARING 6204-2RS
Price
N/A
112
GEAR 16T V2.12.97
Price
N/A
113
CAP SCREW M6-1 X 20
Price
N/A
114
BALL BEARING 6201-2RS
Price
N/A
115
GEAR 47T V2.04.99
Price
N/A
116A
KEY 5 X 5 X 12
Price
N/A
116B
KEY 5 X 5 X 10
Price
N/A
117
GEARED SHAFT 18T V2.10.97
Price
N/A
119
GEARED SHAFT 22T/18T
Price
N/A
120
GEAR 71T
Price
N/A
121
COMBO GEAR 92T/96T
Price
N/A
122
SHAFT
Price
N/A
123
KEY 6 X 6 X 40
Price
N/A
125
OIL SEAL 25 X 47 X 6
Price
N/A
127
HELICAL SPRING .6 X 16
Price
N/A
128
BALL 6MM
Price
N/A
129
SHIFTING FORK
Price
N/A
131
SHIFTING SHAFT
Price
N/A
132
O-RING 12 X 1.5 S12.5
Price
N/A
133
GEAR CASE
Price
N/A
134
KNOB 3/8-16, D1-1/4, BALL
Price
N/A
135
CAP SCREW M6-1 X 25
Price
N/A
136
LOCATING PIN 8 X 7.55 X 7.95
Price
N/A
137
SPROCKET 12T W/KEY V2.02.98
Price
N/A
138
SPROCKET WASHER 6.2 X 22 X 3
Price
N/A
139
HEX BOLT M6-1 X 15
Price
N/A
140
CHAIN 23 LINKS
Price
N/A
141
CHAIN COVER
Price
N/A
142
CAP SCREW M8-1.25 X 50
Price
N/A
143
THREADED GIB
Price
N/A
144
LOCK ROD
Price
N/A
145
KNOB 6-LOBE M12-1.75, D53
Price
N/A
146
GIB
Price
N/A
147
CAP SCREW M6-1 X 16
Price
N/A
148
FLAT WASHER 6MM
Price
N/A
149
SPROCKET 31T
Price
N/A
150
KEY 5 X 5 X 23
Price
N/A
151
OUTFEED ROLLER
Price
N/A
152
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
N/A
153
BUSHING BLOCK
Price
N/A
154
CHIPBREAKER W/BRUSHING
Price
N/A
155
HEX NUT M6-1
Price
N/A
156
SET SCREW M6-1 X 16
Price
N/A
157
CHIPBREAKER ADJ ROD
Price
N/A
159
E-CLIP 15MM
Price
N/A
160
SPACER
Price
N/A
161
ANTI-KICK FINGER
Price
N/A
162
ANTI-KICK SHAFT
Price
N/A
163
INFEED ROLLER
Price
N/A
164
SPROCKET 31T
Price
N/A
165A
CHAIN 31 LINKS V3.01.98
Price
N/A
167
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
167-1
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
168
CHIP CHUTE
Item is no longer available
Price
N/A
169
STAND V1
Price
N/A
170
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
171
FLAT HD TORX SCR T20 M6-1 X 16
Price
N/A
172
HALF LINK
Price
N/A
173
MASTER LINK
Price
N/A
174
DEPTH LIMITER
Price
N/A
175
FLAT HD SCR M5-.8 X 12
Price
N/A
176
FLAT WASHER 5/16
Price
N/A
177
EXT RETAINING RING 12MM
Price
N/A
178
PIVOT ROD
Price
N/A
179
HEX NUT M12-1.75
Price
N/A
180
STRAIN RELIEF M22 TYPE-6 ST V1.02.00
Price
N/A
181
STRAIN RELIEF M22 TYPE-6 ST V1.02.00
Price
N/A
182
LOCK WASHER 6MM
Price
N/A
183
POWER CORD 12G X 3W 86"L
Price
N/A
184
POWER CORD 12G X 3W 36"L
Price
N/A
185
KEY 5 X 5 X 35
Price
N/A
186
HEX WRENCH 3MM
Price
N/A
187
HEX WRENCH 4MM
Price
N/A
188
HEX WRENCH 5MM
Price
N/A
189
HEX WRENCH 6MM
Price
N/A
190A
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
191
CAP SCREW M6-1 X 10
Price
N/A
193
SPACER 8.2 X 22 X 3MM
Price
N/A
194
HELICAL SPRING 1 X 33
Price
N/A
195
SHAFT
Price
N/A
196
HANGER
Price
N/A
201
SET SCREW M6-1 X 10
Price
N/A
202
HEX NUT M10-1.25
Price
N/A
203
FLAT WASHER 10MM
Price
N/A
204
ROD END BOLT M10-1.5 X 100, ID 16.5MM
Price
N/A
205
LOCK COLLAR
Price
N/A
206
BEARING SHAFT
Price
N/A
207
Bearing - 22mm x 8mm
Price
N/A
208
WORM SHAFT
Price
N/A
209
KEY 4 X 4 X 10
Price
N/A
2092AV2
GEARBOX ASSEMBLY V2.05.18
Price
N/A
210
BALL BEARING 6200-2RS
Price
N/A
211
RETURN ROLLER
Price
N/A
212
E-CLIP 10MM
Price
N/A
213
GEAR 14T
Price
N/A
214
INT RETAINING RING 40MM
Price
N/A
215
SPACER
Price
N/A
218
PHLP HD SCR M6-1 X 12
Price
N/A
219
FLAT WASHER 5/16
Price
N/A
220
HEX NUT 5/16-18
Price
N/A
223
T-HANDLE DRIVER 1/4"
Price
N/A
224
TORX BIT T-20
Price
N/A
225
Oblong Nameplate-Small
Price
N/A
226
MACHINE ID LABEL
Item is no longer available
Price
N/A
227
BELT COVER WARNING LABEL V2.05.18
Price
N/A
228
Extreme Series Nameplate
Price
N/A
229
FEED ROLLER OIL LABEL
Price
$4.25
230
CUTTERHEAD LABEL
Price
$4.25
231
UNPLUG LABEL
Item is no longer available
Price
N/A
232
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
233
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
234
GEAR LEVER LABEL
Price
$4.25
235
ELECTRICITY 1.4W X 1.2H
Price
N/A
236
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
237
MODEL NUMBER LABEL
Price
$16.40
238
BLACK TAPE
Price
N/A
239
N/S GRIZZLY GREEN G1023S
Price
N/A
240
BEIGE REF G0555
Price
N/A
241
MOTOR ACCESS LABEL
Item is no longer available
Price
N/A
MAN
MANUAL FOR G1021X 03/06
Price
$14.65
