Parts for G1023RL - 10" 3 HP 240V Cabinet Table Saw

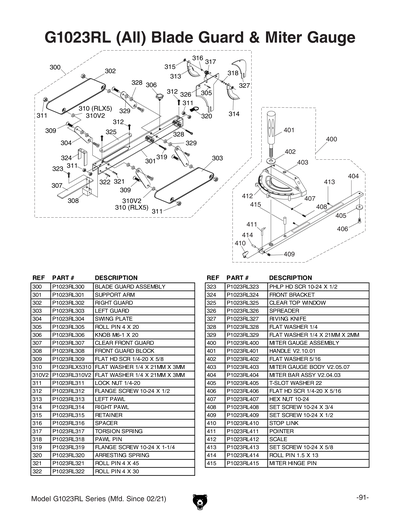

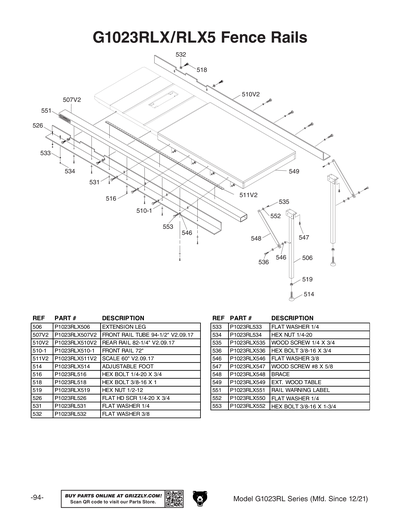

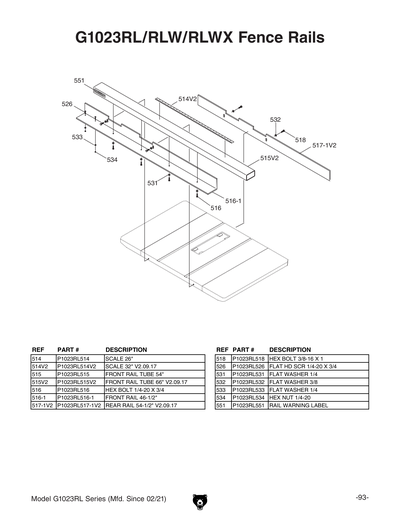

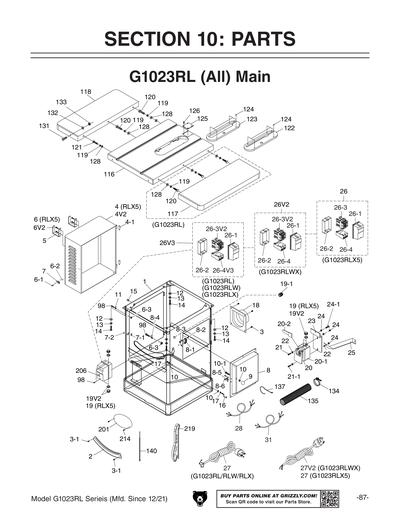

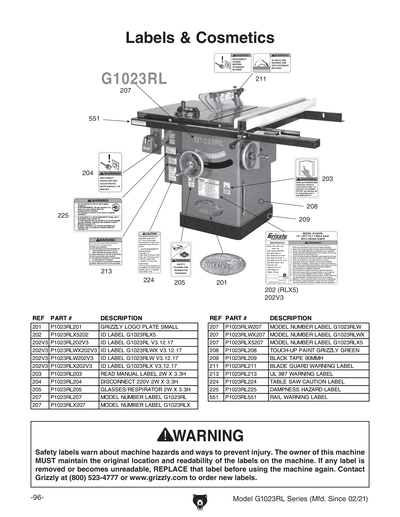

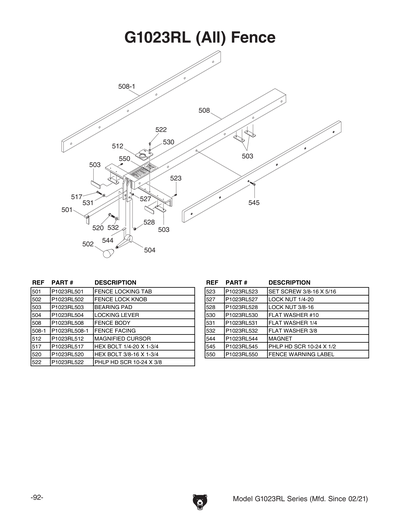

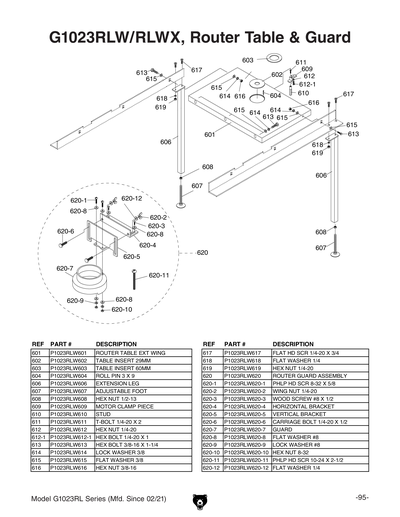

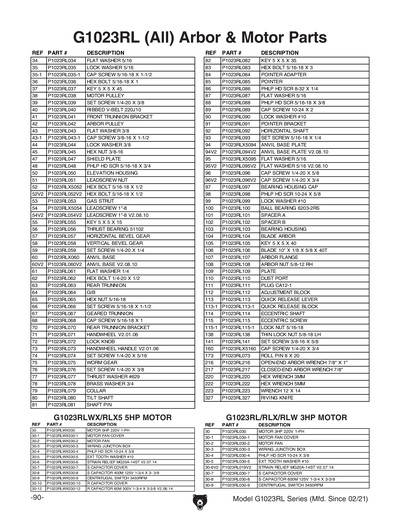

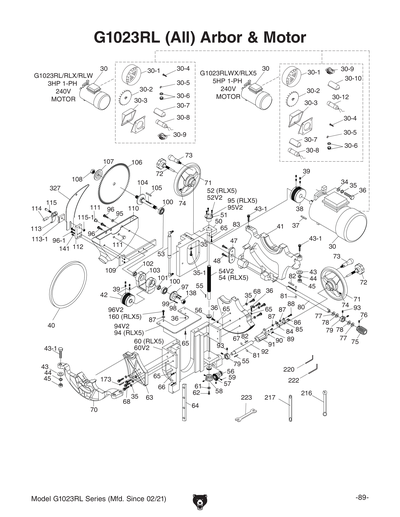

Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL
Part Diagram for G1023RL

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

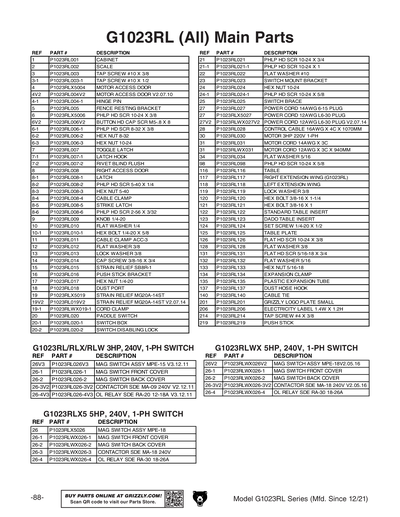

Ref #
Part #
Description
1
CABINET
Price
$491.50
2
SCALE
Price
$15.45
3
TAP SCREW 10-24 X 3/8
Price
N/A
3-1
TAP SCREW #10 X 1/2
Price
N/A
4
MOTOR ACCESS DOOR V1.06.10
Price
$112.30
4-1
HINGE PIN
Price
$3.40
4-2
MOTOR ACCESS DOOR STRIKE
Price
$3.40
4V2
MOTOR ACCESS DOOR V2.07.10
Price
$94.20
5
FENCE RESTING BRACKET
Price
$8.20
6
BUTTON HD CAP SCR 10-24 X 3/8
Price
N/A
6-1
PHLP HD SCR 8-32 X 3/8
Price
N/A
6-2
HEX NUT 8-32
Price
N/A
6-3
HEX NUT 10-24
Price
N/A
6V2
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
7
TOGGLE LATCH
Price
$4.75
7-1
LATCH HOOK
Price
$3.80
7-2
RIVET BLIND FLUSH
Price
$1.60
8
RIGHT ACCESS DOOR
Price
$74.10
8-1
LATCH
Price
$10.90
8-2
PHLP HD SCR 5-40 X 1/4
Price
N/A
8-3
HEX NUT 5-40
Price
N/A
8-4
CABLE CLAMP
Price
$1.60
8-5
STRIKE LATCH
Price
$3.65
8-6
PHLP HD SCR 2-56 X 3/32
Price
$1.60
9
KNOB 1/4-20
Price
$2.60
10
FLAT WASHER 1/4
Price
N/A
10-1
HEX BOLT 1/4-20 X 5/8
Price
N/A
11
CABLE CLAMP ACC-3
Price
$1.60
12
FLAT WASHER 3/8
Price
N/A
13
LOCK WASHER 3/8
Price
N/A
14
CAP SCREW 3/8-16 X 3/4
Price
N/A
15
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
N/A
16
PUSH STICK BRACKET
Price
$2.85
17
HEX NUT 1/4-20
Price
N/A
18
DUST PORT
Price
$5.45
19
STRAIN RELIEF TYPE-6 M20 ST
Price
$7.90
19V2
STRAIN RELIEF MG20A-14ST V2.07.14
Price
$6.40
20
***USE SEE EXT DESC***
Item is no longer available
Price
N/A
20-1
ON/OFF SWITCH JUNCTION BOX
Price
$15.60
20-2
SWITCH DISABLING LOCK
Price
$2.75
20V2
PADDLE SWITCH 220V V2.09.25
Price
$0.00
21
PHLP HD SCR 10-24 X 3/4
Price
N/A
21-1
PHLP HD SCR 10-24 X 1
Price
N/A
22
FLAT WASHER #10
Price
N/A
23
SWITCH MOUNT BRACKET
Price
N/A
24
HEX NUT 10-24
Price
N/A
24-1
PHLP HD SCR 10-24 X 5/8
Price
N/A
25
SWITCH PLATE BRACE
Price
N/A
26
*DISCD*MAG SWITCH ASSY MPE-18 V1.06.10
Item is no longer available
Price
N/A
26-1
MAG SWITCH FRONT COVER
Price
$26.00
26-2
MAG SWITCH BACK COVER
Price
$20.55
26-3
CONTACTOR SDE MA-18 240V V1
Price
$126.80
26-3V2
CONTACTOR SDE MA-09 240V V2.06.13
Price
N/A
26-4
OL RELAY SDE RA-30 18-26A V1.06.10
Price
$65.55
26-4V2
OL RELAY SDE RA-20 15-22A V2.07.10
Price
$54.10
26-4V3
OL RELAY SDE RA-20 12-18A
Price
N/A
26-5
MAG SWITCH COVER SCREW
Price
$4.30
26V2
MAG SWITCH ASSY MPE-18 V2.07.10
Price
$129.30
26V2-1
MAG SWITCH BOX MPE-15
Price
$31.40
26V2-3
CONTACTOR SDE MA-09 240V V2.06.13
Price
N/A
26V2-4
OL RELAY SDE RA-20 12-18A
Price
$47.10
26V3
***SEE EXT. DESCRIPTION***
Price
$129.30
26V4
MAG SWITCH ASSY MPE-15 V4.09.25
Price
$0.00
26V4-1
***USE P1023RL026-1***
Price
$0.00
26V4-2
***USE P1023RL026-2***
Price
$0.00
26V4-3
***USE P1023RL026-3V2***
Price
$0.00
26V4-4
***USE P1023RL026-4V3***
Price
$0.00
27
POWER CORD 14AWG 6-15 PLUG
Price
$45.35
28
***USE SEE EXT DESC***
Price
$38.65
28V2
CONTROL CORD 14G 4W 42" V2.09.25
Price
$0.00
30
MOTOR 3HP 240V 1-PH
Price
$571.30
30-1
MOTOR FAN COVER
Price
$17.85
30-10
CONTACT PLATE
Price
$6.95
30-2
MOTOR FAN
Price
$14.15
30-3
WIRING JUNCTION BOX
Price
$6.40
30-4
PHLP HD SCR 10-24 X 3/8
Price
N/A
30-5
EXT TOOTH WASHER #10
Price
N/A
30-6
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
30-7
S CAPACITOR COVER
Price
$4.75
30-8
S CAPACITOR 600M 125V 1-3/4 X 3-3/8
Price
N/A
30-9
CENTRIFUGAL SWITCH 3450RPM
Price
$11.35
31
MOTOR CORD 14AWG X 3C
Price
$25.10
32
***USE PS01***
Price
$0.00
33
***USE PTLW01***
Price
$0.00
34
FLAT WASHER 5/16
Price
N/A
35
LOCK WASHER 5/16
Price
N/A
35-1
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
36
HEX BOLT 5/16-18 X 1
Price
N/A
37
KEY 5 X 5 X 45
Price
N/A
38
MOTOR PULLEY
Price
$44.60
39
SET SCREW 1/4-20 X 3/8
Price
N/A
40
V-BELT 220J10 RIBBED
Price
$37.35
41
FRONT TRUNNION BRACKET
Price
$113.55
42
ARBOR PULLEY
Price
$40.25
43
FLAT WASHER 3/8
Price
N/A
43-1
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
44
LOCK WASHER 3/8
Price
N/A
45
HEX NUT 3/8-16
Price
N/A
47
PLATE
Price
N/A
48
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
50
ELEVATION HOUSING
Price
$226.45
51
LEADSCREW NUT
Price
$20.30
52
CAP SCREW 10-24 X 1/2
Price
N/A
52V2
HEX BOLT 5/16-18 X 1/2
Price
N/A
53
GAS STRUT
Price
$36.40
54
*DISCD*LEADSCREW 1"-8 V1
Item is no longer available
Price
N/A
54V2
LEADSCREW 1"-8 V2.01.11
Price
$15.70
55
KEY 5 X 5 X 15
Price
N/A
56
THRUST BEARING 51102
Price
N/A
57
HORIZONTAL BEVEL GEAR
Price
$26.35
58
VERTICAL BEVEL GEAR
Price
$26.35
59
SET SCREW 1/4-20 X 1/4
Price
N/A
60
*DISCD*ANVIL BASE V1
Item is no longer available
Price
N/A
60V2
ANVIL BASE V2.08.10
Price
$391.25
61
FLAT WASHER 1/4
Price
N/A
62
HEX BOLT 1/4-20 X 1/2
Price
N/A
63
REAR TRUNNION
Price
$50.75
64
GIB
Price
$15.90
65
HEX NUT 5/16-18
Price
N/A
66
SET SCREW 5/16-18 X 1-1/2
Price
N/A
67
GEARED TRUNNION
Price
$140.85
68
CAP SCREW 5/16-18 X 1
Price
N/A
69
HEX BOLT 5/16-18 X 3/4
Price
N/A
70
REAR TRUNNION BRACKET
Price
$52.60
71
HANDWHEEL V2.01.06
Price
N/A
72
LOCK KNOB
Price
N/A
73
HANDLE V3.06.06
Price
N/A
74
SET SCREW 1/4-20 X 5/16
Price
N/A
75
WORM 1.410" OD
Price
N/A
76
SET SCREW 1/4-20 X 3/8
Price
N/A
77
WAVY WASHER 18MM
Price
N/A
78
BRASS WASHER 3/4
Price
$4.40
79
COLLAR
Price
N/A
80
TILT SHAFT
Price
N/A
81
DOWEL PIN
Price
N/A
82
KEY 5 X 5 X 35
Price
N/A
83
HEX BOLT 5/16-18 X 3
Price
N/A
84
POINTER ADAPTER
Price
N/A
84R
EXTENSION WING RIGHT
Price
N/A
85
POINTER
Price
N/A
86
PHLP HD SCR 8-32 X 1/4
Price
N/A
87
FLAT WASHER 5/16
Price
N/A
88
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
89
CAP SCREW 10-24 X 2
Price
N/A
90
LOCK WASHER #10
Price
N/A
91
POINTER BRACKET
Price
N/A
92
HORIZONTAL SHAFT
Price
$19.85
93
SET SCREW 5/16-18 X 1/4
Price
N/A
94
*DISCD*ANVIL BASE PLATE V1
Item is no longer available
Price
N/A
94V2
ANVIL BASE PLATE V2.08.10
Price
$15.35
95
FLAT WASHER 1/4
Price
N/A
95V2
FLAT WASHER 5/16
Price
N/A
96
CAP SCREW 1/4-20 X 5/8
Price
N/A
96-1
CAP SCREW 1/4-20 X 1
Price
N/A
96V2
CAP SCREW 5/16-18 X 3/4
Price
N/A
97
BEARING HOUSING CAP
Price
$5.80
98
PHLP HD SCR 10-24 X 5/8
Price
N/A
99
LOCK WASHER #10
Price
N/A
100
BALL BEARING 6203-2RS
Price
N/A
101
SPACER A
Price
$4.30
102
SPACER B
Price
$4.30
103
BEARING HOUSING
Price
$83.35
103A
ARBOR BEARING HOUSING ASSY
Price
$158.85
104
BLADE ARBOR
Price
$35.20
105
KEY 5 X 5 X 40
Price
N/A
106
BLADE 10" X 1/8 X 5/8 X 40T
Price
$97.85
107
ARBOR FLANGE
Price
N/A
108
ARBOR NUT 5/8-12 RH
Price
$5.50
109
PLATE
Price
$34.15
110
DUST PORT
Price
$16.95
111
PLUG CA12-1
Price
$1.60
112
ADJUSTMENT BLOCK
Price
$63.80
113
QUICK RELEASE LEVER
Price
$10.00
113-1
QUICK RELEASE BLOCK
Price
$6.40
114
ECCENTRIC SHAFT
Price
$4.75
115
ECCENTRIC BOLT
Price
$3.05
115-1
LOCK NUT 5/16-18
Price
N/A
116
TABLE
Price
$637.60
117
EXTENSION WING RIGHT
Price
N/A
118
EXT WING LEFT
Price
N/A
119
LOCK WASHER 3/8
Price
N/A
120
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
121
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
122
STANDARD TABLE INSERT
Price
$61.95
123
DADO TABLE INSERT
Price
$59.85
124
SET SCREW 1/4-20 X 1/2
Price
N/A
125
TABLE PLATE
Price
$12.55
126
FLAT HD SCR 10-24 X 3/8
Price
N/A
127
HEX BOLT 3/8-16 X 1/2
Price
N/A
128
FLAT WASHER 3/8
Price
N/A
129
MOTOR BRACE
Price
$7.25
131
FLAT HD SCR 5/16-18 X 3/4
Price
N/A
132
FLAT WASHER 5/16
Price
N/A
133
HEX NUT 5/16-18
Price
N/A
134
EXPANSION CLAMP
Price
$3.35
135
PLASTIC EXPANSION TUBE
Price
$10.65
137
DUST HOSE HOOK
Price
$3.05
138
THIN LOCK NUT 5/8-18 LH
Price
$5.65
140
CABLE TIE FF-150M
Price
$3.05
141
SET SCREW 3/8-16 X 5/8
Price
N/A
173
ROLL PIN 8 X 20
Price
N/A
201
Nameplate - Small
Price
N/A
202
MACHINE ID LABEL
Price
$16.40
202V2
MACHINE ID LABEL V2.08.11
Price
$16.40
202V3
MACHINE ID LABEL V3.12.17
Price
$16.40
203
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
204
DISCONNECT 220V 2W X 3.3H
Price
N/A
205
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
MODEL NUMBER LABEL
Price
$23.10
207V2
MODEL NUMBER LABEL V2.09.21
Price
$16.40
208
N/S GRIZZLY GREEN G1023S
Price
N/A
209
BLACK TAPE 90MMH
Price
$11.50
211
***SEE EXT DESC***
Price
$1.00
211V2
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
213
UL 987 WARNING LABEL
Price
N/A
214
TAP SCREW #4 X 3/8
Price
N/A
216
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
217
ARBOR WRENCH 7/8" X 1" CLOSED-ENDS
Price
$8.65
219
PUSH STICK
Price
$9.10
220
HEX WRENCH 3MM
Price
N/A
222
HEX WRENCH 5MM
Price
N/A
223
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
224
TABLE SAW CAUTION BLADE REQUIRED LABEL
Price
$4.25
225
DAMPNESS HAZARD LABEL
Price
$4.25
226
DOOR CLOSED BLADE 2W X 3.3H
Price
N/A
227
GRIZZLY.COM LABEL
Price
$16.40
228
ELECTRICITY 0.5W X 0.4H
Price
N/A
300
BLADE GUARD ASSEMBLY
Price
$358.65
301
SUPPORT ARM
Price
$15.45
302
RIGHT GUARD
Price
$55.30
303
LEFT GUARD
Price
$51.05
304
SWING PLATE
Price
$21.75
305
ROLL PIN 4 X 20
Price
N/A
306
KNOB M6-1 X 20
Price
$1.60
307
CLEAR FRONT GUARD
Price
$4.60
308
FRONT GUARD BLOCK
Price
$5.15
309
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
310
FLAT WASHER 1/4
Price
N/A
310V2
FLAT WASHER 6.4 X 21 X 3MM V2.10.20
Price
$1.60
311
LOCK NUT 1/4-20
Price
N/A
312
FLANGE SCREW 10-24 X 1/2
Price
N/A
313
LEFT PAWL
Price
$10.30
314
RIGHT PAWL
Price
$12.00
315
RETAINER
Price
$3.05
316
SPACER
Price
$3.05
317
TORSION SPRING
Price
$2.20
318
PAWL PIN
Price
$2.75
319
FLANGE SCREW 10-24 X 1-1/4
Price
N/A
320
ARRESTING SPRING
Price
$2.45
321
ROLL PIN 4 X 45
Price
$3.65
322
ROLL PIN 4 X 30
Price
N/A
323
PHLP HD SCR 10-24 X 1/2
Price
N/A
324
FRONT BRACKET
Price
$2.75
325
CLEAR TOP WINDOW
Price
$2.75
326
SPREADER
Price
$47.75
327
RIVING KNIFE
Price
$30.30
328
FLAT WASHER 1/4
Price
N/A
329
FLAT WASHER 6.4 x 21 x 2MM
Price
$1.60
400
Deluxe Cast-Iron Miter Gauge
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402
FLAT WASHER 5/16
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405
T-SLOT WASHER 22
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
HEX NUT 10-24
Price
N/A
408
SET SCREW 10-24 X 3/4
Price
N/A
409
SET SCREW 10-24 X 1/2
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
POINTER
Price
$3.80
412
MITER GAUGE SCALE
Price
N/A
413
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
501
FENCE LOCKING TAB
Price
N/A
502
KNOB 3/8-16, D1-9/16, TAPERED BALL V2.04.07
Price
N/A
503
BEARING PAD
Price
N/A
504
LOCKING LEVER
Price
N/A
508
FENCE BODY
Price
N/A
508-1
FENCE FACING
Price
N/A
512
MAGNIFIED CURSOR
Price
N/A
514
SCALE 26"
Price
N/A
514V2
SCALE 32" V2.09.17
Price
$6.40
515
FRONT RAIL TUBE
Price
N/A
515V2
FRONT RAIL TUBE 66" V2.09.17
Price
$115.95
516
HEX BOLT 1/4-20 X 3/4
Price
N/A
516-1
FRONT RAIL 46-1/2"
Price
N/A
517
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
517-1
REAR RAIL 46-1/2"
Price
N/A
517-1V2
REAR RAIL 54-1/2" V2.09.17
Price
$105.10
518
HEX BOLT 3/8-16 X 1
Price
N/A
520
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
522
PHLP HD SCR 10-24 X 3/8
Price
N/A
523
SET SCREW 3/8-16 X 5/16
Price
$1.49
526
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
527
LOCK NUT 1/4-20
Price
N/A
528
LOCK NUT 3/8-16
Price
N/A
530
FLAT WASHER #10
Price
N/A
531
FLAT WASHER 1/4
Price
N/A
532
FLAT WASHER 3/8
Price
N/A
533
FLAT WASHER 1/4
Price
N/A
534
HEX NUT 1/4-20
Price
N/A
544
MAGNET
Price
N/A
545
PHLP HD SCR 10-24 X 1/2
Price
N/A
550
FENCE WARNING LABEL
Price
N/A
551
RAIL WARNING LABEL
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G1023RL
Price
$670.20
MAN
MAN G1023RL SRS MFD-04.10-05.14 V1.05.10
Price
$14.65
MANV2
MAN G1023RL SRS MFD-06.14-09.14 V2.06.14
Price
$10.25
MANV3
MAN G1023RL SRS MFD-10.14-08.17 V3.10.14
Price
$10.25
MANV4
MAN G1023RL SRS MFD-09.17-01.21 V4.02.18
Price
$10.25
MANV5
MAN G1023RL SRS MFD-02.21-11.21 V5.02.21
Price
$10.50
MANV6
MAN G1023RL SRS MFD-12.21-05.23 V6.01.22
Price
$21.95
MANV7
MAN G1023RL SRS MFD-06.23-08.25 V7.05.25
Price
$22.80
MANV8
MAN G1023RL SRS MFD-09.25+ V8.08.25
Price
$0.00
P0123RL515V2
*DISCD*FRONT RAIL TUBE 66" V2.09.17
Item is no longer available
Price
N/A
P1023084L
EXT WING LEFT
Price
N/A
