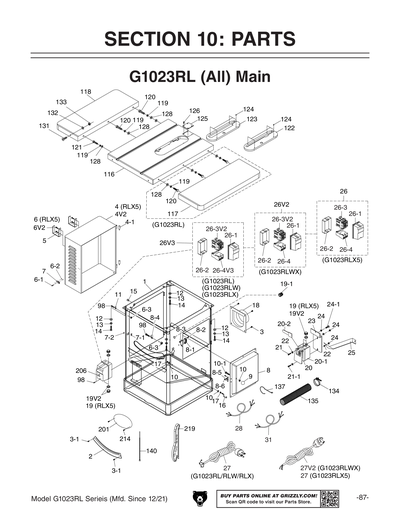

Parts for G1023RLWX - 10" 5 HP 240V Cabinet Table Saw with Built-in Router Table

1/10

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

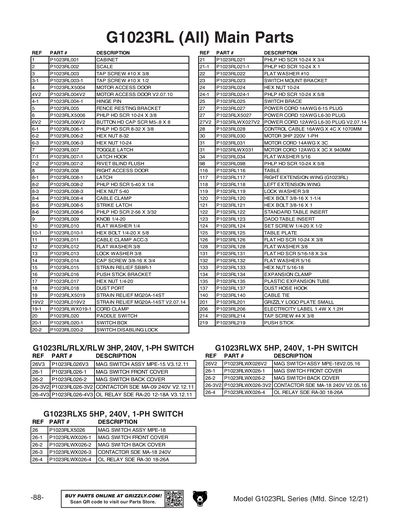

Ref #
Part #
Description
1
CABINET
Price
N/A
2
SCALE
Price
N/A
3
TAP SCREW 10-24 X 3/8
Price
N/A
3-1
TAP SCREW #10 X 1/2
Price
N/A
4
MOTOR ACCESS DOOR V1.06.10
Price
N/A
4-1
HINGE PIN
Price
N/A
4V2
MOTOR ACCESS DOOR V2.07.10
Price
N/A
5
FENCE RESTING BRACKET
Price
N/A
6
BUTTON HD CAP SCR 10-24 X 3/8
Price
N/A
6-1
PHLP HD SCR 8-32 X 3/8
Price
N/A
6-2
HEX NUT 8-32
Price
N/A
6-3
HEX NUT 10-24
Price
N/A
6V2
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
7
TOGGLE LATCH
Price
N/A
8
RIGHT ACCESS DOOR
Price
N/A
8-1
LATCH
Price
N/A
8-2
PHLP HD SCR 5-40 X 1/4
Price
N/A
8-3
HEX NUT 5-40
Price
N/A
8-4
CABLE CLAMP
Price
N/A
9
KNOB 1/4-20
Price
N/A
10
FLAT WASHER 1/4
Price
N/A
10-1
HEX BOLT 1/4-20 X 5/8
Price
N/A
11
CABLE CLAMP ACC-3
Price
N/A
12
FLAT WASHER 3/8
Price
N/A
13
LOCK WASHER 3/8
Price
N/A
14
CAP SCREW 3/8-16 X 3/4
Price
N/A
15
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
N/A
16
PUSH STICK BRACKET
Price
N/A
17
HEX NUT 1/4-20
Price
N/A
18
DUST PORT
Price
N/A
19
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
19-1
*DISCD*CORD CLAMP
Price
N/A
20
***USE D4159***
Price
N/A
20-1
SWITCH BOX KEDU KJD17B-16
Price
N/A
20-2
SWITCH DISABLING LOCK
Price
N/A
21
PHLP HD SCR 10-24 X 3/4
Price
N/A
21-1
PHLP HD SCR 10-24 X 1
Price
N/A
22
FLAT WASHER #10
Price
N/A
23
SWITCH MOUNT BRACKET
Price
N/A
24
HEX NUT 10-24
Price
N/A
24-1
PHLP HD SCR 10-24 X 5/8
Price
N/A
25
SWITCH PLATE BRACE
Price
N/A
26
MAG SWITCH ASSY SDE MPE-18 V1
Price
$90.00
26-1
MAG SWITCH FRONT COVER
Price
N/A
26-2
MAG SWITCH BACK COVER
Price
N/A
26-3
CONTACTOR SDE MA-18 240V
Price
$105.00
26-4
OL RELAY SDE RA-30 18-26A
Price
$32.75
26-4V
OL RELAY SDE RA-20 12-18A
Price
N/A
26-5
MAG SWITCH COVER SCREW
Price
N/A
26V2
MAG SWITCH ASSY MPE-18 V2.07.10
Price
N/A
27
*DISCD*POWER CORD 12AWG W/NO PLUG
Item is no longer available
Price
N/A
27V2
POWER CORD 12G 3W 72" L6-30P V2.07.14
Price
$36.00
28
CONTROL CABLE 16G 4W 42"
Price
N/A
29
CONTROL WIRE 12G 1W 6"
Price
$2.00
30

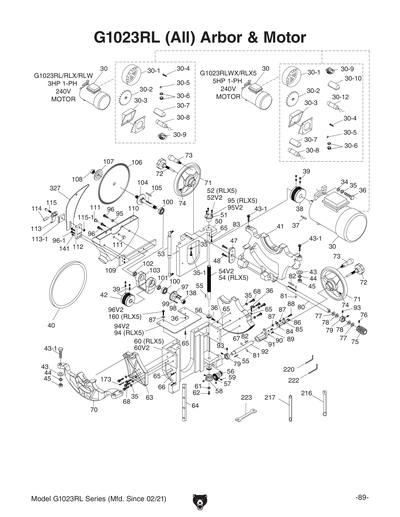

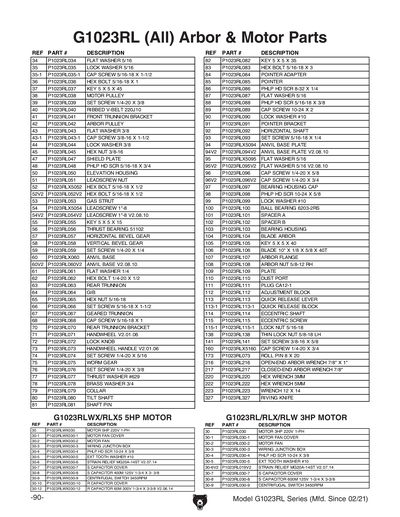

MOTOR 5HP 240V 1-PH
Price
$492.75
30-1
MOTOR FAN COVER
Price
$7.50
30-10
R CAPACITOR COVER
Price
$6.00
30-11
R CAPACITOR 50M 350V 1-3/4 X 3-3/8 V1
Price
$24.00
30-12
V2 R CAPACITOR 60M 300V 1-3/4 X 3-3/8 V2
Price
$36.00
30-2
MOTOR FAN
Price
N/A
30-3
WIRING JUNCTION BOX
Price
$5.25
30-4
PHLP HD SCR 10-24 X 3/8
Price
N/A
30-5
EXT TOOTH WASHER #10
Price
N/A
30-6
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
30-7
S CAPACITOR COVER
Price
$3.00
30-8
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
30-9
CENTRIFUGAL SWITCH 3450RPM
Price
$7.50
31
MOTOR CORD 12G 3W 37"
Price
$19.00
34
FLAT WASHER 5/16
Price
N/A
35
LOCK WASHER 5/16
Price
N/A
35-1
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
36
HEX BOLT 5/16-18 X 1
Price
N/A
37
KEY 5 X 5 X 45
Price
N/A
38
MOTOR PULLEY
Price
N/A
39
SET SCREW 1/4-20 X 3/8
Price
N/A
40
V-BELT 220J10 RIBBED
Price
N/A
41
FRONT TRUNNION BRACKET
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
FLAT WASHER 3/8
Price
N/A
43-1
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
44
LOCK WASHER 3/8
Price
N/A
45
HEX NUT 3/8-16
Price
N/A
47
PLATE
Price
N/A
48
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
50
ELEVATION HOUSING
Price
N/A
51
LEADSCREW NUT
Price
N/A
52
CAP SCREW 10-24 X 1/2
Price
N/A
52V2
HEX BOLT 5/16-18 X 1/2
Price
N/A
53
GAS STRUT
Price
N/A
54
*DISCD*LEADSCREW 1"-8 V1
Price
N/A
54V2
LEADSCREW 1"-8 V2.01.11
Price
N/A
55
KEY 5 X 5 X 15
Price
N/A
56
THRUST BEARING 51102
Price
N/A
57
HORIZONTAL BEVEL GEAR
Price
N/A
58
VERTICAL BEVEL GEAR
Price
N/A
59
SET SCREW 1/4-20 X 1/4
Price
N/A
60
*DISCD*ANVIL BASE V1
Price
N/A
60V2
ANVIL BASE V2.08.10
Price
N/A
61
FLAT WASHER 1/4
Price
N/A
62
HEX BOLT 1/4-20 X 1/2
Price
N/A
63
REAR TRUNNION
Price
N/A
64
GIB
Price
N/A
65
HEX NUT 5/16-18
Price
N/A
66
SET SCREW 5/16-18 X 1-1/2
Price
N/A
67
GEARED TRUNNION
Price
N/A
68
CAP SCREW 5/16-18 X 1
Price
N/A
69
HEX BOLT 5/16-18 X 3/4
Price
N/A
70
REAR TRUNNION BRACKET
Price
N/A
71
HANDWHEEL V2.01.06
Price
N/A
72
LOCK KNOB
Price
N/A
73
HANDLE V3.06.06
Price
N/A
74
SET SCREW 1/4-20 X 5/16
Price
N/A
75
WORM 1.410" OD
Price
N/A
76
SET SCREW 1/4-20 X 3/8
Price
N/A
77
WAVY WASHER 18MM
Price
N/A
78
BRASS WASHER 3/4
Price
N/A
79
COLLAR
Price
N/A
80
TILT SHAFT
Price
N/A
81
DOWEL PIN
Price
N/A
82
KEY 5 X 5 X 35
Price
N/A
83
HEX BOLT 5/16-18 X 3
Price
N/A
84
POINTER ADAPTER
Price
N/A
85
POINTER
Price
N/A
86
PHLP HD SCR 8-32 X 1/4
Price
N/A
87
FLAT WASHER 5/16
Price
N/A
88
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
89
CAP SCREW 10-24 X 2
Price
N/A
90
LOCK WASHER #10
Price
N/A
91
POINTER BRACKET
Price
N/A
92
HORIZONTAL SHAFT
Price
N/A
93
SET SCREW 5/16-18 X 1/4
Price
N/A
94
*DISCD*ANVIL BASE PLATE V1
Price
N/A
94V2
ANVIL BASE PLATE V2.08.10
Price
N/A
95
FLAT WASHER 1/4
Price
N/A
95V2
FLAT WASHER 5/16
Price
N/A
96
CAP SCREW 1/4-20 X 5/8
Price
N/A
96-1
CAP SCREW 1/4-20 X 1
Price
N/A
96V2
CAP SCREW 5/16-18 X 3/4
Price
N/A
97
BEARING HOUSING CAP
Price
N/A
98
PHLP HD SCR 10-24 X 5/8
Price
N/A
99
LOCK WASHER #10
Price
N/A
100
BALL BEARING 6203-2RS
Price
N/A
101
SPACER A
Price
N/A
102
SPACER B
Price
N/A
103
BEARING HOUSING
Price
N/A
104
BLADE ARBOR
Price
N/A
105
KEY 5 X 5 X 40
Price
N/A
106
BLADE 10" X 1/8 X 5/8 X 40T
Price
N/A
107
ARBOR FLANGE
Price
N/A
109
PLATE
Price
N/A
110
DUST PORT
Price
N/A
111
PLUG CA12-1
Price
N/A
112
ADJUSTMENT BLOCK
Price
N/A
113
QUICK RELEASE LEVER
Price
N/A
113-1
QUICK RELEASE BLOCK
Price
N/A
114
ECCENTRIC SHAFT
Price
N/A
115
ECCENTRIC BOLT
Price
N/A
115-1
LOCK NUT 5/16-18
Price
N/A
116
TABLE
Price
N/A
117
EXTENSION WING RIGHT
Price
N/A
118
EXT WING LEFT
Price
N/A
119
LOCK WASHER 3/8
Price
N/A
120
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
121
HEX BOLT 3/8-16 X 1
Price
N/A
122
STANDARD TABLE INSERT
Price
N/A
123
DADO TABLE INSERT
Price
N/A
124
SET SCREW 1/4-20 X 1/2
Price
N/A
125
TABLE PLATE
Price
N/A
126
FLAT HD SCR 10-24 X 3/8
Price
N/A
127
HEX BOLT 3/8-16 X 1/2
Price
N/A
128
FLAT WASHER 3/8
Price
N/A
129
MOTOR BRACE
Price
N/A
131
FLAT HD SCR 5/16-18 X 3/4
Price
N/A
132
FLAT WASHER 5/16
Price
N/A
133
HEX NUT 5/16-18
Price
N/A
134
EXPANSION CLAMP
Price
N/A
135
PLASTIC EXPANSION TUBE
Price
N/A
137
DUST HOSE HOOK
Price
N/A
138
THIN LOCK NUT 5/8-18 LH
Price
N/A
140
CABLE TIE FF-150M
Price
N/A
141
SET SCREW 3/8-16 X 5/8
Price
N/A
145
WIRING NUT SW-3
Price
$3.50
155
JUNCTION BOX BASE
Price
$9.75
155-1
GROUNDING LABEL
Price
$2.00
156
PHLP HD SCR M5-.8 X 10
Price
N/A
157
JUNCTION BOX COVER
Price
$6.00
158
PHLP HD SCR 10-24 X 1/4
Price
N/A
159
EXT TOOTH WASHER 5MM
Price
N/A
173
ROLL PIN 8 X 20
Price
N/A
201

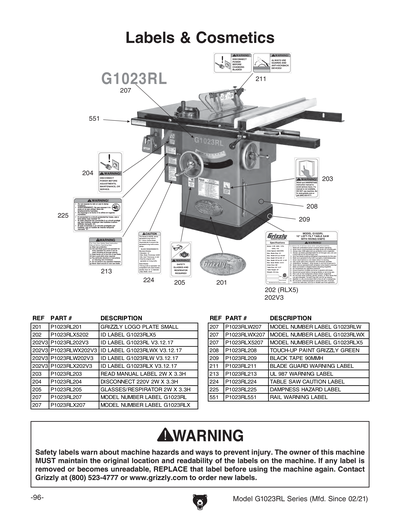

Name Plates - Small
Price
N/A
202
ID LABEL G1023RLWX V1
Price
$13.00
202V2
ID LABEL G1023RLWX V2.06.14
Price
$2.50
203
***USE PLABEL-12A***
Price
N/A
204
DISCONNECT 220V 2W X 3.3H
Price
N/A
205
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
MODEL NUMBER LABEL
Price
$5.00
208
N/S GRIZZLY GREEN G1023S
Price
N/A
209
BLACK TAPE 90MMH
Price
N/A
211
BLADE GUARD WARNING LABEL
Price
N/A
213
UL 987 WARNING LABEL
Price
N/A
214
TAP SCREW #4 X 3/8
Price
N/A
216
OPEN-END ARBOR WRENCH 7/8 X 7/8"
Price
N/A
217
ARBOR WRENCH 7/8" X 1" CLOSED-ENDS
Price
N/A
219
PUSH STICK
Price
N/A
220
HEX WRENCH 3MM
Price
N/A
222
HEX WRENCH 5MM
Price
N/A
223
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
300

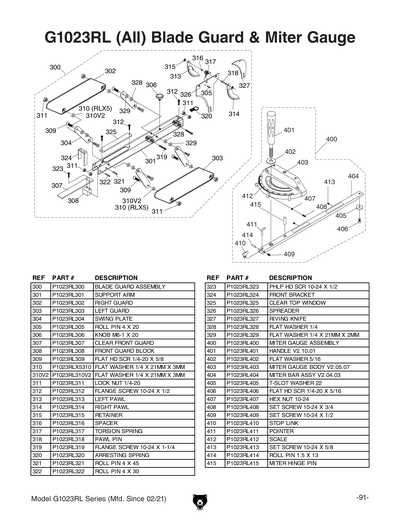

BLADE GUARD ASSEMBLY
Price
N/A
301
SUPPORT ARM
Price
N/A
302
RIGHT GUARD
Price
N/A
303
LEFT GUARD
Price
N/A
304
SWING PLATE
Price
N/A
305
ROLL PIN 4 X 20
Price
N/A
306
KNOB M6-1 X 20
Price
N/A
307
CLEAR FRONT GUARD
Price
N/A
308
FRONT GUARD BLOCK
Price
N/A
309
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
310
FLAT WASHER 1/4
Price
N/A
310V2
FLAT WASHER 6.4 X 21 X 3MM V2.10.20
Price
N/A
311
LOCK NUT 1/4-20
Price
N/A
312
FLANGE SCREW 10-24 X 1/2
Price
N/A
313
LEFT PAWL
Price
N/A
314
RIGHT PAWL
Price
N/A
315
RETAINER
Price
N/A
316
SPACER
Price
N/A
317
TORSION SPRING
Price
N/A
318
PAWL PIN
Price
N/A
319
FLANGE SCREW 10-24 X 1-1/4
Price
N/A
320
ARRESTING SPRING
Price
N/A
321
ROLL PIN 4 X 45
Price
N/A
322
ROLL PIN 4 X 30
Price
N/A
323
PHLP HD SCR 10-24 X 1/2
Price
N/A
324
FRONT BRACKET
Price
N/A
325
CLEAR TOP WINDOW
Price
N/A
326
SPREADER
Price
N/A
327
RIVING KNIFE
Price
N/A
328
FLAT WASHER 1/4
Price
N/A
329
FLAT WASHER 6.4 x 21 x 2MM
Price
N/A
400
Miter Gauge For G0444
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402
FLAT WASHER 5/16
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405
T-SLOT WASHER 22
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
HEX NUT 10-24
Price
N/A
408
SET SCREW 10-24 X 3/4
Price
N/A
409
SET SCREW 10-24 X 1/2
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A

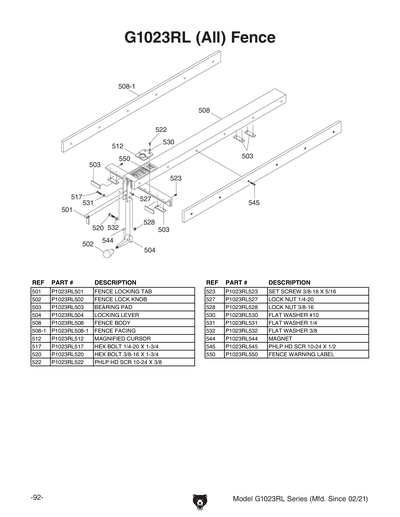

501
FENCE LOCKING TAB
Price
N/A
502
KNOB M10-1.5, D40, TAPERED BALL V2.04.07
Price
N/A
503
BEARING PAD
Price
N/A
504
LOCKING LEVER
Price
N/A
508
FENCE BODY
Price
N/A
508-1
FENCE FACING
Price
N/A
512
MAGNIFIED CURSOR
Price
N/A

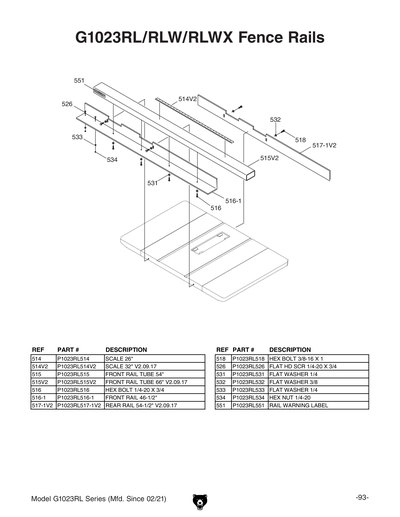

514
SCALE 26"
Price
N/A
514V2
SCALE 32" V2.09.17
Price
N/A
515
FRONT RAIL TUBE
Price
N/A
515V2
FRONT RAIL TUBE 66" V2.09.17
Price
N/A
516
HEX BOLT 1/4-20 X 3/4
Price
N/A
516-1
FRONT RAIL 46-1/2"
Price
N/A
517
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
517-1
REAR RAIL 46-1/2"
Price
N/A
518
HEX BOLT 3/8-16 X 1
Price
N/A
520
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
522
PHLP HD SCR 10-24 X 3/8
Price
N/A
523
SET SCREW 3/8-16 X 5/16
Price
N/A
526
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
527
LOCK NUT 1/4-20
Price
N/A
528
LOCK NUT 3/8-16
Price
N/A
530
FLAT WASHER #10
Price
N/A
531
FLAT WASHER 1/4
Price
N/A
532
FLAT WASHER 3/8
Price
N/A
533
FLAT WASHER 1/4
Price
N/A
534
HEX NUT 1/4-20
Price
N/A
544
MAGNET
Price
N/A
545
PHLP HD SCR 10-24 X 1/2
Price
N/A
550
FENCE WARNING LABEL
Price
N/A
551
RAIL WARNING LABEL
Price
N/A

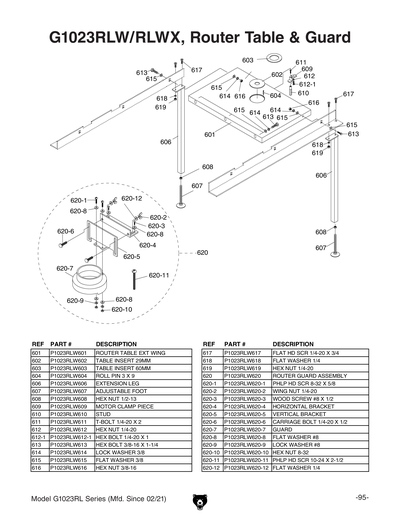

601
ROUTER TABLE EXT WING
Price
N/A
602
TABLE INSERT 29MM
Price
N/A
603
TABLE INSERT 60MM
Price
N/A
604
ROLL PIN 3 X 9
Price
N/A
606
EXTENSION LEG
Price
N/A
607
ADJUSTABLE FOOT
Price
N/A
608
HEX NUT 1/2-12
Price
N/A
609
MOTOR CLAMP PIECE
Price
N/A
610
CLAMP NUT
Price
N/A
611
T-BOLT 1/4-20 X 2"
Price
N/A
612
HEX NUT 1/4-20
Price
N/A
612-1
HEX BOLT 1/4-20 X 1
Price
N/A
613
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
614
LOCK WASHER 3/8
Price
N/A
615
FLAT WASHER 3/8
Price
N/A
616
HEX NUT 3/8-16
Price
N/A
617
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
618
FLAT WASHER 1/4
Price
N/A
619
HEX NUT 1/4-20
Price
N/A
620
ROUTER GUARD ASSEMBLY
Price
N/A
620-1
PHLP HD SCR 8-32 X 5/8
Price
N/A
620-10
HEX NUT 8-32
Price
N/A
620-11
PHLP HD SCR 10-24 X 2-1/2
Price
N/A
620-12
FLAT WASHER 1/4
Price
N/A
620-2
WING NUT 1/4-20
Price
N/A
620-3
TAP SCREW #8 X 1/2
Price
N/A
620-4
HORIZONTAL BRACKET
Price
N/A
620-5
VERTICAL BRACKET
Price
N/A
620-6
CARRIAGE BOLT 1/4-20 X 1/2
Price
N/A
620-7
GUARD
Price
N/A
620-8
FLAT WASHER #8
Price
N/A
620-9
LOCK WASHER #8
Price
N/A
MAN
MAN G1023RL SRS MFD-04.10-05.14 V1.05.10
Price
N/A
