Parts for G1023RLX5 10" 5 HP 240V Cabinet Table Saw with 7' Rails

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

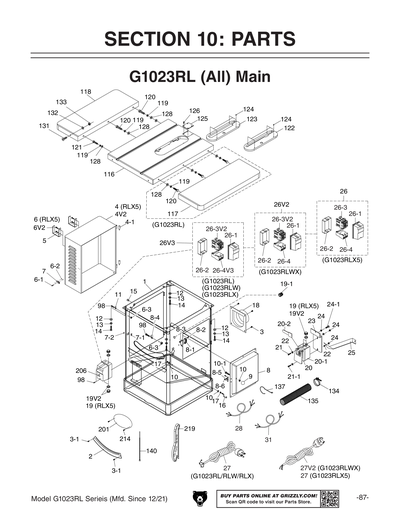

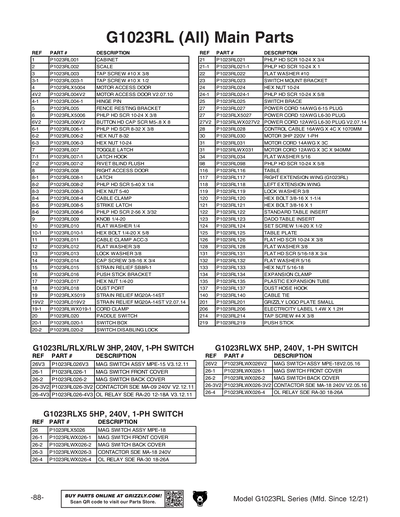

1
CABINET
Price
N/A
2
SCALE
Price
N/A
3
TAP SCREW 10-24 X 3/8
Price
N/A
3-1
TAP SCREW #10 X 1/2
Price
N/A
4
MOTOR ACCESS DOOR V2.07.10
Price
N/A
4-1
HINGE PIN
Price
N/A
5
FENCE RESTING BRACKET
Price
N/A
6
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
6-1
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
6-2
Now: PN14
HEX NUT 8-32
Price
N/A
6-3
Now: PN07
HEX NUT 10-24
Price
N/A
7
TOGGLE LATCH
Price
N/A
7-1
LATCH HOOK
Price
N/A
7-2
RIVET BLIND FLUSH
Price
N/A
8
RIGHT ACCESS DOOR
Price
N/A
8-1
LATCH
Price
N/A
8-2
Now: PS50
PHLP HD SCR 5-40 X 1/4
Price
N/A
8-3
Now: PN28
HEX NUT 5-40
Price
N/A
8-4
CABLE CLAMP
Price
N/A
8-5
STRIKE LATCH
Price
N/A
8-6
PHLP HD SCR 2-56 X 3/32
Price
N/A
9
KNOB 1/4-20
Price
N/A
10
Now: PW06
FLAT WASHER 1/4
Price
N/A
10-1
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
11
CABLE CLAMP ACC-3
Price
N/A
12
Now: PW02
FLAT WASHER 3/8
Price
N/A
13
Now: PLW04
LOCK WASHER 3/8
Price
N/A
14
CAP SCREW 3/8-16 X 3/4
Price
N/A
15
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
N/A
15V2
STRAIN RELIEF 9.2-10.5MM V2.09.25
Price
N/A
16
PUSH STICK BRACKET
Price
N/A
17
Now: PN05
HEX NUT 1/4-20
Price
N/A
18
DUST PORT
Price
N/A
19
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
20-1
ON/OFF SWITCH JUNCTION BOX
Price
N/A
20-2
SWITCH DISABLING LOCK
Price
N/A
20V2
PADDLE SWITCH 220V V2.09.25
Price
N/A
21
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
21-1
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
22
Now: PW03
FLAT WASHER #10
Price
N/A
23
SWITCH MOUNT BRACKET
Price
N/A
24
Now: PN07
HEX NUT 10-24
Price
N/A
24-1
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
25
SWITCH PLATE BRACE
Price
N/A
26
***SEE EXT. DESCRIPTION***
Price
N/A
26-1
MAG SWITCH FRONT COVER
Price
N/A
26-2
MAG SWITCH BACK COVER
Price
N/A
26-3
CONTACTOR SDE MA-18 240V V1
Price
N/A
26-4
OL RELAY SDE RA-30 18-26A
Price
N/A
26V2
MAG SWITCH ASSY MPE-18 V2.09.25
Price
N/A
27
POWER CORD 12G 3W 120" L6-30P
27V2
POWER CORD 12G 3W 72" L6-30P V2.07.14
Price
N/A
28V2
CONTROL CORD 14G 4W 42" V2.09.25
Price
N/A

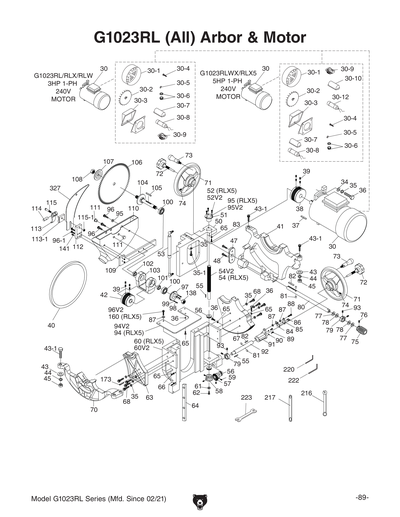

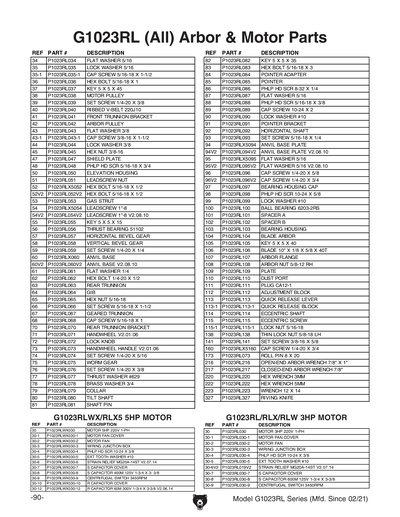

30
MOTOR 5HP 240V 1-PH
Price
N/A
30-1
MOTOR FAN COVER
Price
N/A
30-10
R CAPACITOR COVER
Price
N/A
30-12
V2 R CAPACITOR 60M 300V 1-3/4 X 3-3/8 V2
Price
N/A
30-2
MOTOR FAN
Price
N/A
30-3
WIRING JUNCTION BOX
Price
N/A
30-4
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
30-5
EXT TOOTH WASHER #10
Price
N/A
30-6
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
30-7
S CAPACITOR COVER
Price
N/A
30-8
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
30-9
CENTRIFUGAL SWITCH 3450RPM
Price
N/A
31
MOTOR CORD 12G 3W 37"
Price
N/A
32
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
33
EXT TOOTH WASHER #10
Price
N/A
34
Now: PW07
FLAT WASHER 5/16
Price
N/A
35
Now: PLW01
LOCK WASHER 5/16
Price
N/A
35-1
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
36
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
37
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
38
MOTOR PULLEY
Price
N/A
39
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
40
V-BELT 220J10 RIBBED
Price
N/A
41
FRONT TRUNNION BRACKET
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
Now: PW02
FLAT WASHER 3/8
Price
N/A
43-1
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
44
Now: PLW04
LOCK WASHER 3/8
Price
N/A
45
Now: PN08
HEX NUT 3/8-16
Price
N/A
47
PLATE
Price
N/A
48
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
50
ELEVATION HOUSING
Price
N/A
51
LEADSCREW NUT
Price
N/A
52
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
53
GAS STRUT
Price
N/A
54
LEADSCREW 1"-8 V2.01.11
Price
N/A
55
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
56
THRUST BEARING 51102
Price
N/A
57
HORIZONTAL BEVEL GEAR
Price
N/A
58
VERTICAL BEVEL GEAR
Price
N/A
59
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
60
ANVIL BASE V2.08.10
Price
N/A
61
Now: PW06
FLAT WASHER 1/4
Price
N/A
62
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
63
REAR TRUNNION
Price
N/A
64
GIB
Price
N/A
65
Now: PN02
HEX NUT 5/16-18
Price
N/A
66
Now: PSS20
SET SCREW 5/16-18 X 1-1/2
Price
N/A
67
GEARED TRUNNION
Price
N/A
68
CAP SCREW 5/16-18 X 1
Price
N/A
70
REAR TRUNNION BRACKET
Price
N/A
71
HANDWHEEL V2.01.06
Price
N/A
72
LOCK KNOB
Price
N/A
73
HANDLE V3.06.06
Price
N/A
74
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
75
WORM 1.410" OD
Price
N/A
76
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
77
WAVY WASHER 18MM
Price
N/A
78
BRASS WASHER 3/4
Price
N/A
79
COLLAR
Price
N/A
80
TILT SHAFT
Price
N/A
81
DOWEL PIN
Price
N/A
82
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
83
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
84
POINTER ADAPTER
Price
N/A
85
POINTER
Price
N/A
86
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
87
Now: PW07
FLAT WASHER 5/16
Price
N/A
88
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
89
CAP SCREW 10-24 X 2
Price
N/A
90
Now: PLW12
***USE PLW12***
Price
N/A
91
POINTER BRACKET
Price
N/A
92
HORIZONTAL SHAFT
Price
N/A
93
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
94
ANVIL BASE PLATE V2.08.10
Price
N/A
95
Now: PW07
FLAT WASHER 5/16
Price
N/A
96
CAP SCREW 1/4-20 X 5/8
Price
N/A
96-1
CAP SCREW 1/4-20 X 1
Price
N/A
97
BEARING HOUSING CAP
Price
N/A
98
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
99
Now: PLW03
LOCK WASHER #10
Price
N/A
100
BALL BEARING 6203-2RS
Price
N/A
101
SPACER A
Price
N/A
102
SPACER B
Price
N/A
103
BEARING HOUSING
Price
N/A
104
BLADE ARBOR
Price
N/A
105
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
106
BLADE 10" X 1/8 X 5/8 X 40T
Price
N/A
107
ARBOR FLANGE
Price
N/A
108
***USE P1023RL108***
Price
N/A
109
PLATE
Price
N/A
110
DUST PORT
Price
N/A
111
PLUG CA12-1
Price
N/A
112
ADJUSTMENT BLOCK
Price
N/A
113
QUICK RELEASE LEVER
Price
N/A
113-1
QUICK RELEASE BLOCK
Price
N/A
114
ECCENTRIC SHAFT
Price
N/A
115
ECCENTRIC BOLT
Price
N/A
115-1
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
116
TABLE
Price
N/A
118
EXT WING LEFT
Price
N/A
119
Now: PLW04
LOCK WASHER 3/8
Price
N/A
120
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
121
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
122
STANDARD TABLE INSERT
Price
N/A
123
DADO TABLE INSERT
Price
N/A
124
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
125
TABLE PLATE
Price
N/A
126
Now: PFH01
FLAT HD SCR 10-24 X 3/8
Price
N/A
128
Now: PW02
FLAT WASHER 3/8
Price
N/A
131
Now: PFH14
FLAT HD SCR 5/16-18 X 3/4
Price
N/A
132
Now: PW07
FLAT WASHER 5/16
Price
N/A
133
Now: PN02
HEX NUT 5/16-18
Price
N/A
134
EXPANSION CLAMP
Price
N/A
135
PLASTIC EXPANSION TUBE
Price
N/A
137
DUST HOSE HOOK
Price
N/A
138
THIN LOCK NUT 5/8-18 LH
Price
N/A
140
CABLE TIE FF-150M
Price
N/A
141
Now: PSS21
SET SCREW 3/8-16 X 5/8
Price
N/A
160
CAP SCREW 1/4-20 X 5/8
Price
N/A
173
ROLL PIN 8 X 20
Price
N/A

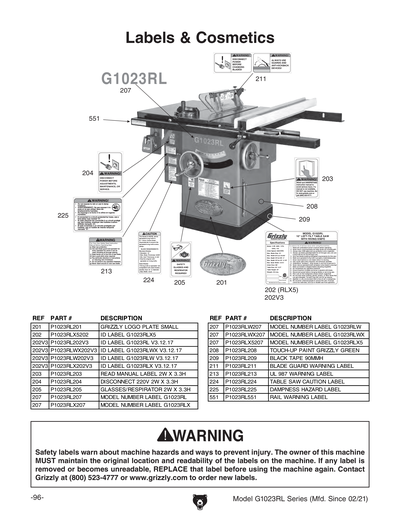

201
Now: G8588
Nameplate - Small
Price
N/A
202
MACHINE ID LABEL
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
MODEL NUMBER LABEL
211
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
214
TAP SCREW #4 X 3/8
Price
N/A
216
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
217
ARBOR WRENCH 7/8" X 1" CLOSED-ENDS
Price
N/A
219
PUSH STICK
Price
N/A
220
HEX WRENCH 3MM
Price
N/A
222
HEX WRENCH 5MM
Price
N/A
223
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
310
FLAT WASHER 6.4 X 21 X 3MM V2.10.20
Price
N/A
327
RIVING KNIFE
Price
N/A

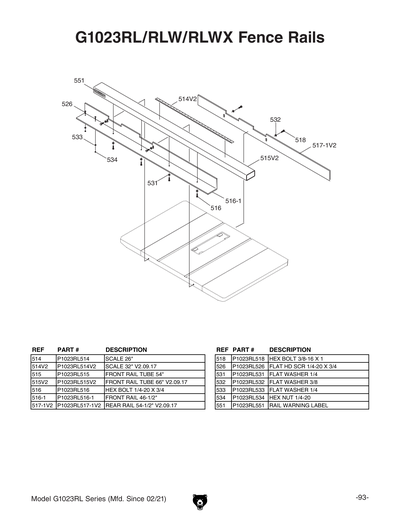

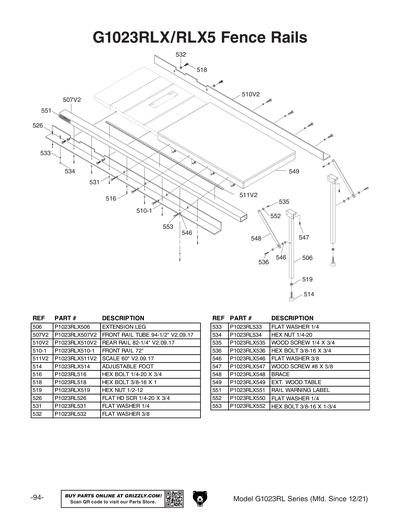

507
FRONT RAIL TUBE 94-1/2" V2.09.17
Price
N/A
510
REAR RAIL 82-1/4" V2.09.17
Price
N/A
511
SCALE 60" V2.09.17
Price
N/A
MAN
MAN G1023RL SRS MFD-02.21-11.21 V5.02.21
Price
N/A
MANV2
MAN G1023RL SRS MFD-12.21-05.23 V6.01.22
Price
N/A
MANV3
MAN G1023RL SRS MFD-06.23-08.25 V7.05.25
Price
N/A
MANV4
MAN G1023RL SRS MFD-09.25+ V8.08.25
Price
N/A
