Parts for G1023S - 10" Table Saw 3 HP Single-Phase 220V

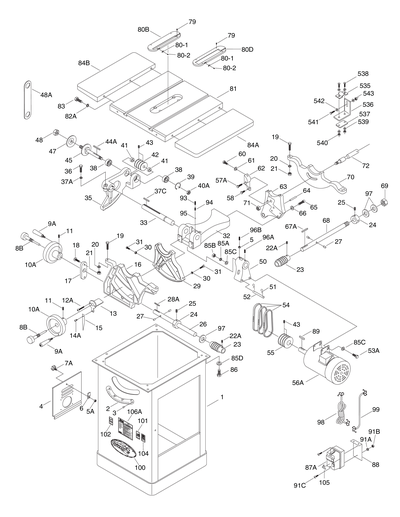

Part Diagram for G1023S

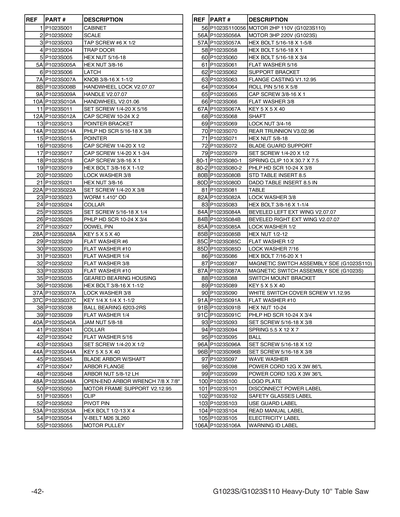

Part Diagram for G1023S

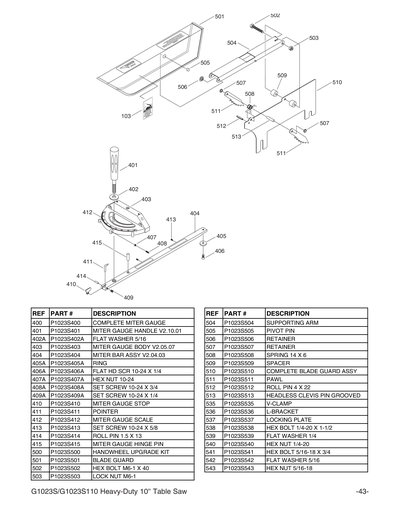

Part Diagram for G1023S
Part Diagram for G1023S
Part Diagram for G1023S
Part Diagram for G1023S

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*CABINET
Price
N/A
2
SCALE
Price
N/A
2A
SCALE V2.07.07
Item is no longer available
Price
N/A
3
TAP SCREW #6 X 1/2
Price
N/A
4
*DISCD*TRAP DOOR
Price
N/A
5
HEX NUT 5/16-18
Price
N/A
5A
HEX NUT 3/8-16
Price
N/A
6
*DISCD*LATCH
Price
N/A
7A
KNOB 3/8-16 X 1-1/2
Price
$2.95
8
HANDWHEEL LOCK V2.01.06
Price
N/A
8A
*DISCD*FENCE FACING
Item is no longer available
Price
N/A
8B
*DISCD*HANDWHEEL LOCK V2.07.07
Item is no longer available
Price
N/A
9
HANDLE V1.12.95
Price
N/A
9A
HANDLE V2.07.07
Price
$16.05
10
HANDWHEEL V2.01.06
Price
N/A
10A
HANDWHEEL V2.01.06
Price
N/A
11
SET SCREW 1/4-20 X 5/16
Price
N/A
12
*DISCD*HAIRLINE INDICATOR V1.03.01
Item is no longer available
Price
N/A
12A
CAP SCREW 10-24 X 2
Price
N/A
12A-1
LOCK WASHER #10
Price
N/A
13
POINTER BRACKET
Price
N/A
14A
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
14A-1
FLAT WASHER 5/16
Price
N/A
15
*DISCD*POINTER
Price
N/A
15A
*DISCD*FRONT RAIL TUBE
Item is no longer available
Price
N/A
15B
POINTER ASSY V2.07.07
Item is no longer available
Price
N/A
15B-1
POINTER BASE PLATE
Item is no longer available
Price
N/A
15B-2
PHLP HD SCR 8-32 X 1/4
Price
N/A
15B-3
POINTER
Item is no longer available
Price
N/A
16
CAP SCREW 1/4-20 X 1/2
Price
N/A
16A
*DISCD*FRONT RAIL SUPPORT
Item is no longer available
Price
N/A
17
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
17A
*DISCD*REAR RAIL
Item is no longer available
Price
N/A
18
CAP SCREW 3/8-16 X 1
Price
N/A
19
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
20
LOCK WASHER 3/8
Price
N/A
21
HEX NUT 3/8-16
Price
N/A
22
PHLP HD SCR 10-24 X 3/8
Price
N/A
22A
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
N/A
24
COLLAR
Price
N/A
25
SET SCREW 5/16-18 X 1/4
Price
N/A
26
PHLP HD SCR 10-24 X 3/4
Price
N/A
27
DOWEL PIN
Price
N/A
28
LOCK NUT 3/8-16
Price
N/A
28A
KEY 5 X 5 X 40
Price
N/A
29
FLAT WASHER #6
Price
N/A
30
FLAT WASHER #10
Price
N/A
31
FLAT WASHER 1/4
Price
N/A
32
FLAT WASHER 3/8
Price
N/A
33
FLAT WASHER #10
Price
N/A
34
HEX NUT 10-24
Price
N/A
35
*DISCD*GEARED BEARING HOUSING
Price
N/A
36
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
37A
LOCK WASHER 3/8
Price
N/A
37C
KEY 1/4 X 1/4 X 1-1/2
Price
N/A
38
BALL BEARING 6203-2RS
Price
N/A
39
FLAT WASHER 1/4
Price
N/A
40
HEX NUT 1/4-20
Price
N/A
40A
JAM NUT 5/8-18
Price
N/A
41
COLLAR
Price
N/A
42
FLAT WASHER 5/16
Price
N/A
43
SET SCREW 1/4-20 X 1/2
Price
N/A
44
*DISCD*MAGNET
Item is no longer available
Price
N/A
44A
KEY 5 X 5 X 40
Price
N/A
45
BLADE ARBOR W/SHAFT
Price
N/A
47
ARBOR FLANGE
Price
N/A
48
ARBOR NUT 5/8-12 LH
Price
N/A
48A
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
50
*DISCD*MOTOR FRAME SUPPORT V2.12.95
Price
N/A
51
CLIP
Price
N/A
52
*DISCD*PIVOT PIN
Price
N/A
53A
HEX BOLT 1/2-13 X 4
Price
N/A
54
V-BELT M26 3L260
Price
N/A
55
MOTOR PULLEY
Price
N/A
56
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Price
N/A
56A
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Price
N/A
56C
*DISCD*MOTOR 2HP 110V 1-PH
Price
N/A
57A
HEX BOLT 5/16-18 X 1-5/8
Price
N/A
58
HEX BOLT 5/16-18 X 1
Price
N/A
60
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
N/A
63
FLANGE CASTING V1.12.95
Price
N/A
64
ROLL PIN 5/16 X 5/8
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
FLAT WASHER 3/8
Price
N/A
67A
KEY 5 X 5 X 40
Price
N/A
68
*DISCD*SHAFT
Price
N/A
69
LOCK NUT 3/4-16
Price
N/A
70
*DISCD*REAR TRUNNION V3.02.96
Price
N/A
71
HEX NUT 5/8-18
Price
N/A
72
BLADE GUARD SUPPORT
Price
N/A
79
SET SCREW 1/4-20 X 1/2
Price
N/A
80-1
*DISCD*SPRING CLIP 10 X 30.7 X 7.5
Price
N/A
80-2
PHLP HD SCR 10-24 X 3/8
Price
N/A
80B
STD TABLE INSERT 8.5
Price
N/A
80D
*DISCD*DADO TABLE INSERT 8.5 IN
Price
N/A
81
*DISCD*TABLE
Price
N/A
82A
LOCK WASHER 3/8
Price
N/A
83
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
*DISCD*EXT WING V1.12.95
Price
N/A
84A
BEVELED LEFT EXT WING V2.07.07
Price
$187.45
84B
*DISCD*BEVELED RIGHT EXT WING V2.07.07
Item is no longer available
Price
N/A
85A
LOCK WASHER 1/2
Price
N/A
85B
HEX NUT 1/2-12
Price
N/A
85C
FLAT WASHER 1/2
Price
N/A
85D
LOCK WASHER 7/16
Price
N/A
86
HEX BOLT 7/16-20 X 1
Price
N/A
87
*DISCD*MAGNETIC SWITCH ASSEMBLY SDE
Item is no longer available
Price
N/A
87A
MAGNETIC SWITCH ASSEMBLY SDE
Price
$108.70
88
SWITCH MOUNT BRACKET
Price
N/A
89
KEY 5 X 5 X 40
Price
N/A
90
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
91A
FLAT WASHER #10
Price
N/A
91B
HEX NUT 10-24
Price
N/A
91C
PHLP HD SCR 10-24 X 3/4
Price
N/A
93
SET SCREW 5/16-18 X 3/8
Price
N/A
94
SPRING 5.5 X 12 X 7
Price
N/A
95
*DISCD*BALL
Price
N/A
96A
SET SCREW 5/16-18 X 1/2
Price
N/A
96B
SET SCREW 5/16-18 X 1-1/4
Price
$2.30
97
WAVY WASHER 18MM
Price
N/A
98
POWER CORD 12G X 3W 86"L
Price
N/A
99
POWER CORD 12G X 3W 36"L
Price
N/A
100
Nameplate - Small
Price
N/A
101
DISCONNECT POWER LABEL
Price
$4.25
102
SAFETY GLASSES LABEL
Price
$4.25
103
USE GUARD LABEL
Price
$4.25
104
READ MANUAL LABEL
Price
$4.25
105
ELECTRICITY LABEL
Price
$4.25
106A
WARNING ID LABEL
Price
$4.25
143A
MAGNIFIED CURSOR
Price
N/A
200
CARTON FOR G1023S
Price
N/A
201
STYROFOAM 2PC
Price
N/A
400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402A
FLAT WASHER 5/16
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405A
RING
Item is no longer available
Price
N/A
406A
FLAT HD SCR 10-24 X 1/4
Price
N/A
407A
HEX NUT 10-24
Price
N/A
408A
SET SCREW 10-24 X 3/4
Price
N/A
409A
SET SCREW 10-24 X 1/4
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
500
HANDWHEEL UPGRADE KIT
Item is no longer available
Price
N/A
501
*DISCD*BLADE GUARD ONLY
Price
N/A
502
HEX BOLT M6-1 X 40
Price
N/A
503
LOCK NUT M6-1
Price
N/A
504
*DISCD*SUPPORTING ARM
Price
N/A
505
*DISCD*PIVOT PIN
Price
N/A
506
*DISCD*RETAINER
Price
N/A
507
*DISCD*RETAINER
Price
N/A
508
*DISCD*SPRING 14 X 6
Price
N/A
509
*DISCD*SPACER
Price
N/A
510
COMPLETE BLADE GUARD ASSY
Price
N/A
511
*DISCD*PAWL
Price
N/A
512
ROLL PIN 4 X 22
Price
N/A
513
*DISCD*HEADLESS CLEVIS PIN GROOVED
Price
N/A
535
V-CLAMP
Price
N/A
536
L-BRACKET
Price
N/A
537
LOCKING PLATE
Price
N/A
538
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
539
FLAT WASHER 1/4
Price
N/A
540
HEX NUT 1/4-20
Price
N/A
541
HEX BOLT 5/16-18 X 3/4
Price
N/A
542
FLAT WASHER 5/16
Price
N/A
543
HEX NUT 5/16-18
Price
N/A
900
CARTON FOR G1023S
Item is no longer available
Price
N/A
901
STYROFOAM 2PC
Item is no longer available
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1023S 11/02
Price
$14.65
