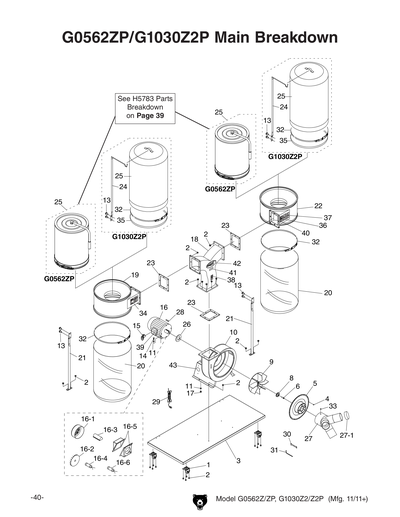

Parts for G1030Z2P - 3 HP Dust Collector with Aluminum Impeller

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

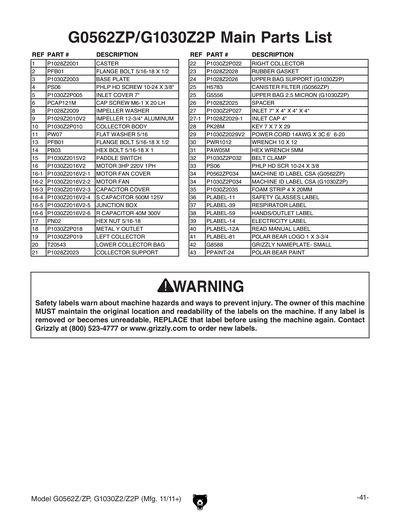

Ref # Part # Description Price Qty
1 P1030Z2P001
Replaced By P1028Z2001
CASTER
N/A View Replacement
2 P1030Z2P002
Replaced By PFB01
FLANGE BOLT 5/16-18 X 1/2
N/A View Replacement
3 P1030Z2P003 BASE PLATE $196.25
4 P1030Z2P004
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
5 P1030Z2P005 INLET COVER 7" $20.75
6 P1030Z2P006
Replaced By PCAP121M
CAP SCREW M6-1 X 20 LH
N/A View Replacement
8 P1030Z2P008
Replaced By P1028Z2009
IMPELLER WASHER
N/A View Replacement
9 P1030Z2P009
Replaced By P1029Z2010V2
IMPELLER 12-3/4" X 95MM X 7/8 ALUM V2.09.11
N/A View Replacement
11 P1030Z2P011
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
13 P1030Z2P013
Replaced By PFB01
FLANGE BOLT 5/16-18 X 1/2
N/A View Replacement
14 P1030Z2P014
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
15 P1030Z2P015
Replaced By P1030Z2015V2
PADDLE SWITCH V2.09.11
N/A View Replacement
16 P1030Z2P016
Replaced By P1030Z2016V2
MOTOR 3HP 220V 1-PH V2.09.11
N/A View Replacement
16-1 P1030Z2P016-1
Replaced By P1030016-1
MOTOR FAN COVER
N/A View Replacement
16-2 P1030Z2P016-2
Replaced By P1030016-2
MOTOR FAN
N/A View Replacement
16-3 P1030Z2P016-3
Replaced By P1030Z2016V2-3
CAPACITOR COVER V2.09.11
N/A View Replacement
16-4 P1030Z2P016-4
Replaced By P1030Z2016V2-4
S CAPACITOR 500M 125V 2 X 3-1/2 V2.09.11
N/A View Replacement
16-5 P1030Z2P016-5
Replaced By P1030Z2016V2-5
JUNCTION BOX V2.09.11
N/A View Replacement
16-6 P1030Z2P016-6
Replaced By P1030Z2016V2-6
R CAPACITOR 40M 300V V2.09.11
N/A View Replacement
17 P1030Z2P017
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
20 P1030Z2P020
Replaced By T20543
41" x 31" Flat - 19.75" Diameter Plastic Bottom Bag
N/A View Replacement
21 P1030Z2P021
Replaced By P1028Z2023
COLLECTOR SUPPORT
N/A View Replacement
23 P1030Z2P023
Replaced By P1028Z2028
GASKET
N/A View Replacement
24 P1030Z2P024
Replaced By P1028Z2026
UPPER BAG SUPPORT
N/A View Replacement
25 P1030Z2P025
Replaced By G5556
2.5 Micron Dust Bag - Large for G1028, G1029 & G1030 Series
N/A View Replacement
26 P1030Z2P026
Replaced By P1028Z2025
SPACER
N/A View Replacement
27-1 P1030Z2P027-1
Replaced By P1028Z2029-1
INLET CAP 4"
N/A View Replacement
28 P1030Z2P028
Replaced By PK28M
KEY 7 X 7 X 29
N/A View Replacement
29 P1030Z2P029
Replaced By P1030Z2029V2
POWER CORD 14G X 3C 6' 6-20 V2.09.11
N/A View Replacement
30 P1030Z2P030
Replaced By PWR1012
WRENCH 10 X 12MM OPEN-ENDS
N/A View Replacement
31 P1030Z2P031
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
33 P1030Z2P033
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
35 P1030Z2P035
Replaced By P1030Z2035
FOAM STRIP 4 X 20MM
N/A View Replacement
36 P1030Z2P036
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
37 P1030Z2P037
Replaced By PLABEL-39
RESPIRATOR 2W X 3.3H
N/A View Replacement
38 P1030Z2P038
Replaced By PLABEL-59
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
N/A View Replacement
39 P1030Z2P039
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
40 P1030Z2P040
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
41 P1030Z2P041
Replaced By PLABEL-81
POLAR BEAR LOGO 1 X 3-3/4
N/A View Replacement
42 P1030Z2P042
Replaced By G8588
Name Plates - Small
N/A View Replacement
43 P1030Z2P043
Replaced By PPAINT-24
POLAR BEAR WHITE TOUCH-UP PAINT
N/A View Replacement
MAN P1030Z2PMAN
Replaced By P1030Z2MANV4
MANUAL G0562Z/ZP G1030Z2/ZP MFG-11.11 + V4.12.13
N/A View Replacement
