Parts for G1035 - 1-1/2 HP Shaper

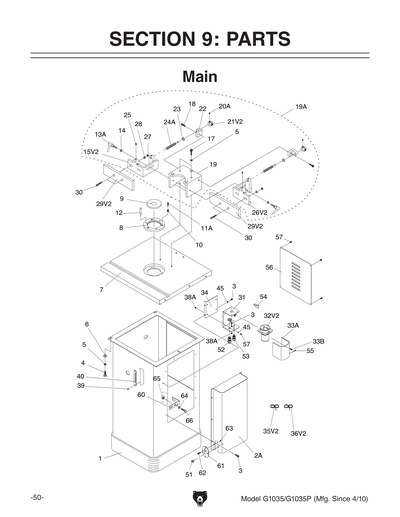

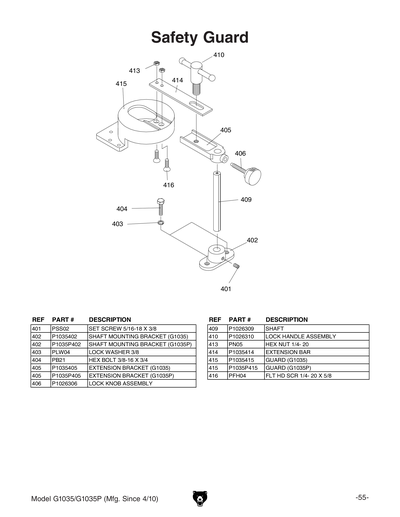

Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035
Part Diagram for G1035

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

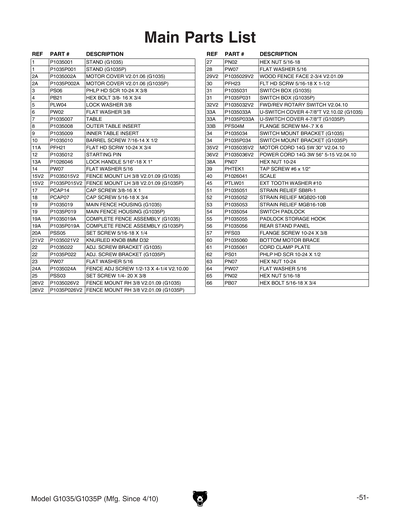

Ref #
Part #
Description
1
STAND
Price
$312.50
2
MOTOR COVER V1.10.95
Price
$43.50
2A
MOTOR COVER V2.01.06
Price
$33.25
3
P1035003
Now: PS06

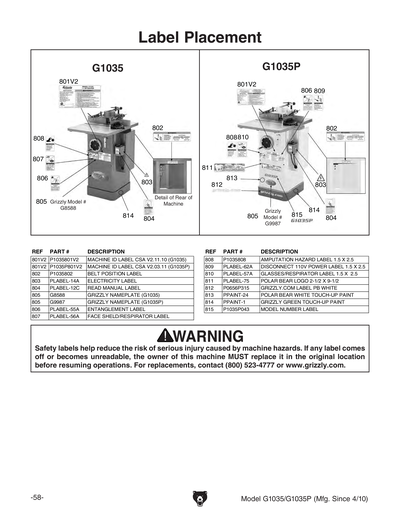

PHLP HD SCR 10-24 X 3/8
Price
N/A
4
P1035004
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
5
LOCK WASHER 3/8
Price
N/A
6
P1035006
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
TABLE
Price
$507.15
8
OUTER TABLE INSERT
Price
$32.65
9
INNER TABLE INSERT
Price
$15.25
10
BARREL SCREW 7/16-14 X 1/2
Price
$2.75
11
FLAT HD SCR 10-24 X 1
Price
N/A
11A
FLAT HD SCR 10-24 X 3/4
Price
N/A
12
STARTING PIN
Price
$2.85
13
P1035013
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
13A
***SEE EXT. DESCRIPTION***
Price
N/A
14
P1035014
Now: PW07
FLAT WASHER 5/16
Price
N/A
15
FENCE MOUNT LEFT 5/16 V1
Price
$21.75
15V2
FENCE MOUNT LH 3/8 V2.01.09
Price
$86.65
16
LOCK WASHER 3/8
Price
N/A
17
CAP SCREW 3/8-16 X 1
Price
N/A
18
CAP SCREW 5/16-18 X 3/4
Price
N/A
19
MAIN FENCE HOUSING
Price
$108.70
194
COMPLETE FENCE ASSEMBLY
Price
N/A
19A
COMPLETE FENCE ASSEMBLY
Price
$329.65
20
SET SCREW 1/4-20 X 1/4
Price
N/A
20A
PHLP HD SCR 5/16-18 X 1
Price
N/A
21
KNURLED KNOB 7MM D25
Price
$2.75
21V2
KNURLED KNOB 8MM D32
Price
$7.25
22
ADJUSTING SCREW BRACKET
Price
$7.90
23
P1035023
Now: PW07
FLAT WASHER 5/16
Price
N/A
24
FENCE ADJ SCREW 3/8-16 X 4-1/8 V1.10.95
Price
$4.60
24A
FENCE ADJ SCREW 1/2-13 X 4-1/4 V2.10.00
Price
$2.45
25
SET SCREW 1/4-20 X 3/8
Price
N/A
26
FENCE MOUNT RIGHT 5/16 V1
Price
$88.80
26V2
FENCE MOUNT RH 3/8 V2.01.09
Price
$84.55
27
P1035027
Now: PN02
HEX NUT 5/16-18
Price
N/A
28
P1035028
Now: PW07
FLAT WASHER 5/16
Price
N/A
29
***USE P1035029V2***
Item is no longer available
Price
N/A
29V2
WOOD FENCE FACE 2-3/4 V2.01.09
Price
$8.50
30
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
31
SWITCH BOX
Price
$31.75
31A
SWITCH BOX
Price
N/A
32
LOCKING F/R SWITCH V2.09.10
Price
N/A
32V2
FWD/REV ROTARY SWITCH V2.04.10
Price
$58.60
33
*DISCD*U SWITCH BOX COVER 4" V1.10.95
Item is no longer available
Price
N/A
33A
U-SWITCH BOX COVER 3-1/4" V2.10.02
Price
$12.40
33B
FLANGE SCREW M4-.7 X 6
Price
N/A
34
SWITCH MOUNT BRACKET
Price
$7.00
35
MOTOR CORD 5C V1
Price
$24.80
35V2
MOTOR CORD 14G 5W 30" V2.04.10
Price
$20.30
36
POWER CORD 3C V1
Price
$28.10
36V2
POWER CORD 14G 3W 56" 5-15 V2.04.10
Price
$32.35
37
STRAIN RELIEF M15 TYPE-2
Price
N/A
38
P1035038
Now: PN07
HEX NUT 10-24
Price
N/A
38A
HEX NUT 10-24
Price
N/A
39
TAP SCREW #6 X 1/2
Price
N/A
40
SPINDLE HEIGHT SCALE
Price
N/A
41
Nameplate - Small
Price
N/A
41-1
MACHINE ID LABEL
Price
$16.40
41A
WARNING LABEL
Price
$2.40
42
GROMMET 28 X 17MM
Price
$3.65
45
EXT TOOTH WASHER #10
Price
N/A
46
ELECTRICITY 1.4W X 1.2H
Price
N/A
47
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
48
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
49
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
50
AMPUTATION HAZARD LABEL 1.5 X 2.5
Price
N/A
51
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
52
STRAIN RELIEF TYPE-6 M20 ST
Price
N/A
53
STRAIN RELIEF M16 TYPE-6 ST
Price
$5.50
54
SWITCH PADLOCK
Price
$8.50
55
PADLOCK STORAGE HOOK
Price
$1.60
56
REAR STAND PANEL
Price
$34.45
57
FLANGE SCREW 10-24 X 3/8
Price
N/A
60
BOTTOM MOTOR BRACE
Price
$6.65
61
CORD CLAMP PLATE
Price
$2.75
62
P1035062
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
63
P1035063
Now: PN07
HEX NUT 10-24
Price
N/A
64
P1035064
Now: PW07
FLAT WASHER 5/16
Price
N/A
65
P1035065
Now: PN02
HEX NUT 5/16-18
Price
N/A
66
P1035066
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
101
HANDLE W/SCREW V1
Price
$9.10
101A
CHROME HANDLE V2.07.06
Price
$20.55
102
HANDLE W/SCREW V1
Price
N/A
103
HANDWHEEL V1.10.95
Price
$9.10
103A
CAST IRON HANDWHEEL V2.07.06
Price
$60.55
104
SET SCREW 5/16-18 X 3/8
Price
N/A
104A
SET SCREW 3/8-16 X 3/8
Price
N/A
105
SET SCREW 1/4-20 X 1/4
Price
N/A
106
COLLAR
Price
$1.60
107
P1035107
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
107A
CAP SCREW 1/4-20 X 3/8
Price
N/A
108
SHAFT MOUNT ASSEMBLY
Price
$27.20
108-1
SHAFT MOUNT
Price
$14.50
109
SHAFT MOUNT ASSEMBLY
Price
N/A
110
WORM SHAFT
Price
$22.15
111
HAND KNOB ASSEMBLY
Price
$6.65
112
ROLL PIN 2 X 12
Price
N/A
113
HAND KNOB ASSEMBLY
Price
N/A
114
GIB
Price
$14.25
115
SET SCREW 5/16-18 X 1-1/4
Price
N/A
115A
SET SCREW 5/16-18 X 1-1/2
Price
N/A
116
P1035116
Now: PN02
HEX NUT 5/16-18
Price
N/A
117
ELEVATION HOUSING
Price
$170.30
118
P1035118
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
119
LOCK WASHER 3/8
Price
N/A
120
LOCK NUT 1/2-13
Price
N/A
121
GEAR 25T
Price
$21.75
122
KEY 5 X 5 X 15
Price
N/A
123
ELEVATION LEADSCREW 5/8 X 10 V2.07.98
Price
$17.50
123-1
THRUST BEARING 51102
Price
N/A
123-2
THRUST BEARING 51102
Price
N/A
123-3
THRUST BEARING 51102
Price
N/A
123A
ELEVATION SCREW V1.10.95
Price
$13.60
123B
BALL BEARING 6002ZZ
Price
N/A
123C
THRUST BEARING 51102
Price
N/A
124
*DISCD*ALIGNMENT BLOCK
Item is no longer available
Price
N/A
125
ROLL PIN 5 X 16
Price
N/A
126
SPINDLE SLIDE
Price
$150.50
127
LOCK WASHER 1/4
Price
N/A
127A
FLAT WASHER 5/16
Price
N/A
128
P1035128
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
128A
HEX BOLT 5/16-18 X 3/4 LH
Price
N/A
129
P1035129
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
129A
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
130
LOCK WASHER 5/16
Price
N/A
131
P1035131
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
131A
HEX BOLT 1/4-20 X 1/2
Price
N/A
132
P1035132
Now: PW06
FLAT WASHER 1/4
Price
N/A
133
L-BRACKET
Price
$10.65
134
POINTER
Price
$1.60
135
P1035135
Now: PW07
FLAT WASHER 5/16
Price
N/A
136
P1035136
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
137
CABLE CLAMP
Price
$2.75
138
P1035138
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
139
V-BELT 7 X 600L
Price
$64.45
140
MOTOR STEP PULLEY
Price
$56.40
141
P1035141
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
141A
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
142
P1035142
Now: PW07
FLAT WASHER 5/16
Price
N/A
143
LOCK WASHER 5/16
Price
N/A
144
KEY 5 X 5 X 35
Price
N/A
144A
KEY 5 X 5 X 30
Price
N/A
145

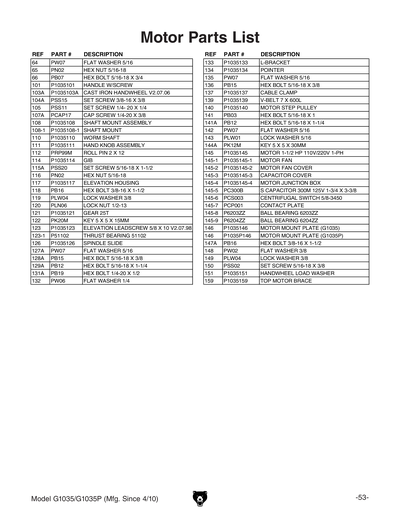

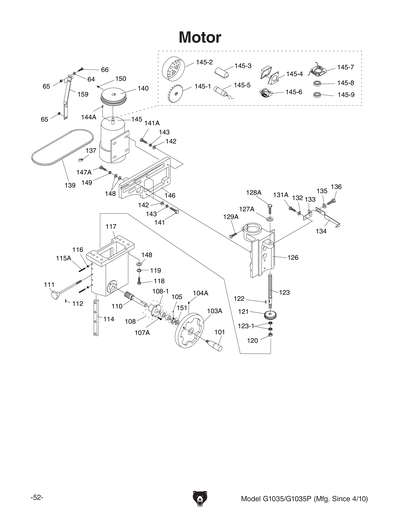

MOTOR 1-1/2 HP 110V/220V 1-PH
Price
$458.60
145-1
MOTOR FAN
Price
$7.00
145-2
MOTOR FAN COVER
Price
$7.00
145-3
CAPACITOR COVER
Price
$2.75
145-4
JUNCTION BOX
Price
$2.75
145-5
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
145-6
CENT SWITCH 5/8-3450
Price
N/A
145-7
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
145-8
BALL BEARING 6203ZZ
Price
N/A
145-9
BALL BEARING 6204ZZ
Price
N/A
145A
MOTOR FAN
Price
N/A
145B
MOTOR FAN COVER
Price
N/A
145C
CAPACITOR COVER
Price
N/A
145D
JUNCTION BOX
Price
N/A
146
MOTOR MOUNT PLATE
Price
$43.50
147
P1035147
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
147-1
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
147A
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
148
P1035148
Now: PW02
FLAT WASHER 3/8
Price
N/A
149
LOCK WASHER 3/8
Price
N/A
150
SET SCREW 5/16-18 X 3/8
Price
N/A
151
WAVY WAHSER 16MM
Price
$1.49
152
THRUST BEARING 51102
Price
N/A
153
MOTOR FAN
Price
N/A
159
TOP MOTOR BRACE
Price
$8.70
201A

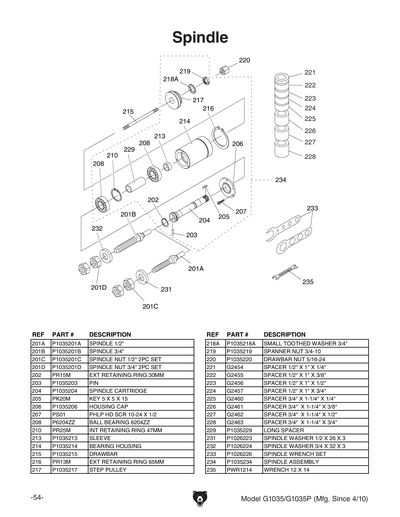

SPINDLE 1/2"
Price
$24.70
201B
SPINDLE 3/4"
Price
$26.95
201C
SPINDLE NUT 1/2" 2PC SET
Price
$6.95
201D
SPINDLE NUT 3/4" 2PC SET
Price
$4.95
202
EXT RETAINING RING 30MM
Price
N/A
203
PIN
Price
$1.60
204
SPINDLE CARTRIDGE
Price
$29.00
205
KEY 5 X 5 X 18
Price
N/A
206
HOUSING CAP
Price
$10.90
207
P1035207
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
208
BALL BEARING 6204ZZ
Price
N/A
209
EXT RETAINING RING 20MM
Price
N/A
210
INT RETAINING RING 47MM
Price
N/A
211
EXT RETAINING RING 20MM
Price
N/A
212
BALL BEARING 6204-2RS
Price
N/A
213
SLEEVE
Price
$3.05
214
BEARING HOUSING
Price
$39.85
215
DRAWBAR
Price
$4.30
216
EXT RETAINING RING 65MM
Price
N/A
217
STEP PULLEY
Price
$20.70
218
EXT TOOTH WASHER 3/4 ZINC
Price
$3.65
218A
EXT TOOTH WASHER 3/4 ZINC
Price
N/A
219
SPANNER NUT 3/4-10
Price
$7.75
220
DRAWBAR NUT 5/16-24
Price
$2.90
221
Spacer - 1/2" ID x 1" OD x 1/4" H
Price
N/A
222
Spacer - 1/2" ID x 1" OD x 3/8" H
Price
N/A
223
Spacer - 1/2" ID x 1" OD x 1/2" H
Price
N/A
224
Spacer - 1/2" ID x 1" OD x 3/4" H
Price
N/A
225
Spacer - 3/4" ID x 1-1/4" OD x 1/4" H
Price
N/A
226
Spacer - 3/4" ID x 1-1/4" OD x 3/8" H
Price
N/A
227
Spacer - 3/4" ID x 1-1/4" OD x 1/2" H
Price
N/A
228
Spacer - 3/4" ID x 1-1/4" OD x 3/4" H
Price
N/A
229
LONG SPACER
Price
$6.60
231
SPINDLE WASHER 1/2 X 26 X 3
Price
N/A
232
FLAT WASHER 3/4"
Price
N/A
233
SPINDLE WRENCH SET
Price
N/A
234
SPINDLE ASSEMBLY
Price
$137.70
235
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
301
KNOB
Price
$11.85
302
P1035302
Now: PW06
FLAT WASHER 1/4
Price
N/A
303
MITER GAUGE BODY V1.12.95
Price
$18.15
304
MITER BAR
Price
N/A
305
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
306
P1035306
Now: PW06
FLAT WASHER 1/4
Price
N/A
307
*DISCD*FIBER WASHER
Price
N/A
308
*DISCD*STUD
Item is no longer available
Price
N/A
309
SET SCREW 10-24 X 1/4
Price
N/A
310
STOP
Price
$7.25
311
POINTER
Price
$7.25
312
MITER BAR
Price
N/A
312A
MITER BAR
Price
N/A
315
SCALE
Price
N/A
316
STOP BLOCK
Price
N/A
317
STOP PIN
Price
N/A
318
FLAT HD SCR 10-24 X 3/8
Price
N/A
320
MITER GAUGE ASSY V1.10.02
Price
N/A
320A
MITER GAUGE ASSY V1.10.02
Price
N/A
401
SET SCREW 5/16-18 X 3/8
Price
N/A
402
SHAFT MOUNTING BRACKET
Price
$15.45
403
LOCK WASHER 3/8
Price
N/A
404
P1035404
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
405
EXTENSION BRACKET
Price
$25.40
406
LOCK KNOB BOLT
Price
N/A
407
LOCK KNOB BOLT
Price
N/A
408
LOCK KNOB BOLT
Price
N/A
409
SHAFT
Price
N/A
409A
SHAFT 5/8"
Price
$1.60
409B
SHAFT
Price
N/A
410
LOCK HANDLE
Price
N/A
411
LOCK HANDLE
Price
N/A
412
LOCK HANDLE
Price
N/A
413
P1035413
Now: PN05
HEX NUT 1/4-20
Price
N/A
413V2
HEX NUT 1/4-20
Price
N/A
414
EXTENSION BAR V1
Price
$7.00
414V2
EXTENSION BAR V2.08.13
Price
N/A
415
MAIN SAFETY GUARD V2.04.10
Price
N/A
415V2
MAIN SAFETY GUARD V2.04.10
Price
$55.85
416
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
416V2
FLAT HD SCR 1/4-20 X 1
Price
N/A
417
*DISCD*COMPLETE EXT BRACKET
Price
$39.70
418
P1035418
Now: PW06
FLAT WASHER 1/4
Price
N/A
419
KNOB BOLT 1/4-20 X 3/8
Price
N/A
420
FRONT SAFETY GUARD (STEEL)
Price
$14.05
421
TOP SAFETY GUARD (PLASTIC)
Price
N/A
451V2A
SAFETY GUARD ASSEMBLY V2.08.13
Price
N/A

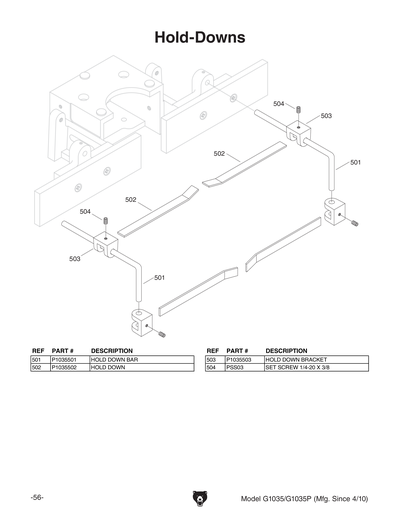

501
HOLD DOWN BAR
Price
$5.15
502
HOLD DOWN
Price
$3.65
503
BRACKET HOLD DOWN
Price
$9.10
504
SET SCREW 1/4-20 X 3/8
Price
N/A
600
WARNING LABEL
Price
N/A

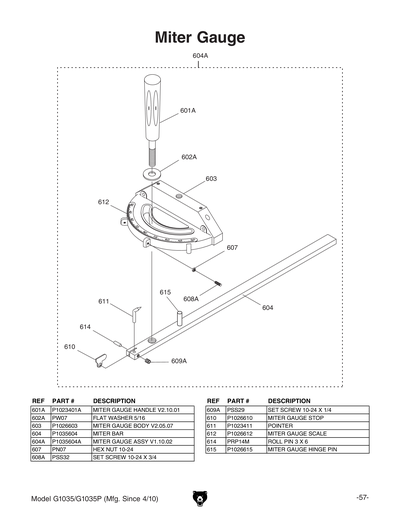

601A
MITER GAUGE HANDLE V2.10.01
Price
N/A
602A
FLAT WASHER 5/16
Price
N/A
603
MITER GAUGE BODY V2.05.07
Price
N/A
604
MITER BAR
Price
$17.25
604A
MITER GAUGE ASSY V1.10.02
Price
$41.70
607
P1035607
Now: PN07
HEX NUT 10-24
Price
N/A
608A
SET SCREW 10-24 X 3/4
Price
N/A
609A
SET SCREW 10-24 X 1/4
Price
N/A
610
MITER GAUGE STOP
Price
N/A
611
*DISCD*POINTER
Price
N/A
612
MITER GAUGE SCALE
Price
N/A
614
ROLL PIN 1.5 X 4
Price
N/A
615
MITER GAUGE HINGE PIN
Price
N/A
616
COMPLETE MITER GAUGE V2.10.02
Price
$86.95
700
HARDWARE BAG
Price
$25.40
701
COMPLETE HARDWARE BOX
Price
$192.00
801
MACHINE ID LABEL NO CSA V1
Price
$16.40
801V2
MACHINE ID LABEL CSA V2.11.10
Price
$16.40
802
BELT POSITION LABEL
Price
$4.25
803
ELECTRICITY 0.7W X 0.6H
Price
N/A
804
READ MANUAL 1.5W X 2.5H
Price
N/A
805
Nameplate - Small
Price
N/A
806
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
807
FACE SHIELD/RESPIRATOR 1.5W X 2.5H
Price
N/A
808
AMPUTATION HAZARD LABEL 1.5 X 2.5
Price
$4.25
900
CARTON FOR G1035
Price
$26.90
901
STYROFOAM 2PC
Price
$22.95
EXTBRKT
*DISCD*COMPLETE EXT BRACKET
Item is no longer available
Price
N/A
FENCE
COMPLETE FENCE ASSEMBLY
Price
N/A
HDBOX
COMPLETE HARDWARE BOX
Price
N/A
HDWBAG
HARDWARE BAG
Price
N/A
HDWBOX
COMPLETE HARDWARE BOX
Price
N/A
MANUAL
MANUAL G1035 01.90 V6.06.06
Price
N/A
MANV1
MANUAL G1035 01.86 V1.05.93
Price
$11.75
MANV2
MANUAL G1035 01.90. V2.09.95
Price
$12.00
MANV3
MANUAL G1035 01.90 V3.04.97
Price
$11.50
MANV4
MANUAL G1035 01.90 V4.04.00
Price
$11.50
MANV5
MANUAL G1035 01.90 V5.10.02
Price
$11.75
MANV6
MANUAL G1035 01.90 V6.06.06
Price
$12.00
MANV7
MANUAL G1035/G1035P MFG 04.10 V7.06.12
Price
$12.75
MITER
MITER GAUGE ASSY V1.10.02
Price
N/A
SPINDLE
SPINDLE ASSEMBLY
Price
N/A
