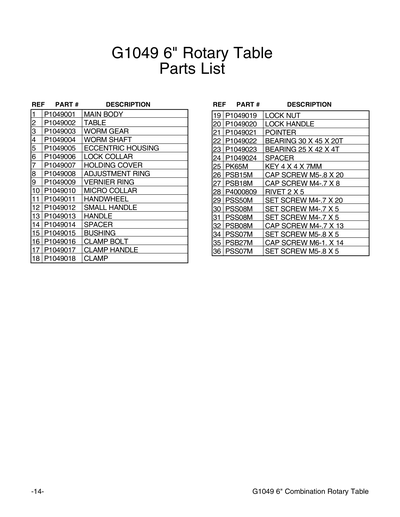

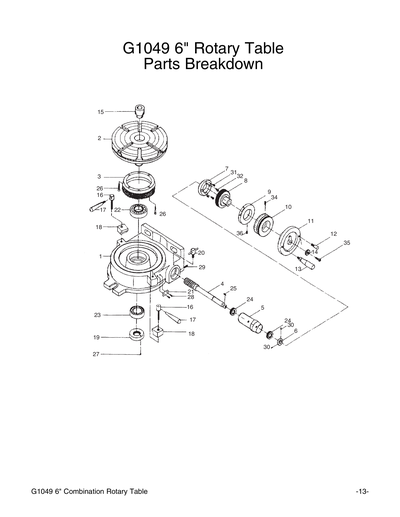

Parts for G1049 6" Combination Rotary Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MAIN BODY
2
TABLE
3
WORM GEAR
4
WORM SHAFT
5
ECCENTRIC HOUSING
6
LOCK NUT M14-1.25
7
HOLDING COVER
8
*DISCD*ADJUSTMENT RING
Item is no longer available
Price
N/A
9
VERNIER RING
10
MICRO COLLAR
11
HANDWHEEL
12
*DISCD*HANDLE SMALL
Item is no longer available
Price
N/A
13
HANDLE
14
SPACER
15
BUSHING
16
CLAMP BOLT M6-1 X 25
17
CLAMP HANDLE
18
CLAMP
19
LOCK NUT M24-1.5
20
LOCK HANDLE
21
POINTER
22
NEEDLE BEARING 30 X 45 X 20T
23
NEEDLE THRUST BEARING 25 X 42 4T
24
*DISCD*SPACER
Item is no longer available
Price
N/A
25
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
26
CAP SCREW M5-.8 X 20
Price
N/A
27
CAP SCREW M4-.7 X 8
Price
N/A
28
RIVET 2 X 4MM NAMEPLATE, COPPER
Price
N/A
29
SET SCREW M4-.7 X 20
Price
N/A
30
SET SCREW M4-.7 X 5
Price
N/A
31
SET SCREW M4-.7 X 5
Price
N/A
32
CAP SCREW M4-.7 X 13
Price
N/A
34
SET SCREW M5-.8 X 5
Price
N/A
35
CAP SCREW M6-1 X 14
Price
N/A
36
SET SCREW M5-.8 X 5
Price
N/A
MANUAL
MANUAL FOR G1049 12/03
P
CAP SCREW M4-.7 X 13
