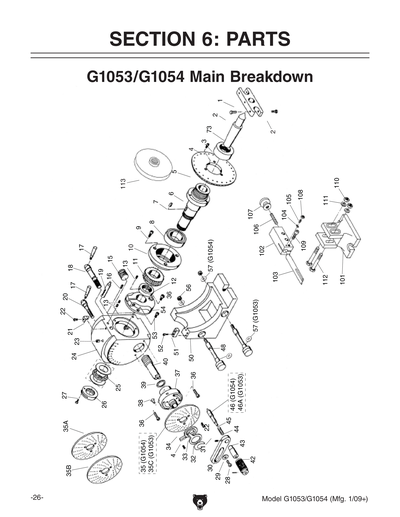

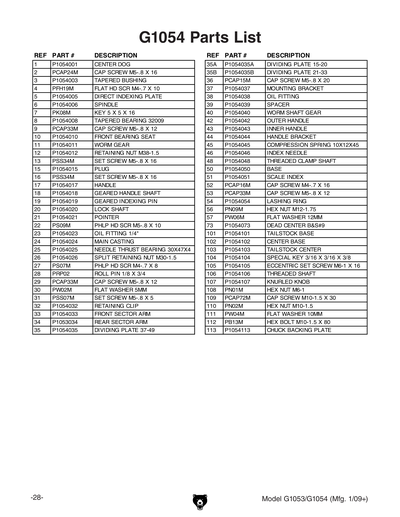

Parts for G1054 Dividing Head - BS-1

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

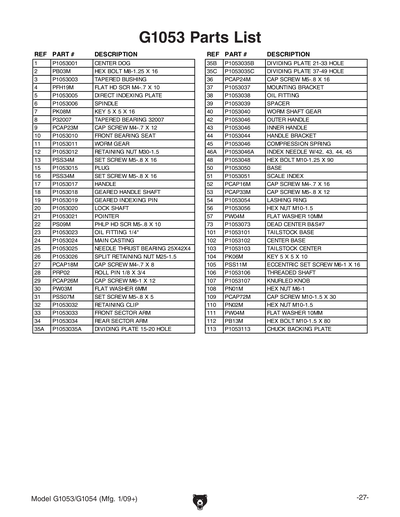

1
CENTER DOG
2
CAP SCREW M5-.8 X 16
Price
N/A
3
TAPERED BUSHING 51 X 35 X 25
4
FLAT HD SCR M4-.7 X 10
Price
N/A
5
DIRECT INDEXING PLATE
6
SPINDLE
7
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
8
TAPER BEARING 32009
9
CAP SCREW M5-.8 X 12
Price
N/A
10
FRONT BEARING SEAT
11
WORM GEAR
12
RETAINING NUT M38-1.5
13
SET SCREW M5-.8 X 16
Price
N/A
14
*DISCD*SPECIAL NUT
Item is no longer available
Price
N/A
15
PLUG
16
SET SCREW M5-.8 X 16
Price
N/A
17
HANDLE
18
GEARED HANDLE SHAFT
19
GEARED INDEXING PIN 10 X 75
20
LOCK SHAFT
21
POINTER
22
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
23
OIL FITTING 1/4 IN
Price
N/A
24
MAIN CASTING
25
NEEDLE THRUST BEARING 30 X 47 4T
26
SPLIT RETAINING NUT M30-1.5
27
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
28
Now: PRP02
ROLL PIN 1/8 X 3/4
Price
N/A
29
CAP SCREW M5-.8 X 12
Price
N/A
30
Now: PW02M
FLAT WASHER 5MM
Price
N/A
31
SET SCREW M5-.8 X 5
Price
N/A
32
RETAINING CLIP
33
SECTOR ARM ASSEMBLY
34
SECTOR ARM ASSEMBLY
Price
N/A
35
DIVIDING PLATE 37-49
35A
DIVIDING PLATE 15-20
35B
DIVIDING PLATE 21-33
36
CAP SCREW M5-.8 X 20
Price
N/A
37
MOUNTING BRACKET
38
OIL FITTING
39
SPACER
40
WORM SHAFT GEAR
42
OUTER HANDLE
42A
HANDLE ASSEMBLY
43
HANDLE ASSEMBLY
Price
N/A
44
HANDLE BRACKET
45
HANDLE ASSEMBLY
Price
N/A
46
HANDLE ASSEMBLY
Price
N/A
48
THREADED CLAMP SHAFT
49
SHAFT
50
BASE
51
SCALE INDEX
52
CAP SCREW M4-.7 X 16
Price
N/A
53
CAP SCREW M5-.8 X 12
Price
N/A
54
LASHING RING
56
Now: PN09M
HEX NUT M12-1.75
Price
N/A
57
Now: PW06M
FLAT WASHER 12MM
Price
N/A
73
DEAD CENTER B&S#9
101
TAILSTOCK BASE
102
CENTER BASE
103
TAILSTOCK CENTER
104
CENTER BASE KEY 3/16 X 3/16 X 3/8
105
ECCENTRIC SET SCREW M6-1 X 16
106
THREADED SHAFT
107
KNURLED KNOB
108
Now: PN01M
HEX NUT M6-1
Price
N/A
109
CAP SCREW M10-1.5 X 30
Price
N/A
110
Now: PN02M
HEX NUT M10-1.5
Price
N/A
111
Now: PW04M
FLAT WASHER 10MM
Price
N/A
112
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
113
CHUCK BACKPLATE
MANUAL
MANUAL G1053/54 04/09
Price
N/A
