Parts for G1066R - 24" 5 HP Drum Sander

Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R
Part Diagram for G1066R

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

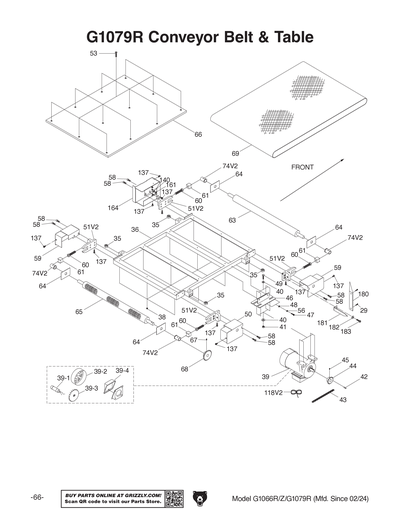

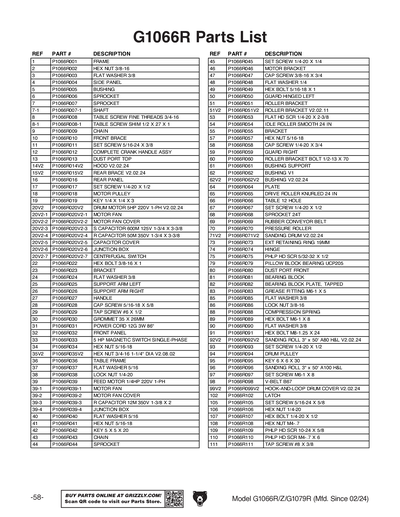

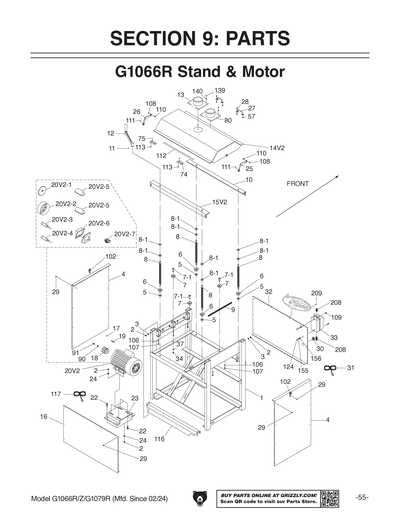

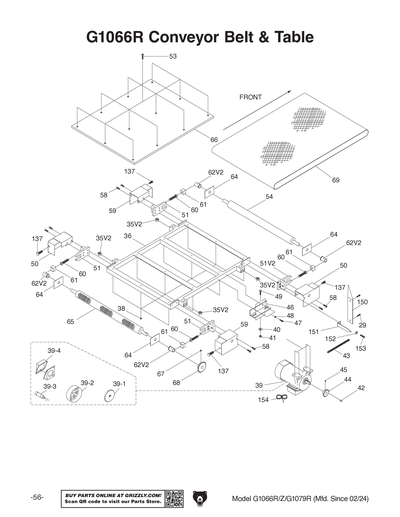

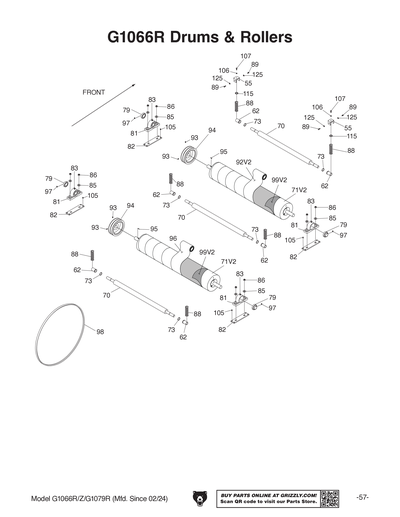

Ref #
Part #
Description
1
FRAME
Price
N/A
2
HEX NUT 3/8-16
Price
N/A
3
FLAT WASHER 3/8
Price
N/A
4
SIDE PANEL
Price
N/A
5
BRASS SHIM
Price
$2.50
6
SPROCKET
Price
N/A
7
SPROCKET
Price
N/A
8
*DISCD*TABLE SCREW COARSE THREADS
Price
N/A
8-1
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
8-1V2
FLAT WASHER 13 x 26.5 x 2 V2.04.25
Price
$1.75
8A
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
9
CHAIN
Price
N/A
10
FRONT BRACE
Price
N/A
11
SET SCREW 5/16-24 X 3/8
Price
N/A
11A
SET SCREW 5/16-24 X 3/8
Price
N/A
12
COMPLETE CRANK HANDLE ASSY
Price
N/A
13
Universal Dust Port
Price
N/A
14
HOOD V1
Price
N/A
15
REAR BRACE
Price
N/A
16
REAR PANEL
Price
N/A
17
SET SCREW 1/4-20 X 1/2
Price
N/A
18
MOTOR PULLEY
Price
N/A
19
KEY 1/4 X 1/4 X 3
Price
N/A
20
DRIVE MOTOR 5HP 220V 1-PH
Price
N/A
20-1
MOTOR FAN
Price
N/A
20-2
MOTOR FAN COVER
Price
N/A
20-3
S CAPACITOR 600M 125V 1-3/4 X 3-3/8
Price
$24.50
20-4
R CAPACITOR 50M 350V 1-3/4 X 3-3/8
Price
$41.95
20-5
CAPACITOR COVER
Price
$9.45
20-6
JUNCTION BOX
Price
$7.25
20-7
CENTRIFUGAL SWITCH
Price
$9.10
20V2
DRUM MOTOR 5HP 220V 1-PH
Price
N/A
20V2-1
MOTOR FAN
Price
N/A
20V2-2
MOTOR FAN COVER
Price
N/A
20V2-3
S CAPACITOR 600M 125V 1-3/4 X 3-3/8
Price
N/A
20V2-4
R CAPACITOR 50M 350V 1-3/4 X 3-3/8
Price
N/A
20V2-5
CAPACITOR COVER
Price
N/A
20V2-6
JUNCTION BOX
Price
N/A
20V2-7
CENTRIFUGAL SWITCH
Price
N/A
21
HEX NUT 3/8-16
Price
N/A
22
HEX BOLT 3/8-16 X 3/4
Price
N/A
23
BRACKET
Price
N/A
24
FLAT WASHER 3/8
Price
N/A
29
TAP SCREW #6 X 1/2
Price
N/A
30
GROMMET 35 X 26MM
Price
N/A
31
POWER CORD 12G X 3W 86"L
Price
N/A
32
FRONT PANEL
Price
N/A
33
5 HP 220V Magnetic Switch Single-Phase
Price
N/A
34
HEX NUT 5/16-18
Price
N/A
35
*DISCD*SQUARE NUT COARSE THREAD
Price
N/A
35V2
HEX NUT 3/4-16 1-1/4"DIA
Price
N/A
36
TABLE FRAME
Price
N/A
37
FLAT WASHER 5/16
Price
N/A
38
LOCK NUT 1/4-20
Price
N/A
39
FEED MOTOR 1/4HP 220V 1-PH
Price
N/A
39-1
MOTOR FAN
Price
$21.20
39-2
MOTOR FAN COVER
Price
$17.25
39-3
R CAPACITOR 12M 350V 1-1/2 X 2
Price
N/A
39-4
JUNCTION BOX
Price
$7.25
40
FLAT WASHER 5/16
Price
N/A
41
HEX NUT 5/16-18
Price
N/A
42
KEY 5 X 5 X 20
Price
N/A
43
CHAIN
Price
N/A
44
SPROCKET
Price
N/A
45
SET SCREW 1/4-20 X 1/2
Price
N/A
46
MOTOR BRACKET
Price
N/A
47
CAP SCREW 3/8-16 X 3/4
Price
N/A
48
FLAT WASHER 5/16
Price
N/A
49
HEX BOLT 5/16-18 X 1
Price
N/A
50
GUARD HINGED LEFT
Price
N/A
51
ROLLER BRACKET
Price
N/A
51V2
ROLLER BRACKET V2.02.11
Price
N/A
52
FLAT HD SCR 1/4-20 X 1-3/4
Price
N/A
53
FLAT HD SCR 1/4-20 X 2-3/8
Price
N/A
54
IDLE ROLLER SMOOTH 24 IN
Price
N/A
55
BRACKET
Price
N/A
56
*DISCD*TABLE BRACKET
Price
N/A
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
N/A
60
ROLLER BRACKET BOLT 1/2-13 X 70
Price
N/A
61
BUSHING SUPPORT
Price
N/A
62
BUSHING
Price
N/A
64
PLATE
Price
N/A
65
DRIVE ROLLER KNURLED 24 IN
Price
N/A
65A
DRIVE ROLLER KNURLED 24 IN
Price
N/A
65B
IDLE ROLLER SMOOTH 24 IN
Price
N/A
66
TABLE 12 HOLE
Price
$48.95
67
SET SCREW 1/4-20 X 1/2
Price
N/A
68
SPROCKET
Price
N/A
69
RUBBER CONVEYOR BELT
Price
N/A
70
PRESSURE ROLLER
Price
N/A
71
*DISCD*SANDING DRUM V1
Price
$452.85
71V2
SANDING DRUM V1
Price
N/A
72
*SEE EXT. DESCRIPTION*
Price
$3.45
73
EXT RETAINING RING 19MM
Price
N/A
74
***USE P1066Z263***
Price
$43.15
75
PHLP HD SCR M4-.7 X 10
Price
N/A
76
CLIP
Price
N/A
76V2
SPRING CLIP V2.09.22
Price
$3.50
77
TENSION WHEEL
Price
N/A
77V2
*SEE EXT. DESCRIPTION*
Price
$43.15
78
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
79
PILLOW BLOCK BEARING UCP205
Price
N/A
80
DUST PORT 6-1/4 X 5
Price
N/A
81
BEARING BLOCK
Price
N/A
82
BEARING BLOCK PLATE, TAPPED
Price
N/A
83
GREASE FITTING M6-1 X 5
Price
N/A
85
FLAT WASHER 3/8
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
TENSION SPRING
Price
N/A
88
COMPRESSION SPRING
Price
N/A
89
HEX BOLT M6-1 X 8
Price
N/A
90
PRESSURE ROLLER BRACKET W/ FOOT
Price
N/A
91
HEX BOLT M8-1.25 X 24
Price
N/A
92
6" x 50' A/O Sanding Roll 60-X Grit, Cloth
Price
N/A
93
SET SCREW 1/4-20 X 1/2
Price
N/A
94
DRUM PULLEY
Price
N/A
95
KEY 6 X 6 X 30
Price
N/A
96
3" x 50' A/O Sanding Roll 100 Grit, H&L
Price
N/A
97
SET SCREW M6-1 X 8
Price
N/A
98
V-BELT B67
Price
N/A
99
*DISCD*FELT 19 X 24 IN
Price
N/A
99V2
HOOK-AND-LOOP DRUM COVER V2.02.24
Price
$47.10
100
*DISCD*RUBBER BUSHING
Price
N/A
101
STRIKE
Price
N/A
102
LATCH
Price
N/A
103
PHLP HD SCR 8-32 X 1/4
Price
N/A
104
HEX NUT 8-32
Price
N/A
105
SET SCREW 5/16-24 X 5/8
Price
N/A
106
HEX NUT 1/4-20
Price
N/A
107
HEX BOLT 1/4-20 X 1/2
Price
N/A
108
HEX NUT M4-.7
Price
N/A
109
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A

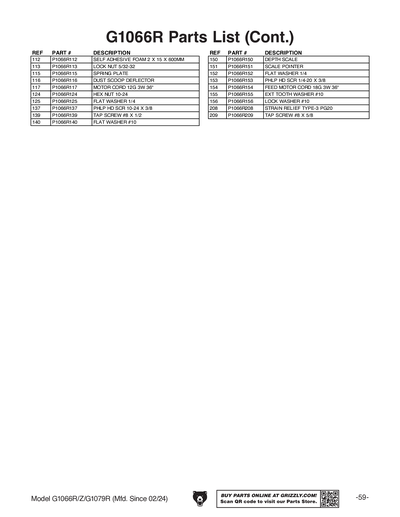

115
SPRING PLATE
Price
N/A
116
DUST SCOOP DEFLECTOR
Price
N/A
117
POWER CORD 12G X 3W 36"L
Price
N/A
124
HEX NUT 10-24
Price
N/A
125
FLAT WASHER 1/4
Price
N/A
137
PHLP HD SCR 10-24 X 3/8
Price
N/A
139
TAP SCREW #8 X 1/2
Price
N/A
140
FLAT WASHER #10
Price
N/A
150
SCALE
Price
N/A
151
POINTER
Price
N/A
152
FLAT WASHER 1/4
Price
N/A
153
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
154
FEED MOTOR CORD 18G 3W 36"
Price
$21.75
155
EXT TOOTH WASHER #10
Price
N/A
156
LOCK WASHER #10
Price
N/A

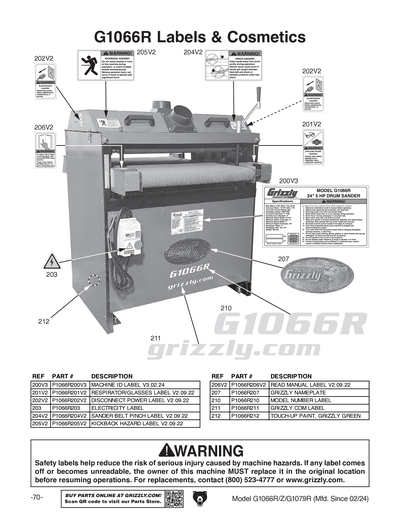

200
ID/WARNING LABEL
Price
$4.75
200V2
ID/WARNING LABEL V2.09.22
Price
$7.65
200V3
MACHINE ID LABEL V3.02.24
Price
$10.95
201
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
201V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
202
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
202V2
DISCONNECT 110V 2W X 3.3H
Price
N/A
204
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
204V2
SANDER BELT PINCH 4W X 2.1H
Price
N/A
205
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
Price
N/A
205V2
KICKBACK HAZARD LABEL V2.09.22
Price
$16.40
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206V2
READ MANUAL 1.5W X 2.5H
Price
N/A
208
STRAIN RELIEF TYPE-3 PG20
Price
$5.15
209
TAP SCREW #8 X 5/8
Price
N/A
210
MODEL NUMBER LABEL
Price
$11.50
211
GRIZZLY.COM LABEL
Price
$11.50
MANUAL
MANUAL FOR G1066/Z/R/G1079 06/12
Price
N/A
MANV2
G1066R/Z/G1079R MFD-02.11-01.24 V2.10.18
Price
$21.50
MANV3
G1066R/Z/G1079R MFD-02.24-03.25 V3.02.24
Price
$17.00
MANV4
G1066R/Z/G1079R MFD-04.25+ V4.02.25
Price
$16.40
