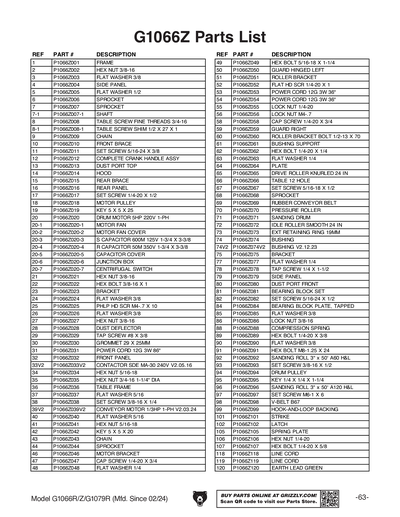

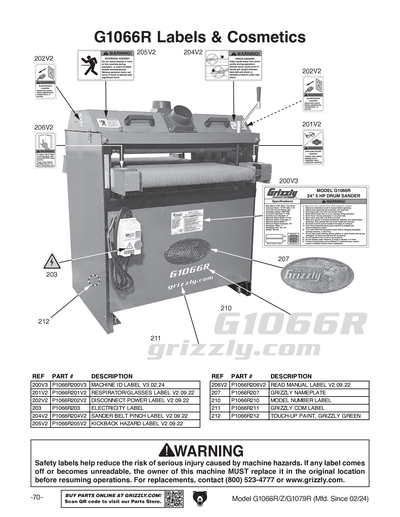

Parts for G1066Z - 24" 5 HP Drum Sander w/ VS

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

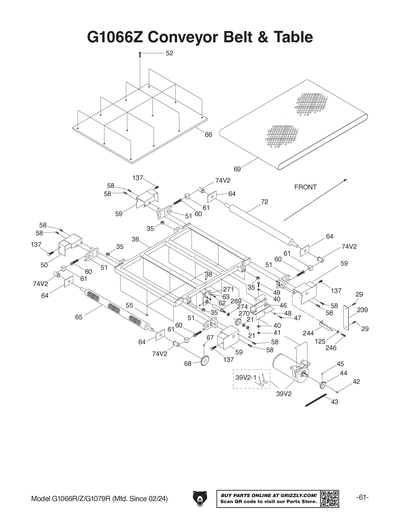

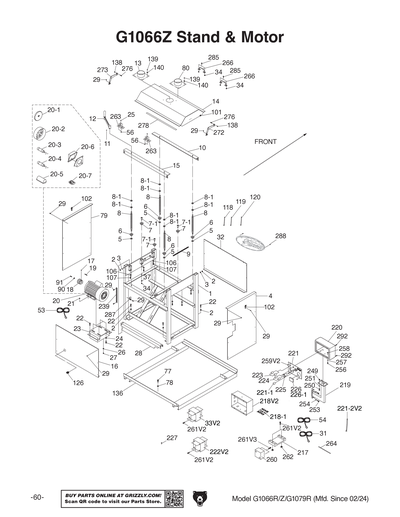

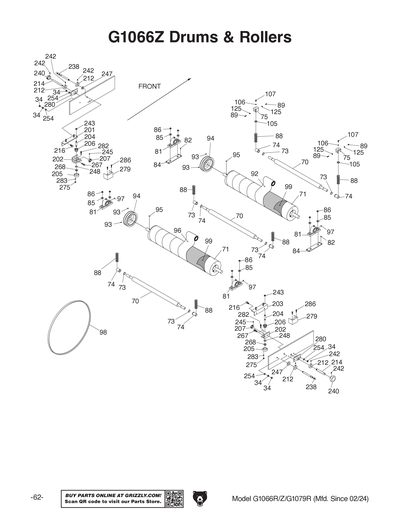

Ref # Part # Description Price Qty
1 P1066Z001
Replaced By P1066001
FRAME
 N/A View Replacement
2 P1066Z002
Replaced By PN08
HEX NUT 3/8-16
 N/A View Replacement
3 P1066Z003
Replaced By PW02
FLAT WASHER 3/8
 N/A View Replacement
4 P1066Z004 SIDE PANEL RIGHT $63.25
4A P1066Z004A SIDE PANEL LEFT $75.00
5 P1066Z005
Replaced By PW01
FLAT WASHER 1/2
 N/A View Replacement
6 P1066Z006
Replaced By P1066006
SPROCKET
 N/A View Replacement
7 P1066Z007
Replaced By P1066007
SPROCKET
 N/A View Replacement
7-1 P1066Z007-1
Replaced By P1066007-1
SHAFT
 N/A View Replacement
8 P1066Z008
Replaced By P1066008-1
TABLE SCREW FINE THREADS 3/4-16
 N/A View Replacement
8-1 P1066Z008-1
Replaced By P1066008A
TABLE SCREW SHIM 1/2 X 27 X 1
 N/A View Replacement
8A P1066Z008A
Replaced By PW01
FLAT WASHER 1/2
 N/A View Replacement
9 P1066Z009
Replaced By P1066009
CHAIN
 N/A View Replacement
10 P1066Z010
FRONT BRACE
 N/A
11 P1066Z011
Replaced By PSS02
SET SCREW 5/16-18 X 3/8
 N/A View Replacement
12 P1066Z012
Replaced By P1066012
COMPLETE CRANK HANDLE ASSY
 N/A View Replacement
13 P1066Z013
Replaced By W1010
Universal Dust Hood
 N/A View Replacement
13A P1066Z013A DUST PORT 6-1/4 X 5 $4.50
14 P1066Z014 HOOD $126.00
15 P1066Z015
Replaced By P1066015
REAR BRACE
 N/A View Replacement
16 P1066Z016 REAR PANEL $48.00
17 P1066Z017
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
 N/A View Replacement
18 P1066Z018
Replaced By P1066018
MOTOR PULLEY
 N/A View Replacement
19 P1066Z019
Replaced By PK23M
KEY 5 X 5 X 25
 N/A View Replacement
20 P1066Z020 DRUM MOTOR 5HP 220V 1-PH $519.00
20-1 P1066Z020-1
Replaced By P1021016-2
MOTOR FAN
 N/A View Replacement
20-2 P1066Z020-2
Replaced By P1066020-2
MOTOR FAN COVER
 N/A View Replacement
20-3 P1066Z020-3
Replaced By P1066R020-3
S CAPACITOR 600M 125V 1-3/4 X 3-3/8
 N/A View Replacement
20-4 P1066Z020-4
Replaced By P1066R020-4
R CAPACITOR 50M 350V 1-3/4 X 3-3/8
 N/A View Replacement
20-5 P1066Z020-5
Replaced By P1066R020-5
CAPACITOR COVER
 N/A View Replacement
20-6 P1066Z020-6
Replaced By P1066R020-6
JUNCTION BOX
 N/A View Replacement
20-7 P1066Z020-7
Replaced By P1066R020-7
CENTRIFUGAL SWITCH
 N/A View Replacement
21 P1066Z021
Replaced By PN08
HEX NUT 3/8-16
 N/A View Replacement
22 P1066Z022
Replaced By PB18
HEX BOLT 3/8-16 X 1
 N/A View Replacement
23 P1066Z023
Replaced By P1066023
BRACKET
 N/A View Replacement
24 P1066Z024
Replaced By PW02
FLAT WASHER 3/8
 N/A View Replacement
25 P1066Z025
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
 N/A View Replacement
26 P1066Z026
Replaced By PW02
FLAT WASHER 3/8
 N/A View Replacement
27 P1066Z027
Replaced By PN08
HEX NUT 3/8-16
 N/A View Replacement
28 P1066Z028 DUST DEFLECTOR $60.00
29 P1066Z029
Replaced By PHTEK7
TAP SCREW #8 X 3/8
 N/A View Replacement
30 P1066Z030 GROMMET 29 X 25MM $1.00
31 P1066Z031
Replaced By PWRCRD220L
POWER CORD 12G X 3W 86"L
 N/A View Replacement
31A P1066Z031A
Replaced By PWRCRD220S
POWER CORD 12G X 3W 36"L
 N/A View Replacement
31B P1066Z031B
Replaced By PWRCRD220L
POWER CORD 12G X 3W 86"L
 N/A View Replacement
32 P1066Z032 FRONT PANEL $30.75
33 P1066Z033 CONTACTOR W/THERMAL M30 220V 50/60HZ V1 $110.00
33V2 P1066Z033V2 CONTACTOR SDE MA-30 240V V2.05.16 $165.00
34 P1066Z034
Replaced By PN02
HEX NUT 5/16-18
 N/A View Replacement
35 P1066Z035
Replaced By P1066035A
HEX NUT 3/4-16 1-1/4"DIA
 N/A View Replacement
36 P1066Z036
TABLE FRAME
 N/A
37 P1066Z037
Replaced By PW07
FLAT WASHER 5/16
 N/A View Replacement
38 P1066Z038
Replaced By PSS33
SET SCREW 3/8-16 X 1/4
 N/A View Replacement
39 P1066Z039 FEED BELT MOTOR 1/3HP 60V 1-PH $623.00
39-1 P1066Z039-1 CONVEYOR MOTOR BRUSH SET OF 2 $9.25
39-2 P1066Z039-2 BRUSH CAP $3.50
40 P1066Z040
Replaced By PW07
FLAT WASHER 5/16
 N/A View Replacement
41 P1066Z041
Replaced By PN02
HEX NUT 5/16-18
 N/A View Replacement
42 P1066Z042
Replaced By PK34M
KEY 5 X 5 X 20
 N/A View Replacement
43 P1066Z043
Replaced By P1066043
CHAIN
 N/A View Replacement
44 P1066Z044
Replaced By P1066044
SPROCKET
 N/A View Replacement
45 P1066Z045
Replaced By PSS11
SET SCREW 1/4-20 X 1/4
 N/A View Replacement
46 P1066Z046 MOTOR BRACKET $21.50
47 P1066Z047
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
 N/A View Replacement
48 P1066Z048
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
49 P1066Z049
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
 N/A View Replacement
50 P1066Z050
Replaced By P1066050A
GUARD HINGED LEFT
 N/A View Replacement
51 P1066Z051
Replaced By P1066051
ROLLER BRACKET
 N/A View Replacement
52 P1066Z052
Replaced By PFH12
FLAT HD SCR 1/4-20 X 1
 N/A View Replacement
53 P1066Z053
Replaced By PWRCRD220S
POWER CORD 12G X 3W 36"L
 N/A View Replacement
54 P1066Z054
Replaced By PWRCRD220S
POWER CORD 12G X 3W 36"L
 N/A View Replacement
55 P1066Z055
Replaced By PLN02
LOCK NUT 1/4-20
 N/A View Replacement
56 P1066Z056
Replaced By PLN01M
LOCK NUT M4-.7
 N/A View Replacement
58 P1066Z058
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
 N/A View Replacement
59 P1066Z059
Replaced By P1066059
GUARD RIGHT
 N/A View Replacement
60 P1066Z060
Replaced By P1066060
ROLLER BRACKET BOLT 1/2-13 X 70
 N/A View Replacement
61 P1066Z061
Replaced By P1066061
BUSHING SUPPORT
 N/A View Replacement
62 P1066Z062
Replaced By PB57
HEX BOLT 1/4-20 X 1/4
 N/A View Replacement
63 P1066Z063
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
64 P1066Z064
Replaced By P1066064
PLATE
 N/A View Replacement
65 P1066Z065
Replaced By P1066065A
DRIVE ROLLER KNURLED 24 IN
 N/A View Replacement
65A P1066Z065A
Replaced By P1066065A
DRIVE ROLLER KNURLED 24 IN
 N/A View Replacement
65B P1066Z065B
Replaced By P1066065B
IDLE ROLLER SMOOTH 24 IN
 N/A View Replacement
66 P1066Z066
TABLE 12 HOLE
 N/A
67 P1066Z067
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
 N/A View Replacement
68 P1066Z068
Replaced By P1066068
SPROCKET
 N/A View Replacement
69 P1066Z069 RUBBER CONVEYOR BELT $420.00
70 P1066Z070
Replaced By P1066070
PRESSURE ROLLER
 N/A View Replacement
71 P1066Z071 SANDING DRUM $309.00
72 P1066Z072
Replaced By P1066065B
IDLE ROLLER SMOOTH 24 IN
 N/A View Replacement
73 P1066Z073
Replaced By PR08M
EXT RETAINING RING 19MM
 N/A View Replacement
74 P1066Z074
Replaced By P1066062
BUSHING
 N/A View Replacement
75 P1066Z075
Replaced By P1066Z090A
BRACKET
 N/A View Replacement
77 P1066Z077
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
78 P1066Z078
Replaced By PHTEK9
TAP SCREW 1/4 X 1-1/2
 N/A View Replacement
79 P1066Z079
Replaced By P1066Z004A
SIDE PANEL LEFT
 N/A View Replacement
80 P1066Z080
Replaced By P1066Z013A
DUST PORT 6-1/4 X 5
 N/A View Replacement
81 P1066Z081 BEARING BLOCK SET $23.50
81A P1066Z081A
Replaced By P1066Z081
BEARING BLOCK SET
 N/A View Replacement
82 P1066Z082
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
 N/A View Replacement
84 P1066Z084
Replaced By P1066082
BEARING BLOCK PLATE, TAPPED
 N/A View Replacement
85 P1066Z085
Replaced By PW02
FLAT WASHER 3/8
 N/A View Replacement
86 P1066Z086
Replaced By PLN01
LOCK NUT 3/8-16
 N/A View Replacement
88 P1066Z088
Replaced By P1066088
COMPRESSION SPRING
 N/A View Replacement
89 P1066Z089
Replaced By PB51
HEX BOLT 1/4-20 X 3/8
 N/A View Replacement
90 P1066Z090
Replaced By PW02
FLAT WASHER 3/8
 N/A View Replacement
90A P1066Z090A
BRACKET
 N/A
91 P1066Z091
Replaced By PB19M
HEX BOLT M8-1.25 X 24
 N/A View Replacement
92 P1066Z092
Replaced By H4422
3" x 50' A/O Sanding Roll 60 Grit, H&L
 N/A View Replacement
92-1 P1066Z092-1
Replaced By H4423
3" x 50' A/O Sanding Roll 100 Grit, H&L
 N/A View Replacement
92-2 P1066Z092-2
Replaced By H4424
3" x 50' A/O Sanding Roll 150 Grit, H&L
 N/A View Replacement
92-3 P1066Z092-3
Replaced By H4779
3" x 50' A/O Sanding Roll 80 Grit, H&L
 N/A View Replacement
92-4 P1066Z092-4
Replaced By H4780
3" x 50' A/O Sanding Roll 120 Grit, H&L
 N/A View Replacement
92A P1066Z092A
Replaced By H5037
Hook & Loop Conversion Kit for Model G1066R and G1079R
 N/A View Replacement
93 P1066Z093
Replaced By PSS09
SET SCREW 3/8-16 X 1/2
 N/A View Replacement
94 P1066Z094
Replaced By P1066094
DRUM PULLEY
 N/A View Replacement
95 P1066Z095
Replaced By PK10
KEY 1/4 X 1/4 X 1-1/4
 N/A View Replacement
96 P1066Z096
Replaced By H4423
3" x 50' A/O Sanding Roll 100 Grit, H&L
 N/A View Replacement
97 P1066Z097
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
98 P1066Z098
Replaced By PVB67
V-BELT B67
 N/A View Replacement
101 P1066Z101
Replaced By P1073099
STRIKE
 N/A View Replacement
102 P1066Z102
Replaced By P1073098
LATCH
 N/A View Replacement
105 P1066Z105
Replaced By P1066115
SPRING PLATE
 N/A View Replacement
106 P1066Z106
Replaced By PN05
HEX NUT 1/4-20
 N/A View Replacement
107 P1066Z107
Replaced By PB02
HEX BOLT 1/4-20 X 5/8
 N/A View Replacement
107A P1066Z107A
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
107B P1066Z107B
Replaced By PHTEK9
TAP SCREW 1/4 X 1-1/2
 N/A View Replacement
118 P1066Z118
LINE CORD
 N/A
119 P1066Z119
LINE CORD
 N/A
120 P1066Z120
EARTH LEAD GREEN
 N/A

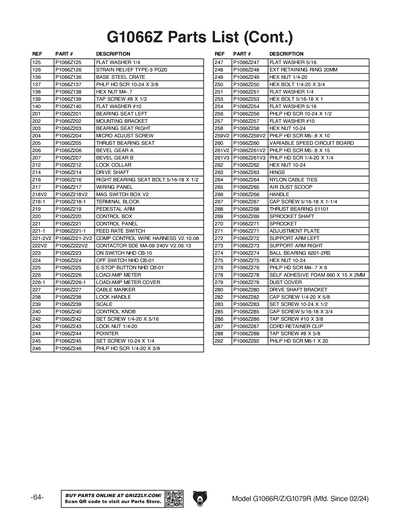

125 P1066Z125
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
126 P1066Z126
Replaced By P1066R208
STRAIN RELIEF TYPE-3 PG20
 N/A View Replacement
136 P1066Z136
BASE STEEL CRATE
 N/A
137 P1066Z137
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
 N/A View Replacement
138 P1066Z138
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
139 P1066Z139
Replaced By PHTEK8
TAP SCREW #8 X 1/2
 N/A View Replacement
140 P1066Z140
Replaced By PW03
FLAT WASHER #10
 N/A View Replacement

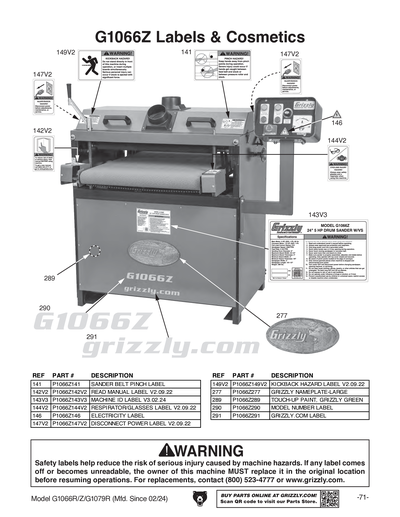

141 P1066Z141
Replaced By PLABEL-22
SANDER BELT PINCH 4W X 2.1H
 N/A View Replacement
141A P1066Z141A
Replaced By PLABEL-22
SANDER BELT PINCH 4W X 2.1H
 N/A View Replacement
141B P1066Z141B
Replaced By PLABEL-17A
FEED ONLY ONE 5.3W X 2.8H V2.04.08
 N/A View Replacement
142 P1066Z142
Replaced By PLABEL-12
***USE PLABEL-12A***
 N/A View Replacement
143 P1066Z143 MACHINE ID/WARNING LABEL $9.50
144 P1066Z144
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
 N/A View Replacement
145 P1066Z145
Replaced By PLABEL-13
DISCONNECT SANDER 220V 2W X 3.3H
 N/A View Replacement
146 P1066Z146
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
 N/A View Replacement
148 P1066Z148
Replaced By PLABEL-5
Z SERIES 11.7W X 2.8H
 N/A View Replacement
149 P1066Z149
Replaced By PLABEL-17A
FEED ONLY ONE 5.3W X 2.8H V2.04.08
 N/A View Replacement
201 P1066Z201
BEARING SEAT LEFT
 N/A
201A P1066Z201A BEARING SEAT RIGHT $10.00
202 P1066Z202 MOUNTING BRACKET $14.25
202A P1066Z202A THRUST BEARING SEAT $10.00
203 P1066Z203
Replaced By P1066Z201A
BEARING SEAT RIGHT
 N/A View Replacement
204 P1066Z204 MICRO ADJUST SCREW $2.25
205 P1066Z205
Replaced By P1066Z202A
THRUST BEARING SEAT
 N/A View Replacement
206 P1066Z206 BEVEL GEAR A $4.25
207 P1066Z207 BEVEL GEAR B $4.25
212 P1066Z212 LOCK COLLAR $1.25
214 P1066Z214 DRIVE SHAFT $1.25
216 P1066Z216 RIGHT BEARING SEAT BOLT 5/16-18 X 1/2 $1.00
217 P1066Z217 WIRING PANEL $15.50
218 P1066Z218 MAG SWITCH BOX $79.00
218-1 P1066Z218-1 TERMINAL BLOCK $7.00
219 P1066Z219 PEDESTAL ARM $33.00
220 P1066Z220 CONTROL BOX $85.50
220A P1066Z220A CONTROL BOX ASSY $564.00
221 P1066Z221 CONTROL PANEL $20.00
221-1 P1066Z221-1 FEED RATE SWITCH $24.00
221-2 P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
Item is no longer available
 N/A
221-2V2 P1066Z221-2V2 COMPLETE CONTROL WIRE HARNESS V2.10.08 $66.00
222 P1066Z222
MAGNETIC CONTACTOR S-A11 220/240V V1
Item is no longer available
 N/A
222V2 P1066Z222V2 CONTACTOR SDE MA-09 240V V2.06.13 $55.50
223 P1066Z223 ON SWITCH $17.00
224 P1066Z224 OFF SWITCH $17.00
225 P1066Z225 E-STOP BUTTON AUSPICIOUS ES16G $12.00
226 P1066Z226 LOAD/AMP METER $48.00
226-1 P1066Z226-1 LOAD/AMP METER COVER $8.50
227 P1066Z227
CABLE MARKER
 N/A
228 P1066Z228
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
229 P1066Z229
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
230 P1066Z230
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
231 P1066Z231
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
232 P1066Z232
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
233 P1066Z233
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
234 P1066Z234
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
235 P1066Z235
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
236 P1066Z236
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
237 P1066Z237
Replaced By P1066Z221-2
*DISCD*COM CONTROL WIRE HARNESS V1.04.08
 N/A View Replacement
238 P1066Z238 LOCK HANDLE $4.75
239 P1066Z239 SCALE $2.50
240 P1066Z240 CONTROL KNOB $16.00
241 P1066Z241
Replaced By PB03
HEX BOLT 5/16-18 X 1
 N/A View Replacement
242 P1066Z242
Replaced By PSS04
SET SCREW 1/4-20 X 5/16
 N/A View Replacement
243 P1066Z243
Replaced By PLN02
LOCK NUT 1/4-20
 N/A View Replacement
244 P1066Z244 POINTER $1.00
245 P1066Z245
Replaced By PSS29
SET SCREW 10-24 X 1/4
 N/A View Replacement
246 P1066Z246
Replaced By PS07
PHLP HD SCR 1/4-20 X 3/8
 N/A View Replacement
247 P1066Z247
Replaced By PW07
FLAT WASHER 5/16
 N/A View Replacement
248 P1066Z248
Replaced By PR09M
EXT RETAINING RING 20MM
 N/A View Replacement
249 P1066Z249
Replaced By PN05
HEX NUT 1/4-20
 N/A View Replacement
250 P1066Z250
Replaced By PB05
HEX BOLT 1/4-20 X 3/4
 N/A View Replacement
251 P1066Z251
Replaced By PW06
FLAT WASHER 1/4
 N/A View Replacement
252 P1066Z252
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
 N/A View Replacement
253 P1066Z253
Replaced By PB03
HEX BOLT 5/16-18 X 1
 N/A View Replacement
254 P1066Z254
Replaced By PW07
FLAT WASHER 5/16
 N/A View Replacement
255 P1066Z255
DOOR
 N/A
256 P1066Z256
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
 N/A View Replacement
257 P1066Z257
Replaced By PW03
FLAT WASHER #10
 N/A View Replacement
258 P1066Z258
Replaced By PN07
HEX NUT 10-24
 N/A View Replacement
259 P1066Z259
Replaced By PHTEK6
TAP SCREW #10 X 3/8
 N/A View Replacement
260 P1066Z260 VARIABLE SPEED CIRCUIT BOARD $176.75
261 P1066Z261
Replaced By PS22
PHLP HD SCR 10-24 X 5/8
 N/A View Replacement
262 P1066Z262
Replaced By PN07
HEX NUT 10-24
 N/A View Replacement
263 P1066Z263 HINGE $4.00
264 P1066Z264
NYLON CABLE TIES
 N/A
265 P1066Z265
AIR DUST SCOOP
 N/A
266 P1066Z266 HANDLE $4.00
267 P1066Z267
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
 N/A View Replacement
268 P1066Z268
Replaced By P51101
THRUST BEARING 51101
 N/A View Replacement
269 P1066Z269 SPROCKET SHAFT $6.00
270 P1066Z270 SPROCKET $4.50
270A P1066Z270A CHAIN TENSIONER ASSY $27.00
271 P1066Z271 ADJUSTMENT PLATE $10.25
272 P1066Z272 SUPPORT ARM LEFT $11.25
273 P1066Z273 SUPPORT ARM RIGHT $11.25
274 P1066Z274
Replaced By P6201-2RS
BALL BEARING 6201-2RS
 N/A View Replacement
275 P1066Z275
Replaced By PN11
HEX NUT 3/8-24
 N/A View Replacement
276 P1066Z276
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
277 P1066Z277
Replaced By G8589
Name Plates - Large
 N/A View Replacement
277A P1066Z277A
Replaced By PHTEK10
TAP SCREW #8 X 5/8
 N/A View Replacement
278 P1066Z278 SELF ADHESIVE FOAM $1.00
279 P1066Z279 DUST COVER $3.00
280 P1066Z280
DRIVE SHAFT BRACKET
 N/A
281 P1066Z281 DIRECTION LABEL $3.00
282 P1066Z282
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
 N/A View Replacement
283 P1066Z283
Replaced By PSS34
SET SCREW 10-24 X 1/2
 N/A View Replacement
284 P1066Z284
FIXING PLATE
 N/A
285 P1066Z285
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
 N/A View Replacement
286 P1066Z286
Replaced By PHTEK6
TAP SCREW #10 X 3/8
 N/A View Replacement
287 P1066Z287
CORD RETAINER CLIP
 N/A
288 P1066Z288
Replaced By PHTEK10
TAP SCREW #8 X 5/8
 N/A View Replacement
290 P1066Z290 TABLE HEIGHT SCALE $3.00
291 P1066Z291 THERMAL OVERLOAD CSA RA30 22/34A $63.00
MANUAL P1066ZMANUAL
Replaced By P1066MANUAL
MANUAL FOR G1066/Z/R/G1079 06/12
 N/A View Replacement
MANV2 P1066ZMANV2
Replaced By P1066RMANV2
G1066R/Z/G1079R MFD-02.11+ V2.10.18
 N/A View Replacement
PART P1066ZPART
MISC PART FOR G1066Z
 N/A
