Parts for G1079 - 16" Drum Sander

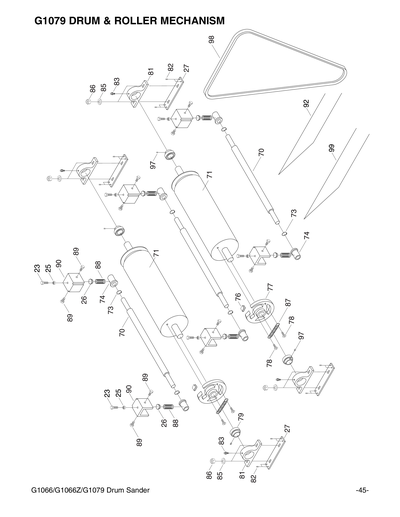

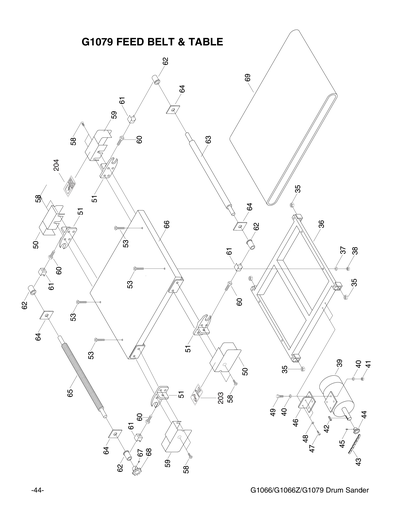

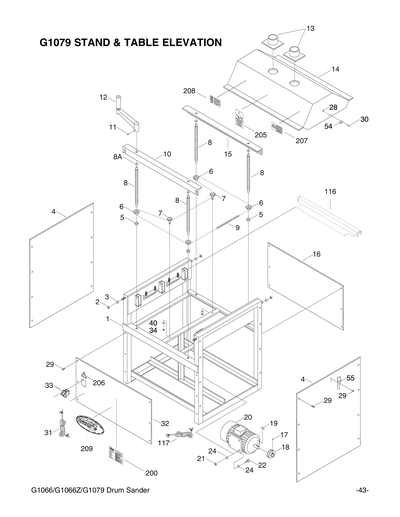

Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079
Part Diagram for G1079

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

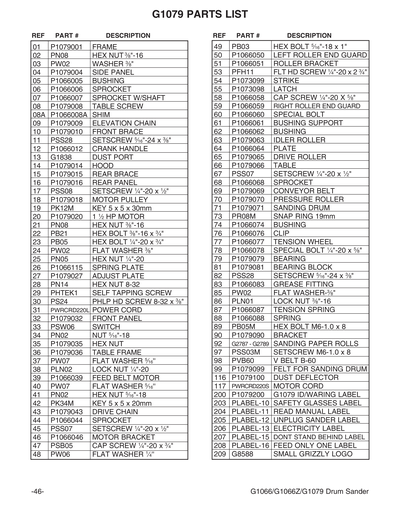

Ref #
Part #
Description
1
FRAME
Item is no longer available
Price
N/A
2
P1079002
Now: PN08
HEX NUT 3/8-16
Price
N/A
3
P1079003
Now: PW02
FLAT WASHER 3/8
Price
N/A
4
Price
$57.10
5
*DISCD*BUSHING
Price
N/A
6
SPROCKET
Price
N/A
7
SPROCKET
Price
N/A
8
Price
$12.40
8A
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
9
Price
$22.70
10
Price
$34.45
11
SET SCREW 1/4-20 X 1/2
Price
N/A
12
COMPLETE CRANK HANDLE ASSY
Price
N/A
13
Universal Dust Port
Price
N/A
14
Price
$81.25
15
REAR BRACE
Item is no longer available
Price
N/A
16
Price
$41.40
17
SET SCREW 1/4-20 X 1/2
Price
N/A
18
Price
$10.90
19
P1079019
Now: PK02
KEY 1/4 X 1/4 X 3
Price
N/A
20
Price
$432.40
21
P1079021
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
P1079022
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
23
BRACKET
Price
N/A
24
P1079024
Now: PW02
FLAT WASHER 3/8
Price
N/A
25
P1079025
Now: PN05
HEX NUT 1/4-20
Price
N/A
26
SPRING PLATE
Price
N/A
27
Price
$5.50
28
P1079028
Now: PN14
HEX NUT 8-32
Price
N/A
29
TAP SCREW #6 X 1/2
Price
N/A
30
P1079030
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
31
Price
$43.50
32
Price
$54.95
33
Safety Paddle Switch
Price
N/A
34
P1079034
Now: PN02
HEX NUT 5/16-18
Price
N/A
35
HEX NUT 3/4-16 1-1/4"DIA
Price
N/A
36
Price
$140.70
37
P1079037
Now: PW07
FLAT WASHER 5/16
Price
N/A
38
LOCK NUT 1/4-20
Price
N/A
39
FEED MOTOR 1/4HP 220V 1-PH
Price
N/A
40
P1079040
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
P1079041
Now: PN02
HEX NUT 5/16-18
Price
N/A
42
KEY 5 X 5 X 20
Price
N/A
43
Price
$25.40
44
SPROCKET
Price
N/A
45
SET SCREW 1/4-20 X 1/2
Price
N/A
46
MOTOR BRACKET
Price
N/A
47
CAP SCREW 1/4-20 X 3/4
Price
N/A
48
P1079048
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
P1079049
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
50
GUARD HINGED LEFT
Price
N/A
51
ROLLER BRACKET
Price
N/A
52
FLAT HD SCR 1/4-20 X 1-3/4
Price
N/A
53
FLAT HD SCR 1/4-20 X 2-3/8
Price
N/A
54
STRIKE
Price
N/A
55
LATCH
Price
N/A
56
TABLE BRACKET
Item is no longer available
Price
N/A
57
Price
$1.90
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
N/A
60
ROLLER BRACKET BOLT 1/2-13 X 70
Price
N/A
61
BUSHING SUPPORT
Price
N/A
62
BUSHING
Price
N/A
63
Price
$48.65
64
PLATE
Price
N/A
65
Price
$48.65
66
Price
$54.35
67
SET SCREW 1/4-20 X 1/2
Price
N/A
68
SPROCKET
Price
N/A
69
Price
$124.70
70
Price
$74.90
71
Price
$247.55
73
EXT RETAINING RING 19MM
Price
N/A
74
BUSHING
Price
N/A
76
CLIP
Price
N/A
77
TENSION WHEEL
Price
N/A
78
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
79
BEARING 204/20MM UCP 204
Price
$29.30
81
Price
$31.45
82
SET SCREW 1/4-20 X 5/8
Price
N/A
83
GREASE FITTING M6-1 X 5
Price
N/A
85
P1079085
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
TENSION SPRING
Price
N/A
88
COMPRESSION SPRING
Price
N/A
89
HEX BOLT M6-1 X 8
Price
N/A
90
Price
$7.90
97
SET SCREW M6-1 X 8
Price
N/A
98
V-BELT B60
Price
N/A
99
*DISCD*FELT 19 X 24 IN
Price
N/A
116
Price
$43.50
200
WARNING LABEL
Item is no longer available
Price
N/A
201
CARTON FOR G1079
Item is no longer available
Price
N/A
202
STYROFOAM 4PC
Price
N/A
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
204
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
205
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
209
Nameplate - Small
Price
N/A
901
STYROFOAM 4PC
Item is no longer available
Price
N/A
901A
TOP STYROFOAM 2PC
Item is no longer available
Price
N/A
901B
BOTTOM 2PC
Item is no longer available
Price
N/A
902
CARTONS
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1066/Z/R/G1079 06/12
Price
N/A
