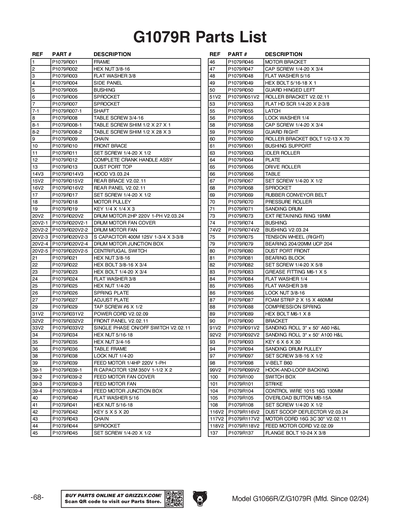

Parts for G1079R 16" 2 HP Drum Sander w/ Rubber Conveyor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRAME
Price
N/A
2
Now: PN08
HEX NUT 3/8-16
Price
N/A
3
Now: PW02
FLAT WASHER 3/8
Price
N/A
4
SIDE PANEL
Price
N/A
5
BRASS SHIM
Price
N/A
6
SPROCKET
Price
N/A
7
SPROCKET
Price
N/A
7-1
SHAFT
Price
N/A
8
TABLE SCREW 3/4-16
Price
N/A
8-1
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
8-2
TABLE SCREW SHIM 1/2 X 28 X 3
8A
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
9
CHAIN
Price
N/A
10
FRONT BRACE
Price
N/A
11
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
12
COMPLETE CRANK HANDLE ASSY
Price
N/A
13
Now: W1010
Universal Dust Port
Price
N/A
14
HOOD
Price
N/A
14V2
HOOD V2.02.11
14V3
HOOD V3.03.24
15
REAR BRACE
Price
N/A
15V2
REAR BRACE V2.02.11
16
REAR PANEL
Price
N/A
16V2
REAR PANEL V2.02.11
17
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
18
MOTOR PULLEY
Price
N/A
19
Now: PK02
KEY 1/4 X 1/4 X 3
Price
N/A
20
MOTOR 2HP 220V 1-PH
Price
N/A
20-1
DRUM MOTOR FAN COVER
20-2
DRUM MOTOR FAN
20-3
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
20-4
DRUM MOTOR JUNCTION BOX
20-5
CENTRIFUGAL SWITCH
20V2
DRUM MOTOR 2HP 220V 1-PH V2.03.24
20V2-1
DRUM MOTOR FAN COVER
20V2-2
DRUM MOTOR FAN
20V2-3
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
20V2-4
DRUM MOTOR JUNCTION BOX
20V2-5
CENTRIFUGAL SWITCH
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
23
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
24
Now: PW02
FLAT WASHER 3/8
Price
N/A
25
Now: PN05
HEX NUT 1/4-20
Price
N/A
26
SPRING PLATE
Price
N/A
27
ADJUST PLATE
Price
N/A
28
Now: PN14
HEX NUT 8-32
Price
N/A
29
TAP SCREW #6 X 1/2
Price
N/A
30
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
31
POWER CORD
Price
N/A
31V2
POWER CORD V2.02.09
32
FRONT PANEL
Price
N/A
32V2
FRONT PANEL V2.02.11
33
Now: G8988
Safety Paddle Switch
Price
N/A
33V2
Now: D4157
Single-Phase On/Off Switch 120/230V
Price
N/A
34
Now: PN02
HEX NUT 5/16-18
Price
N/A
35
Now: PN03
HEX NUT 3/4-16
Price
N/A
36
TABLE FRAME
Price
N/A
37
Now: PW07
FLAT WASHER 5/16
Price
N/A
38
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
39
FEED MOTOR 1/4HP 220V 1-PH
Price
N/A
39-1
R CAPACITOR 12M 350V 1-1/2 X 2
39-2
FEED MOTOR FAN COVER
39-3
FEED MOTOR FAN
39-4
FEED MOTOR JUNCTION BOX
40
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
Now: PN02
HEX NUT 5/16-18
Price
N/A
42
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
43
CHAIN
Price
N/A
44
SPROCKET
Price
N/A
45
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
46
MOTOR BRACKET
Price
N/A
47
CAP SCREW 1/4-20 X 3/4
Price
N/A
48
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
50
GUARD HINGED LEFT
Price
N/A
51
ROLLER BRACKET
Price
N/A
51V2
ROLLER BRACKET V2.02.11
53
Now: PFH11
FLAT HD SCR 1/4-20 X 2-3/8
Price
N/A
54
STRIKE
Price
N/A
55
LATCH
Price
N/A
56
Now: PLW02
LOCK WASHER 1/4
Price
N/A
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
N/A
60
ROLLER BRACKET BOLT 1/2-13 X 70
Price
N/A
61
BUSHING SUPPORT
Price
N/A
62
BUSHING
Price
N/A
63
IDLER ROLLER
Price
N/A
64
PLATE
Price
N/A
65
DRIVE ROLLER
Price
N/A
66
TABLE
Price
N/A
67
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
68
SPROCKET
Price
N/A
69
RUBBER CONVEYOR BELT
70
PRESSURE ROLLER
Price
N/A
71
SAND DRUM
Price
N/A
73
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
74
BUSHING
Price
N/A
76
CLIP
Price
N/A
77
TENSION WHEEL
Price
N/A
78
Now: PFH17
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
79
BEARING 204/20MM UCP 204
Price
N/A
81
BEARING BLOCK
Price
N/A
82
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
83
GREASE FITTING M6-1 X 5
Price
N/A
84
Now: PW06
FLAT WASHER 1/4
Price
N/A
85
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
87
TENSION SPRING
Price
N/A
88
COMPRESSION SPRING
Price
N/A
89
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
90
BRACKET
Price
N/A
91
Now: G2787
6" x 50' A/O Sanding Roll 60-X Grit, Cloth
Price
N/A
92
Now: G2788
6" x 50' A/O Sanding Roll 100-X Grit, Cloth
Price
N/A
93
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
94
DRUM PULLEY ADC3 V1
97
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
98
Now: PVB60
V-BELT B60
Price
N/A
99
*DISCD*FELT 19 X 24 IN
Price
N/A
99V2
HOOK-AND-LOOP BACKING
100
SWITCH BOX
101
STRIKE
Price
N/A
104
CONTROL WIRE 1015 16G 130MM
105
OVERLOAD BUTTON MB-15A
108
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
116
DUST SCOOP DEFLECTOR
Price
N/A
116V2
DUST SCOOP DEFLECTOR V2.03.24
117
MOTOR CORD 3C 750MM V1
117V2
MOTOR CORD 16G 3C 30" V2.02.11
118
ELEVATION MOTOR CORD
119
SPRING CLIP V2.09.22
Price
N/A
120
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
121
Now: PW02M
FLAT WASHER 5MM
Price
N/A
122
CAP SCREW M5-.8 X 10
Price
N/A
137
Now: PFB17
FLANGE BOLT 10-24 X 3/8
Price
N/A

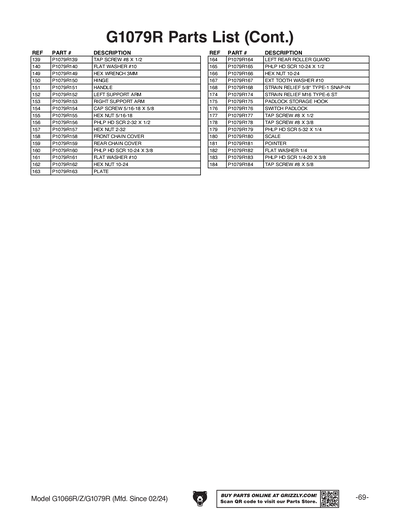

139
TAP SCREW #8 X 1/2
Price
N/A
140
Now: PW03
FLAT WASHER #10
Price
N/A
149
HEX WRENCH 3MM
Price
N/A
150
HINGE
151
HANDLE
152
LEFT SUPPORT ARM
153
RIGHT SUPPORT ARM
154
CAP SCREW 5/16-18 X 5/8
Price
N/A
155
Now: PN02
HEX NUT 5/16-18
Price
N/A
156
PHLP HD SCR 2-32 X 1/2
157
HEX NUT 2-32
158
FRONT CHAIN COVER
159
REAR CHAIN COVER
160
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
161
Now: PW03
FLAT WASHER #10
Price
N/A
162
Now: PN07
HEX NUT 10-24
Price
N/A
163
PLATE
164
LEFT REAR ROLLER GUARD
165
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
166
Now: PN07
HEX NUT 10-24
Price
N/A
167
EXT TOOTH WASHER #10
Price
N/A
168
STRAIN RELIEF 5/8" TYPE-1 SNAP-IN
170
Now: PW01
FLAT WASHER 1/2
Price
N/A
171
SPROCKET SHAFT
172
Now: PLW02
LOCK WASHER 1/4
Price
N/A
173
Now: PW03M
FLAT WASHER 6MM
Price
N/A
174
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
175
PADLOCK STORAGE HOOK
176
SWITCH PADLOCK
177
TAP SCREW #8 X 1/2
Price
N/A
178
TAP SCREW #8 X 3/8
Price
N/A
179
PHLP HD SCR 5-32 X 1/4
180
SCALE
Price
N/A
181
POINTER
Price
N/A
182
Now: PW06
FLAT WASHER 1/4
Price
N/A
183
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
200

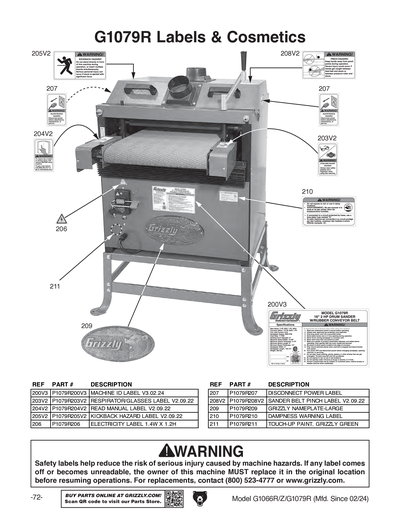

MACHINE ID/WARNING LABEL
200V2
ID/WARNING LABEL V2.09.22
200V3
MACHINE ID LABEL V3.02.24
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
203V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
204
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
204V2
READ MANUAL 1.5W X 2.5H
Price
N/A
205
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
205V2
KICKBACK HAZARD LABEL V2.09.22
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
DISCONNECT 110V 2W X 3.3H
Price
N/A
208
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
208V2
SANDER BELT PINCH 4W X 2.1H
Price
N/A
209
Now: G8588
Nameplate - Small
Price
N/A
210
DAMPNESS WARNING LABEL
MAN
MANUAL FOR G1079R 02/07
MANV2
G1066R/Z/G1079R MFD-02.11-01.24 V2.10.18
Price
N/A
MANV3
G1066R/Z/G1079R MFD-02.24-03.25 V3.02.24
Price
N/A
