Parts for G1163 - 1 HP Light Duty Dust Collector

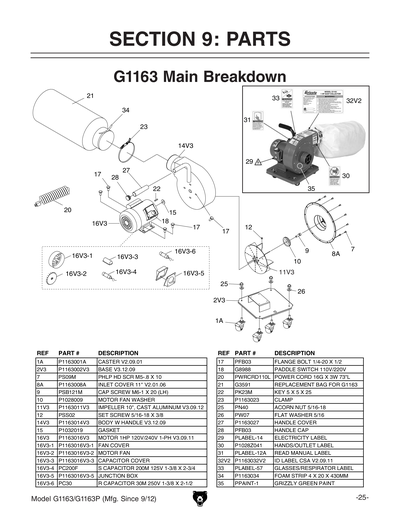

Part Diagram for G1163
Part Diagram for G1163

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1A
Price
$5.75
1B
FLAT WASHER 5/16
Price
N/A
1C
HEX NUT 5/16-18
Price
N/A
2V3
Price
$41.10
3
Price
$7.80
4
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
7
PHLP HD SCR M5-.8 X 10
Price
N/A
8
INLET COVER 10IN V1.12.95
Item is no longer available
Price
N/A
8A
INLET COVER 11" V2.01.06
Price
$16.35
9
CAP SCREW M6-1 X 20 LH
Price
N/A
10
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
11
IMPELLER
Price
N/A
11V2
STEEL IMPELLER 10" V2.12.09
Price
$77.05
11V3
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
N/A
12
SET SCREW 5/16-18 X 3/8
Price
N/A
13
P1163013
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
14V3
COLLECTOR BODY W/HANDLE V3.12.09
Price
$71.10
15
GASKET
Price
N/A
16
*DISCD*MOTOR 1HP 110V/220V 1-PH
Price
N/A
16-1
*DISCD*FAN COVER V1.12.95
Item is no longer available
Price
N/A
16-2
*DISCD*MOTOR FAN V1.12.95
Price
$6.05
16-3
*DISCD*CAPACITOR COVER V1.12.95
Item is no longer available
Price
N/A
16-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
16-5
*DISCD*JUNCTION BOX V1.12.95
Item is no longer available
Price
N/A
16V2
MOTOR 1HP 120V/240V 1-PH V2.09.11
Price
N/A
16V2-1
Price
$18.15
16V2-2
MOTOR FAN V2.06.08
Item is no longer available
Price
N/A
16V2-3
CAPACITOR COVER
Price
N/A
16V2-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
16V2-4V2
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
16V2-5
Price
$10.35
16V2-6
R CAPACITOR 30M 250V 1-1/2 X 2-1/2
Price
N/A
16V3
*DISCD*MOTOR 1HP 120V/240V 1-PH V3.09.11
Item is no longer available
Price
N/A
16V3-1
Price
$19.65
16V3-2
Price
$13.05
16V3-3
Price
$7.60
16V3-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
16V3-5
JUNCTION BOX
Price
N/A
16V3-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
17
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
18
Safety Paddle Switch
Price
N/A
20
POWER CORD 16G X 3W 73"L
Price
N/A
21
Replacement Bag for G1163P Dust Collector
Price
N/A
22
KEY 5 X 5 X 25
Price
N/A
23
Price
$13.60
24
Price
$9.70
25
P1163025
Now: PN40
ACORN NUT 5/16-18
Price
N/A
26
P1163026
Now: PW07
FLAT WASHER 5/16
Price
N/A
27
Price
$1.60
28
Price
$1.49
29
ELECTRICITY 1.4W X 1.2H
Price
N/A
30
HANDS/DUST COLLECTOR OUTLET 1.5W X 2.5H
Price
N/A
31
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
32
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
32V2
MACHINE ID LABEL CSA V2.09.11
Item is no longer available
Price
N/A
33
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
34
FOAM STRIP 4 X 20 X 430MM
Price
N/A
35
N/S GRIZZLY GREEN G1023S
Price
N/A
BOX2
COMPLETE STAND ASSY BOX 2
Item is no longer available
Price
N/A
MANUAL
Price
$16.00
MANV1
MANUAL G1163 MFG-11.94 V1.02.99
Item is no longer available
Price
N/A
MANV2
MANUAL G1163 MFG-02.06 V2.07.08
Item is no longer available
Price
N/A
MANV3
MANUAL G1163 MFG-12.09 V3.12.09
Item is no longer available
Price
N/A
MANV4
MANUAL G1163 MFG-09.11 V4.10.11
Item is no longer available
Price
N/A
MANV5
MANUAL G1163/G1163P MFG-11.11 V5.12.11
Item is no longer available
Price
N/A
