Parts for G1163P - 1 HP Light Duty Dust Collector - Polar Bear Series

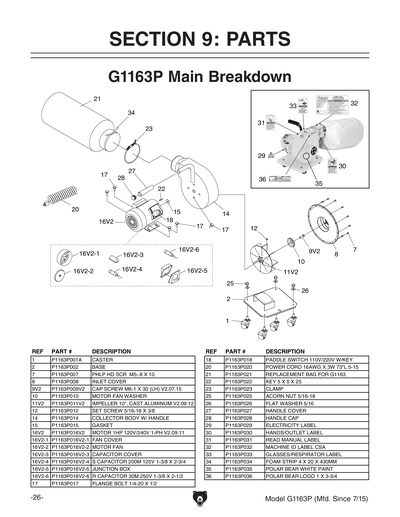

Part Diagram for G1163P
Part Diagram for G1163P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CASTER V2.09.01
Price
N/A
2
Price
$73.20
7
PHLP HD SCR M5-.8 X 10
Price
N/A
8
Price
$18.75
9
CAP SCREW M6-1 X 20 LH
Price
N/A
9V2
SET SCREW M6-1 X 30 (LH)
Price
N/A
10
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
11
STEEL IMPELLER 10" V2.12.09
Price
N/A
11V2
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
N/A
12
SET SCREW 5/16-18 X 3/8
Price
N/A
14
COLLECTOR BODY W/ HANDLE
Price
$65.20
15
GASKET
Price
N/A
16
MOTOR 1HP 110V/220V 1-PH V1
Price
$245.80
16-1
Price
$13.95
16-2
MOTOR FAN V2.06.08
Price
N/A
16-3
Price
$4.85
16-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
16-5
JUNCTION BOX
Price
N/A
16-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
16V2
MOTOR 1HP 120V/240V 1-PH V2.09.11
Price
$203.35
16V2-1
Price
$9.10
16V2-2
Price
$8.50
16V2-3
Price
$4.50
16V2-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
16V2-5
Price
$10.65
16V2-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
17
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
18
Safety Paddle Switch
Price
N/A
20
POWER CORD 16G X 3W 73"L
Price
N/A
21
Replacement Bag for G1163P Dust Collector
Price
N/A
22
KEY 5 X 5 X 25
Price
N/A
23
CLAMP
Price
N/A
25
ACORN NUT 5/16-18
Price
N/A
26
FLAT WASHER 5/16
Price
N/A
27
HANDLE COVER
Price
N/A
28
HANDLE CAP
Price
N/A
29
ELECTRICITY 1.4W X 1.2H
Price
N/A
30
HANDS/DUST COLLECTOR OUTLET 1.5W X 2.5H
Price
N/A
31
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
32
Price
$16.40
33
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
34
FOAM STRIP 4 X 20 X 430MM
Price
N/A
35
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
36
POLAR BEAR LOGO-SMALL 3.75W X 1H
Price
N/A
MAN
MANUAL G1163/G1163P MFG-11.11 V5.12.11
Price
N/A
