Parts for G1495 Heavy-Duty Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

TAILSTOCK
*DISCD*COMPLETE TAILSTOCK ASSEMBLY
Price
N/A
1
*DISCD*BASE
2
*DISCD*HEADSTOCK
Item is no longer available
Price
N/A
2A
*DISCD*COMPLETE HEADSTOCK ASSY
Item is no longer available
Price
N/A
3
BALL BEARING 6205-2RS
Price
N/A
3A
BALL BEARING 6205-2RS
Price
N/A
3B
BALL BEARING 5205-OPEN
Price
N/A
4
*DISCD*SPINDLE W/COLLAR
Price
N/A
5
*DISCD*SPINDLE W/COLLAR
Item is no longer available
Price
N/A
6
BALL BEARING 6205-2RS
Price
N/A
7
Now: PK18M
KEY 4 X 4 X 82
Price
N/A
8
*DISCD*SHIFTING BRACKET
Item is no longer available
Price
N/A
9
BALL BEARING 6006-2RS
Price
N/A
10
*DISCD*SPINDLE PULLEY 6" V1.12.95
Item is no longer available
Price
N/A
10A
*DISCD*SPINDLE PULLEY 5" V2.12.97
Item is no longer available
Price
N/A
11
*DISCD*SPINDLE PULLEY 5" V2.12.97
Price
N/A
12
*DISCD*SHIFTING ROD
Item is no longer available
Price
N/A
13
*DISCD*GEAR SHIFTING LEVER
Item is no longer available
Price
N/A
14
*DISCD*SHIFTING RING
15
*DISCD*SPRING
Item is no longer available
Price
N/A
16
*DISCD*DETENT SPRING
Item is no longer available
Price
N/A
17
*DISCD*ADJUSTMENT BLOCK W/NUT
Item is no longer available
Price
N/A
18
*DISCD*ADJUSTMENT BLOCK W/NUT
Price
N/A
18A
Now: PN05
HEX NUT 1/4-20
Price
N/A
19
*DISCD*LOCK PIN
Price
N/A
20
*DISCD*HELICAL SPRING D22 X 92
Item is no longer available
Price
N/A
21
*DISCD*HEAD COVER
Item is no longer available
Price
N/A
22
*DISCD*FACEPLATE
Item is no longer available
Price
N/A
23
*DISCD*SPUR CENTER MT#2
Item is no longer available
Price
N/A
24
*DISCD*TAILSTOCK
Item is no longer available
Price
N/A
24A
*DISCD*COMPLETE TAILSTOCK ASSEMBLY
Item is no longer available
Price
N/A
25
*DISCD*BARREL W/ 5/8"-18 LH
Price
N/A
25A
*DISCD*BARREL W/ 5/8"-18 LH
Item is no longer available
Price
N/A
25B
*DISCD*BARREL W/1/2IN-12 LH
Item is no longer available
Price
N/A
26
*DISCD*LEADSCREW 5/8-18 X 120 LH
Price
N/A
26A
*DISCD*LEADSCREW 5/8-18 X 120 LH
Item is no longer available
Price
N/A
26B
*DISCD*LEADSCREW 5/8-18 X 120 LH
Price
N/A
27
Now: PW02
FLAT WASHER 3/8
Price
N/A
28
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
29
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
30
*DISCD*HANDLE
31
*DISCD*LOCK LEVER
Item is no longer available
Price
N/A
32
*DISCD*ECCENTRIC ROD
Item is no longer available
Price
N/A
33
*DISCD*BASE BOLT D19.2 X 73
Item is no longer available
Price
N/A
34
*DISCD*LOCK BLOCK
Item is no longer available
Price
N/A
35
Now: PN17
HEX NUT 3/4-10
Price
N/A
36
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
36A
*DISCD*LOCK HANDLE STOP PIN
Item is no longer available
Price
N/A
37
*DISCD*SHAFT MT#2
Price
N/A
37A
*DISCD*SHAFT MT#2
Item is no longer available
Price
N/A
37B
*DISCD*TIP FOR LIVE CENTER
Item is no longer available
Price
N/A
37C
Now: H3408
Live Center - MT2
Price
N/A
38
BALL BEARING 6201-2RS
Price
N/A
39
Now: H3408
Live Center - MT2
Price
N/A
39A
*DISCD*SHAFT MT#2
Price
N/A
40
*DISCD*SLIDING BRACKET
Item is no longer available
Price
N/A
41
*DISCD*MOUNTING PLATE
Item is no longer available
Price
N/A
42
*DISCD*KNOB
43
*DISCD*GUARD
Item is no longer available
Price
N/A
44
*DISCD*FIXED PLATE
45
*DISCD*MOUNTING BAR
46
*DISCD*SLIDING BAR
47
*DISCD*MOUNTING BAR
Price
N/A
48
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
Now: PB30
HEX BOLT 5/16-18 X 4-1/2
Price
N/A
50
*DISCD*TOOL REST BODY
Item is no longer available
Price
N/A
51
*DISCD*ECCENTRIC ROD W/HANDLE
Item is no longer available
Price
N/A
52
*DISCD*ECCENTRIC ROD W/HANDLE
Price
N/A
53
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
54
*DISCD*TOOL REST W/070
Price
N/A
55
*DISCD*LOCK LEVER
Price
N/A
56
*DISCD*STAND LEFT
56A
*DISCD*COMPLETE LEFT STAND ASSY
56B
*DISCD*COMPLETE STAND ASSY BOX 2
57
*DISCD*STAND RIGHT
58
*DISCD*TOP SHELF
59
*DISCD*BOTTOM SHELF
60
*DISCD*DOOR LATCH
Item is no longer available
Price
N/A
61
*DISCD*FLOOR MOUNT RIGHT
Item is no longer available
Price
N/A
61B
*DISCD*FLOOR MOUNT MIDDLE
62
*DISCD*FLOOR MOUNT LEFT
Item is no longer available
Price
N/A
63
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
64
*DISCD*MOTOR 3/4HP 110V/220V 1-PH
Item is no longer available
Price
N/A
64-1
*DISCD*FAN COVER
Item is no longer available
Price
N/A
64-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
64-3
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
64-4
S CAPACITOR 200M 125V 1-1/2 X 2-3/8
Price
N/A
64-5
*DISCD*JUNCTION BOX
Item is no longer available
Price
N/A
65
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
66
Now: PN02
HEX NUT 5/16-18
Price
N/A
67
Now: PK93M
KEY 4 X 4 X 80
Price
N/A
68
*DISCD*PULLEY SET 4.5"DIA
Price
N/A
68A
*DISCD*PULLEY SET 4.5"DIA
Item is no longer available
Price
N/A
68B
*DISCD*PULLEY SET 4.5"DIA
Price
N/A
69
*DISCD*PULLEY SET 4.5"DIA
Price
N/A
70
*DISCD*SPRING D26.5 X 60
Item is no longer available
Price
N/A
71
*DISCD*SPRING RETAINER
Item is no longer available
Price
N/A
72
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
73
*DISCD*SANDING DISC
Item is no longer available
Price
N/A
74
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
75
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
76
POWER CORD 16G X 3W 73"L
Price
N/A
76A
POWER CORD 16G X 3W 24"L
Price
N/A
76B
POWER CORD 16G X 3W 73"L
Price
N/A
76C
*DISCD*POWER CORD IEC FEMALE
Price
N/A
77
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
78
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
79
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
80
Now: PVM50
V-BELT M50 3L500
Price
N/A
80A
Now: PVM50
V-BELT M50 3L500
Price
N/A
80B
Now: PVA52
V-BELT A52
Price
N/A
81
*DISCD*DETENT
Item is no longer available
Price
N/A
82
*DISCD*SPRING PIN
83
*DISCD*BASE BOLT D19.2 X 66
Item is no longer available
Price
N/A
84
*DISCD*KNOB
Item is no longer available
Price
N/A
85
*DISCD*SPINDLE FIXING BLOCK
86
*DISCD*OUTBOARD TABLE SUPPORT SHAFT
Item is no longer available
Price
N/A
87
*DISCD*WORK TABLE
Item is no longer available
Price
N/A
87A
*DISCD*COMPLETE WORK TABLE ASSY
Item is no longer available
Price
N/A
88
*DISCD*SUPPORT
89
Now: PSS15
SET SCREW 3/8-16 X 3/8
Price
N/A
90
*DISCD*TILTING GAUGE
Item is no longer available
Price
N/A
91
Now: PW06
FLAT WASHER 1/4
Price
N/A
92
*DISCD*LOCK KNOB
Item is no longer available
Price
N/A
93
Now: PS16
PHLP HD SCR 6-32 X 1-1/4
Price
N/A
95A
*DISCD*COMPLETE MITER GAUGE ASSY
Item is no longer available
Price
N/A
96
*DISCD*MITER BODY
Item is no longer available
Price
N/A
97
*DISCD*HANDLE V1.10.95
Price
N/A
98
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
99
*DISCD*DRUM ADAPTOR
Item is no longer available
Price
N/A

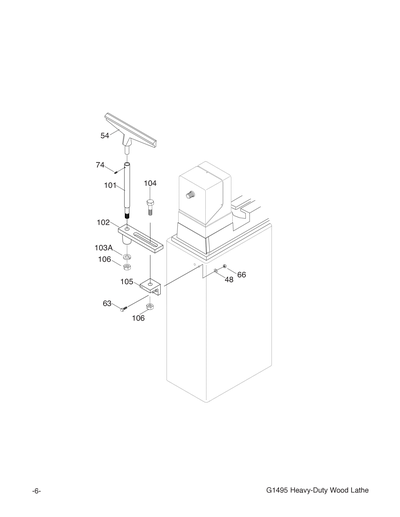

100
*DISCD*TOOL REST W/070
Price
N/A
101
*DISCD*OUTBOARD TOOL REST POST
Item is no longer available
Price
N/A
102
*DISCD*REST SUPPORT
103A
LOCK WASHER 20MM
Price
N/A
104
Now: PB01
HEX BOLT 3/4-10 X 2-1/2
Price
N/A
105
*DISCD*OUTBOARD TOOL REST BRACKET
Item is no longer available
Price
N/A
106
Now: PN17
HEX NUT 3/4-10
Price
N/A
107
Now: PN17
HEX NUT 3/4-10
Price
N/A
108
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
109
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
110
*DISCD*POINTER
Item is no longer available
Price
N/A
111
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
112
Now: PW06
FLAT WASHER 1/4
Price
N/A
113
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
114
*DISCD*SPEED LABEL
Item is no longer available
Price
N/A
115
*DISCD*TABLE PIVOT
Item is no longer available
Price
N/A
117
CAP SCREW 1/4-20 X 1/2
Price
N/A
118
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
119
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
120
E-CLIP 14MM
Price
N/A
121
CAP SCREW 1/4-20 X 1
Price
N/A
122
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
123
Now: PR58M
EXT RETAINING RING 24MM
Price
N/A
124
*DISCD*HARDWARE BAG
125
*DISCD*COMPLETE FLAP SANDER ASSY
Item is no longer available
Price
N/A
126
*DISCD*SANDING DRUM ASSY
Item is no longer available
Price
N/A
127
*DISCD*SAND PAPER SLEEVE
Item is no longer available
Price
N/A
500
*DISCD*CARTON FOR G1495 BODY
Item is no longer available
Price
N/A
500-1
*DISCD*CARTON FOR G1495 STAND
Item is no longer available
Price
N/A
501
*DISCD*STYROFOAM 3PC FOR BODY
Item is no longer available
Price
N/A
501-1
*DISCD*CARDBOARD PACKING TO PROTECT STAN
Item is no longer available
Price
N/A
BASE
*DISCD*COMPLETE TOOL REST BASE
Item is no longer available
Price
N/A
HDWBAG
*DISCD*HARDWARE BAG
Price
N/A
MANUAL
MANUAL FOR G1495 10/99
TAILSTOCK
*DISCD*COMPLETE TAILSTOCK ASSEMBLY
Price
N/A
TOOLREST
*DISCD*OUTBOARD TOOL REST ASSY
Item is no longer available
Price
N/A
