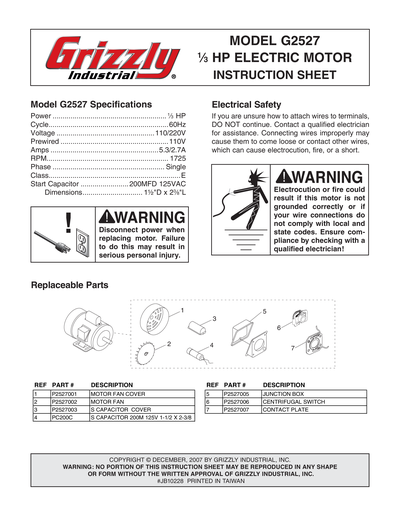

Parts for G2527 - Motor 1/3 HP Single-Phase 1725 RPM TEFC 110V/220V

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P2527001
MOTOR FAN COVER
N/A
2 P2527002
MOTOR FAN
N/A
3 P2527003 S CAPACITOR COVER $2.25
4 P2527004
Replaced By PC200I
S CAPACITOR 200M 125V 1-3/8 X 2-3/8
N/A View Replacement
5 P2527005 JUNCTION BOX $5.25
6 P2527006
Replaced By PCS006
CENT SWITCH 1/2-1725
N/A View Replacement
7 P2527007
Replaced By PCP001
CONTACT PLT-TUNGSTEN 5HP OR LESS
N/A View Replacement
8 P2527008
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
9 P2527009
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
10 P2527010
Replaced By PK15
KEY 3/16 X 3/16 X 1-1/4
N/A View Replacement
MAN P2527MAN
MANUAL FOR G2527 12/07
N/A
PART P2527PART
MISC G2527 PARTS
N/A
