Parts for G3103 - Vertical Mill w/ Table Power Feed

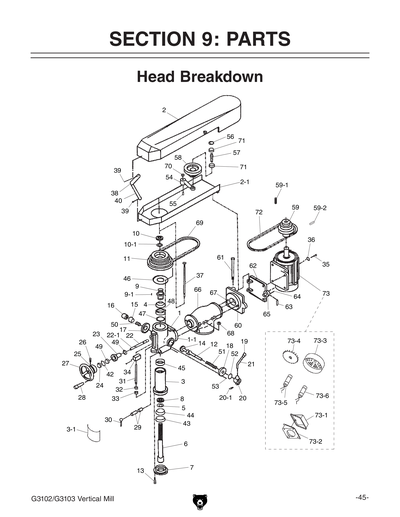

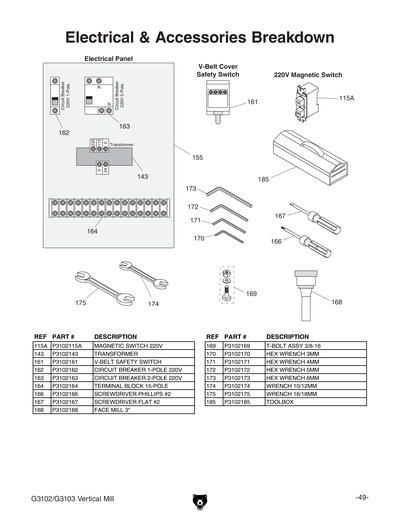

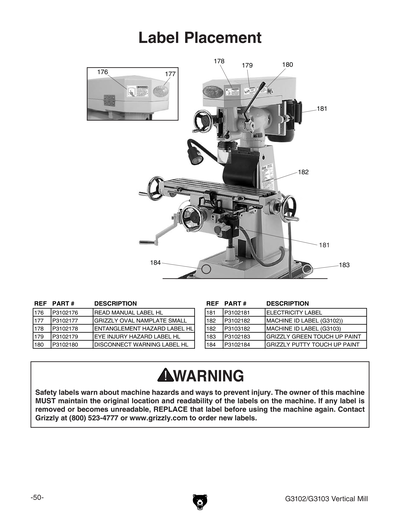

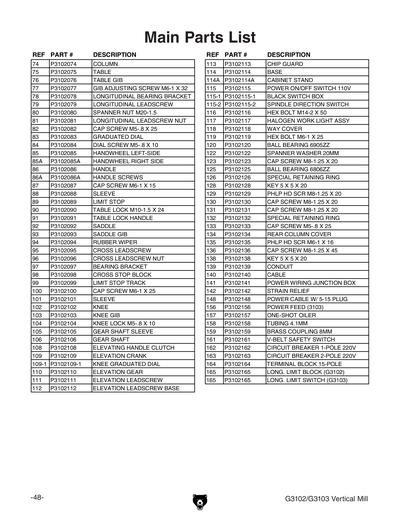

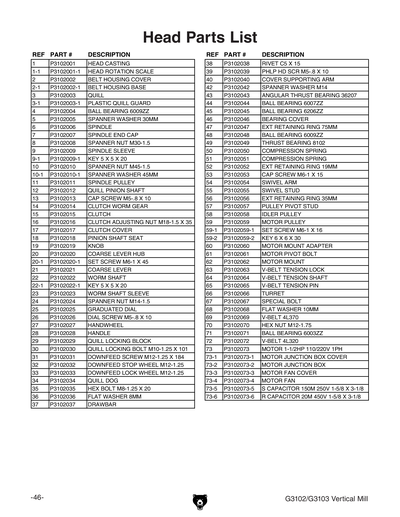

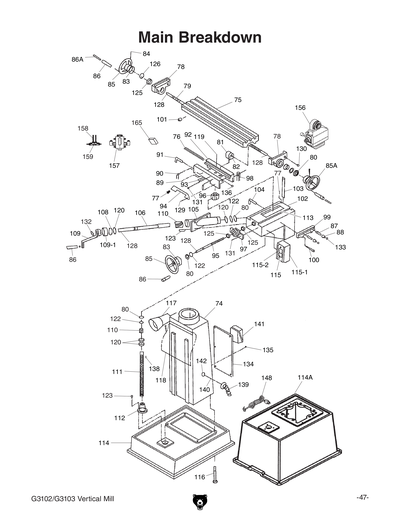

Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103
Part Diagram for G3103

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*HEAD CASTING
Price
N/A
1-1
*DISCD*HEAD ROTATION SCALE
Price
N/A
2
*DISCD*BELT HOUSING COVER
Price
N/A
2-1
*DISCD*BELT HOUSING BASE
Price
N/A
3
*DISCD*QUILL
Price
N/A
3-1
*DISCD*QUILL GUARD PLASTIC
Price
N/A
4
*DISCD*SNAP RING
Item is no longer available
Price
N/A
5
*DISCD*SPANNER WASHER 30MM
Price
N/A
6
*DISCD*SPINDLE
Price
N/A
7
*DISCD*SPINDLE END CAP
Price
N/A
8
*DISCD*SPANNER NUT M30-1.5
Price
N/A
9
*DISCD*SPINDLE SLEEVE
Price
N/A
9-1
KEY 5 X 5 X 20
Price
N/A
10
*DISCD*SPANNER NUT M45-1.5
Price
N/A
10-1
*DISCD*SPANNER WASHER 44MM
Price
N/A
11
*DISCD*SPINDLE PULLEY
Price
N/A
12
*DISCD*QUILL PINION SHAFT
Price
N/A
13
CAP SCREW M5-.8 X 10
Price
N/A
14
*DISCD*CLUTCH WORM GEAR
Price
N/A
15
*DISCD*CLUTCH
Price
N/A
16
*DISCD*CLUTCH ADJUSTING NUT M18 X 1.5 X
Price
N/A
17
*DISCD*CLUTCH COVER
Price
N/A
18
*DISCD*PINION SHAFT SEAT
Price
N/A
19
*DISCD*KNOB
Price
N/A
20
*DISCD*COARSE LEVER HUB
Price
N/A
20-1
SET SCREW M6-1 X 45
Price
N/A
21
*DISCD*COARSE LEVER
Price
N/A
22
*DISCD*WORM SHAFT
Price
N/A
22-1
KEY 5 X 5 X 20
Price
N/A
23
*DISCD*WORM SHAFT SLEEVE
Price
N/A
24
*DISCD*SPANNER NUT M14-1.5
Price
N/A
25
*DISCD*GRADUATED DIAL
Price
N/A
26
*DISCD*DIAL SCREW M5-.8 X 10
Price
N/A
27
*DISCD*HANDWHEEL
Price
N/A
28
*DISCD*HANDLE
Price
N/A
29
*DISCD*QUILL LOCKING BLOCK
Price
N/A
30
*DISCD*QUILL LOCKING BOLT M10-1.25 X 101
Price
N/A
31
*DISCD*DOWNFEED SCREW M12-1.25 X 184
Price
N/A
32
*DISCD*DOWNFEED STOP WHEEL M12-1.25
Price
N/A
33
*DISCD*DOWNFEED LOCK WHEEL M12-1.25
Price
N/A
34
*DISCD*QUILL DOG
Price
N/A
35
HEX BOLT M8-1.25 X 20
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
*DISCD*DRAWBAR 12.25"
Price
N/A
38
*DISCD*RIVET C5 X 15
Price
N/A
39
PHLP HD SCR M5-.8 X 10
Price
N/A
40
*DISCD*COVER SUPPORTING ARM
Price
N/A
42
*DISCD*SPANNER WASHER M14
Price
N/A
43
*DISCD*ANGULAR THRUST BEARING 36207
Price
N/A
44
BALL BEARING 6007ZZ
Price
N/A
45
BALL BEARING 6206ZZ
Price
N/A
46
*DISCD*BEARING COVER
Price
N/A
47
EXT RETAINING RING 75MM
Price
N/A
48
BALL BEARING 6009ZZ
Price
N/A
49
THRUST BEARING 8102
Price
N/A
50
*DISCD*COMPRESSION SPRING
Price
N/A
51
*DISCD*COMPRESSION SPRING
Price
N/A
52
EXT RETAINING RING 19MM
Price
N/A
53
CAP SCREW M6-1 X 15
Price
N/A
54
*DISCD*SWIVEL ARM
Price
N/A
55
*DISCD*SWIVEL STUD
Price
N/A
56
EXT RETAINING RING 35MM
Price
N/A
57
*DISCD*STANDOFF-ROUND DE
Price
N/A
58
*DISCD*IDLER PULLEY
Price
N/A
59
*DISCD*MOTOR PULLEY
Price
N/A
60
*DISCD*MOTOR MOUNT ADAPTER
Price
N/A
61
*DISCD*MOTOR PIVOT BOLT
Price
N/A
62
*DISCD*MOTOR MOUNT
Price
N/A
63
*DISCD*V-BELT TENSION LOCK
Price
N/A
64
*DISCD*V-BELT TENSION SHAFT
Price
N/A
65
*DISCD*V-BELT TENSION PIN 12 X 75
Price
N/A
66
*DISCD*TURRET
Price
N/A
67
*DISCD*MOTOR MOUNT BOLT M10-1.5 X 35
Price
N/A
68
FLAT WASHER 10MM
Price
N/A
69
V-BELT A37
Price
N/A
70
HEX NUT M12-1.75
Price
N/A
71
Bearing - 35mm x 17mm
Price
N/A
72
V-BELT A32
Price
N/A
73
*DISCD*MOTOR 1.5HP 110V/220V 1-PH
Price
N/A
73-1
*DISCD*MOTOR JUNCTION BOX COVER
Price
N/A
73-2
*DISCD*MOTOR JUNCTION BOX
Price
N/A
73-3
*DISCD*MOTOR FAN COVER
Price
N/A
73-4
*DISCD*MOTOR FAN
Price
N/A
73-5
S CAPACITOR 150M 250V 1-5/8 X 3-1/8
Price
N/A
73-6
*DISCD*R CAPACITOR 20M 450V 1-5/8 X 3-1/
Price
N/A
74
*DISCD*COLUMN
Price
N/A
75
*DISCD*TABLE
Price
N/A
76
*DISCD*TABLE GIB
Price
N/A
77
*DISCD*GIB ADJUSTING SCR M6-1 X 32
Price
N/A
78
*DISCD*LONGITUDINAL BEARING BRACKET
Price
N/A
79
*DISCD*LONGITUDINAL LEADSCREW
Price
N/A
80
*DISCD*SPANNER NUT M20-1.5
Price
N/A
81
*DISCD*LONGITUDINAL LEADSCREW NUT
Price
N/A
82
CAP SCREW M5-.8 X 25
Price
N/A
83
*DISCD*GRADUATED DIAL LH
Price
N/A
83A
*DISCD*GRADUATED DIAL RH
Price
N/A
84
*DISCD*DIAL SCREW M5-.8 X 10
Price
N/A
85
*DISCD*HANDWHEEL LEFT SIDE
Price
N/A
85A
*DISCD*HANDWHEEL RIGHT SIDE
Price
N/A
86
*DISCD*HANDLE
Price
N/A
86A
*DISCD*HANDLE SCREW
Price
N/A
87
CAP SCREW M6-1 X 15
Price
N/A
88
*DISCD*SLEEVE
Price
N/A
89
*DISCD*LIMIT STOP
Price
N/A
90
*DISCD*TABLE LOCK M10-1.5 X 24
Price
N/A
91
*DISCD*TABLE LOCK HANDLE
Price
N/A
92
*DISCD*SADDLE
Price
N/A
93
*DISCD*SADDLE GIB
Price
N/A
94
*DISCD*WIPER RUBBER
Price
N/A
95
*DISCD*CROSS LEADSCREW
Price
N/A
96
*DISCD*CROSS LEADSCREW NUT
Price
N/A
97
*DISCD*BEARING BRACKET
Price
N/A
98
*DISCD*CROSS STOP BLOCK
Price
N/A
99
*DISCD*LIMIT STOP TRACK
Price
N/A
100
CAP SCREW M6-1 X 25
Price
N/A
101
*DISCD*SLEEVE
Price
N/A
102
*DISCD*KNEE
Price
N/A
103
*DISCD*KNEE GIB
Price
N/A
104
*DISCD*KNEE LOCK M5-.8 X 10
Price
N/A
105
*DISCD*GEAR SHAFT SLEEVE
Price
N/A
106
*DISCD*GEAR SHAFT
Price
N/A
108
*DISCD*ELEVATING HANDLE CLUTCH
Price
N/A
109
*DISCD*ELEVATION CRANK
Price
N/A
109-1
*DISCD*KNEE GRADUATED DIAL
Price
N/A
110
*DISCD*ELEVATION GEAR
Price
N/A
111
*DISCD*ELEVATION LEADSCREW
Price
N/A
112
*DISCD*ELEVATION LEADSCREW BASE
Price
N/A
113
*DISCD*CHIP GUARD
Price
N/A
114
*DISCD*BASE
Price
N/A
114A
*DISCD*CABINET STAND
Price
N/A
115
*DISCD*POWER ON/OFF SWITCH 110V
Price
N/A
115-1
*DISCD*BLACK SWITCH BOX
Price
N/A
115-2
*DISCD*POWER ON/OFF SWITCH 110V
Price
N/A
115A
ON/OFF SWITCH ASSY KEDU JD3 220V
Price
N/A
116
HEX BOLT M14-2 X 50
Price
N/A
117
*DISCD*HALOGEN WORK LIGHT ASSY
Price
N/A
118
*DISCD*WAY COVER
Price
N/A
119
HEX BOLT M6-1 X 25
Price
N/A
120
BALL BEARING 6905ZZ
Price
N/A
122
*DISCD*SPANNER WASHER 20MM
Price
N/A
123
CAP SCREW M8-1.25 X 20
Price
N/A
124-2
*DISCD*ZYTEL GEAR ASSEMBLY
Item is no longer available
Price
N/A
125
BALL BEARING 6806ZZ
Price
N/A
126
*DISCD*GRADUATED DIAL RETAINING RING
Price
N/A
127
*DISCD*OIL CUP 2 NPT X 5MM X 24MM ELBOW
Price
$4.60
128
KEY 5 X 5 X 20
Price
N/A
129
PHLP HD SCR M8-1.25 X 20
Price
N/A
130
CAP SCREW M8-1.25 X 20
Price
N/A
131
CAP SCREW M8-1.25 X 20
Price
N/A
132
*DISCD*ELEVATION CRANK RETAINING RING
Price
N/A
133
CAP SCREW M5-.8 X 25
Price
N/A
134
*DISCD*COLUMN COVER REAR
Price
N/A
135
PHLP HD SCR M6-1 X 16
Price
N/A
136
CAP SCREW M8-1.25 X 45
Price
N/A
137
*DISCD*WASHER 45
Price
$1.49
138
KEY 5 X 5 X 20
Price
N/A
139
*DISCD*CONDUIT
Price
N/A
140
*DISCD*CABLE 10PC WIRE SET W/TUBE
Price
N/A
141
*DISCD*POWER WIRING JUNCTION BOX
Price
N/A
141-1
*DISCD*TERMINAL BLOCK
Item is no longer available
Price
N/A
142
*DISCD*STRAIN RELIEF M24 TYPE-6 ST
Price
N/A
143
*DISCD*TRANSFORMER
Price
N/A
144
*DISCD*LIGHT BULB
Item is no longer available
Price
N/A
145
*DISCD*POWERFEEDER APF-500X V2.06.11
Price
N/A
145-1
Price
N/A
145V2
*DISCD*POWERFEEDER APF-500X V2.06.11
Item is no longer available
Price
N/A
146
*DISCD*LIMIT SWITCH
Item is no longer available
Price
N/A
147
*DISCD*BLACK SWITCH BOX
Price
N/A
148
POWER CORD 16G X 3W 73"L
Price
N/A
156
Price
N/A
157
*DISCD*ONE SHOT OILER
Price
N/A
158
*DISCD*TUBING 4.1MM
Price
N/A
159
*DISCD*OIL DISTRIBUTOR V2.10.08
Price
N/A
159-1
*DISCD*COUPLING 8MM BRASS
Price
N/A
161
*DISCD*V-BELT SAFETY SWITCH
Price
N/A
162
*DISCD*CIRCUIT BREAKER 20A PEO DZ47-63 C
Price
N/A
163
*DISCD*CIRCUIT BREAKER 32A PEO DZ47LE-32
Price
N/A
164
*DISCD*TERMINAL BLOCK 15-POLE
Price
N/A
166
SCREWDRIVER PHILLIPS #2
Price
N/A
167
SCREWDRIVER FLAT #2
Price
N/A
168
*DISCD*FACE MILL 3"
Price
N/A
169
*DISCD*T-BOLT ASSY 3/8-16
Price
N/A
170
HEX WRENCH 3MM
Price
N/A
171
HEX WRENCH 4MM
Price
N/A
172
HEX WRENCH 5MM
Price
N/A
173
HEX WRENCH 6MM
Price
N/A
174
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
175
WRENCH 16 X 18MM OPEN-ENDS
Price
N/A
176
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
177
Nameplate - Mini
Price
N/A
178
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
179
SAFETY GLASSES 3.8W X 2H
Price
N/A
180
DISCONNECT 110V 3.8W X 2H
Price
N/A
181
ELECTRICITY 0.7W X 0.6H
Price
N/A
182
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
183
N/S GRIZZLY GREEN G1023S
Price
N/A
184
GREY PUTTY REF G0504
Price
N/A
185
*DISCD*TOOLBOX
Price
N/A
MANUAL
*DISCD*MANUAL FOR G3102/G3103 09/08
Price
N/A
