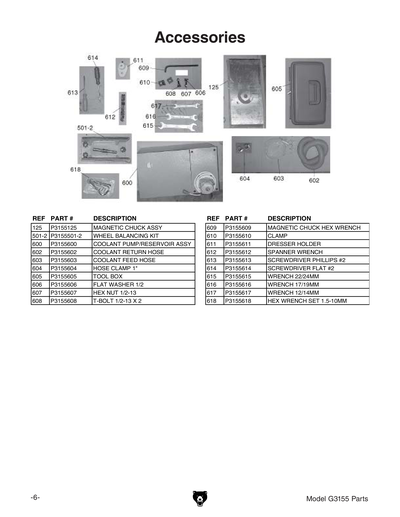

Parts for G3155 - 8" x 20" Surface Grinder

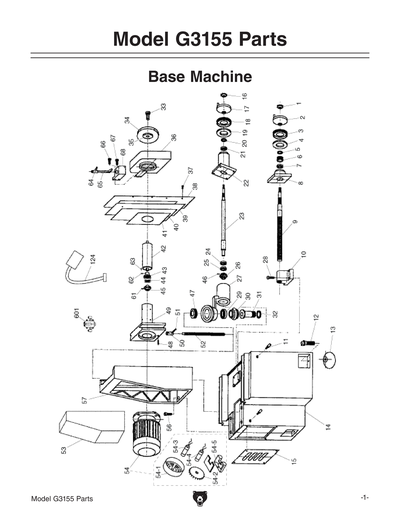

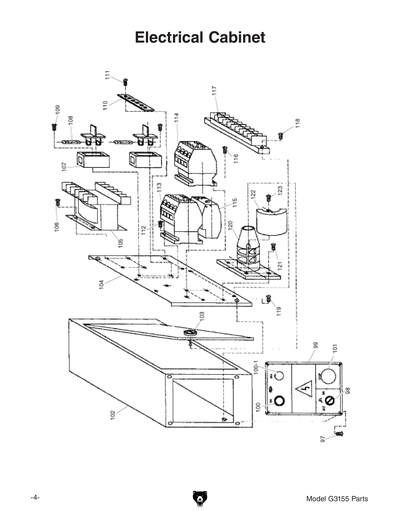

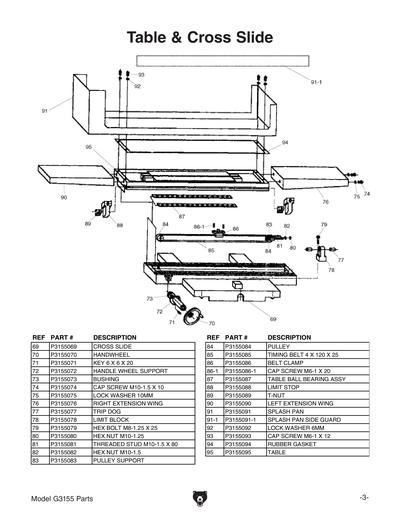

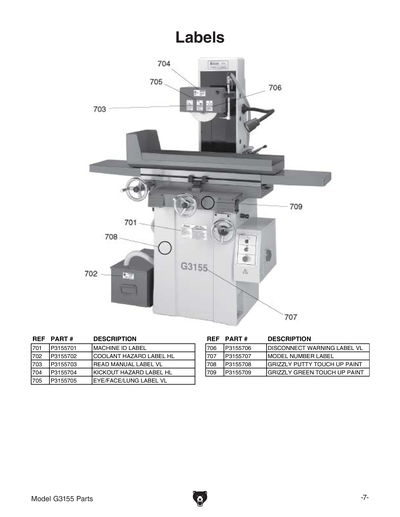

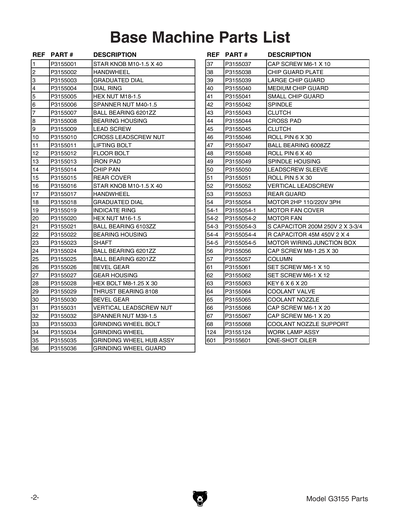

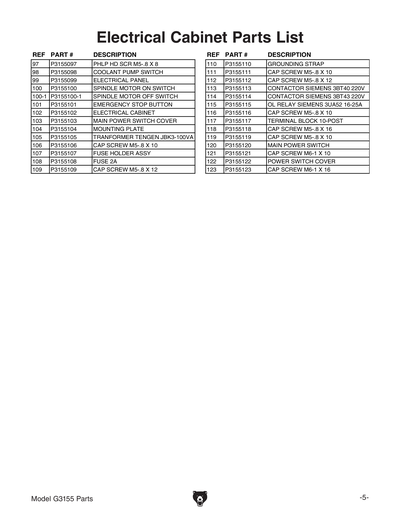

Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155
Part Diagram for G3155

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
KNOB M10-1.5, 7 LOBE, D40
Price
N/A
2
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
N/A
2V2
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
N/A
2V3
HANDWHEEL W/HANDLE, PLASTIC V3.06.22
Price
N/A
3
GRADUATED DIAL
Price
N/A
4
INDICATOR RING
Price
N/A
5
HEX NUT M18-1.5
Price
N/A
6
SPANNER NUT M40-1.5
Price
$4.00
7
BALL BEARING 6204ZZ
Price
N/A
8
BEARING HOUSING
Price
$47.45
9
LEADSCREW
Price
$178.25
10
CROSS LEADSCREW NUT M22 X 2.5
Price
$178.25
11
LIFTING NUT M30 X 2.5
Price
N/A
11V2
EYE BOLT 1-1/4", M20-2.5 X 30 V2.07.14
Price
N/A
12
SQUARE HEAD BOLT M20-2.5 X 90 DOG-PT
Price
N/A
13
IRON PAD
Price
N/A
14
CHIP PAN
Price
$1,569.10
15
REAR COVER
Price
$294.70
16
KNOB M10-1.5, 7 LOBE, D40
Price
N/A
17
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
N/A
17V2
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
$30.90
17V3
HANDWHEEL W/HANDLE, PLASTIC V3.06.22
Price
N/A
18
GRADUATED DIAL
Price
$64.70
19
INDICATE RING
Price
$27.70
20
HEX NUT M16-1.5
Price
N/A
21
Bearing - 35mm x 17mm
Price
N/A
22
BEARING HOUSING
Price
$70.85
23
SHAFT
Price
$140.20
24
BALL BEARING 6204ZZ
Price
N/A
25
BALL BEARING 6204ZZ
Price
N/A
26
BEVEL GEAR
Price
$145.60
27
GEAR HOUSING
Price
$79.45
28
HEX BOLT M8-1.25 X 30
Price
N/A
29
THRUST BEARING 8108
Price
N/A
30
BEVEL GEAR
Price
$225.70
31
VERTICAL LEADSCREW NUT M26 X 2.5
Price
$263.85
32
SPANNER NUT M39-1.5
Price
N/A
33
GRINDING WHEEL BOLT
Price
N/A
34
GRINDING WHEEL
Price
N/A
35
GRINDING WHEEL HUB ASSEMBLY
Price
N/A
36
GRINDING WHEEL GUARD
Price
N/A
37
CAP SCREW M6-1 X 10
Price
N/A
38
CHIP GUARD PLATE
Price
$126.20
39
LARGE CHIP GUARD
Price
$70.85
40
MEDIUM CHIP GUARD
Price
$64.70
41
SMALL CHIP GUARD
Price
$48.90
42
SPINDLE
Price
$719.15
43
CLUTCH
Price
$43.90
44
CROSS PAD
Price
$10.10
45
CLUTCH
Price
$43.90
46
ROLL PIN 6 X 30
Price
N/A
47
BALL BEARING 6008ZZ
Price
N/A
48
ROLL PIN 6 X 40
Price
N/A
49
SPINDLE HOUSING
Price
$565.70
50
LEADSCREW SLEEVE
Price
$11.50
51
ROLL PIN 5 X 30
Price
N/A
52
VERTICAL LEADSCREW M12 X 1.5
Price
N/A
53
*DISCD*REAR GUARD COVER V1
Price
N/A
54
MOTOR 2HP 110/220V 3-PH
Price
$544.85
54-1
MOTOR FAN COVER
Price
$35.95
54-2
MOTOR FAN
Price
$43.15
54-3
S CAPACITOR 200M 250V 2 X 3-3/4
Price
N/A
54-4
R CAPACITOR 45M 450V 2 X 4
Price
$64.70
54-5
MOTOR WIRING JUNCTION BOX
Price
N/A
54-6
BALL BEARING 6204-2RS
Price
N/A
54-7
BALL BEARING 6205-2RS
Price
N/A
55
SET SCREW M6-1 X 10
Price
N/A
56
CAP SCREW M8-1.25 X 30
Price
N/A
57
COLUMN
Price
$1,272.20
58
CLAMPING KIT
Price
$372.00
59
COLUMN
Price
$1.90
60
TOP COVER
Price
$72.65
61
SET SCREW M6-1 X 10
Price
N/A
62
SET SCREW M6-1 X 12
Price
N/A
63
KEY 6 X 6 X 20
Price
N/A
64
COOLANT VALVE
Price
N/A
65
COOLANT NOZZLE
Price
N/A
65V2
ADJUSTABLE COOLANT NOZZLE V2.07.14
Price
N/A
66
CAP SCREW M6-1 X 20
Price
N/A
67
CAP SCREW M6-1 X 20
Price
N/A
68
COOLANT NOZZLE SUPPORT
Price
N/A
69
CROSS SLIDE
Price
$1,187.40
70
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
N/A
70V2
HANDWHEEL W/HANDLE, ALUMINUM V2.01.14
Price
N/A
70V3
HANDWHEEL W/HANDLE, PLASTIC V3.06.22
Price
N/A
71
KEY 6 X 6 X 20
Price
N/A
72
HANDLE WHEEL SUPPORT
Price
$58.25
73
BUSHING
Price
$43.15
74
CAP SCREW M10-1.5 X 10
Price
N/A
74V2
CAP SCREW M8-1.25 X 16
Price
N/A
75
LOCK WASHER 10MM
Price
N/A
75V2
FLAT WASHER 8MM
Price
N/A
76
RIGHT EXTENSION WING
Price
N/A
77
TRIP DOG
Price
N/A
78
LIMIT BLOCK
Price
N/A
79
HEX BOLT M8-1.25 X 25
Price
N/A
80
HEX NUT M10-1.25
Price
N/A
80V2
WING NUT M8-1.25
Price
N/A
81
STUD-FT M7.5-1.25 X 80
Price
N/A
81V2
THREADED STUD M8-1.25 X 70 V2.07.14
Price
N/A
82
HEX NUT M10-1.5
Price
N/A
82V2
HEX NUT M8-1.25
Price
N/A
83
PULLEY SUPPORT
Price
N/A
83V2
PULLEY SUPPORT V2.07.14
Price
N/A
84
PULLEY
Price
N/A
85
TIMING BELT 4 X 120 X 25
Price
$175.60
86
BELT CLAMP
Price
N/A
86-1
CAP SCREW M6-1 X 20
Price
N/A
86-1V2
CAP SCREW M8-1.25 X 30
Price
N/A
86V2
BELT CLAMP V2.07.14
Price
N/A
87
TABLE BALL BEARING ASSY
Price
N/A
88
LIMIT STOP
Price
N/A
89
T-NUT
Price
N/A
89V2
SQUARE NUT M6-1.25 V2.07.14
Price
N/A
90
LEFT EXTENSION WING
Price
N/A
91
SPLASH PAN
Price
$248.00
91-1
SPLASH PAN SIDE GUARD
Price
$172.50
92
LOCK WASHER 6MM
Price
N/A
93
CAP SCREW M6-1 X 12
Price
N/A
94
RUBBER GASKET
Price
$6.50
95
TABLE
Price
$1,187.40
96
SCREW M8-1.5 X 35
Price
$9.75
97
PHLP HD SCR M5-.8 X 8
Price
N/A
97V2
PHLP HD SCR M3-.5 X 10
Price
N/A
98
COOLANT PUMP SWITCH
Price
N/A
98V2
COOLANT PUMP SWITCH V2.07.14
Price
N/A
98V3
COOLANT PUMP SWITCH V3.06.22
Price
N/A
99
ELECTRICAL PANEL
Price
N/A
99V2
ELECTRICAL PANEL V2.07.14
Price
N/A
100
SPINDLE MOTOR ON SWITCH
Price
N/A
100-1
SPINDLE MOTOR OFF SWITCH
Price
N/A
100V2
SPINDLE MOTOR ON SWITCH V2.07.14
Price
$13.40
100V3
SPINDLE MOTOR ON SWITCH V3.06.22
Price
$13.40
101
E-STOP BUTTON LAY3 A012640
Price
N/A
101V2
EMERGENCY STOP BUTTON V2.07.14
Price
N/A
101V3
E-STOP BUTTON OCHENG LA239A V3.06.22
Price
N/A
102
ELECTRICAL CABINET
Price
N/A
103
MAIN POWER SWITCH
Price
N/A
104
MOUNTING PLATE
Price
N/A
104V2
MOUNTING PLATE V2.07.14
Price
N/A
105
TRANFORMER TENGEN JBK3-100VA
Price
N/A
106
CAP SCREW M5-.8 X 10
Price
N/A
106V2
FLANGE SCREW M4-.7 X 8
Price
N/A
107
FUSE HOLDER ASSEMBLY
Price
N/A
108
FUSE 2A
Price
N/A
109
CAP SCREW M5-.8 X 12
Price
N/A
109V2
FLAT HD SCR M4-.7 X 8
Price
N/A
110
GROUND STRAP
Price
N/A
111
CAP SCREW M5-.8 X 10
Price
N/A
111V2
FLANGE SCREW M4-.7 X 8
Price
N/A
112
CAP SCREW M5-.8 X 12
Price
N/A
112V2
FLANGE SCREW M4-.7 X 12 V2.07.14
Price
N/A
113
CONTACTOR SIEMENS 3BT40 220V
Price
N/A
113V2
CONTACTOR SIEMENS 3BT42 17-0A V2.06.22
Price
N/A
114
CONTACTOR SIEMENS 3BT43 220V
Price
N/A
114V2
CONTACTOR SIEMENS 3BT40 22-0X V2.06.22
Price
N/A
115
OL RELAY SIEMENS 3UA52 16-25A
Price
N/A
115V2
OL RELAY SIEMENS 3US55 40-2C V2.06.22
Price
N/A
116
CAP SCREW M5-.8 X 10
Price
N/A
116V2
FLANGE SCREW M4-.7 X 12 V2.07.14
Price
N/A
117
TERMINAL BLOCK 10-POST
Price
N/A
118
CAP SCREW M5-.8 X 16
Price
N/A
118V2
FLANGE SCREW M4-.7 X 8
Price
N/A
119
CAP SCREW M5-.8 X 10
Price
N/A
119V2
PHLP HD SCR M6-1 X 12
Price
N/A
120
MAIN POWER SWITCH
Price
N/A
121
CAP SCREW M6-1 X 10
Price
N/A
121V2
FLANGE SCREW M4-.7 X 12 V2.07.14
Price
N/A
122
POWER SWITCH COVER
Price
N/A
123
CAP SCREW M6-1 X 16
Price
N/A
123V2
PHLP HD SCR M5-.8 X 20
Price
N/A
124
WORK LAMP ASSEMBLY
Price
N/A
125
MAGNETIC CHUCK ASSY
Price
$646.90
126
PHLP HD SCR M6-1 X 12
Price
N/A
127
FLAT WASHER 6MM
Price
N/A
128
SIDE GRATE
Price
N/A
129
PHLP HD SCR M6-1 X 20
Price
N/A
130
PHLP HD SCR M6-1 X 20
Price
N/A
131
CAP SCREW M5-.8 X 16
Price
N/A
132
CAP SCREW M6-1 X 30
Price
N/A
133
HEX NUT M3-.5 THIN
Price
N/A
134
FLAT WASHER 5MM
Price
N/A
135
FLAT WASHER 6MM
Price
N/A
136
INDICATOR LAMP SKYLAND AD61
Price
N/A
138
FLAT WASHER 8MM
Price
N/A
139
KNOB BOLT M8-1.25 X 25, 7 LOBE, D40
Price
N/A
140
SPACER 20.5 X 28MM
Price
N/A
153
*DISCD*REAR GUARD COVER V1
Item is no longer available
Price
N/A
153V2
REAR GUARD COVER V2.01.10
Price
$539.10
200
COOLANT PUMP
Price
$642.60
200-1
COOLANT TANK
Price
$335.15
501-2
*DISCD*WHEEL BALANCING KIT
Price
N/A
501-3
WHEEL BALANCING ARBOR 5:1 TPR
Price
N/A
502
WHEEL BALANCING BASE
Price
N/A
600
COOLANT PUMP3-HP/RESERVOIR ASSY
Price
$311.95
600-1
COOLANT PUMP 3-PH
Price
$178.25
600-2
COOLANT PUMP 3HP WIRING HARNESS W/PLUG
Price
$35.70
601
ONE SHOT OILER W/PUMP
Price
N/A
602
COOLANT RETURN HOSE
Price
N/A
603
COOLANT FEED HOSE
Price
N/A
604
HOSE CLAMP 1"
Price
N/A
605
TOOL BOX
Price
N/A
606
P3155606
Now: PW01
FLAT WASHER 1/2
Price
N/A
607
P3155607
Now: PN06
HEX NUT 1/2-12
Price
N/A
608
T-BOLT 1/2-13 X 2
Price
N/A
608V2
CAP SCREW M10-1.5 X 50
Price
N/A
609
T-BOLT 1/2-13 X 2
Price
N/A
610
CLAMP
Price
N/A
610V2
T-NUT M10-1.5 V2.07.14
Price
N/A
611
DRESSER HOLDER
Price
N/A
612
WRENCH SPANNER
Price
N/A
613
SCREWDRIVER PHILLIPS #2
Price
N/A
614
SCREWDRIVER FLAT #2
Price
N/A
615
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
616
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
617
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
618
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
619
ARBOR BOLT M16-1 X 15
Price
N/A
620
RUBBER SEAL
Price
N/A
621
DIAMOND DRESSER
Price
N/A
701
MACHINE ID LABEL
Price
$16.40
702
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
703
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
704
KICKOUT HAZARD LABEL HL
Price
N/A
705
FACE SHIELD/RESPIRATOR 2W X 3.3H
Price
N/A
706
DISCONNECT 110V 2W X 3.3H
Price
N/A
707
MODEL NUMBER LABEL
Price
$5.50
708
GREY PUTTY REF G0504
Price
N/A
709
N/S GRIZZLY GREEN G1023S
Price
N/A
710
Nameplate - Small
Price
N/A
711
GRIZZLY.COM LABEL
Price
N/A
712
ELECTRICITY 0.7W X 0.6H
Price
N/A
713
NOTICE LABEL
Price
N/A
MAN
MANUAL G3104/G3155 10/08 V1.06.07
Price
N/A
MANV2
MANUAL G3104/G3155 MFD-06.22+ V2.08.24
Price
N/A
