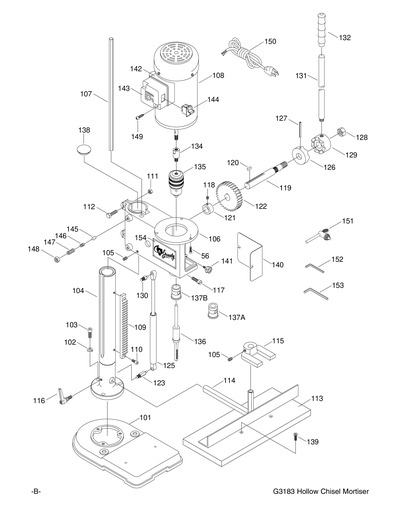

Parts for G3183 Hollow Chisel Mortiser

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CASTING BASE
2
LOCK WASHER 8MM
Price
N/A
3
CAP SCREW M8-1.25 X 20
Price
N/A
4
COLUMN
5
SET SCREW M8-1.25 X 10
Price
N/A
6
HEADSTOCK
7
DEPTH STOP ROD
8
MOTOR 1/2HP 110V 1-PH
8-1
MOTOR FAN
8-2
MOTOR FAN COVER
8-3
COMPLETE WIRING BOX W/LID
9
RACK
10
CAP SCREW M6-1 X 12
Price
N/A
11
LOCK NUT M8-1.25
Price
N/A
12
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
13
TABLE
14
FENCE
15
HOLD DOWN
16
LOCK HANDLE
17
SCREW M8-1.25 X 25 BRASS
18
SET SCREW M6-1 X 6
Price
N/A
19
PINION SHAFT
20
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
21
COLLAR
Item is no longer available
Price
N/A
22
GEAR
23
CYLINDER FITTING LOWER
24
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
25
HYDRAULIC CYLINDER V2.02.07
25A
BALL SOCKET
25B
HYDRAULIC CYLINDER V1.10.95
26
*DISCD*ADJ GEAR LEFT
Item is no longer available
Price
N/A
27
ROLL PIN 5 X 50
Price
N/A
28
Now: PN13M
HEX NUT M16-2
Price
N/A
29
*DISCD*ADJ GEAR RIGHT
Item is no longer available
Price
N/A
30
CYLINDER FITTING UPPER
31
HANDLE BAR
32
HANDLE GRIP
33
CAP SCREW M5-.8 X 16
Price
N/A
34
ADAPTOR
35
CHUCK 3/8-24 TPI
37A
BUSHING 5/8
37B
BUSHING 3/4
39
FLAT HD SCR M6-1 X 20
Price
N/A
40
COVER
41
KNOB M5-.8 X 10
42
CAP
43
SET SCREW M10-1.5 X 20
Price
N/A
44
PIN BRASS
45
COLUMN BASE
46
*DISCD*SWITCH COVER
Item is no longer available
Price
N/A
46-1
SCREW COVER
Price
N/A
46A
SCREW COVER
47
SWITCH BASE
47-1
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
48
HELICAL SPRING 10 X 7.3 X 1.2
49
Now: PN02M
HEX NUT M10-1.5
Price
N/A
50
POWER CORD
51
CHUCK KEY 3/8
52
HEX WRENCH 4MM
Price
N/A
53
ROLL PIN 5 X 60
Price
N/A
54
LOGO PLATE
Item is no longer available
Price
N/A
55
HEX WRENCH 5MM
Price
N/A
56
CAP SCREW M5-.8 X 8
Price
N/A

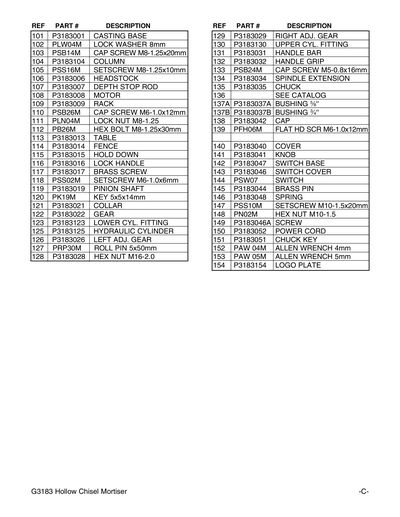

101
CASTING BASE
Price
N/A
102
Now: PLW04
LOCK WASHER 3/8
Price
N/A
103
CAP SCREW M8-1.25 X 20
Price
N/A
104
*DISCD*COLUMN
Item is no longer available
Price
N/A
105
SET SCREW M8-1.25 X 10
Price
N/A
106
HEADSTOCK
Price
N/A
107
DEPTH STOP ROD
Price
N/A
108
MOTOR 1/2HP 110V 1-PH
Price
N/A
109
RACK
Price
N/A
110
CAP SCREW M6-1 X 12
Price
N/A
111
LOCK WASHER 8MM
Price
N/A
112
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
113
TABLE
Price
N/A
114
FENCE
Price
N/A
115
HOLD DOWN
Price
N/A
116
LOCK HANDLE
Price
N/A
117
SCREW M8-1.25 X 25 BRASS
Price
N/A
118
SET SCREW M6-1 X 6
Price
N/A
119
PINION SHAFT
Price
N/A
120
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
121
COLLAR
Price
N/A
122
GEAR
Price
N/A
123
*DISCD*LOWER CYL FITTING
Item is no longer available
Price
N/A
124
HYDRAULIC CYLINDER V1.10.95
Price
N/A
125
HYDRAULIC CYLINDER V1.10.95
Price
N/A
126
MOTOR FAN
Price
N/A
127
MOTOR FAN COVER
Price
N/A
128
COMPLETE WIRING BOX W/LID
Price
N/A
129
*DISCD*ADJ GEAR RIGHT
Price
N/A
131
HANDLE BAR
Price
N/A
132
HANDLE GRIP
Price
N/A
133
CAP SCREW M5-.8 X 16
Price
N/A
134
ADAPTOR
Price
N/A
135
CHUCK 3/8-24 TPI
Price
N/A
137A
BUSHING 5/8
Price
N/A
137B
BUSHING 3/4
Price
N/A
138
CAP
Price
N/A
139
FLAT HD SCR M6-1 X 20
Price
N/A
140
COVER
Price
N/A
141
KNOB M5-.8 X 10
Price
N/A
142
SWITCH BASE
Price
N/A
143
*DISCD*SWITCH COVER
Price
N/A
144
Now: D4163
Toggle Safety Switch
Price
N/A
145
PIN BRASS
Price
N/A
146
HELICAL SPRING 10 X 7.3 X 1.2
Price
N/A
147
SET SCREW M10-1.5 X 20
Price
N/A
148
Now: PN02M
HEX NUT M10-1.5
Price
N/A
149
SCREW COVER
Price
N/A
151
CHUCK KEY 3/8
Price
N/A
152
HEX WRENCH 4MM
Price
N/A
153
HEX WRENCH 5MM
Price
N/A
154
*DISCD*LOGO PLATE
Item is no longer available
Price
N/A

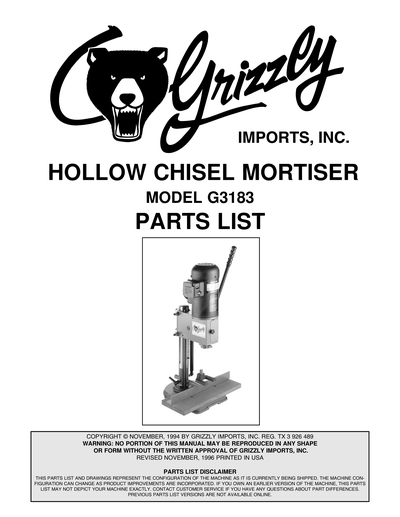

MANUAL
MANUAL FOR G3183 11/96
PART
MISC G3183 PARTS
Item is no longer available
Price
N/A
