Parts for G3616 - Vertical Mill

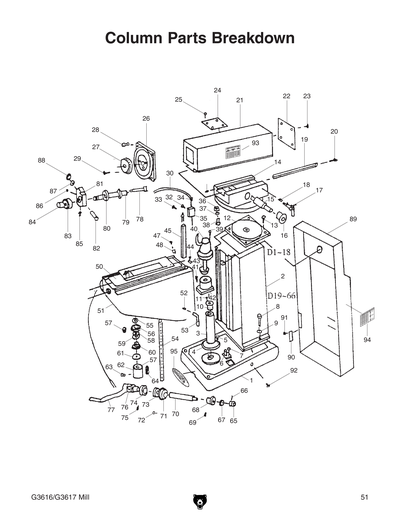

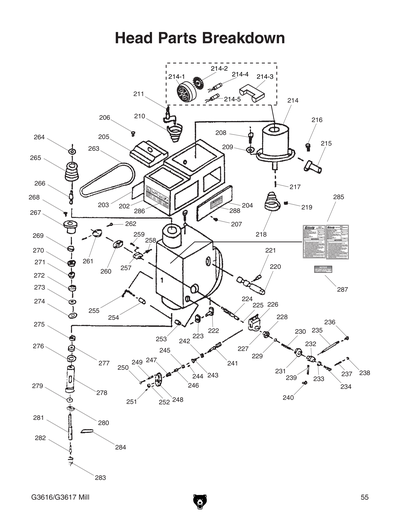

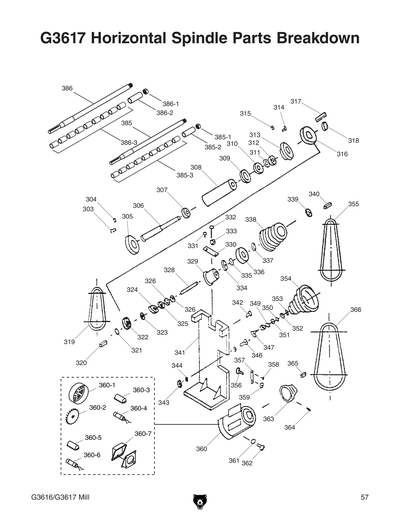

Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616
Part Diagram for G3616

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

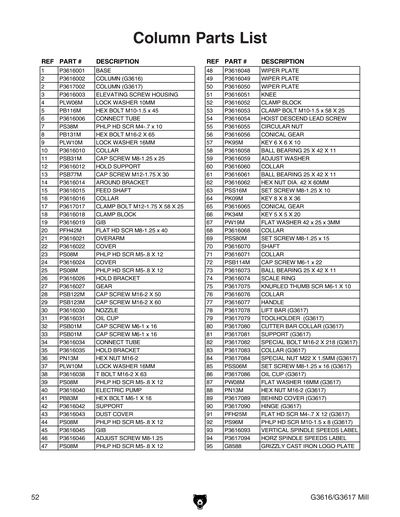

Ref #
Part #
Description
1
*DISCD*BASE
Price
$2,235.05
2
*DISCD*COLUMN
Item is no longer available
Price
N/A
3
*DISCD*ELEVATING SCREW HOUSING
Item is no longer available
Price
N/A
4
LOCK WASHER 10MM
Price
N/A
5
FLAT WASHER 10MM
Price
N/A
6
*DISCD*CONNECT TUBE
Item is no longer available
Price
N/A
7
CAP SCREW M4-.7 X 10
Price
N/A
8
HEX BOLT M16-2 X 70
Price
N/A
9
LOCK WASHER 16MM
Price
N/A
10
*DISCD*COLLAR
Price
$51.75
11
CAP SCREW M8-1.25 X 25
Price
N/A
12
*DISCD*HOLD SUPPORT
Item is no longer available
Price
N/A
13
CAP SCREW M12-1.75 X 30
Price
N/A
14
*DISCD*TURRET
Item is no longer available
Price
N/A
15
*DISCD*FEED SHAFT
Item is no longer available
Price
N/A
16
*DISCD*COLLAR
Item is no longer available
Price
N/A
17
*DISCD*CLAMP BOLT
Item is no longer available
Price
N/A
18
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
19
*DISCD*GIB
Item is no longer available
Price
N/A
20
FLAT HD SCR M8-1.25 X 40
Price
N/A
21
*DISCD*OVERARM RAM
Item is no longer available
Price
N/A
22
*DISCD*COVER
Item is no longer available
Price
N/A
23
CAP SCREW M6-1 X 10
Price
N/A
24
*DISCD*COVER
Item is no longer available
Price
N/A
26
*DISCD*HOLD BRACKET
Item is no longer available
Price
N/A
26-1
*DISCD*LOCATING PIN 6MM
Item is no longer available
Price
N/A
27
*DISCD*GEAR
Item is no longer available
Price
N/A
28
CAP SCREW M16-2 X 50
Price
N/A
29
CAP SCREW M16-2 X 60
Price
N/A
30
*DISCD*NOZZLE
Item is no longer available
Price
N/A
31
*DISCD*OIL CUP
Item is no longer available
Price
N/A
32
CAP SCREW M6-1 X 16
Price
N/A
33
CAP SCREW M6-1 X 16
Price
N/A
34
*DISCD*CONNECT TUBE
Item is no longer available
Price
N/A
35
*DISCD*HOLD BRACKET
Item is no longer available
Price
N/A
36
HEX NUT M16-2
Price
N/A
37
LOCK WASHER 16MM
Price
N/A
38
*DISCD*T BOLT M16-2 X 63
Item is no longer available
Price
N/A
39
PHLP HD SCR M5-.8 X 12
Price
N/A
40
*DISCD*COOLANT PUMP
Item is no longer available
Price
N/A
41
HEX BOLT M6-1 X 16
Price
N/A
42
*DISCD*SUPPORT
Item is no longer available
Price
N/A
43
*DISCD*DUST COVER
Item is no longer available
Price
N/A
44
CAP SCREW M5-.8 X 12
Price
N/A
45
*DISCD*GIB
Item is no longer available
Price
N/A
46
*DISCD*ADJUST SCREW M8-1.25
Item is no longer available
Price
N/A
47
CAP SCREW M5-.8 X 12
Price
N/A
48
*DISCD*WIPER PLATE
Price
$23.30
49
*DISCD*WIPER PLATE
Price
$23.30
50
*DISCD*WIPER PLATE
Price
$23.30
51
*DISCD*KNEE
Price
$1,771.60
52
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
53
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Item is no longer available
Price
N/A
54
*DISCD*HOIST DESCEND LEADSCREW
Item is no longer available
Price
N/A
55
*DISCD*CIRCULAR NUT
Price
$5.50
56
*DISCD*CONICAL GEAR
Item is no longer available
Price
N/A
57
KEY 6 X 6 X 10
Price
N/A
58
*DISCD*BALL BEARING 25 X 42 X 11
Item is no longer available
Price
N/A
59
*DISCD*ADJUST WASHER
Item is no longer available
Price
N/A
60
*DISCD*COLLAR
Price
$13.25
61
*DISCD*BALL BEARING 25 X 42 X 11
Price
N/A
62
*DISCD*HEX NUT DIA. 42 X 60MM
Item is no longer available
Price
N/A
63
CAP SCREW M8-1.25 X 10
Price
N/A
64
KEY 8 X 8 X 35
Price
N/A
65
*DISCD*CONICAL GEAR
Item is no longer available
Price
N/A
66
ROLL PIN 5 X 60
Price
N/A
67
FLAT WASHER 25MM
Price
N/A
68
*DISCD*COLLAR
Price
$8.05
69
SET SCREW M8-1.25 X 15
Price
N/A
70
*DISCD*SHAFT
Item is no longer available
Price
N/A
71
*DISCD*COLLAR
Item is no longer available
Price
N/A
72
CAP SCREW M6-1 X 22
Price
N/A
73
*DISCD*BALL BEARING 25 X 42 X 11
Price
N/A
74
*DISCD*SCALE RING
Item is no longer available
Price
N/A
75
CAP SCREW M8-1.25 X 20
Price
N/A
76
*DISCD*COLLAR
Item is no longer available
Price
N/A
77
*DISCD*HANDLE
Item is no longer available
Price
N/A
78
*DISCD*LIFT BAR
Price
$31.05
79
*DISCD*TOOL HOLDER
Item is no longer available
Price
N/A
80
*DISCD*CUTTER BAR COLLAR
Item is no longer available
Price
N/A
81
*DISCD*SUPPORT
Item is no longer available
Price
N/A
82
*DISCD*BOLT
Item is no longer available
Price
N/A
83
*DISCD*COLLAR
Item is no longer available
Price
N/A
84
*DISCD*NUT
Item is no longer available
Price
N/A
85
CAP SCREW M8-1.25 X 16
Price
N/A
86
*DISCD*OIL CUP
Item is no longer available
Price
N/A
87
FLAT WASHER 16MM
Price
N/A
88
*DISCD*NUT
Item is no longer available
Price
N/A
89
*DISCD*BEHIND COVER
Item is no longer available
Price
N/A
90
*DISCD*HINGE
Item is no longer available
Price
N/A
91
CAP SCREW M4-.7 X 12
Price
N/A
92
*DISCD*SCREW
Item is no longer available
Price
N/A
94
*DISCD*HORIZONTAL SPINDLE SPEED LABEL
Price
N/A
95
*DISCD*GRIZZLY LOGO PLATE
Item is no longer available
Price
N/A
96
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
97
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
98
*DISCD*ENTANGLEMENT LABEL
Item is no longer available
Price
N/A
99
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
100
*DISCD*GRIZZLY LOGO PLATE
Item is no longer available
Price
N/A
101
*DISCD*HANDLE
Item is no longer available
Price
N/A
102
*DISCD*HANDLE COLLAR
Price
$8.05

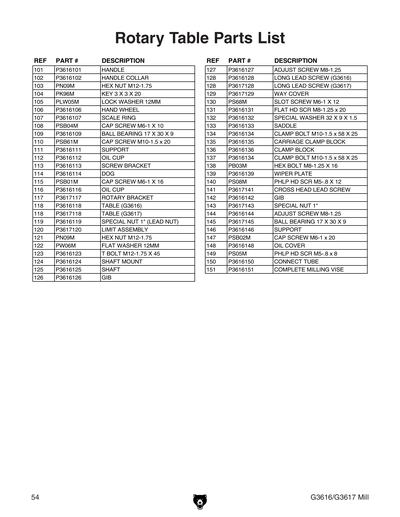

103
HEX NUT M12-1.75
Price
N/A
104
KEY 3 X 3 X 20
Price
N/A
105
LOCK WASHER 12MM
Price
N/A
106
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
107
*DISCD*SCALE RING
Item is no longer available
Price
N/A
108
*DISCD*KNURLED KNOB M6-1.0 X 12
Price
$2.30
109
*DISCD*BALL BEARING 17 X 30 X 9
Price
$14.40
110
CAP SCREW M10-1.5 X 20
Price
N/A
111
*DISCD*SUPPORT
Item is no longer available
Price
N/A
112
*DISCD*OIL CUP
Price
$1.75
113
*DISCD*SCREW BRACKET ASSY
Item is no longer available
Price
N/A
114
*DISCD*SCREW BRACKET ASSY
Price
N/A
115
CAP SCREW M6-1 X 16
Price
N/A
116
*DISCD*OIL CUP
Item is no longer available
Price
N/A
117
*DISCD*ROTARY BRACKET
Item is no longer available
Price
N/A
118
*DISCD*TABLE
Item is no longer available
Price
N/A
119
*DISCD*LEADSCREW NUT 1"
Item is no longer available
Price
N/A
119A
*DISCD*METRIC LEADSCREW NUT
Item is no longer available
Price
N/A
120
*DISCD*LIMIT ASSEMBLY
Item is no longer available
Price
N/A
121
HEX NUT M12-1.75
Price
N/A
122
FLAT WASHER 12MM
Price
N/A
123
*DISCD*T BOLT M12-1.75 X 45
Price
$3.45
124
*DISCD*SHAFT MOUNT
Item is no longer available
Price
N/A
125
*DISCD*SHAFT
Price
$121.35
126
*DISCD*LONG BEVEL IRON
Price
$31.05
127
*DISCD*ADJUST SCREW M8-1.25
Price
$3.45
128
*DISCD*LONGITUDINAL LEADSCREW
Price
$103.25
128A
*DISCD*METRIC LONGITUDINAL LEADSCREW
Price
$77.65
129
*DISCD*WAY COVER
Item is no longer available
Price
N/A
130
CAP SCREW M6-1 X 12
Price
N/A
131
CAP SCREW M8-1.25 X 20
Price
N/A
132
*DISCD*WIPER PLATE WASHER 32 X 9 X 1.5
Item is no longer available
Price
N/A
133
*DISCD*SADDLE
Item is no longer available
Price
N/A
134
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Item is no longer available
Price
N/A
135
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
136
*DISCD*CLAMP BLOCK
Price
$3.75
137
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Price
N/A
138
CAP SCREW M8-1.25 X 16
Price
N/A
139
*DISCD*WIPER PLATE
Item is no longer available
Price
N/A
140
CAP SCREW M5-.8 X 12
Price
N/A
141
*DISCD*CROSSFEED LEADSCREW
Price
N/A
142
*DISCD*GIB
Price
$31.05
143
*DISCD*WIPER PLATE NUT 1"
Price
N/A
144
*DISCD*ADJUST SCREW M8-1.25
Price
$10.65
145
*DISCD*BALL BEARING 17 X 30 X 9
Price
N/A
146
*DISCD*SUPPORT
Item is no longer available
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
148
*DISCD*OIL COVER
Item is no longer available
Price
N/A
149
CAP SCREW M5-.8 X 8
Price
N/A
150
*DISCD*CONNECT TUBE
Price
$23.30
151
*DISCD*COMPLETE MILLING VISE
Item is no longer available
Price
N/A

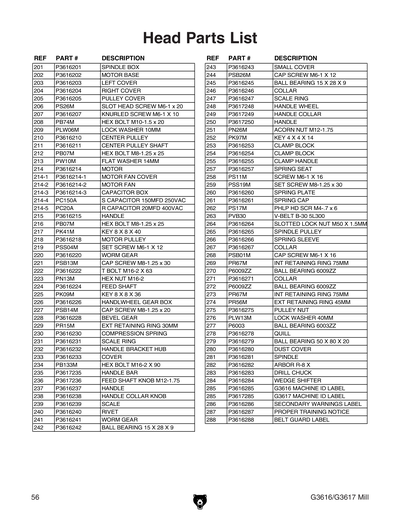

201
*DISCD*SPINDLE BOX V2.03.06
Price
$464.35
202
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
202-1
*DISCD*UPPER MOTOR BASE PLATE
Item is no longer available
Price
N/A
203
*DISCD*LEFT COVER
Item is no longer available
Price
N/A
204
*DISCD*RIGHT COVER
Item is no longer available
Price
N/A
205
*DISCD*PULLEY COVER
Price
$232.30
206
CAP SCREW M6-1 X 20
Price
N/A
207
*DISCD*KNURLED SCREW M6-1 X 10
Item is no longer available
Price
N/A
208
HEX BOLT M10-1.5 X 20
Price
N/A
209
LOCK WASHER 10MM
Price
N/A
210
*DISCD*CENTER PULLEY
Item is no longer available
Price
N/A
211
*DISCD*CENTER PULLEY SHAFT
Price
$23.30
212
HEX BOLT M8-1.25 X 25
Price
N/A
213
FLAT WASHER 14MM
Price
N/A
214
*DISCD*MOTOR 2HP 110/220V 1-PH
Item is no longer available
Price
N/A
214-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
214-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
214-3
*DISCD*PLASTIC CAPACITOR BOX
Item is no longer available
Price
N/A
214-4
*DISCD*S CAPACITOR 150M 250V
Price
N/A
214-5
R CAPACITOR 20M 400V 1-5/8 X 2-3/4
Price
N/A
215
*DISCD*HANDLE
Item is no longer available
Price
N/A
216
HEX BOLT M8-1.25 X 25
Price
N/A
217
KEY 8 X 8 X 40
Price
N/A
218
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
219
SET SCREW M6-1 X 12
Price
N/A
220
*DISCD*WORM GEAR
Price
$23.30
221
CAP SCREW M8-1.25 X 30
Price
N/A
222
*DISCD*T BOLT M16-2 X 63
Item is no longer available
Price
N/A
223
HEX NUT M16-2
Price
N/A
224
*DISCD*FEED SHAFT
Price
$23.30
225
KEY 8 X 8 X 35
Price
N/A
226
*DISCD*WORM BOX
Price
$129.10
227
CAP SCREW M8-1.25 X 20
Price
N/A
228
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
229
EXT RETAINING RING 30MM
Price
N/A
230
*DISCD*SPRING
Price
$8.05
231
*DISCD*SCALE RING
Item is no longer available
Price
N/A
231-1
*DISCD*LOCK SCREW FOR SCALE RING
Price
$5.50
232
*DISCD*HANDLE BRACKET
Item is no longer available
Price
N/A
233
*DISCD*COVER
Price
$10.65
234
*DISCD*HANDLE BOLT
Price
$8.05
235
*DISCD*HANDLE BAR
Item is no longer available
Price
N/A
236
*DISCD*FEED SHAFT KNOB M12-1.75
Price
N/A
237
*DISCD*HANDLE
Item is no longer available
Price
N/A
238
*DISCD*HANDLE COLLAR
Price
$2.90
239
*DISCD*SCALE
Item is no longer available
Price
N/A
240
*DISCD*RIVET
Item is no longer available
Price
N/A
241
*DISCD*WORM GEAR
Price
$38.25
242
*DISCD*BALL BEARING 15 X 28 X 9
Item is no longer available
Price
N/A
243
*DISCD*SMALL COVER
Price
$10.65
244
CAP SCREW M6-1 X 12
Price
N/A
245
*DISCD*BALL BEARING 15 X 28 X 9
Price
N/A
246
*DISCD*COLLAR
Item is no longer available
Price
N/A
247
*DISCD*SCALE RING
Price
$33.65
248
*DISCD*HANDLE WHEEL
Price
$27.05
249
*DISCD*HANDLE COLLAR
Item is no longer available
Price
N/A
250
*DISCD*HANDLE
Price
$13.25
251
ACORN NUT M12-1.75
Price
N/A
252
KEY 4 X 4 X 14
Price
N/A
253
*DISCD*CLAMP BLOCK
Price
$15.55
254
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
255
*DISCD*CLAMP HANDLE
Item is no longer available
Price
N/A
257
*DISCD*SPRING SEAT
Price
$18.15
258
CAP SCREW M6-1 X 25
Price
N/A
259
CAP SCREW M8-1.25 X 30
Price
N/A
260
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
261
*DISCD*SPRING CAP W/SPRING ASSY
Item is no longer available
Price
N/A
262
PHLP HD SCR M4-.7 X 6
Price
N/A
263
V-BELT B30
Price
N/A
264
*DISCD*SLOTTED LOCK NUT M50 X 1.5
Item is no longer available
Price
N/A
265
*DISCD*SPINDLE PULLEY
Price
$113.85
266
*DISCD*SPRING SLEEVE
Price
$56.95
267
*DISCD*COLLAR
Price
$23.30
268
CAP SCREW M6-1 X 16
Price
N/A
269
INT RETAINING RING 75MM
Price
N/A
270
BALL BEARING 6009ZZ
Price
N/A
271
*DISCD*COLLAR
Item is no longer available
Price
N/A
272
BALL BEARING 6009ZZ
Price
N/A
273
INT RETAINING RING 75MM
Price
N/A
274
EXT RETAINING RING 45MM
Price
N/A
275
*DISCD*PULLEY NUT
Price
$3.45
276
*DISCD*STAR WASHER
Price
$1.75
277
BALL BEARING 6009ZZ
Price
N/A
278
*DISCD*QUILL
Price
$228.85
278-1
*DISCD*RUBBER BUMPER RING
Price
$1.75
279
*DISCD*BALL BEARING 50 X 80 X 20
Price
$58.40
280
*DISCD*DUST COVER
Item is no longer available
Price
N/A
281
*DISCD*SPINDLE
Item is no longer available
Price
N/A
281-1
*DISCD*VERT DRAWBAR 7/16-20 W/1 LOCK V1
Item is no longer available
Price
N/A
281-1V2
*DISCD*VERTICAL DRAWBAR 7/16-20 W/2 LOCK
Item is no longer available
Price
N/A
281-2
*DISCD*LOCATING PIN
Item is no longer available
Price
N/A
282
*DISCD*DRILL CHUCK ARBOR R8 X JT6, 146MM
Item is no longer available
Price
N/A
283
*DISCD*DRILL CHUCK
Item is no longer available
Price
N/A
284
*DISCD*WEDGE SHIFTER
Item is no longer available
Price
N/A

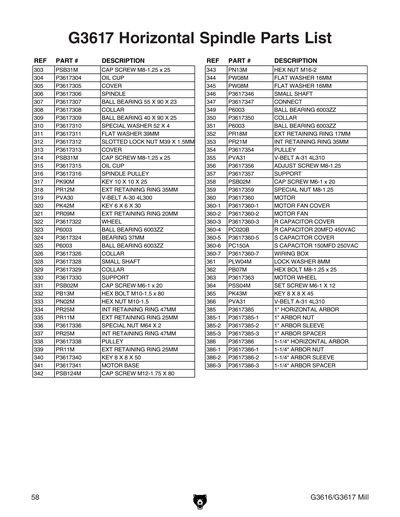

302
*DISCD*KEY
Price
N/A
303
CAP SCREW M8-1.25 X 25
Price
N/A
304
*DISCD*OIL CUP
Price
N/A
305
*DISCD*COVER
Price
N/A
306
*DISCD*SPINDLE
Price
N/A
307
*DISCD*BALL BEARING 55 X 90 X 23
Price
N/A
308
*DISCD*COLLAR
Price
N/A
309
*DISCD*BALL BEARING 40 X 90 X 25
Price
N/A
310
*DISCD*SPINDLE WASHER 52 X 4
Price
N/A
311
*DISCD*FLAT WASHER 39MM
Price
N/A
312
*DISCD*SLOTTED LOCK NUT M39 X 1.5MM
Price
N/A
313
*DISCD*COVER
Price
N/A
314
CAP SCREW M8-1.25 X 25
Price
N/A
315
*DISCD*OIL CUP
Price
N/A
316
*DISCD*SPINDLE PULLEY
Price
N/A
317
KEY 10 X 10 X 25
Price
N/A
318
EXT RETAINING RING 35MM
Price
N/A
319
V-BELT A33
Price
N/A
320
KEY 6 X 6 X 30
Price
N/A
321
EXT RETAINING RING 20MM
Price
N/A
322
*DISCD*WHEEL
Price
N/A
323
Bearing - 35mm x 17mm
Price
N/A
324
*DISCD*BALL BEARING 37MM
Price
N/A
325
Bearing - 35mm x 17mm
Price
N/A
326
*DISCD*COLLAR
Price
N/A
327
*DISCD*BALL BEARING
Price
N/A
328
*DISCD*SMALL SHAFT
Price
N/A
329
*DISCD*COLLAR
Price
N/A
330
*DISCD*SUPPORT
Price
N/A
331
CAP SCREW M6-1 X 20
Price
N/A
332
HEX BOLT M10-1.5 X 80
Price
N/A
333
HEX NUT M10-1.5
Price
N/A
334
INT RETAINING RING 47MM
Price
N/A
335
EXT RETAINING RING 25MM
Price
N/A
336
*DISCD*PULLEY NUT M64 X 2
Price
N/A
337
INT RETAINING RING 47MM
Price
N/A
338
*DISCD*PULLEY
Price
N/A
339
EXT RETAINING RING 25MM
Price
N/A
340
KEY 8 X 8 X 50
Price
N/A
341
*DISCD*MOTOR BASE
Price
N/A
342
CAP SCREW M12-1.75 X 80
Price
N/A
343
HEX NUT M16-2
Price
N/A
344
FLAT WASHER 16MM
Price
N/A
345
FLAT WASHER 16MM
Price
N/A
346
*DISCD*SMALL SHAFT
Price
N/A
347
*DISCD*CONNECT
Price
N/A
348
*DISCD*RETAINING RING
Price
N/A
349
Bearing - 35mm x 17mm
Price
N/A
350
*DISCD*COLLAR
Price
N/A
351
Bearing - 35mm x 17mm
Price
N/A
352
EXT RETAINING RING 17MM
Price
N/A
353
INT RETAINING RING 35MM
Price
N/A
354
*DISCD*PULLEY
Price
N/A
355
V-BELT A33
Price
N/A
356
*DISCD*ADJUST SCREW M8-1.25
Price
N/A
357
*DISCD*SUPPORT
Price
N/A
358
CAP SCREW M6-1 X 20
Price
N/A
359
*DISCD*PULLEY NUT M8-1.25
Price
N/A
360
*DISCD*MOTOR 1-1/2HP 220V 1-PH, HORZ
Price
N/A
361
LOCK WASHER 8MM
Price
N/A
362
HEX BOLT M8-1.25 X 25
Price
N/A
363
*DISCD*MOTOR WHEEL
Price
N/A
364
SET SCREW M6-1 X 12
Price
N/A
365
KEY 8 X 8 X 45
Price
N/A
366
V-BELT A33
Price
N/A

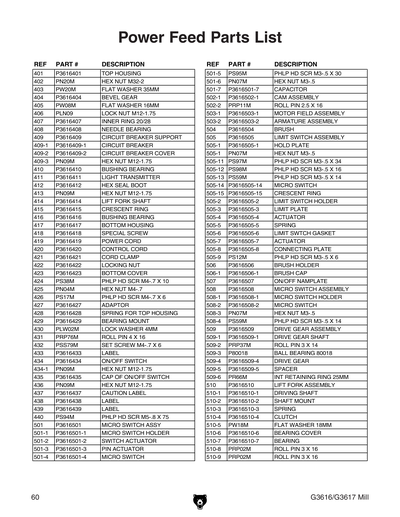

402
HEX NUT M32-2
Price
N/A
403
FLAT WASHER 35MM
Price
N/A
405
FLAT WASHER 16MM
Price
N/A
406
LOCK NUT M12-1.75
Price
N/A
409-1
*DISCD*CIRCUIT BREAKER
Price
N/A
409-2
*DISCD*CIRCUIT BREAKER COVER
Item is no longer available
Price
N/A
409-3
HEX NUT M12-1.75
Price
N/A
413
HEX NUT M12-1.75
Price
N/A
423
*DISCD*BOTTOM COVER
Item is no longer available
Price
N/A
424
PHLP HD SCR M4-.7 X 10
Price
N/A
425
HEX NUT M4-.7
Price
N/A
426
PHLP HD SCR M4-.7 X 6
Price
N/A
430
LOCK WASHER 4MM
Price
N/A
431
ROLL PIN 4 X 16
Price
N/A
432
SET SCREW M4-.7 X 6
Price
N/A
434-1
HEX NUT M12-1.75
Price
N/A
436
HEX NUT M12-1.75
Price
N/A
440
PHLP HD SCR M5-.8 X 75
Price
N/A
452
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
456
*DISCD*BALL BEARING
Item is no longer available
Price
N/A

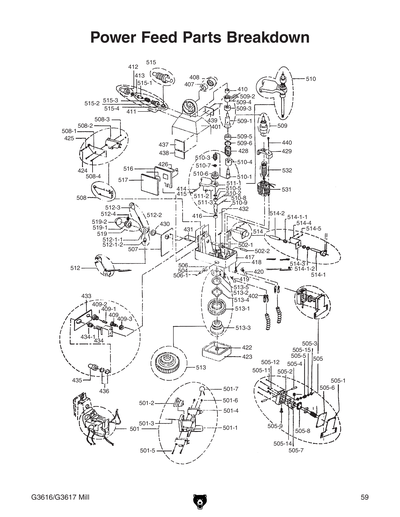

501
*DISCD*MICRO SWITCH ASSY
Price
$83.10
501-5
PHLP HD SCR M3-.5 X 30
Price
N/A
501-6
HEX NUT M3-.5
Price
N/A
502-1
*DISCD*CAM ASSEMBLY
Item is no longer available
Price
N/A
502-2
ROLL PIN 2.5 X 16
Price
N/A
504
*DISCD*BRUSH
Item is no longer available
Price
N/A
505
*DISCD*LIMIT SWITCH ASSY
Price
$103.25
505-11
PHLP HD SCR M3-.5 X 34
Price
N/A
505-12
PHLP HD SCR M3-.5 X 16
Price
N/A
505-13
PHLP HD SCR M3-.5 X 14
Price
N/A
505-9
PHLP HD SCR M3-.5 X 6
Price
N/A
506
*DISCD*BRUSH HOLDER WITH CAP
Item is no longer available
Price
N/A
507
*DISCD*ON/OFF NAMPLATE
Item is no longer available
Price
N/A
508
*DISCD*MICRO SWITCH ASSY
Item is no longer available
Price
N/A
508-3
HEX NUT M3-.5
Price
N/A
508-4
PHLP HD SCR M3-.5 X 14
Price
N/A
509
*DISCD*DRIVE GEAR ASSEMBLY
Item is no longer available
Price
N/A
509-2
ROLL PIN 3 X 14
Price
N/A
509-3
Bearing - 22mm x 8mm
Price
N/A
509-6
INT RETAINING RING 25MM
Price
N/A
510
*DISCD*LIFT FORK ASSEMBLY
Price
$51.75
510-5
FLAT WASHER 18MM
Price
N/A
510-8
ROLL PIN 3 X 16
Price
N/A
510-9
ROLL PIN 3 X 16
Price
N/A

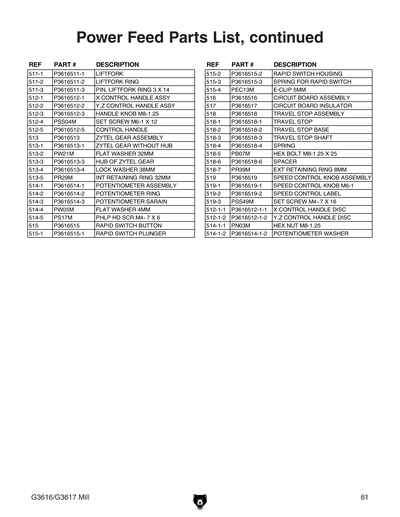

511-1
*DISCD*LIFT FORK
Item is no longer available
Price
N/A
511-2
*DISCD*LIFT FORK RING
Item is no longer available
Price
N/A
511-3
*DISCD*LIFTFORK RING PIN 3 X 14
Item is no longer available
Price
N/A
512-1
*DISCD*X CONTROL HANDLE ASSY
Item is no longer available
Price
N/A
512-1-1
*DISCD*X CONTROL HANDLE DISC
Item is no longer available
Price
N/A
512-1-2
*DISCD*Y,Z CONTROL HANDLE DISC
Item is no longer available
Price
N/A
512-4
SET SCREW M6-1 X 12
Price
N/A
512-5
*DISCD*CONTROL HANDLE
Item is no longer available
Price
N/A
513
*DISCD*ZYTEL GEAR ASSEMBLY
Price
$103.25
513-1
*DISCD*ZYTEL GEAR W/O HUB
Item is no longer available
Price
N/A
513-2
FLAT WASHER 32MM
Price
N/A
513-5
INT RETAINING RING 32MM
Price
N/A
514-1
*DISCD*POTENTIOMETER JASON RV24YN 20S B5
Price
$27.05
514-1-1
HEX NUT M8-1.25
Price
N/A
514-1-2
*DISCD*POTENTIOMETER WASHER
Item is no longer available
Price
N/A
514-2
*DISCD*POTENTIOMETER RING
Item is no longer available
Price
N/A
514-3
*DISCD*POTENTIOMETER SARAIN
Item is no longer available
Price
N/A
514-4
FLAT WASHER 4MM
Price
N/A
514-5
PHLP HD SCR M4-.7 X 6
Price
N/A
515
*DISCD*RAPID SWITCH BUTTON
Item is no longer available
Price
N/A
515-4
E-CLIP 5MM
Price
N/A
516
*DISCD*CIRCUIT BOARD ASSY
Price
$88.00
517
*DISCD*CIRCUIT BOARD INSULATOR
Item is no longer available
Price
N/A
518
*DISCD*TRAVEL STOP ASSY
Price
$113.85
518-5
HEX BOLT M8-1.25 X 25
Price
N/A
518-7
EXT RETAINING RING 8MM
Price
N/A
519
*DISCD*SPEED CONTROL KNOB ASSY
Item is no longer available
Price
N/A
519-3
SET SCREW M4-.7 X 16
Price
N/A
601
*DISCD*HALOGEN LAMP
Item is no longer available
Price
N/A
601-1
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
601-2
*DISCD*HALOGEN LAMP
Price
N/A
601-3
*DISCD*HALOGEN LAMP
Price
N/A
601-4
PHLP HD SCR M3-.5 X 10
Price
N/A
602
CAP SCREW M6-1 X 16
Price
N/A
603
*DISCD*HALOGEN LAMP
Price
N/A
604
LOCK WASHER 5MM
Price
N/A
605
HEX NUT M5-.8
Price
N/A
606
CAP SCREW M6-1 X 16
Price
N/A
607
LOCK WASHER 5MM
Price
N/A
608
*DISCD*CONDUIT 3/4"
Item is no longer available
Price
N/A
609
*DISCD*CONDUIT 1/2"
Item is no longer available
Price
N/A
610
*DISCD*STRAIN RELIEF 3/4"
Price
$10.65
611
*DISCD*STRAIN RELIEF 1/2"
Price
$8.05
612
*DISCD*VERTICAL SWITCH BOX COVER
Price
$8.05
613
FLAT HD SCR M4-.7 X 8
Price
N/A
614
PHLP HD SCR M5-.8 X 12
Price
N/A
615
LOCK WASHER 5MM
Price
N/A
616
FLAT WASHER 5MM
Price
N/A
617
*DISCD*VERTICAL SWITCH BOX COVER
Price
N/A
618
*DISCD*VERT SPINDLE SWITCH M4D035
Item is no longer available
Price
N/A
619
*DISCD*COOLANT PUMP SWITCH M2C005
Item is no longer available
Price
N/A
620
*DISCD*E-STOP BUTTON LAY3 A005166
Item is no longer available
Price
N/A
621
*DISCD*MAIN WIRING BOX W/LATCH
Price
$2.90
622
CAP SCREW M5-.8 X 12
Price
N/A
623
*DISCD*ELECTRICAL BOARD
Price
$227.15
624
PHLP HD SCR M5-.8 X 10
Price
N/A
625
*DISCD*CONTACTOR CJX1-32/22 24V ZHENGTAI
Item is no longer available
Price
N/A
626
*DISCD*OL RELAY ZHE JR16-20/30 6.8-11A 2
Item is no longer available
Price
N/A
626A
*DISCD*OL RELAY ZHE JR16-20/30 20-32A 11
Item is no longer available
Price
N/A
627
*DISCD*OL RELAY ZHE JR36-20/30 0.32-0.5A
Price
$21.00
627A
*DISCD*OL RELAY ZHE JR36-20/30 0.68-1.1A
Price
$31.05
628
*DISCD*CIRCUIT BREAKER 3A DELIX DZ47-63
Price
N/A
629
*DISCD*LARGE TERMINAL BAR
Item is no longer available
Price
N/A
631
*DISCD*SMALL TERMINAL BAR
Item is no longer available
Price
N/A
632
*DISCD*TRANSFORMER
Item is no longer available
Price
N/A
633
*DISCD*MAIN SWITCH W/KNOB
Item is no longer available
Price
N/A
634
*DISCD*STRAIN RELIEF 6.5MM
Item is no longer available
Price
N/A
635
*DISCD*STRAIN RELIEF 15MM
Item is no longer available
Price
N/A
636
*DISCD*STRAIN RELIEF 13MM
Item is no longer available
Price
N/A
637
*DISCD*CONDUIT 10MM
Item is no longer available
Price
N/A
638
ELECTRICITY 1.4W X 1.2H
Price
N/A
650
*DISCD*CONVERSION KIT 110V
Item is no longer available
Price
N/A
659
SET SCREW M4-.7 X 6
Price
N/A
660
*DISCD*KEY
Price
N/A
662
*DISCD*HANDLE COLLAR
Price
N/A
663
*DISCD*HANDLE BAR
Price
N/A
800
*DISCD*COMPLETE TOOL BOX
Price
$41.15
801
*DISCD*TOOL BOX
Price
$41.15
802
*DISCD*DRILL CHUCK W/KEY
Item is no longer available
Price
N/A
803
*DISCD*HANDWHEEL HANDLES
Item is no longer available
Price
N/A
804
*DISCD*DRIFT KEY
Item is no longer available
Price
N/A
805
HEX WRENCH 5MM
Price
N/A
806
*DISCD*WRENCH 21/24MM
Item is no longer available
Price
N/A
807
*DISCD*ADAPTER R8-MT2
Price
$103.25
808
*DISCD*ADAPTER R8-MT3
Item is no longer available
Price
N/A
809
*DISCD*ADAPTER R8-B18
Item is no longer available
Price
N/A
810
*DISCD*SET OF R8 COLLETS
Item is no longer available
Price
N/A
811
*DISCD*KNEE HANDLE
Item is no longer available
Price
N/A
812
*DISCD*POWER FEED RING 3"
Price
$8.05
MANUAL
*DISCD*MANUAL FOR G3616 09/07
Price
$13.25
