Parts for G3617 - Horizontal / Vertical Mill

Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617
Part Diagram for G3617

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*MOTOR 2HP 1-PH, VERTICAL
Price
N/A
1-1
*DISCD*CONNECTION BLOCK
Price
$15.55
2
*DISCD*COLUMN
Item is no longer available
Price
N/A
3
*DISCD*ELEVATING SCREW HOUSING
Price
N/A
4
LOCK WASHER 10MM
Price
N/A
5
FLAT WASHER 10MM
Price
N/A
6
*DISCD*CONNECT TUBE
Price
N/A
7
CAP SCREW M4-.7 X 10
Price
N/A
8
HEX BOLT M16-2 X 70
Price
N/A
9
LOCK WASHER 16MM
Price
N/A
10
*DISCD*COLLAR
Price
N/A
11
CAP SCREW M8-1.25 X 25
Price
N/A
12
*DISCD*HOLD SUPPORT
Price
N/A
13
CAP SCREW M12-1.75 X 30
Price
N/A
14
*DISCD*TURRET
Price
N/A
15
*DISCD*FEED SHAFT
Price
N/A
16
*DISCD*COLLAR
Price
N/A
17
*DISCD*CLAMP BOLT M12-1.75 X 58 X 25
Item is no longer available
Price
N/A
18
*DISCD*CLAMP BLOCK
Price
N/A
19
*DISCD*GIB
Price
N/A
20
FLAT HD SCR M8-1.25 X 40
Price
N/A
21
*DISCD*OVERARM RAM
Price
N/A
22
*DISCD*COVER
Price
N/A
23
CAP SCREW M6-1 X 10
Price
N/A
24
*DISCD*COVER
Item is no longer available
Price
N/A
26
*DISCD*HOLD BRACKET
Price
N/A
27
*DISCD*GEAR
Price
N/A
28
CAP SCREW M16-2 X 50
Price
N/A
29
CAP SCREW M16-2 X 60
Price
N/A
30
*DISCD*NOZZLE
Price
N/A
31
*DISCD*OIL CUP
Price
N/A
32
CAP SCREW M6-1 X 16
Price
N/A
33
CAP SCREW M6-1 X 16
Price
N/A
34
*DISCD*CONNECT TUBE
Price
N/A
35
*DISCD*HOLD BRACKET
Price
N/A
36
HEX NUT M16-2
Price
N/A
37
LOCK WASHER 16MM
Price
N/A
38
*DISCD*T BOLT M16-2 X 63
Price
N/A
39
PHLP HD SCR M5-.8 X 12
Price
N/A
40
*DISCD*ELECTRIC PUMP
Item is no longer available
Price
N/A
41
HEX BOLT M6-1 X 16
Price
N/A
42
*DISCD*SUPPORT
Price
N/A
43
*DISCD*DUST COVER
Price
N/A
44
CAP SCREW M5-.8 X 12
Price
N/A
45
*DISCD*GIB
Price
N/A
46
*DISCD*ADJUST SCREW M8-1.25
Price
N/A
47
CAP SCREW M5-.8 X 12
Price
N/A
48
*DISCD*WIPER PLATE
Price
N/A
49
*DISCD*WIPER PLATE
Price
N/A
50
*DISCD*WIPER PLATE
Price
N/A
51
*DISCD*KNEE
Price
N/A
52
*DISCD*CLAMP BLOCK
Price
N/A
53
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Price
N/A
54
*DISCD*HOIST DESCEND LEADSCREW
Price
N/A
55
*DISCD*CIRCULAR NUT
Price
N/A
56
*DISCD*CONICAL GEAR
Price
N/A
57
KEY 6 X 6 X 10
Price
N/A
58
*DISCD*BALL BEARING 25 X 42 X 11
Price
N/A
59
*DISCD*ADJUST WASHER
Price
N/A
60
*DISCD*COLLAR
Price
N/A
61
*DISCD*BALL BEARING 25 X 42 X 11
Price
N/A
62
*DISCD*HEX NUT DIA. 42 X 60MM
Price
N/A
63
CAP SCREW M8-1.25 X 10
Price
N/A
64
KEY 8 X 8 X 35
Price
N/A
65
*DISCD*CONICAL GEAR
Price
N/A
66
KEY 5 X 5 X 20
Price
N/A
67
FLAT WASHER 25MM
Price
N/A
68
*DISCD*COLLAR
Price
N/A
69
CAP SCREW M8-1.25 X 15
Price
N/A
70
*DISCD*SHAFT
Price
N/A
71
*DISCD*COLLAR
Price
N/A
72
CAP SCREW M6-1 X 22
Price
N/A
73
*DISCD*BALL BEARING 25 X 42 X 11
Price
N/A
74
*DISCD*SCALE RING
Price
N/A
75
*DISCD*KNURLED THUMB SCR M6-1 X 10
Price
$2.90
76
*DISCD*COLLAR
Price
N/A
77
*DISCD*HANDLE
Price
$77.65
78
*DISCD*LIFT BAR
Price
N/A
79
*DISCD*TOOLHOLDER
Item is no longer available
Price
N/A
80
*DISCD*CUTTER BAR COLLAR
Item is no longer available
Price
N/A
81
*DISCD*SUPPORT
Price
$299.00
82
*DISCD*TOOLHOLDER BOLT M16-2 X 218
Item is no longer available
Price
N/A
83
*DISCD*COLLAR
Price
$83.10
84
*DISCD*TOOLHOLDER NUT M22 X 1.5MM
Item is no longer available
Price
N/A
85
CAP SCREW M8-1.25 X 16
Price
N/A
86
*DISCD*OIL CUP
Item is no longer available
Price
N/A
87
FLAT WASHER 16MM
Price
N/A
88
HEX NUT M16-2
Price
N/A
89
*DISCD*BEHIND COVER
Item is no longer available
Price
N/A
90
*DISCD*HINGE
Item is no longer available
Price
N/A
91
CAP SCREW M4-.7 X 12
Price
N/A
92
CAP SCREW M4-.7 X 12
Price
N/A
93
*DISCD*VERTICAL SPINDLE SPEED LABEL
Price
N/A
96
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
97
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
98
*DISCD*ENTANGLEMENT LABEL
Price
N/A
99
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
A1
*DISCD*BASE
Price
$1,547.35
100
*DISCD*GRIZZLY LOGO PLATE
Price
N/A
1004
*DISCD*A/C CONTACTOR CJX1-32 3TB44 24V 6
Item is no longer available
Price
N/A
1005
*DISCD*COMBO SWITCH VERT MILL CTRL
Price
$103.25
101
*DISCD*HANDLE
Price
N/A
102
*DISCD*HANDLE COLLAR
Price
N/A
103
HEX NUT M12-1.75
Price
N/A
104
KEY 3 X 3 X 20
Price
N/A
105
LOCK WASHER 12MM
Price
N/A
106
*DISCD*HANDWHEEL
Price
N/A
107
*DISCD*SCALE RING
Price
N/A
108
CAP SCREW M6-1 X 10
Price
N/A
109
THRUST BEARING 51103
Price
N/A
110
CAP SCREW M10-1.5 X 20
Price
N/A
1101
*DISCD*MOTOR 2HP 1-PH, VERTICAL
Price
N/A
1102
*DISCD*MOTOR 1-1/2HP 220V 1-PH, HORZ
Price
N/A
1103
*DISCD*COOLANT PUMP
Item is no longer available
Price
N/A
1104

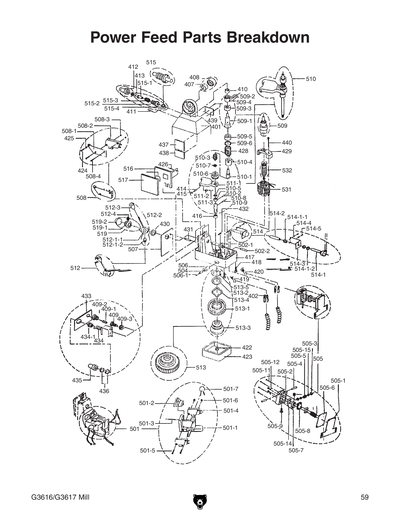

*DISCD*POWER FEED
Price
$1,392.65
1105
*DISCD*A/C CONTACTOR CJX1-32/22 3TB44 17
Item is no longer available
Price
N/A
1106
*DISCD*MAIN SWITCH
Item is no longer available
Price
N/A
1107
*DISCD*THERMO RELAY JR36-20 .32/.5AMP SU
Price
$36.55
1108
*DISCD*THERMO RELAY JR36-20 6.8/11AMP SU
Price
$41.15
1109
*DISCD*THERMO RELAY JR36-20 10/16AMP SUN
Item is no longer available
Price
N/A
111
*DISCD*SUPPORT
Price
N/A
1112
*DISCD*COMBO SWITCH COOLANT CTRL
Item is no longer available
Price
N/A
1113
*DISCD*E - STOP BUTTON
Item is no longer available
Price
N/A
1114
*DISCD*MICRO SWITCH
Price
$15.55
1115
*DISCD*CIRCUT BREAKER
Price
$51.75
1116
*DISCD*TRANSFORMER
Price
N/A
1117
*DISCD*HALOGEN LAMP
Item is no longer available
Price
N/A
112
*DISCD*OIL CUP
Price
N/A
113
*DISCD*SCREW BRACKET ASSY
Price
N/A
114
*DISCD*SCREW BRACKET ASSY
Price
N/A
115
CAP SCREW M6-1 X 16
Price
N/A
116
*DISCD*OIL CUP
Price
N/A
117
*DISCD*ROTARY BRACKET
Price
$515.80
118
*DISCD*TABLE
Price
$1,444.40
119
*DISCD*LEADSCREW NUT 1"
Price
N/A
120
*DISCD*LIMIT ASSEMBLY
Item is no longer available
Price
N/A
1202
*DISCD*DRILL CHUCK
Item is no longer available
Price
N/A
1203
*DISCD*MILLING CHUCK
Item is no longer available
Price
N/A
1204
*DISCD*REDUCTION SLEEVE
Item is no longer available
Price
N/A
1205
*DISCD*MACHINE VISE
Price
$283.80
1206
*DISCD*WRENCH
Item is no longer available
Price
N/A
1207
*DISCD*INNER HEX SPANNER
Item is no longer available
Price
N/A
1208
*DISCD*CAMLOCK
Item is no longer available
Price
N/A
1209
*DISCD*WEDGE SHIFTER
Item is no longer available
Price
N/A
121
HEX NUT M12-1.75
Price
N/A
1210
*DISCD*SPINDLE ARBOR
Item is no longer available
Price
N/A
1210-1
*DISCD*HORIZ DRAW BAR 12-7/16"
Price
$31.05
122
FLAT WASHER 12MM
Price
N/A
123
*DISCD*T BOLT M12-1.75 X 45
Price
N/A
124
*DISCD*SHAFT MOUNT
Price
N/A
125
*DISCD*SHAFT
Price
N/A
126
*DISCD*LONG BEVEL IRON
Price
N/A
127
*DISCD*ADJUST SCREW M8-1.25
Price
N/A
128
*DISCD*LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
129
*DISCD*WAY COVER
Item is no longer available
Price
N/A
130
PHLP HD SCR M6-1 X 10
Price
N/A
131
CAP SCREW M8-1.25 X 20
Price
N/A
132
*DISCD*WIPER PLATE WASHER 32 X 9 X 1.5
Price
N/A
133
*DISCD*SADDLE
Price
N/A
134
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Price
N/A
135
*DISCD*CLAMP BLOCK
Price
N/A
136
*DISCD*CLAMP BLOCK
Price
N/A
137
*DISCD*CLAMP BOLT M10-1.5 X 58 X 25
Price
N/A
138
CAP SCREW M8-1.25 X 16
Price
N/A
139
*DISCD*WIPER PLATE
Price
N/A
140
CAP SCREW M5-.8 X 12
Price
N/A
141
*DISCD*CROSSFEED LEADSCREW
Item is no longer available
Price
N/A
142
*DISCD*GIB
Price
N/A
143
*DISCD*WIPER PLATE NUT 1"
Item is no longer available
Price
N/A
144
*DISCD*ADJUST SCREW M8-1.25
Price
N/A
145
*DISCD*BALL BEARING 17 X 30 X 9
Price
N/A
146
*DISCD*SUPPORT
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
148
*DISCD*OIL COVER
Price
N/A
149
CAP SCREW M5-.8 X 8
Price
N/A
150
*DISCD*CONNECT TUBE
Price
N/A
151
*DISCD*COMPLETE MILLING VISE
Price
N/A
1B1
*DISCD*HANDLE
Item is no longer available
Price
N/A
201
*DISCD*SPINDLE BOX V2.03.06
Item is no longer available
Price
N/A
201A
*DISCD*SPINDLE BOX V1.10.05
Price
$464.35
202
*DISCD*MOTOR BASE
Price
N/A
203
*DISCD*LEFT COVER
Price
N/A
204
*DISCD*RIGHT COVER
Price
N/A
205
*DISCD*PULLEY COVER
Price
N/A
206
CAP SCREW M6-1 X 20
Price
N/A
207
CAP SCREW M6-1 X 20
Price
N/A
208
HEX BOLT M10-1.5 X 35
Price
N/A
209
LOCK WASHER 10MM
Price
N/A
210
*DISCD*CENTER PULLEY
Price
N/A
210-1
*DISCD*HORIZONTAL DRAWBAR 12-7/16"
Item is no longer available
Price
N/A
211
*DISCD*CENTER PULLEY SHAFT
Price
N/A
212

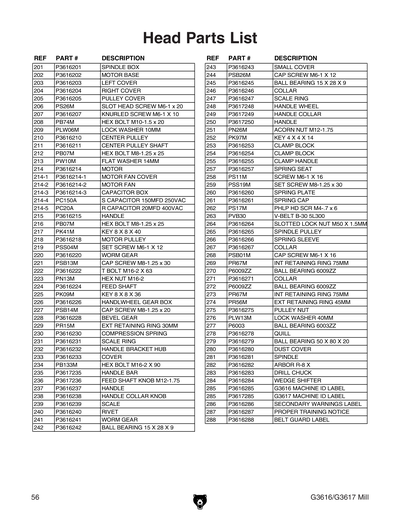

HEX BOLT M14-2 X 30
Price
N/A
213
FLAT WASHER 14MM
Price
N/A
214
*DISCD*MOTOR 2HP 1-PH, VERTICAL
Price
$662.70
214-1
*DISCD*MOTOR FAN COVER
Price
N/A
214-2
*DISCD*MOTOR FAN
Price
N/A
214-3
*DISCD*PLASTIC CAPACITOR BOX
Price
N/A
214-4
*DISCD*S CAPACITOR 150M 250V
Price
N/A
214-5
R CAPACITOR 20M 400V 1-5/8 X 2-3/4
Price
N/A
215
*DISCD*HANDLE
Price
N/A
216
HEX BOLT M8-1.25 X 25
Price
N/A
217
KEY 8 X 8 X 40
Price
N/A
218
*DISCD*MOTOR PULLEY
Price
N/A
219
SET SCREW M6-1 X 12
Price
N/A
220
*DISCD*WORM GEAR
Price
N/A
221
CAP SCREW M8-1.25 X 30
Price
N/A
222
*DISCD*T BOLT M16-2 X 63
Price
N/A
223
HEX NUT M16-2
Price
N/A
224
*DISCD*FEED SHAFT
Price
N/A
225
KEY 8 X 8 X 35
Price
N/A
226
*DISCD*WORM BOX
Price
N/A
227
CAP SCREW M8-1.25 X 20
Price
N/A
228
*DISCD*BEVEL GEAR
Price
N/A
229
EXT RETAINING RING 30MM
Price
N/A
230
*DISCD*SPRING
Price
N/A
231
*DISCD*SCALE RING
Price
N/A
232
*DISCD*HANDLE BRACKET
Price
N/A
233
*DISCD*COVER
Price
N/A
234
HEX BOLT M16-2 X 90
Price
N/A
235
*DISCD*HANDLE BAR
Item is no longer available
Price
N/A
236
*DISCD*FEED SHAFT KNOB M12-1.75
Item is no longer available
Price
N/A
237
*DISCD*HANDLE
Price
N/A
238
*DISCD*HANDLE COLLAR
Price
N/A
239
*DISCD*SCALE
Price
N/A
240
*DISCD*RIVET
Price
N/A
241
*DISCD*WORM GEAR
Price
N/A
242
*DISCD*BALL BEARING 15 X 28 X 9
Price
N/A
243
*DISCD*SMALL COVER
Price
N/A
244
CAP SCREW M6-1 X 12
Price
N/A
245
*DISCD*BALL BEARING 15 X 28 X 9
Price
N/A
246
*DISCD*COLLAR
Price
N/A
247
*DISCD*SCALE RING
Price
N/A
248
*DISCD*HAND WHEEL
Price
$62.10
249
*DISCD*HANDLE COLLAR
Price
$8.05
250
*DISCD*HANDLE
Price
$2.90
251
ACORN NUT M12-1.75
Price
N/A
252
KEY 4 X 4 X 14
Price
N/A
253
*DISCD*CLAMP BLOCK
Price
N/A
254
*DISCD*CLAMP BLOCK
Price
N/A
255
*DISCD*CLAMP HANDLE
Price
N/A
257
*DISCD*SPRING SEAT
Price
N/A
258
CAP SCREW M6-1 X 25
Price
N/A
259
CAP SCREW M8-1.25 X 30
Price
N/A
260
*DISCD*SPRING PLATE
Price
N/A
261
*DISCD*SPRING CAP W/SPRING ASSY
Price
N/A
262
PHLP HD SCR M4-.7 X 6
Price
N/A
263
V-BELT B32
Price
N/A
264
*DISCD*SLOTTED LOCK NUT M50 X 1.5
Price
N/A
265
*DISCD*SPINDLE PULLEY
Price
N/A
266
*DISCD*SPRING SLEEVE
Price
N/A
267
*DISCD*COLLAR
Price
N/A
268
CAP SCREW M6-1 X 16
Price
N/A
269
INT RETAINING RING 75MM
Price
N/A
270
BALL BEARING 6009ZZ
Price
N/A
271
*DISCD*COLLAR
Price
N/A
272
BALL BEARING 6009ZZ
Price
N/A
273
INT RETAINING RING 75MM
Price
N/A
274
EXT RETAINING RING 45MM
Price
N/A
275
*DISCD*PULLEY NUT
Price
N/A
276
LOCK WASHER 40MM
Price
N/A
277
BALL BEARING 6009ZZ
Price
N/A
278
*DISCD*QUILL
Price
N/A
279
*DISCD*BALL BEARING 50 X 80 X 20
Price
N/A
280
*DISCD*DUST COVER
Price
N/A
281
*DISCD*SPINDLE
Price
N/A
281-1
*DISCD*VERTICAL DRAWBAR 18"
Price
$31.05
282
*DISCD*DRILL CHUCK ARBOR R8 X JT6, 146MM
Price
N/A
283
*DISCD*DRILL CHUCK
Price
N/A
284
*DISCD*WEDGE SHIFTER
Price
N/A
285
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
286
*DISCD*SECONDARY SAFETY LABELS
Price
N/A
287
*DISCD*PROPER TRAINING NOTICE LABEL
Price
N/A
288
*DISCD*BELT COVER WARNING LABEL
Price
N/A
289
*DISCD*LOCK PIN AND NUT
Item is no longer available
Price
N/A

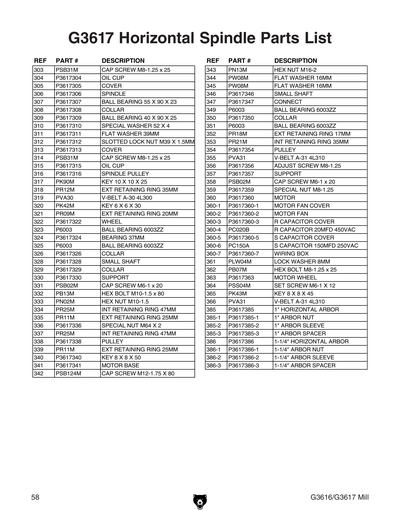

303
CAP SCREW M8-1.25 X 25
Price
N/A
304
*DISCD*OIL CUP
Price
$2.90
305
*DISCD*COVER
Item is no longer available
Price
N/A
306
*DISCD*SPINDLE
Price
$206.45
306-1
*DISCD*HORIZONTAL DRAWBAR
Price
$31.05
307
*DISCD*BALL BEARING 55 X 90 X 23
Item is no longer available
Price
N/A
308
*DISCD*COLLAR
Item is no longer available
Price
N/A
309
*DISCD*BALL BEARING 40 X 90 X 25
Item is no longer available
Price
N/A
310
*DISCD*SPINDLE WASHER 52 X 4
Item is no longer available
Price
N/A
311
*DISCD*FLAT WASHER 39MM
Item is no longer available
Price
N/A
312
*DISCD*SLOTTED LOCK NUT M39 X 1.5MM
Item is no longer available
Price
N/A
313
*DISCD*COVER
Item is no longer available
Price
N/A
314
CAP SCREW M8-1.25 X 25
Price
N/A
315
*DISCD*OIL CUP
Item is no longer available
Price
N/A
316
*DISCD*SPINDLE PULLEY
Price
$89.70
317
KEY 10 X 10 X 25
Price
N/A
318
EXT RETAINING RING 35MM
Price
N/A
319
V-BELT A33
Price
N/A
320
KEY 6 X 6 X 30
Price
N/A
321
EXT RETAINING RING 20MM
Price
N/A
322
*DISCD*WHEEL
Item is no longer available
Price
N/A
323
Bearing - 35mm x 17mm
Price
N/A
324
*DISCD*BALL BEARING 37MM
Item is no longer available
Price
N/A
325
Bearing - 35mm x 17mm
Price
N/A
326
*DISCD*COLLAR
Item is no longer available
Price
N/A
327
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
328
*DISCD*SMALL SHAFT
Item is no longer available
Price
N/A
329
*DISCD*COLLAR
Item is no longer available
Price
N/A
330
*DISCD*SUPPORT
Item is no longer available
Price
N/A
331
CAP SCREW M6-1 X 20
Price
N/A
332
HEX BOLT M10-1.5 X 80
Price
N/A
333
HEX NUT M10-1.5
Price
N/A
334
INT RETAINING RING 47MM
Price
N/A
335
EXT RETAINING RING 25MM
Price
N/A
336
*DISCD*PULLEY NUT M64 X 2
Price
$13.25
337
INT RETAINING RING 47MM
Price
N/A
338
*DISCD*PULLEY
Price
$123.95
339
EXT RETAINING RING 25MM
Price
N/A
340
KEY 8 X 8 X 50
Price
N/A
341
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
342
CAP SCREW M12-1.75 X 80
Price
N/A
343
HEX NUT M16-2
Price
N/A
344
FLAT WASHER 16MM
Price
N/A
345
FLAT WASHER 20MM
Price
N/A
346
*DISCD*SMALL SHAFT
Price
$8.05
347
*DISCD*CONNECT
Price
$4.60
349
Bearing - 35mm x 17mm
Price
N/A
350
*DISCD*COLLAR
Item is no longer available
Price
N/A
351
Bearing - 35mm x 17mm
Price
N/A
352
EXT RETAINING RING 17MM
Price
N/A
353
INT RETAINING RING 35MM
Price
N/A
354
*DISCD*PULLEY
Item is no longer available
Price
N/A
355
V-BELT A33
Price
N/A
356
*DISCD*ADJUST SCREW M8-1.25
Price
$4.60
357
*DISCD*SUPPORT
Item is no longer available
Price
N/A
358
CAP SCREW M6-1 X 20
Price
N/A
359
*DISCD*PULLEY NUT M8-1.25
Price
$4.60
360
*DISCD*MOTOR 1-1/2HP 220V 1-PH, HORZ
Item is no longer available
Price
N/A
360-4
R CAPACITOR 20M 450V 1-3/4 X 3-3/8
Price
N/A
360-6
*DISCD*S CAPACITOR 150M 250V
Price
N/A
361
LOCK WASHER 8MM
Price
N/A
362
HEX BOLT M8-1.25 X 25
Price
N/A
363
*DISCD*MOTOR WHEEL
Price
$51.75
364
CAP SCREW M6-1 X 12
Price
N/A
365
KEY 8 X 8 X 45
Price
N/A
366
V-BELT A33
Price
N/A
385
*DISCD*DRILL CHUCK ARBOR ASSY R8, 570MM
Item is no longer available
Price
N/A
386
*DISCD*HORZ ARBOR 1-1/4"
Item is no longer available
Price
N/A

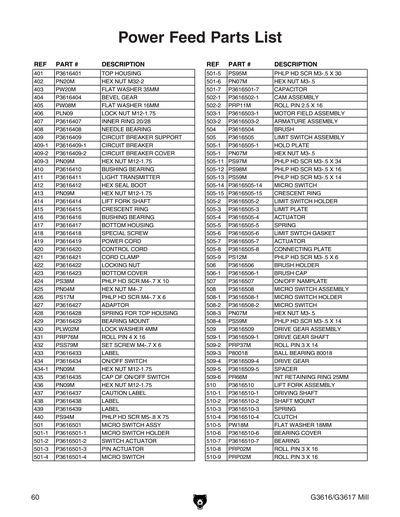

401
*DISCD*TOP HOUSING
Price
N/A
402
HEX NUT M32-2
Price
N/A
403
FLAT WASHER 35MM
Price
N/A
404
*DISCD*BEVEL GEAR
Price
N/A
405
FLAT WASHER 16MM
Price
N/A
406
LOCK NUT M12-1.75
Price
N/A
407
*DISCD*INNER RING 20/28
Price
N/A
408
*DISCD*NEEDLE BEARING
Price
N/A
409
*DISCD*CIRCUIT BREAKER SUPPORT
Price
N/A
409-1
*DISCD*CIRCUIT BREAKER
Price
N/A
409-2
*DISCD*CIRCUIT BREAKER COVER
Price
N/A
409-3
HEX NUT M12-1.75
Price
N/A
410
*DISCD*BUSHING BEARING
Price
N/A
411
*DISCD*LIGHT TRANSMITTER
Price
N/A
412
*DISCD*HEX SEAL BOOT
Price
N/A
413
HEX NUT M12-1.75
Price
N/A
414
*DISCD*LIFT FORK SHAFT
Price
N/A
415
*DISCD*CRESCENT RING
Price
N/A
416
*DISCD*BUSHING BEARING
Price
N/A
417
*DISCD*BOTTOM HOUSING
Price
N/A
418
*DISCD*BOTTOM HOUSING SCREW
Price
N/A
419
*DISCD*POWER CORD
Price
N/A
420
*DISCD*CONTROL CORD
Price
N/A
421
*DISCD*CORD CLAMP
Price
N/A
422
*DISCD*LOCKING NUT
Price
N/A
423
*DISCD*BOTTOM COVER
Price
N/A
424
PHLP HD SCR M4-.7 X 10
Price
N/A
425
HEX NUT M4-.7
Price
N/A
426
PHLP HD SCR M4-.7 X 6
Price
N/A
427
*DISCD*ADAPTOR
Price
N/A
428
*DISCD*SPRING FOR TOP HOUSING
Price
N/A
429
*DISCD*BEARING MOUNT
Price
N/A
430
LOCK WASHER 4MM
Price
N/A
431
ROLL PIN 4 X 16
Price
N/A
432
SET SCREW M4-.7 X 6
Price
N/A
433
*DISCD*LABEL
Price
N/A
434
*DISCD*ON/OFF SWITCH
Price
N/A
434-1
HEX NUT M12-1.75
Price
N/A
435
*DISCD*CAP OF ON/OFF SWITCH
Price
N/A
436
HEX NUT M12-1.75
Price
N/A
437
*DISCD*CAUTION LABEL
Price
N/A
438
*DISCD*LABEL
Price
N/A
439
*DISCD*LABEL
Price
N/A
440
PHLP HD SCR M5-.8 X 75
Price
N/A
4E1
*DISCD*SPINDLE
Item is no longer available
Price
N/A
501
*DISCD*MICRO SWITCH ASSY
Price
N/A
501-1
*DISCD*MICRO SWITCH HOLDER
Price
N/A
501-2
*DISCD*SWITCH ACTUATOR
Price
N/A
501-3
*DISCD*PIN ACTUATOR
Price
N/A
501-4
*DISCD*MICRO SWITCH
Price
N/A
501-5
PHLP HD SCR M3-.5 X 30
Price
N/A
501-6
HEX NUT M3-.5
Price
N/A
501-7
*DISCD*CAPACITOR
Price
N/A
502-1
*DISCD*CAM ASSEMBLY
Price
N/A
502-2
ROLL PIN 2.5 X 16
Price
N/A
503-1
*DISCD*MOTOR FIELD ASSY
Price
N/A
503-2
*DISCD*ARMATURE ASSY
Price
N/A
504
*DISCD*BRUSH
Price
N/A
505
*DISCD*LIMIT SWITCH ASSY
Price
N/A
505-1
*DISCD*HOLD PLATE
Price
N/A
505-11
PHLP HD SCR M3-.5 X 34
Price
N/A
505-12
PHLP HD SCR M3-.5 X 16
Price
N/A
505-13
PHLP HD SCR M3-.5 X 14
Price
N/A
505-14
*DISCD*MICRO SWITCH
Price
N/A
505-15
*DISCD*CRESCENT RING
Price
N/A
505-2
*DISCD*LIMIT SWITCH HOLDER
Price
N/A
505-3
*DISCD*LIMIT PLATE
Price
N/A
505-4
*DISCD*ACTUATOR
Price
N/A
505-5
*DISCD*SPRING
Price
N/A
505-6
*DISCD*LIMIT SWTCH GASKET
Price
N/A
505-7
*DISCD*ACTUATOR
Price
N/A
505-8
*DISCD*CONNECTING PLATE
Price
N/A
505-9
PHLP HD SCR M3-.5 X 6
Price
N/A
506
*DISCD*BRUSH HOLDER WITH CAP
Price
N/A
506-1
*DISCD*BRUSH CAP
Price
N/A
507
*DISCD*ON/OFF NAMPLATE
Price
N/A
508
*DISCD*MICRO SWITCH ASSY
Price
N/A
508-1
*DISCD*MICRO SWITCH HOLDER
Price
N/A
508-2
*DISCD*MICRO SWITCH
Price
N/A
508-3
HEX NUT M3-.5
Price
N/A
508-4
PHLP HD SCR M3-.5 X 14
Price
N/A
509
*DISCD*DRIVE GEAR ASSEMBLY
Price
N/A
509-1
*DISCD*DRIVE GEAR SHAFT
Price
N/A
509-2
ROLL PIN 3 X 14
Price
N/A
509-3
Bearing - 22mm x 8mm
Price
N/A
509-4
*DISCD*DRIVE GEAR
Price
N/A
509-5
*DISCD*SPACER
Price
N/A
509-6
INT RETAINING RING 25MM
Price
N/A
510
*DISCD*LIFT FORK ASSEMBLY
Price
N/A
510-1
*DISCD*DRIVING SHAFT
Price
N/A
510-2
*DISCD*SHAFT MOUNT
Price
N/A
510-3
*DISCD*SPRING
Price
N/A
510-4
*DISCD*CLUTCH
Price
N/A
510-5
FLAT WASHER 18MM
Price
N/A
510-6
*DISCD*BEARING COVER
Price
N/A
510-7
*DISCD*BEARING
Price
N/A
510-8
ROLL PIN 3 X 16
Price
N/A
510-9
ROLL PIN 3 X 16
Price
N/A

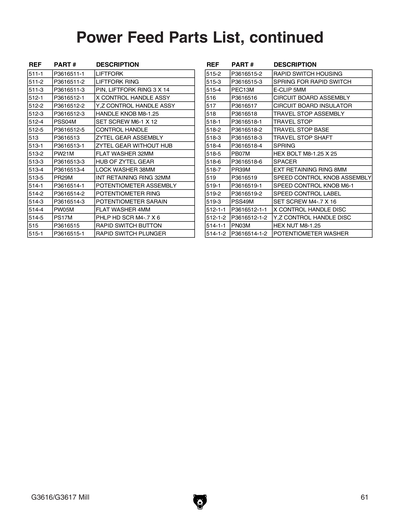

511-1
*DISCD*LIFT FORK
Price
N/A
511-2
*DISCD*LIFT FORK RING
Price
N/A
511-3
*DISCD*LIFTFORK RING PIN 3 X 14
Price
N/A
512-1
*DISCD*X CONTROL HANDLE ASSY
Price
N/A
512-1-1
*DISCD*X CONTROL HANDLE DISC
Price
N/A
512-1-2
*DISCD*Y,Z CONTROL HANDLE DISC
Price
N/A
512-2
*DISCD*Y,Z CONTROL HANDLE ASSY
Price
N/A
512-3
*DISCD*HANDLE KNOB M8-1.25
Price
N/A
512-4
SET SCREW M6-1 X 12
Price
N/A
512-5
*DISCD*CONTROL HANDLE
Price
N/A
513
*DISCD*ZYTEL GEAR ASSEMBLY
Price
N/A
513-1
*DISCD*ZYTEL GEAR W/O HUB
Price
N/A
513-2
FLAT WASHER 32MM
Price
N/A
513-3
*DISCD*HUB OF ZYTEL GEAR
Price
N/A
513-4
*DISCD*LOCK WASHER 38MM
Price
N/A
513-5
INT RETAINING RING 32MM
Price
N/A
514-1
*DISCD*POTENTIOMETER JASON RV24YN 20S B5
Price
N/A
514-1-1
HEX NUT M8-1.25
Price
N/A
514-1-2
*DISCD*POTENTIOMETER WASHER
Price
N/A
514-2
*DISCD*POTENTIOMETER RING
Price
N/A
514-3
*DISCD*POTENTIOMETER SARAIN
Price
N/A
514-4
FLAT WASHER 4MM
Price
N/A
514-5
PHLP HD SCR M4-.7 X 6
Price
N/A
515
*DISCD*RAPID SWITCH BUTTON
Price
N/A
515-1
*DISCD*RAPID SWITCH PLUNGER
Price
N/A
515-2
*DISCD*RAPID SWITCH HOUSING
Price
N/A
515-3
*DISCD*SPRING FOR RAPID SWITCH
Price
N/A
515-4
E-CLIP 5MM
Price
N/A
516
*DISCD*CIRCUIT BOARD ASSY
Price
N/A
517
*DISCD*CIRCUIT BOARD INSULATOR
Price
N/A
518
*DISCD*TRAVEL STOP ASSY
Price
N/A
518-1
*DISCD*TRAVEL STOP
Price
N/A
518-2
*DISCD*TRAVEL STOP BASE
Price
N/A
518-3
*DISCD*TRAVEL STOP SHAFT
Price
N/A
518-4
*DISCD*SPRING
Price
N/A
518-5
HEX BOLT M8-1.25 X 25
Price
N/A
518-6
*DISCD*SPACER
Price
N/A
518-7
EXT RETAINING RING 8MM
Price
N/A
519
*DISCD*SPEED CONTROL KNOB ASSY
Price
N/A
519-1
*DISCD*SPEED CONTROL KNOB M6-1
Price
N/A
519-2
*DISCD*SPEED CONTROL LABEL
Price
N/A
519-3
SET SCREW M4-.7 X 16
Price
N/A
521
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
524
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
531
*DISCD*MOTOR FIELD ASSY
Price
N/A
532
*DISCD*ARMATURE ASSY
Price
N/A

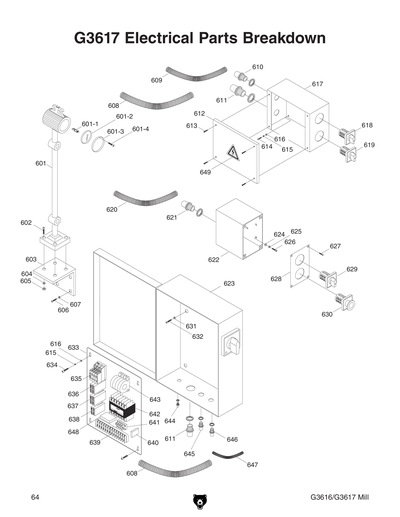

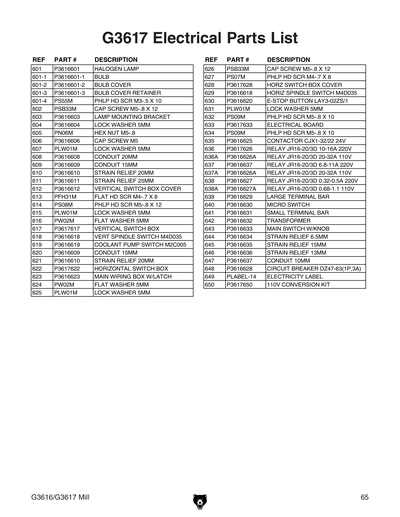

601
*DISCD*HALOGEN LAMP
Price
N/A
601-1
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
601-2
*DISCD*HALOGEN LAMP
Price
N/A
601-3
*DISCD*HALOGEN LAMP
Price
N/A
601-4
PHLP HD SCR M3-.5 X 10
Price
N/A
602
CAP SCREW M5-.8 X 12
Price
N/A
603
*DISCD*HALOGEN LAMP
Price
N/A
604
LOCK WASHER 5MM
Price
N/A
605
HEX NUT M5-.8
Price
N/A
606
CAP SCREW M6-1 X 16
Price
N/A
607
LOCK WASHER 5MM
Price
N/A
608
*DISCD*CONDUIT 3/4"
Price
N/A
609
*DISCD*CONDUIT 1/2"
Price
N/A
610
*DISCD*STRAIN RELIEF 3/4"
Price
N/A
611
*DISCD*STRAIN RELIEF 1/2"
Price
N/A
612
*DISCD*VERTICAL SWITCH BOX COVER
Price
N/A
613
FLAT HD SCR M4-.7 X 8
Price
N/A
614
PHLP HD SCR M5-.8 X 12
Price
N/A
615
LOCK WASHER 5MM
Price
N/A
616
FLAT WASHER 5MM
Price
N/A
617
*DISCD*VERTICAL SWITCH BOX
Price
$51.75
618
*DISCD*VERT SPINDLE SWITCH M4D035
Price
N/A
619
*DISCD*COOLANT PUMP SWITCH M2C005
Price
N/A
620
*DISCD*CONDUIT 1/2"
Price
N/A
621
*DISCD*STRAIN RELIEF 3/4"
Price
N/A
622
*DISCD*HORIZONTAL SWITCH BOX
Item is no longer available
Price
N/A
623
*DISCD*MAIN WIRING BOX W/LATCH
Price
N/A
624
*DISCD*THREADED SHAFT
Item is no longer available
Price
N/A
625
LOCK WASHER 5MM
Price
N/A
626
CAP SCREW M5-.8 X 12
Price
N/A
627
PHLP HD SCR M4-.7 X 8
Price
N/A
628
*DISCD*HORIZONTAL SWITCH BOX COVER
Item is no longer available
Price
N/A
630
*DISCD*E-STOP BUTTON LAY3 A005166
Price
N/A
631
LOCK WASHER 5MM
Price
N/A
632
PHLP HD SCR M5-.8 X 10
Price
N/A
633
*DISCD*ELECTRICAL BOARD
Item is no longer available
Price
N/A
634
PHLP HD SCR M5-.8 X 10
Price
N/A
635
*DISCD*CONTACTOR CJX1-32/22 24V ZHENGTAI
Price
N/A
636
*DISCD*OL RELAY ZHE JR16-20/30 6.8-11A 2
Price
N/A
636A
*DISCD*OL RELAY ZHE JR16-20/30 20-32A 11
Price
N/A
637
*DISCD*OL RELAY ZHE JR16-20/30 6.8-11A 2
Price
N/A
637A
*DISCD*OL RELAY ZHE JR16-20/30 20-32A 11
Price
N/A
638
*DISCD*OL RELAY ZHE JR36-20/30 0.32-0.5A
Price
N/A
638A
*DISCD*OL RELAY ZHE JR36-20/30 0.68-1.1A
Price
N/A
639
*DISCD*LARGE TERMINAL BAR
Price
N/A
640
*DISCD*MICRO SWITCH
Price
N/A
641
*DISCD*SMALL TERMINAL BAR
Price
N/A
642
*DISCD*TRANSFORMER
Price
N/A
643
*DISCD*MAIN SWITCH W/KNOB
Price
N/A
644
*DISCD*STRAIN RELIEF 6.5MM
Price
N/A
645
*DISCD*STRAIN RELIEF 15MM
Price
N/A
646
*DISCD*STRAIN RELIEF 13MM
Price
N/A
647
*DISCD*CONDUIT 10MM
Price
N/A
648
*DISCD*CIRCUIT BREAKER 3A DELIX DZ47-63
Price
N/A
649
ELECTRICITY 1.4W X 1.2H
Price
N/A
650
*DISCD*CONVERSION KIT 110V
Item is no longer available
Price
N/A
652
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
656
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
6G1
*DISCD*HANDLE
Price
$92.90
6G31
*DISCD*CONNECT TUBE
Item is no longer available
Price
N/A
801
*DISCD*MOTOR 2HP 1-PH, VERTICAL
Price
N/A
802
*DISCD*MOTOR 1-1/2HP 220V 1-PH, HORZ
Price
N/A
803
*DISCD*CIRCUT BREAKER
Item is no longer available
Price
N/A
804
*DISCD*CIRCUT BREAKER
Item is no longer available
Price
N/A
805
*DISCD*COMBO SWITCH VERT MILL CTRL
Item is no longer available
Price
N/A
806
*DISCD*COMB0 SWITCH HORIZ MILL CTRL
Item is no longer available
Price
N/A
807
*DISCD*TRANSFORMER
Price
N/A
808
*DISCD*LIGHT
Item is no longer available
Price
N/A
903
*DISCD*CIRCUT BREAKER
Item is no longer available
Price
N/A
904
*DISCD*TRANSFORMER
Price
N/A
906
*DISCD*COMBO SWITCH POWER FEED CTRL
Item is no longer available
Price
N/A
907
*DISCD*LIGHT
Price
$123.95
908
*DISCD*COMPLETE QUILL ASSY
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G3617 09/07
Item is no longer available
Price
N/A
