Parts for G3708 - Industrial Buffing Machine - 2 HP 3-Phase

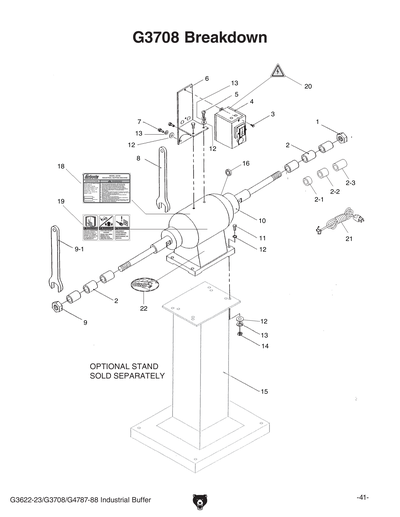

Part Diagram for G3708
Part Diagram for G3708
Part Diagram for G3708
Part Diagram for G3708

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

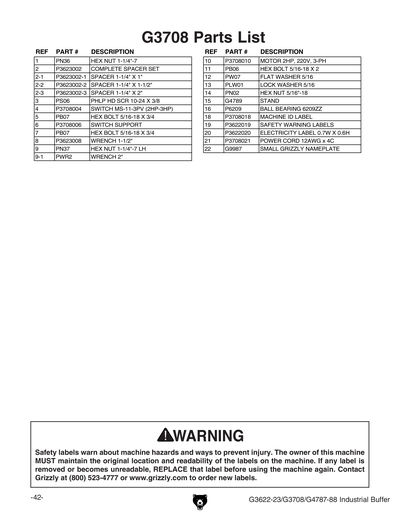

Ref #
Part #
Description
1
P3708001
Now: PN36
HEX NUT 1-1/4"-7
Price
N/A
2
*DISCD*COMPLETE SPACER SET 3PC
Price
N/A
2-1
*DISCD*SPACER 1-1/4" X 1"
Price
N/A
2-2
*DISCD* SPACER 1-1/4" X 1-1/2"
Price
N/A
2-3
*DISCD* SPACER 1-1/4" X 2"
Price
N/A
3
P3708003
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
4
*DISCD*SWITCH 2HP 3PH MS-11-3PV
Item is no longer available
Price
N/A
5
P3708005
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
7
P3708007
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
8
*DISCD*WRENCH 1-1/2"
Price
N/A
9
P3708009
Now: PN37
HEX NUT 1-1/4"-7 LH
Price
N/A
9-1
WRENCH 2" COMBO
Price
N/A
10
*DISCD*MOTOR 2HP 3PH 220V
Item is no longer available
Price
N/A
11
P3708011
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
12
P3708012
Now: PW07
FLAT WASHER 5/16
Price
N/A
13
LOCK WASHER 5/16
Price
N/A
14
P3708014
Now: PN02
HEX NUT 5/16-18
Price
N/A
15
Buffing Stand
Price
N/A
16
BALL BEARING 6209ZZ
Price
N/A
18
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
19
SAFETY WARNING LABEL
Price
N/A
20
ELECTRICITY LABEL 0.7W X 0.6H
Price
N/A
22
Nameplate - Mini
Price
N/A
MAN
MANUAL FOR G3622 04/08
Price
N/A
