Parts for G4000 - 9" x 19" Bench Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
635 P40000635
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
811 P40000811
Replaced By P40001017
WOODRUFF KEY 3 X 13
 N/A View Replacement

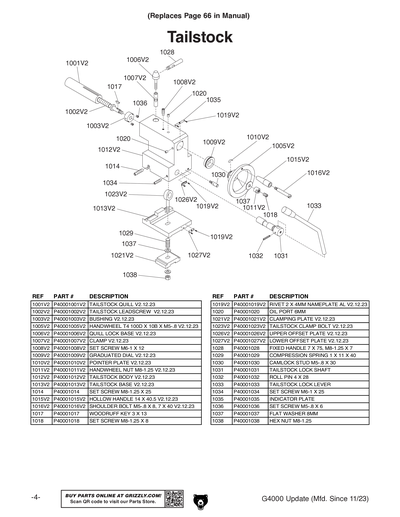

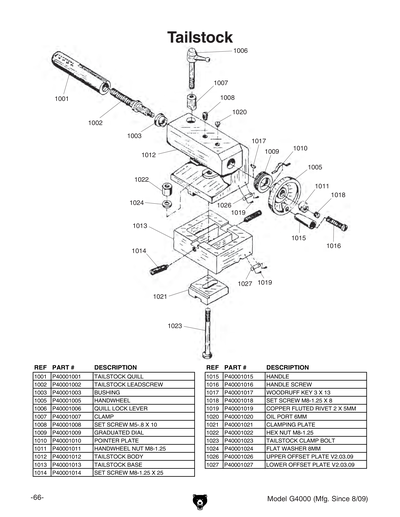

1000 P40001000 COMPLETE TAILSTOCK ASSEMBLY $248.00
1001 P40001001 TAILSTOCK QUILL $39.75
1001A P40001001A LIVE CENTER MT#2 $79.25
1002 P40001002 TAILSTOCK LEADSCREW $21.25
1003 P40001003 BUSHING $3.50
1004 P40001004 OFF SET INDICATOR PLATE $1.75
1005 P40001005 HANDWHEEL $30.50
1006 P40001006 QUILL LOCK LEVER $4.50
1007 P40001007 CLAMP $3.50
1008 P40001008
Replaced By PSS05M
SET SCREW M5-.8 X 10
 N/A View Replacement
1009 P40001009 GRADUATED DIAL $18.75

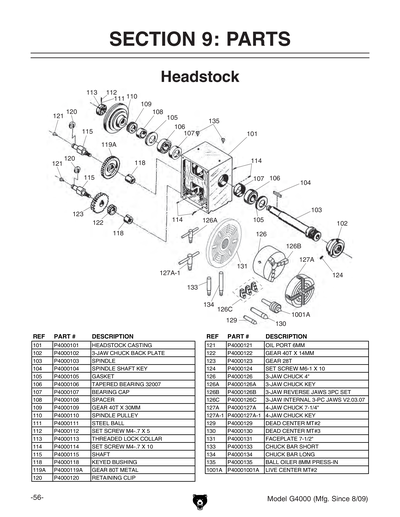

101 P4000101 HEADSTOCK CASTING $146.50
1010 P40001010
Replaced By P4000812
SPRING PLATE
 N/A View Replacement
1011 P40001011 HANDWHEEL NUT M8-1.25 $3.25
1012 P40001012 TAILSTOCK BODY $88.00
1013 P40001013 TAILSTOCK BASE $21.25
1014 P40001014
Replaced By PSS21M
SET SCREW M8-1.25 X 25
 N/A View Replacement
1015 P40001015 HANDLE $4.50
1016 P40001016 HANDLE SCREW $6.25
1017 P40001017 WOODRUFF KEY 3 X 13 $1.75
1018 P40001018
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
1019 P40001019
Replaced By PRIV002M
RIVET 2 X 5MM NAMEPLATE, COPPER
 N/A View Replacement
102 P4000102 CHUCK 3-JAW BACKPLATE $34.25
1020 P40001020
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
1021 P40001021
Replaced By P40001107
CLAMPING PLATE
 N/A View Replacement
1022 P40001022
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1023 P40001023 TAILSTOCK CLAMP BOLT $9.50
1024 P40001024
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1025 P40001025
*DISCD*TAILSTOCK
Item is no longer available
 N/A
1026 P40001026 UPPER OFFSET PLATE V2.03.09 $1.75
1027 P40001027 LOWER OFFSET PLATE V2.03.09 $1.75
103 P4000103 SPINDLE $149.00
104 P4000104 KEY 5 X 8 X 40 $1.50
1042 P40001042
Replaced By P40001006
QUILL LOCK LEVER
 N/A View Replacement
1043 P40001043
Replaced By P40001006
QUILL LOCK LEVER
 N/A View Replacement
1044A P40001044A
Replaced By P4000324
KNOB
 N/A View Replacement
1045 P40001045
Replaced By P4000227
CHANGE GEAR COVER W/HINGE
 N/A View Replacement
1049 P40001049 COVER PLATE $3.25
105 P4000105 GASKET $6.25
106 P4000106
Replaced By P32007
TAPER ROLLER BEARING 32007
 N/A View Replacement
107 P4000107 BEARING CAP $4.75
108 P4000108 SPACER $4.75
109 P4000109 GEAR 40T X 30MM $18.75
110 P4000110 SPINDLE PULLEY $31.50

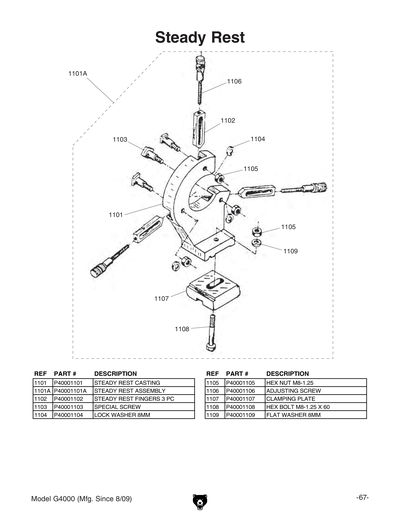

1101 P40001101 STEADY REST CASTING $39.75
1101A P40001101A STEADY REST ASSEMBLY $105.50
1102 P40001102 STEADY REST FINGERS 3 PC $20.50
1102A P40001102A
Replaced By P4000126B
CHUCK 3-JAW REV JAWS 3PC
 N/A View Replacement
1103 P40001103 STEADY REST SCREW $2.25
1104 P40001104
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1105 P40001105
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1106 P40001106 ADJUSTING SCREW $3.50
1107 P40001107 CLAMPING PLATE $18.75
1108 P40001108
Replaced By PB28M
HEX BOLT M8-1.25 X 60
 N/A View Replacement
1109 P40001109
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
111 P4000111
Replaced By PSTB004M
STEEL BALL 5MM
 N/A View Replacement
1110 P40001110
Replaced By P40001102
STEADY REST FINGERS 3 PC
 N/A View Replacement
112 P4000112
Replaced By PSS08M
SET SCREW M4-.7 X 5
 N/A View Replacement
113 P4000113 THREADED LOCK COLLAR $8.25
114 P4000114
Replaced By PSS23M
SET SCREW M4-.7 X 10
 N/A View Replacement
115 P4000115 SHAFT $6.25
116 P4000116
*DISCD*SPACING RING
Item is no longer available
 N/A
117 P4000117
Replaced By PSS08M
SET SCREW M4-.7 X 5
 N/A View Replacement
118 P4000118
Replaced By P4000405
KEYED BUSHING
 N/A View Replacement
119 P4000119
*DISCD*GEAR 80T PLASTIC
Item is no longer available
 N/A
119A P4000119A GEAR 80T METAL $19.00
120 P4000120 RETAINING CLIP $1.75

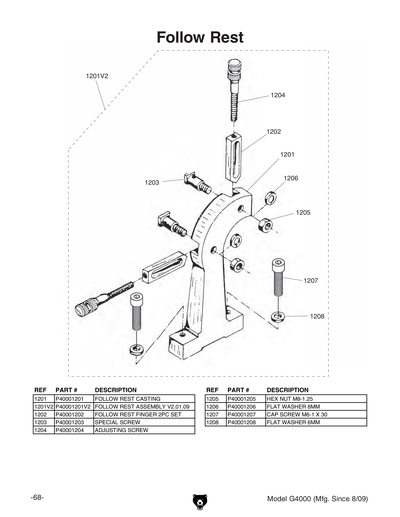

1201 P40001201 FOLLOW REST CASTING $27.25
1201A P40001201A
Replaced By P40001201V2
FOLLOW REST ASSEMBLY V2.01.09
 N/A View Replacement
1201V2 P40001201V2 FOLLOW REST ASSEMBLY V2.01.09 $87.00
1202 P40001202 FOLLOW REST FINGER 2PC $13.75
1203 P40001203
Replaced By P40001103
STEADY REST SCREW
 N/A View Replacement
1204 P40001204 ADJUSTING SCREW $3.50
1205 P40001205
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1206 P40001206
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
1207 P40001207
Replaced By PCAP07M
CAP SCREW M6-1 X 30
 N/A View Replacement
1208 P40001208
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
121 P4000121
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
122 P4000122 GEAR 40T X 14MM $18.75
123 P4000123 GEAR 28T $12.00
124 P4000124
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
125 P4000125 BACKPLATE 6" $33.50
125A P4000125A
Replaced By P4000102
CHUCK 3-JAW BACKPLATE
 N/A View Replacement
125B P4000125B
Replaced By P4000131
FACEPLATE 7-1/2"
 N/A View Replacement
126 P4000126 CHUCK 3-JAW 4" $217.00
126A P4000126A LATHE CHUCK KEY 7.98MM STD $14.00
126B P4000126B CHUCK 3-JAW REV JAWS 3PC $136.00
126C P4000126C STANDARD JAWS 6MM SIDE GROOVE V2.03.07 $108.50
126D P4000126D STANDARD JAWS 8MM SIDE GROOVE V1.10.05 $108.50
127 P4000127 CHUCK 4-JAW 7-1/4" V1.07.96 $232.50
127A P4000127A
***USE P4000127***
Item is no longer available
 N/A
127A-1 P4000127A-1
CHUCK 4-JAW KEY
Item is no longer available
 N/A
127A-2 P4000127A-2
*DISCD*SQUARE SCREW FOR 4-JAW CHUCK
Item is no longer available
 N/A
128 P4000128
*DISCD*COMPLETE SPINDLE ASSY
Item is no longer available
 N/A
129 P4000129 DEAD CENTER MT#2 $14.00
130 P4000130 DEAD CENTER MT#3 $17.25

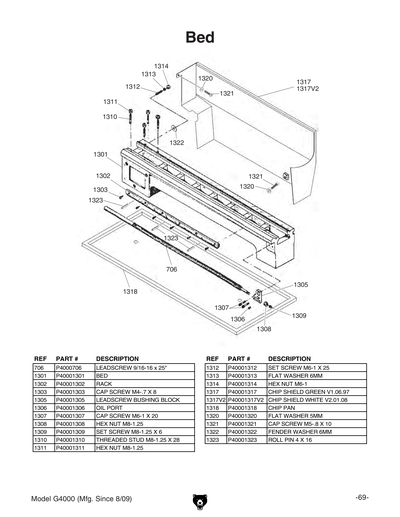

1301 P40001301 BED $397.75
1302 P40001302 RACK $27.50
1303 P40001303
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
 N/A View Replacement
1304 P40001304 FEED SCREW $50.25
1305 P40001305 LEADSCREW BUSHING BLOCK $21.75
1306 P40001306
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
1307 P40001307
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
1308 P40001308 NUT $1.50
1309 P40001309
Replaced By PSS17M
SET SCREW M8-1.25 X 6
 N/A View Replacement
131 P4000131 FACEPLATE 7-1/2" $68.25
1310 P40001310 STUD-DE M8-1.25 X 28 22RH $1.25
1311 P40001311
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
1312 P40001312
Replaced By PSS12M
SET SCREW M6-1 X 25
 N/A View Replacement
1313 P40001313
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
1314 P40001314
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
1315 P40001315
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement

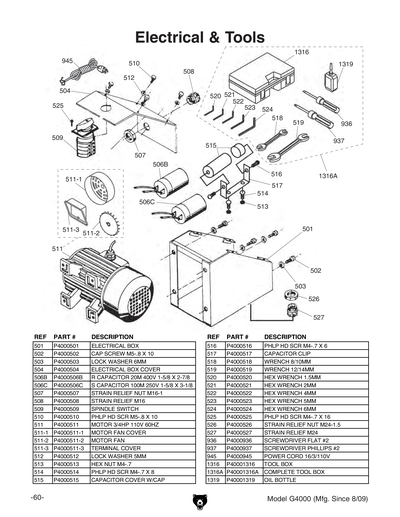

1316 P40001316 TOOL BOX $27.25
1316A P40001316A COMPLETE TOOL BOX $282.25
1317 P40001317 CHIP SHIELD GREEN V1.06.97 $139.50
1317V2 P40001317V2 CHIP SHIELD WHITE V2.01.08 $92.25
1318 P40001318 CHIP PAN $124.00
1319 P40001319 OIL BOTTLE $4.50
1320 P40001320
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
1321 P40001321
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
 N/A View Replacement
1322 P40001322
Replaced By PWF06M
FENDER WASHER 6MM
 N/A View Replacement
1323 P40001323
Replaced By PRP76M
ROLL PIN 4 X 16
 N/A View Replacement
13268 P400013268
*DISCD*CHUCK WRENCH SET SECD/SH3
Item is no longer available
 N/A
1326A P40001326A
*DISCD*CHUCK WRENCH SET
Item is no longer available
 N/A
1326B P40001326B
*DISCD*CHUCK WRENCH SET
Item is no longer available
 N/A
133 P4000133 CHUCK BAR SHORT $7.75
134 P4000134 CHUCK BAR LONG $9.50
135 P4000135
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
 N/A View Replacement

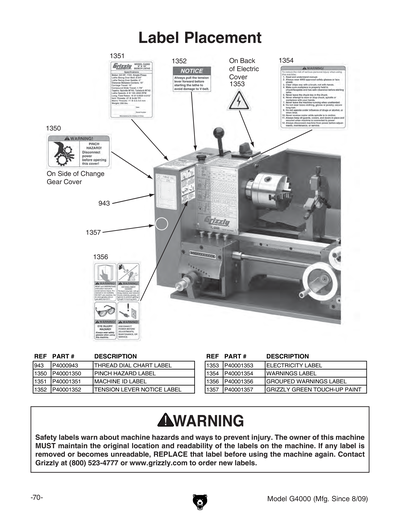

1350 P40001350 PINCH HAZARD LABEL $1.00
1351 P40001351 MACHINE ID LABEL $9.50
1352 P40001352 TENSION LEVER NOTICE LABEL $4.75
1353 P40001353
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
 N/A View Replacement
1354 P40001354 WARNINGS LABEL $10.50
1356 P40001356 GROUPED WARNINGS LABEL $1.00
1357 P40001357
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
 N/A View Replacement
2002 P40002002
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
 N/A View Replacement
2003 P40002003
Replaced By P4000203
IDDLER PULLEY SHAFT
 N/A View Replacement

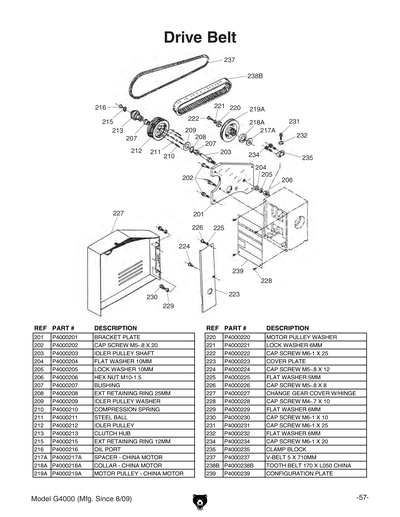

201 P4000201 BRACKET PLATE $77.50
202 P4000202
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
 N/A View Replacement
203 P4000203 IDDLER PULLEY SHAFT $9.50
204 P4000204
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
205 P4000205
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
206 P4000206
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
207 P4000207 BUSHING $3.25
208 P4000208
Replaced By PR11M
EXT RETAINING RING 25MM
 N/A View Replacement
209 P4000209 FENDER WASHER 24MM $3.25
210 P4000210 COMPRESSION SPRING $1.75
211 P4000211
Replaced By PSTB004M
STEEL BALL 5MM
 N/A View Replacement
212 P4000212 IDLER PULLEY $49.75
213 P4000213 CLUTCH HUB $12.50
214 P4000214
Replaced By P4000209
FENDER WASHER 24MM
 N/A View Replacement
215 P4000215
Replaced By PR03M
EXT RETAINING RING 12MM
 N/A View Replacement
216 P4000216
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
217 P4000217
Replaced By P4000217A
SPACER - CHINA MOTOR
 N/A View Replacement
217A P4000217A SPACER - CHINA MOTOR $2.50
217B P4000217B SPACER - US MOTOR $2.25
218 P4000218
Replaced By P4000218A
COLLAR - CHINA MOTOR
 N/A View Replacement
218A P4000218A COLLAR - CHINA MOTOR $5.50
218B P4000218B COLLAR US MOTOR $4.25
219 P4000219
Replaced By P4000219A
MOTOR PULLEY - CHINA MOTOR
 N/A View Replacement
219A P4000219A MOTOR PULLEY - CHINA MOTOR $48.50
219B P4000219B
*DISCD*MOTOR PULLEY US MOTOR
Item is no longer available
 N/A
220 P4000220 MOTOR PULLEY WASHER $2.50
221 P4000221
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
222 P4000222
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
223 P4000223 COVER PLATE $8.50
224 P4000224
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
 N/A View Replacement
225 P4000225
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
226 P4000226
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
 N/A View Replacement
227 P4000227 CHANGE GEAR COVER W/HINGE $63.00
228 P4000228
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
 N/A View Replacement
229 P4000229
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
230 P4000230
Replaced By PCAP04M
CAP SCREW M6-1 X 10
 N/A View Replacement
231 P4000231
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
232 P4000232
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
233 P4000233 SPRING $1.50
234 P4000234
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
235 P4000235 CLAMP BLOCK $7.75
236 P4000236
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
237 P4000237 V-BELT 5 X 710MM $22.75
237A P4000237A V BELT M5 X 730 QTY 1 $34.50
238 P4000238
Replaced By P4000238A
TOOTH BELT 160 X L050 80T
 N/A View Replacement
238A P4000238A TOOTH BELT 160 X L050 80T $16.00
238B P4000238B TOOTH BELT 170 X L050 CHINA $14.25
239 P4000239 CONFIGURATION PLATE $10.50
240 P4000240 COMPLETE CLUTCH ASSY $87.00
301 P4000301
Replaced By P4000303
LEVER BRACKET ASSEMBLY
 N/A View Replacement
302 P4000302
Replaced By P4000303
LEVER BRACKET ASSEMBLY
 N/A View Replacement

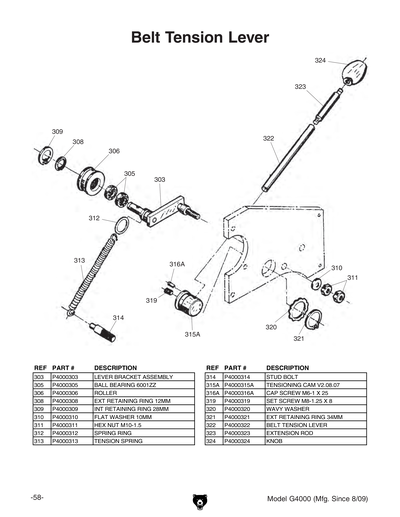

303 P4000303 LEVER BRACKET ASSEMBLY $28.00
304 P4000304
Replaced By P4000303
LEVER BRACKET ASSEMBLY
 N/A View Replacement
305 P4000305
Replaced By P6001ZZ
BALL BEARING 6001ZZ
 N/A View Replacement
306 P4000306 ROLLER $12.50
307 P4000307
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
308 P4000308
Replaced By PR03M
EXT RETAINING RING 12MM
 N/A View Replacement
309 P4000309
Replaced By PR20M
INT RETAINING RING 28MM
 N/A View Replacement
310 P4000310
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
311 P4000311
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
312 P4000312 SPRING RING $2.25
313 P4000313 TENSION SPRING $6.25
314 P4000314 FLAT HEAD SCREW W/SHOULDER $3.25
315 P4000315 *DISCD*TOGGLE V1.02.96 $2.50
315A P4000315A TENSIONING CAM V2.08.07 $9.50
316 P4000316
*DISCD*PIN V1.02.96
Item is no longer available
 N/A
316A P4000316A
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
317 P4000317
*DISCD*SLEEVE V1.02.96
Item is no longer available
 N/A
317A P4000317A
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
318 P4000318
Replaced By PR04M
EXT RETAINING RING 6MM
 N/A View Replacement
319 P4000319
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
320 P4000320 WAVY WASHER 34MM $2.25
321 P4000321
Replaced By PR84M
EXT RETAINING RING 34MM
 N/A View Replacement
322 P4000322 BELT TENSION LEVER $6.25
323 P4000323 EXTENSION ROD $6.25
324 P4000324 KNOB $3.25

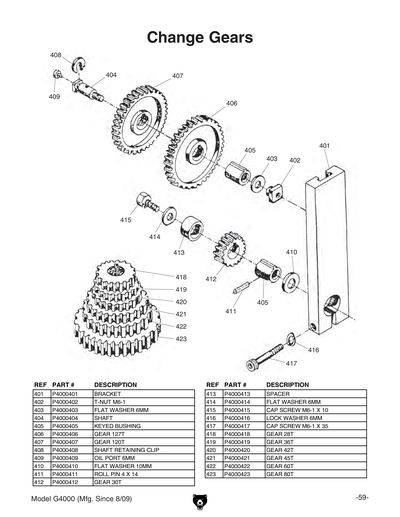

401 P4000401 BRACKET $28.00
402 P4000402 T-NUT M6-1 $4.75
403 P4000403 SPACER 6.5MM X 20MM X 2.5MM $1.75
404 P4000404 SHAFT $6.25
405 P4000405 KEYED BUSHING $2.25
406 P4000406 GEAR 127T $31.00
407 P4000407 GEAR 120T $28.00
408 P4000408 SHAFT RETAINING CLIP $6.25
409 P4000409
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
410 P4000410 SPACER 10.5MM X 20MM X 3MM $1.75
411 P4000411
Replaced By PRP19M
ROLL PIN 4 X 14
 N/A View Replacement
412 P4000412 GEAR 30T $18.75
413 P4000413 SPACING RING $4.75
414 P4000414
Replaced By PWF06M
FENDER WASHER 6MM
 N/A View Replacement
415 P4000415
Replaced By PCAP04M
CAP SCREW M6-1 X 10
 N/A View Replacement
416 P4000416
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
417 P4000417
Replaced By PCAP48M
CAP SCREW M6-1 X 35
 N/A View Replacement
418 P4000418 GEAR 28T $12.00
419 P4000419 GEAR 36T $18.75
420 P4000420 GEAR 42T $21.75
421 P4000421 GEAR 45T $21.75
422 P4000422 GEAR 60T $25.00
423 P4000423 GEAR 80T $28.00
501 P4000501 ELECTRICAL BOX $21.00
502 P4000502
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
 N/A View Replacement
503 P4000503
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
504 P4000504 ELECTRICAL BOX COVER $12.50
505 P4000505 CAPACITOR COVER W/CLIP $6.50
506 P4000506
*DISCD*R CAPACITOR 60M 250V
Item is no longer available
 N/A
506A P4000506A
*DISCD*S CAPACITOR 400M 160V
Item is no longer available
 N/A
506B P4000506B R CAPACITOR 20M 400V 1-5/8 X 2-7/8 $26.50
506C P4000506C S CAPACITOR 100M 250V 1-5/8 X 3-1/8 $26.50
507 P4000507 STRAIN RELEIF NUT M16-1 $4.50
508 P4000508 STRAIN RELIEF M16 $2.25
509 P4000509 SPINDLE SWITCH $46.25
510 P4000510
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
 N/A View Replacement
511 P4000511 MOTOR 3/4HP 110V 1-PH $392.75
511-1 P4000511-1 MOTOR FAN COVER $26.50
511-2 P4000511-2 MOTOR FAN $26.50
511-3 P4000511-3 TERMINAL COVER $21.00
511-4 P4000511-4
Replaced By P4000506B
R CAPACITOR 20M 400V 1-5/8 X 2-7/8
 N/A View Replacement
511-5 P4000511-5
Replaced By P4000506C
S CAPACITOR 100M 250V 1-5/8 X 3-1/8
 N/A View Replacement
511-6 P4000511-6 WHITE MOTOR CORD 16G 7W 18" $7.75
511-7 P4000511-7 MOTOR CONTACT PLATE $12.50
511A P4000511A
*DISCD*MOTOR 3/4HP
Item is no longer available
 N/A
511B P4000511B *DISCD*METAL LATHE MOTOR 3/4HP USA $195.50
512 P4000512
Replaced By PLW01M
LOCK WASHER 5MM
 N/A View Replacement
513 P4000513
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
514 P4000514
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
 N/A View Replacement
515 P4000515 CAPACITOR COVER W/CAP $38.75
516 P4000516
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
517 P4000517 CAPACITOR CLIP $6.25
518 P4000518
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
 N/A View Replacement
519 P4000519
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
 N/A View Replacement
521 P4000521
Replaced By PAW02M
HEX WRENCH 2MM
 N/A View Replacement
522 P4000522
Replaced By PAW04M
HEX WRENCH 4MM
 N/A View Replacement
523 P4000523
Replaced By PAW05M
HEX WRENCH 5MM
 N/A View Replacement
524 P4000524
Replaced By PAW06M
HEX WRENCH 6MM
 N/A View Replacement
525 P4000525
Replaced By PS56M
PHLP HD SCR M4-.7 X 16
 N/A View Replacement
526 P4000526 STRAIN RELIEF NUT M24-1.5 $1.00
527 P4000527 STRAIN RELIEF M22 TYPE-6 ST $4.75

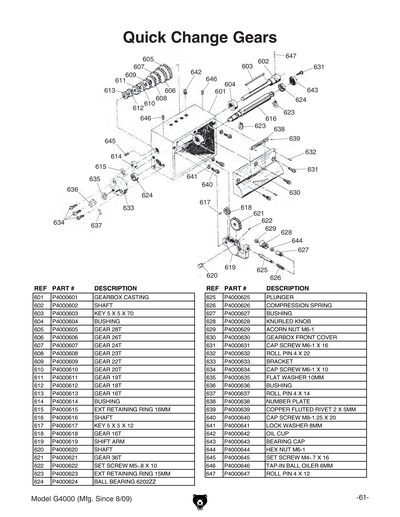

601 P4000601 GEARBOX CASTING $109.00
602 P4000602 SHAFT $21.75
603 P4000603
Replaced By PK13M
KEY 5 X 5 X 70
 N/A View Replacement
604 P4000604 BUSHING $12.75
605 P4000605 GEAR 28T $14.75
606 P4000606 GEAR 26T $14.75
607 P4000607 GEAR 24T $14.00
608 P4000608 GEAR 23T $13.50
609 P4000609 GEAR 22T $13.50
610 P4000610 GEAR 20T $13.25
611 P4000611 GEAR 19T $13.25
612 P4000612 GEAR 18T $12.75
613 P4000613 GEAR 16T $12.75
614 P4000614 BUSHING $19.00
615 P4000615
Replaced By PR06M
EXT RETAINING RING 16MM
 N/A View Replacement
616 P4000616 SHAFT $18.75
617 P4000617
Replaced By PK10M
KEY 5 X 5 X 12
 N/A View Replacement
618 P4000618 GEAR 16T $15.50
619 P4000619 SHIFT ARM $42.00
620 P4000620 SHAFT $2.25
621 P4000621 GEAR 36T $25.25
622 P4000622
Replaced By PSS05M
SET SCREW M5-.8 X 10
 N/A View Replacement
623 P4000623
Replaced By PR05M
EXT RETAINING RING 15MM
 N/A View Replacement
624 P4000624
Replaced By P6202ZZ
BALL BEARING 6202ZZ
 N/A View Replacement
625 P4000625 PLUNGER $5.50
626 P4000626 COMPRESSION SPRING $1.50
627 P4000627 BUSHING $6.25
6276 P40006276
Replaced By P4000630
GEARBOX FRONT COVER
 N/A View Replacement
628 P4000628 KNURLED KNOB $4.50
629 P4000629
Replaced By PN35M
ACORN NUT M6-1
 N/A View Replacement
630 P4000630 GEARBOX FRONT COVER $33.50
631 P4000631
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
632 P4000632
Replaced By PRP20M
ROLL PIN 4 X 22
 N/A View Replacement
633 P4000633 BRACKET $15.50
634 P4000634
Replaced By PCAP04M
CAP SCREW M6-1 X 10
 N/A View Replacement
635 P4000635
Replaced By P4000410
SPACER 10.5MM X 20MM X 3MM
 N/A View Replacement
636 P4000636 BUSHING $3.25
637 P4000637
Replaced By PRP19M
ROLL PIN 4 X 14
 N/A View Replacement
638 P4000638 NUMBER PLATE $1.75
639 P4000639
Replaced By PRIV002M
RIVET 2 X 5MM NAMEPLATE, COPPER
 N/A View Replacement
640 P4000640
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
641 P4000641
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
642 P4000642 OIL CUP 1/8" NPT X 5MM X 15MM ST $2.25
643 P4000643 BEARING CAP $6.50
644 P4000644
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
645 P4000645
Replaced By PSS49M
SET SCREW M4-.7 X 16
 N/A View Replacement
646 P4000646
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
647 P4000647
Replaced By PRP18M
ROLL PIN 4 X 12
 N/A View Replacement

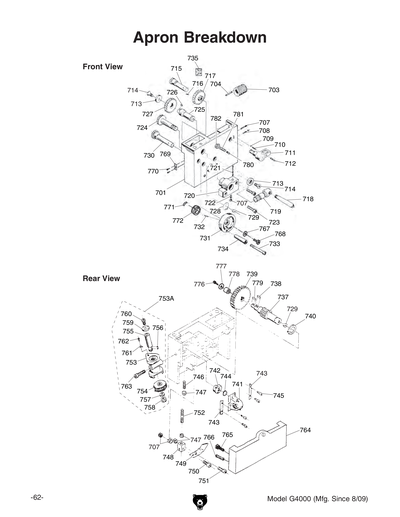

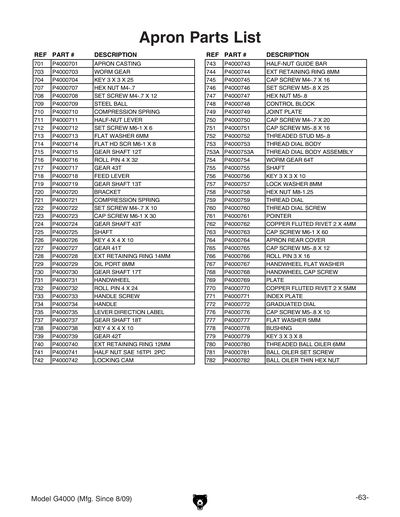

701 P4000701
Replaced By P4000701V2
APRON CASTING V2.01.06
 N/A View Replacement
701V2 P4000701V2 APRON CASTING V2.01.06 $192.25
702 P4000702
Replaced By P4000701V2
APRON CASTING V2.01.06
 N/A View Replacement
703 P4000703 WORM GEAR $20.25
704 P4000704
Replaced By PK92M
KEY 3 X 3 X 25
 N/A View Replacement
705 P4000705
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
706 P4000706 LEADSCREW 9/16-16 X 25" $65.25
707 P4000707
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
708 P4000708
Replaced By PSS22M
SET SCREW M4-.7 X 12
 N/A View Replacement
709 P4000709
Replaced By PSTB004M
STEEL BALL 5MM
 N/A View Replacement
710 P4000710 COMPRESSION SPRING $1.50
711 P4000711
*SEE EXTENDED DESCRIPTION*
Item is no longer available
 N/A
711V2 P4000711V2 HALF-NUT LEVER W/ HUB V2.12.18 $17.25
711V2-1 P4000711V2-1
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
711V2-2 P4000711V2-2
Replaced By PW05M
FLAT WASHER 4MM
 N/A View Replacement
711V2-3 P4000711V2-3 KEY 2 X 2 X 6 $1.75
712 P4000712
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
713 P4000713 COUNTERSUNK WASHER $3.25
714 P4000714
Replaced By PFH04M
FLAT HD SCR M6-1 X 8
 N/A View Replacement
715 P4000715 GEAR SHAFT 12T $21.75
716 P4000716
Replaced By PRP22M
ROLL PIN 4 X 32
 N/A View Replacement
717 P4000717 GEAR 43T $25.00
718 P4000718 FEED LEVER $4.50
719 P4000719 GEAR SHAFT 13T $21.75
720 P4000720 BRACKET $49.75
721 P4000721 COMPRESSION SPRING $1.50
722 P4000722
Replaced By PSS23M
SET SCREW M4-.7 X 10
 N/A View Replacement
723 P4000723
Replaced By PCAP07M
CAP SCREW M6-1 X 30
 N/A View Replacement
724 P4000724 GEAR SHAFT 36T $34.25
725 P4000725 SHAFT $9.50
726 P4000726
Replaced By PK05M
KEY 4 X 4 X 10
 N/A View Replacement
727 P4000727 GEAR 41T $21.75
727A P4000727A
*DISCD*WORM GEAR 43T
Item is no longer available
 N/A
728 P4000728
Replaced By PR02M
EXT RETAINING RING 14MM
 N/A View Replacement
729 P4000729 BALL OILER 6MM TAP-IN $1.25
730 P4000730 GEAR SHAFT 17T $21.75
731 P4000731 HANDWHEEL $21.00
732 P4000732
Replaced By PRP04M
ROLL PIN 4 X 24
 N/A View Replacement
733 P4000733 HANDLE SCREW $3.50
734 P4000734 HANDLE 40 X 15 X 6 $9.50
735 P4000735 LEVER DIRECTION LABEL $1.50
737 P4000737 GEAR SHAFT 18T $25.00
738 P4000738
Replaced By PK05M
KEY 4 X 4 X 10
 N/A View Replacement
739 P4000739 GEAR 42T $31.00
740 P4000740
Replaced By PR03M
EXT RETAINING RING 12MM
 N/A View Replacement
741 P4000741 HALF NUT SAE 16TPI 2PC $46.50
742 P4000742 LOCKING CAM $15.50
743 P4000743 HALF-NUT GUIDE BAR $6.25
744 P4000744
Replaced By PR39M
EXT RETAINING RING 8MM
 N/A View Replacement
745 P4000745
Replaced By PCAP16M
CAP SCREW M4-.7 X 16
 N/A View Replacement
746 P4000746
Replaced By PSS24M
SET SCREW M5-.8 X 25
 N/A View Replacement
747 P4000747
Replaced By PN06M
HEX NUT M5-.8
 N/A View Replacement
748 P4000748 CONTROL BLOCK $6.25
749 P4000749 JOINT PLATE $21.75
750 P4000750
Replaced By PCAP39M
CAP SCREW M4-.7 X 20
 N/A View Replacement
751 P4000751
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
 N/A View Replacement
752 P4000752 STUD-UDE M5-.8 X 35 9LH / 15RH $3.50
753 P4000753 THREAD DIAL BODY $12.75
753A P4000753A THREAD DIAL BODY ASSEMBLY $75.50
754 P4000754 WORM GEAR 64T $15.50
755 P4000755 SHAFT $4.50
756 P4000756
Replaced By PK39M
KEY 3 X 3 X 10
 N/A View Replacement
757 P4000757
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
758 P4000758
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
759 P4000759 THREADED DIAL $12.50
760 P4000760 THREADED DIAL SCREW $1.00
761 P4000761 POINTER $1.75
762 P4000762
Replaced By PRIV008M
RIVET 2 X 4MM NAMEPLATE, COPPER
 N/A View Replacement
763 P4000763
Replaced By PCAP189M
CAP SCREW M6-1 X 60 BLK C12.9 USA
 N/A View Replacement
764 P4000764 APRON REAR COVER $6.25
764V2 P4000764V2 APRON REAR COVER V2.01.06 $35.75
765 P4000765
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
 N/A View Replacement
766 P4000766
Replaced By PRP02M
ROLL PIN 3 X 16
 N/A View Replacement
767 P4000767
Replaced By PWF05M
FENDER WASHER 5MM
 N/A View Replacement
768 P4000768 HANDWHEEL CAP SCREW $1.00
769 P4000769 PLATE $1.75
770 P4000770
Replaced By PRIV002M
RIVET 2 X 5MM NAMEPLATE, COPPER
 N/A View Replacement
771 P4000771 SPRING PLATE $1.00
772 P4000772 GRADUATED DIAL $21.75
776 P4000776
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
 N/A View Replacement
777 P4000777
Replaced By PWF05M
FENDER WASHER 5MM
 N/A View Replacement
778 P4000778 BUSHING $9.50
779 P4000779
Replaced By PK03M
KEY 3 X 3 X 8
 N/A View Replacement
780 P4000780 THREADED BALL OILER 6MM $1.25
781 P4000781 BALL OILER SET SCREW $1.25
782 P4000782 BALL OILER THIN HEX NUT $1.25

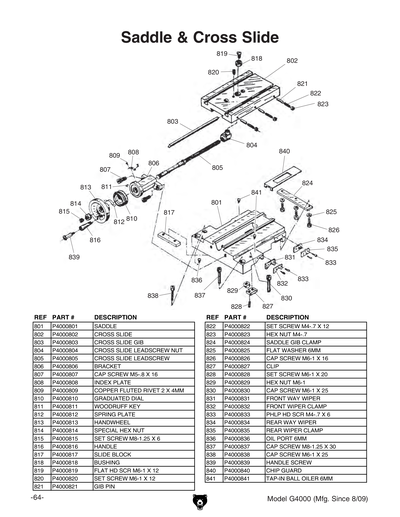

801 P4000801 SADDLE $117.25
802 P4000802 CROSS SLIDE $114.75
803 P4000803 CROSS SLIDE GIB $17.25
804 P4000804 CROSS SLIDE LEADSCREW NUT $15.50
805 P4000805 CROSS SLIDE LEADSCREW $25.25
806 P4000806 BRACKET $25.00
807 P4000807
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
 N/A View Replacement
808 P4000808 INDEX PLATE $1.75
809 P4000809
Replaced By PRIV008M
RIVET 2 X 4MM NAMEPLATE, COPPER
 N/A View Replacement
810 P4000810 GRADUATED DIAL $15.00
811 P4000811
Replaced By P40001017
WOODRUFF KEY 3 X 13
 N/A View Replacement
812 P4000812 SPRING PLATE $1.75
813 P4000813 HANDWHEEL $20.25
814 P4000814 HANDWHEEL NUT $3.25
815 P4000815
Replaced By PSS17M
SET SCREW M8-1.25 X 6
 N/A View Replacement
816 P4000816
***SEE EXT. DESCRIPTION***
Item is no longer available
 N/A
816V2 P4000816V2 HANDLE V2.01.14 $4.25
817 P4000817 SLIDE BLOCK $4.25
818 P4000818 BUSHING $3.25
819 P4000819
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
 N/A View Replacement
820 P4000820
Replaced By PSS04M
SET SCREW M6-1 X 12
 N/A View Replacement
821 P4000821 GIB PIN $1.75
822 P4000822
Replaced By PSS22M
SET SCREW M4-.7 X 12
 N/A View Replacement
823 P4000823
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
824 P4000824 SADDLE GIB CLAMP $17.25
825 P4000825
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
826 P4000826
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
827 P4000827 CLIP $7.75
828 P4000828
Replaced By PSS25M
SET SCREW M6-1 X 20
 N/A View Replacement
829 P4000829
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
830 P4000830
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
831 P4000831 FRONT WAY WIPER $2.25
832 P4000832 FRONT WIPER CLAMP $1.75
833 P4000833
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
834 P4000834 REAR WAY WIPER $3.25
835 P4000835 REAR WIPER CLAMP $3.25
836 P4000836
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement
837 P4000837
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
838 P4000838
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
839 P4000839 HANDLE SCREW $4.50
839V2 P4000839V2 HANDLE SCREW V2.01.14 $4.75
840 P4000840 CHIP GUARD $6.25
841 P4000841
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
 N/A View Replacement

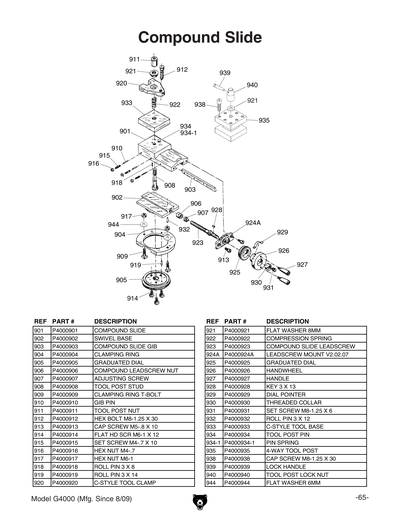

901 P4000901 COMPOUND SLIDE $59.00
901A P4000901A COMPLETE COMPOUND SLIDE ASSEMBLY $304.00
902 P4000902 SWIVEL BASE $33.50
903 P4000903 COMPOUND SLIDE GIB $14.00
904 P4000904 CLAMPING RING $26.50
905 P4000905 GRADUATED DIAL $29.50
906 P4000906 COMPOUND LEADSCREW NUT $11.00
907 P4000907 ADJUSTING SCREW $6.25
908 P4000908 TOOL POST STUD $6.25
909 P4000909 CLAMPING RING T-BOLT $6.25
910 P4000910 GIB PIN $1.75
911 P4000911 TOOL POST NUT $1.50
912 P4000912
Replaced By PB26M
HEX BOLT M8-1.25 X 30
 N/A View Replacement
913 P4000913
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
 N/A View Replacement
914 P4000914
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
 N/A View Replacement
915 P4000915
Replaced By PSS23M
SET SCREW M4-.7 X 10
 N/A View Replacement
916 P4000916
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
917 P4000917
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
918 P4000918
Replaced By PRP15M
ROLL PIN 3 X 8
 N/A View Replacement
919 P4000919
Replaced By PRP37M
ROLL PIN 3 X 14
 N/A View Replacement
920 P4000920 C-STYLE TOOL CLAMP $21.75
921 P4000921
Replaced By PWF08M
FENDER WASHER 8MM
 N/A View Replacement
922 P4000922 COMPRESSION SPRING $3.25
923 P4000923 COMPOUND SLIDE LEADSCREW $30.50
924 P4000924
Replaced By P4000924A
LEADSCREW MOUNT V2.02.07
 N/A View Replacement
924A P4000924A LEADSCREW MOUNT V2.02.07 $10.50
925 P4000925 GRADUATED DIAL $14.00
926 P4000926 HANDWHEEL $21.75
927 P4000927 HANDLE $9.50
928 P4000928 KEY 3 X 13 $1.75
929 P4000929
Replaced By P4000812
SPRING PLATE
 N/A View Replacement
930 P4000930 THREADED COLLAR $6.25
931 P4000931
Replaced By PSS17M
SET SCREW M8-1.25 X 6
 N/A View Replacement
932 P4000932
Replaced By PRP61M
ROLL PIN 3 X 12
 N/A View Replacement
933 P4000933 C-STYLE TOOL BASE $8.50
934 P4000934 TOOL POST PIN $1.50
934-1 P4000934-1 PIN SPRING $1.75
935 P4000935 TOOL POST 4-WAY $77.50
935-1 P4000935-1 SPRING $1.50
936 P4000936
Replaced By PSDF2
SCREWDRIVER FLAT #2
 N/A View Replacement
937 P4000937
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
 N/A View Replacement
938 P4000938
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
939 P4000939 LOCK HANDLE $3.50
940 P4000940 TOOL POST LOCK NUT $3.50
941 P4000941
Replaced By P4000939
LOCK HANDLE
 N/A View Replacement
942 P4000942
Replaced By P4000935
TOOL POST 4-WAY
 N/A View Replacement
943 P4000943 THREAD DIAL CHART LABEL $9.50
944 P4000944
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
945 P4000945
Replaced By PWRCRD110L
POWER CORD 16G X 3W 73"L
 N/A View Replacement
ARBOR P4000ARBOR
*DISCONTINUED*
Item is no longer available
 N/A
CAN P4000CAN
*DISCONTINUED*
Item is no longer available
 N/A
GUARD P4000GUARD
*DISCONTINUED*
Item is no longer available
 N/A
MANUAL P4000MANUAL MANUAL FOR G4000 MFD 01/05-02/09 V1 $11.75
MANV2 P4000MANV2 MANUAL FOR G4000 MFD 03/09-07/09 V2.09.09 $11.75
MANV3 P4000MANV3 MANUAL FOR G4000 MFD 08/09+ V3.09.14 $11.75
TAIL P4000TAIL
*DISCONTINUED*
Item is no longer available
 N/A
