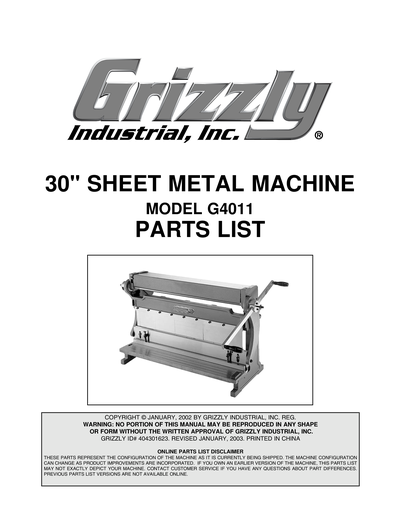

Parts for G4011 - 30" Combination 3-in-1 Sheet Metal Machine

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

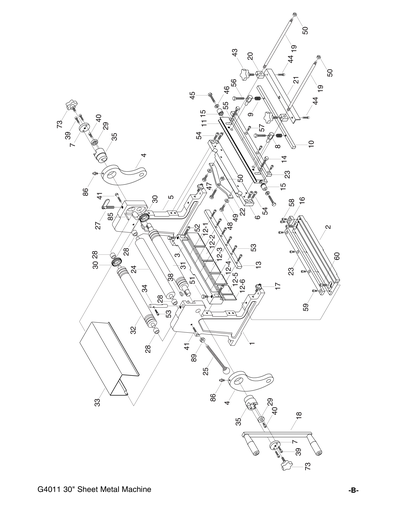

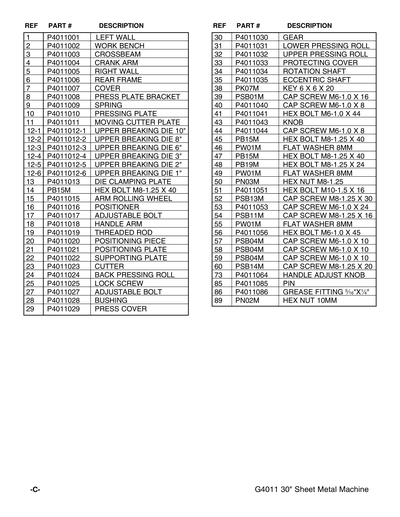

Ref # Part # Description Price Qty
1 P4011001 WALL LEFT $74.75
2 P4011002 WORK BENCH $108.00
3 P4011003 CROSSBEAM $65.25
4 P4011004
*DISCD*CRANK ARM BRASS BUSHING V1.04.98
Item is no longer available
N/A
4-1 P4011004-1 GREASE FITTING 5/16 X 1/4" $12.19
4-2 P4011004-2 BRASS BUSHING $2.25
4A P4011004A CRANK ARM NO BUSHING V2.09.06 $38.75
5 P4011005 WALL RIGHT $95.94
6 P4011006 BARE FRAME $41.00
7 P4011007 COVER $4.25
8 P4011008 PRESS PLATE BRACKET $3.75
9 P4011009 SPRING $2.00
10 P4011010 PRESSING PLATE $35.62
11 P4011011 MOVING CUTTER PLATE $140.25
12 P4011012
*DISCD*
Item is no longer available
N/A
12-1 P4011012-1 UPPER BREAKING DIE 10" $27.50
12-2 P4011012-2 UPPER BREAKING DIE 8" $16.75
12-3 P4011012-3 UPPER BREAKING DIE 6" $20.25
12-4 P4011012-4 UPPER BREAKING DIE 3" $11.00
12-5 P4011012-5 UPPER BREAKING DIE 2" $7.98
12-6 P4011012-6 UPPER BREAKING DIE 1" $3.75
13 P4011013
DIE CLAMPING PLATE
N/A
14 P4011014 SHOULDER BOLT M8-1.25 X 36 $2.50
15 P4011015 CRANKING ARM ROLLING WHEEL $2.75
16 P4011016 POSITIONER $6.25
17 P4011017 ADJUSTABLE BOLT $4.69
18 P4011018 HANDLE ARM $46.75
19 P4011019 THREADED ROD $4.69
20 P4011020
POSITIONING PIECE
N/A
21 P4011021
POSITIONING PLATE
N/A
22 P4011022 SUPPORTING PLATE $3.75
23 P4011023 CUTTER $66.00
24 P4011024 BACK PRESSING ROLL $46.75
25 P4011025 LOCK SCREW $1.00
26 P4011026 *DISCD*HANDLE JACKET $1.25
27 P4011027 ADJUSTABLE BOLT $3.75
28 P4011028 BUSHING $7.25
29 P4011029 PRESS COVER $2.00
30 P4011030 GEAR V1.04.98 $4.50
30V2 P4011030V2 GEAR V2.09.08 $4.95
31 P4011031 PRESSING ROLL LOWER $40.50
32 P4011032 UPPER PRESSING ROLL W/ PIN V2.12.07 $54.00
32A P4011032A
UPPER PRESSING ROLL W/KEY V1.04.98
N/A
33 P4011033 PROTECTING COVER $15.50
34 P4011034 ROTATION SHAFT $2.25
35 P4011035 ECCENTRIC SHAFT $15.75
36 P4011036
Replaced By P4011Z032
CRANK HANDLE
N/A View Replacement
37 P4011037 *DISCD*JACKET $2.25
38 P4011038
Replaced By PK07M
KEY 6 X 6 X 20
N/A View Replacement
39 P4011039
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
40 P4011040
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
41 P4011041
Replaced By PB71M
HEX BOLT M6-1 X 45
N/A View Replacement
42 P4011042
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
43 P4011043 KNOB $4.50
44 P4011044
Replaced By PB05M
HEX BOLT M6-1 X 8
N/A View Replacement
45 P4011045
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
46 P4011046
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
47 P4011047
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
48 P4011048
Replaced By PB19M
HEX BOLT M8-1.25 X 24
N/A View Replacement
49 P4011049
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
50 P4011050
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
51 P4011051
Replaced By PB70M
HEX BOLT M10-1.5 X 16
N/A View Replacement
52 P4011052
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
53 P4011053
Replaced By PCAP69M
CAP SCREW M6-1 X 24
N/A View Replacement
54 P4011054
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
55 P4011055
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
56 P4011056
Replaced By PB124M
HEX BOLT M8-1.25 X 90
N/A View Replacement
57 P4011057
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
58 P4011058
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
59 P4011059
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
60 P4011060
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
61 P4011061
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
73 P4011073 HANDLE ADJUST KNOB $4.50
85 P4011085
Replaced By PRP26M
ROLL PIN 5 X 26
N/A View Replacement
86 P4011086
Replaced By P4011004-1
GREASE FITTING 5/16 X 1/4"
N/A View Replacement
89 P4011089
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
ARM P4011ARM
*DISCD*ARM W/ HANDLES
Item is no longer available
N/A
MANUAL P4011MANUAL MANUAL FOR G4011 01/03 $5.75
PART P4011PART
MISCELLANEOUS G4011 PARTS
N/A
