Parts for G4011Z 30" 3-in-1 Sheet Metal Machine

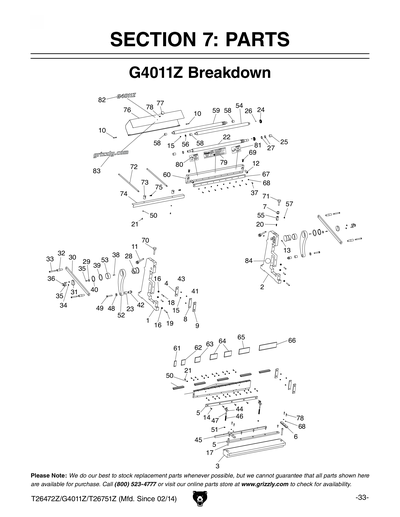

Parts Diagrams for G4011Z - 30" 3-in-1 Sheet Metal Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

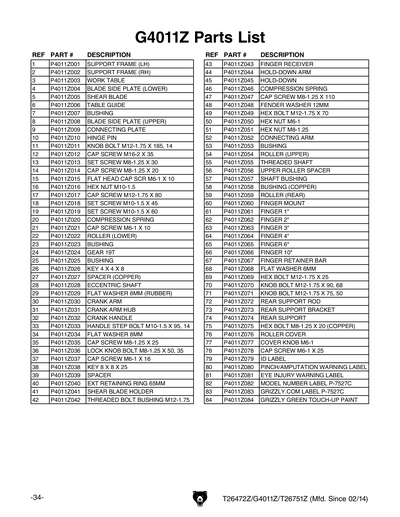

Parts List for Parts for G4011Z 30" 3-in-1 Sheet Metal Machine

1
SUPPORT FRAME (LH)
$388.15
Enter quantity between 1 and 99
2
SUPPORT FRAME (RH)
$530.45
Enter quantity between 1 and 99
3
WORK TABLE
$521.45
Enter quantity between 1 and 99
4
BLADE SIDE PLATE (LOWER)
$15.15
Enter quantity between 1 and 99
5
SHEAR BLADE
$189.75
Enter quantity between 1 and 99
6
TABLE GUIDE
$19.45
Enter quantity between 1 and 99
7
BUSHING
$8.65
Enter quantity between 1 and 99
8
BLADE SIDE PLATE (UPPER)
$12.95
Enter quantity between 1 and 99
9
CONNECTING PLATE
$12.95
Enter quantity between 1 and 99
10
HINGE PIN
$6.90
Enter quantity between 1 and 99
11
KNOB BOLT M12-1.75 X 185, 14
$21.40
Enter quantity between 1 and 99
12
CAP SCREW M16-2 X 35
Price
N/A
13
SET SCREW M8-1.25 X 30
Price
N/A
14
CAP SCREW M8-1.25 X 20
Price
N/A
15
FLAT HEAD CAP SCR M6-1 X 10
$1.90
Enter quantity between 1 and 99
16
Now: PN02M
HEX NUT M10-1.5
Price
N/A
17
CAP SCREW M12-1.75 X 80
Price
N/A
18
SET SCREW M10-1.5 X 45
Price
N/A
19
SET SCREW M10-1.5 X 60
Price
N/A
20
COMPRESSION SPRING
$2.20
Enter quantity between 1 and 99
21
CAP SCREW M6-1 X 10
Price
N/A
22
ROLLER (LOWER)
$204.90
Enter quantity between 1 and 99
23
BUSHING
$8.65
Enter quantity between 1 and 99
24
GEAR 19T
$40.25
Enter quantity between 1 and 99
25
BUSHING
$11.20
Enter quantity between 1 and 99
26
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
27
SPACER (COPPER)
$8.95
Enter quantity between 1 and 99
28
ECCENTRIC SHAFT
$102.85
Enter quantity between 1 and 99
29
Now: PW03M
FLAT WASHER 6MM
Price
N/A
30
CRANK ARM
$55.75
Enter quantity between 1 and 99
31
CRANK ARM HUB
$15.85
Enter quantity between 1 and 99
32
CRANK HANDLE
$13.40
Enter quantity between 1 and 99
33
HANDLE STEP BOLT M10-1.5 X 95, 14
$11.90
Enter quantity between 1 and 99
34
Now: PW01M
FLAT WASHER 8MM
Price
N/A
35
CAP SCREW M8-1.25 X 25
Price
N/A
36
LOCK KNOB BOLT M8-1.25 X 50, 35
$9.00
Enter quantity between 1 and 99
37
CAP SCREW M6-1 X 16
Price
N/A
38
KEY 8 X 8 X 25
Price
N/A
39
SPACER
$6.15
Enter quantity between 1 and 99
40
Now: PR13M
EXT RETAINING RING 65MM
Price
N/A
41
SHEAR BLADE HOLDER
$388.15
Enter quantity between 1 and 99
42
THREADED BOLT BUSHING M12-1.75
$11.90
Enter quantity between 1 and 99
43
FINGER RECEIVER
$48.60
Enter quantity between 1 and 99
44
HOLD-DOWN ARM
$9.00
Enter quantity between 1 and 99
45
HOLD-DOWN
$51.45
Enter quantity between 1 and 99
46
COMPRESSION SPRING
$6.15
Enter quantity between 1 and 99
47
CAP SCREW M8-1.25 X 110
Price
N/A
48
FENDER WASHER 12MM
Price
N/A
49
HEX BOLT M12-1.75 X 70
Price
N/A
50
Now: PN01M
HEX NUT M6-1
Price
N/A
51
Now: PN03M
HEX NUT M8-1.25
Price
N/A
52
CONNECTING ARM
$107.15
Enter quantity between 1 and 99
53
BUSHING
$14.75
Enter quantity between 1 and 99
54
ROLLER (UPPER)
$231.75
Enter quantity between 1 and 99
55
THREADED SHAFT
$21.60
Enter quantity between 1 and 99
56
UPPER ROLLER SPACER
$5.85
Enter quantity between 1 and 99
57
SHAFT BUSHING
$5.85
Enter quantity between 1 and 99
58
BUSHING (COPPER)
$9.00
Enter quantity between 1 and 99
59
ROLLER (REAR)
$183.35
Enter quantity between 1 and 99
60
FINGER MOUNT
$377.40
Enter quantity between 1 and 99
61
FINGER 1"
$24.60
Enter quantity between 1 and 99
62
FINGER 2"
$29.00
Enter quantity between 1 and 99
63
FINGER 3"
$38.15
Enter quantity between 1 and 99
64
FINGER 4"
$29.00
Enter quantity between 1 and 99
65
FINGER 6"
$57.95
Enter quantity between 1 and 99
66
FINGER 10"
$84.70
Enter quantity between 1 and 99
67
FINGER RETAINER BAR
$71.20
Enter quantity between 1 and 99
68
Now: PW03M
FLAT WASHER 6MM
Price
N/A
69
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
70
KNOB BOLT M12-1.75 X 90, 68
$14.35
Enter quantity between 1 and 99
71
KNOB BOLT M12-1.75 X 75, 50
$10.85
Enter quantity between 1 and 99
72
REAR SUPPORT ROD
$22.35
Enter quantity between 1 and 99
73
REAR SUPPORT BRACKET
$9.00
Enter quantity between 1 and 99
74
REAR SUPPORT
$21.60
Enter quantity between 1 and 99
75
HEX BOLT M8-1.25 X 20 (COPPER)
$6.15
Enter quantity between 1 and 99
76
ROLLER COVER
$73.70
Enter quantity between 1 and 99
77
COVER KNOB M6-1
$9.00
Enter quantity between 1 and 99
78
CAP SCREW M6-1 X 25
Price
N/A
79
ID LABEL
$11.25
Enter quantity between 1 and 99
80
PINCH/SHEAR INJURY 3.8W X 2H
Price
N/A
81
SAFETY GLASSES 3.8W X 2H
Price
N/A
82
MODEL NUMBER LABEL P-7527C
$16.40
Enter quantity between 1 and 99
83
GRIZZLY.COM LABEL 6.875",BEIGE
Price
N/A
84
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL P4011Z-T26751 MFD-12/13+ V1.01.14
$14.65
Enter quantity between 1 and 99
