Parts for G4015Z 19-3/16" 3/4 HP Combo Lathe/Mill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

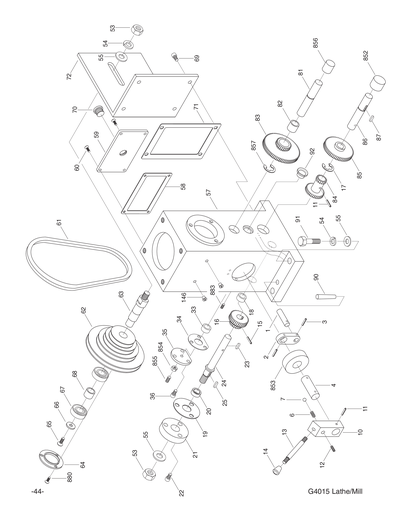

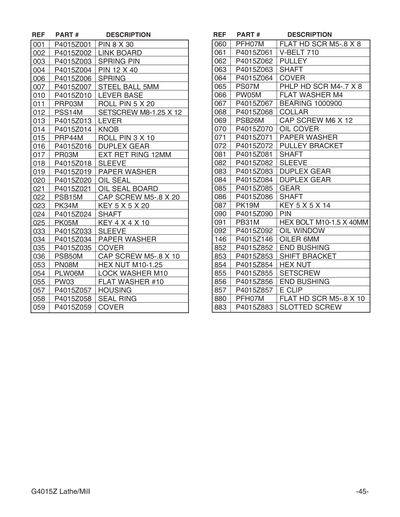

1
PIN 8 X 30
1A
LATHE CHUCK KEY 7.85MM STD
Price
N/A
2
LINK BOARD
3
ROLL PIN 5 X 10
Price
N/A
3A
LATHE CHUCK KEY 7.85MM STD
Price
N/A
4
PIN 12 X 40
5
TIE ROD WASHER
6
SPRING .8 X 5 X 1.5
Price
N/A
7
STEEL BALL 5MM
Price
N/A
8
OPENING WRENCH
9
WEDGE
10
LEVER BASE
10A
HEX WRENCH 5MM
Price
N/A
10C
HEX WRENCH 8MM
Price
N/A
11
ROLL PIN 5 X 20
Price
N/A
11A
GEAR 25T
11B
GEAR 27T
11C
GEAR 30T
11D
GEAR 33T
11E
GEAR 36T
11F
GEAR 42T
11G
GEAR 48T
11H
GEAR 60T
11I
GEAR 75T
11J
GEAR 120T
12
SET SCREW M8-1.25 X 12
Price
N/A
12A
DUPLEX GEAR 120/127T
Price
N/A
13
LEVER
15
ROLL PIN 3 X 10
Price
N/A
16
DUPLEX GEAR
17
ROLL PIN 5 X 20
Price
N/A
18
SLEEVE
19
PAPER WASHER 40
20
OIL SEAL
21
OIL SEAL BOARD
22
CAP SCREW M5-.8 X 20
Price
N/A
23
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
24
SHAFT
25
Now: PK05M
KEY 4 X 4 X 10
Price
N/A

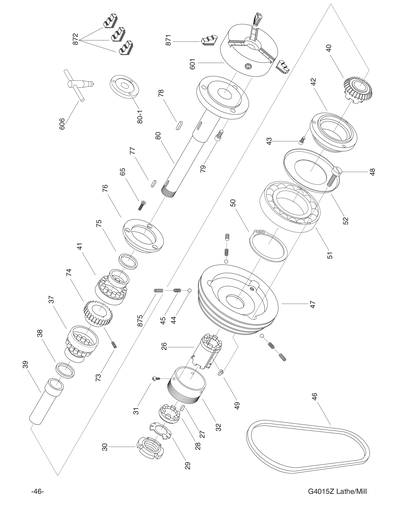

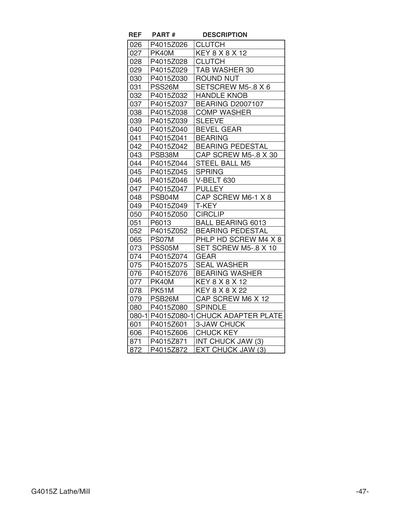

26
CLUTCH
27
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
28
CLUTCH
29
THRUST WASHER 30MM
30
ROUND NUT M30 X 1.5
31
SET SCREW M5-.8 X 6
Price
N/A
32
HANDLE KNOB
33
SLEEVE
34
PAPER WASHER 30
35
COVER
36
CAP SCREW M5-.8 X 10
Price
N/A
37
BEARING D2007107
38
FLAT WASHER 40MM
39
SLEEVE
40
BEVEL GEAR
41
BEARING 36 X 60 X 18
42
BEARING PEDESTAL
43
CAP SCREW M5-.8 X 30
Price
N/A
44
STEEL BALL 5MM
Price
N/A
45
SPRING 1 X 5 X 1.5
46
Now: PVM26
V-BELT M26 3L260
Price
N/A
47
PULLEY
48
CAP SCREW M5-.8 X 8
Price
N/A
49
T-KEY .5 X .5 X 1.5
50
CIRCLIP
51
BALL BEARING 6013 OPEN
Price
N/A
52
BEARING PEDESTAL
53
Now: PN08M
HEX NUT M10-1.25
Price
N/A
54
LOCK WASHER 10MM
Price
N/A
55
Now: PW04M
FLAT WASHER 10MM
Price
N/A
57
HOUSING
58
SEAL RING
59
COVER
60
FLAT HD SCR M5-.8 X 8
Price
N/A
61
V-BELT M29.3 3L293
Price
N/A
62
PULLEY
63
SHAFT
64
COVER
65
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
66
Now: PW05M
FLAT WASHER 4MM
Price
N/A
67
BALL BEARING 6004-2RS
Price
N/A
68
COLLAR
69
CAP SCREW M6-1 X 12
Price
N/A
70
OIL COVER
71
PAPER WASHER 100 X 150
72
PULLEY BRACKET
73
SET SCREW M5-.8 X 10
Price
N/A
74
GEAR
75
SEAL WASHER 38
76
FLAT WASHER 44MM
77
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
78
Now: PK91M
KEY 8 X 8 X 22
Price
N/A
79
CAP SCREW M6-1 X 12
Price
N/A
80
INTRINSIC SPINDLE WITH BACKPLATE
80-1
ADAPTER PLATE
81
SHAFT
82
SLEEVE
83
DUPLEX GEAR
84
DUPLEX GEAR
85
GEAR 56T
86
SHAFT
87
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
90
PIN
91
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
92
OIL WINDOW
100
DRAWBAR

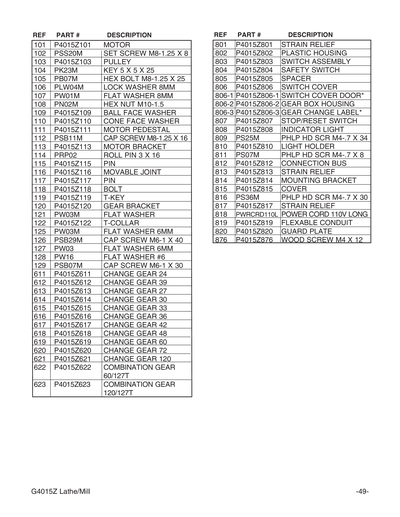

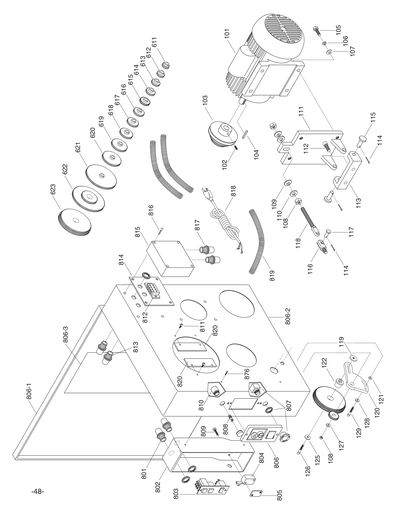

101
MOTOR 3/4 HP 110V 1-PH V3.11.18
Price
N/A
101-1
*DISCD*S CAPACITOR 250M 250V V1
Item is no longer available
Price
N/A
101-1V2
S CAPACITOR 110M 250V V2.01.07
101-2
*DISCD*R CAPACITOR 35M 45V V1
Item is no longer available
Price
N/A
101-2V2
R CAPACITOR 50M 300V V2.01.07
101-3
CAPACITOR COVER
101-4
CONNECTION BOX
101V2
MOTOR 3/4HP 110V 1-PH V2.01.07
101V3
MOTOR 3/4 HP 110V 1-PH V3.11.18
101V3-1
S CAPACITOR 300M 250V
101V3-2
R CAPACITOR 60M 450V
102
SET SCREW M8-1.25 X 8
Price
N/A
103
PULLEY
104
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
105
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
106
LOCK WASHER 8MM
Price
N/A
107
Now: PW01M
FLAT WASHER 8MM
Price
N/A
108
Now: PN02M
HEX NUT M10-1.5
Price
N/A
109
Now: PW04M
FLAT WASHER 10MM
Price
N/A
110
Now: PW06M
FLAT WASHER 12MM
Price
N/A
111
MOTOR PEDESTAL
112
CAP SCREW M8-1.25 X 16
Price
N/A
113
MOTOR BRACKET
114
ROLL PIN 3 X 16
Price
N/A
115
PIN
116
MOVABLE JOINT
117
PIN
118
BOLT 15CM
119
T-KEY 15
120
GEAR BRACKET
121
Now: PW03M
FLAT WASHER 6MM
Price
N/A
122
T-COLLAR
123
Now: PN06M
HEX NUT M5-.8
Price
N/A
124
Now: PS75M
PHLP HD SCR M5-.8 X 35
Price
N/A
125
Now: PW03M
FLAT WASHER 6MM
Price
N/A
126
CAP SCREW M6-1 X 40
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
128
Now: PW03M
FLAT WASHER 6MM
Price
N/A
129
CAP SCREW M6-1 X 30
Price
N/A

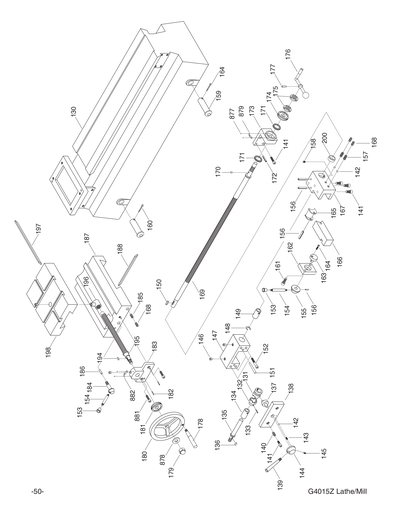

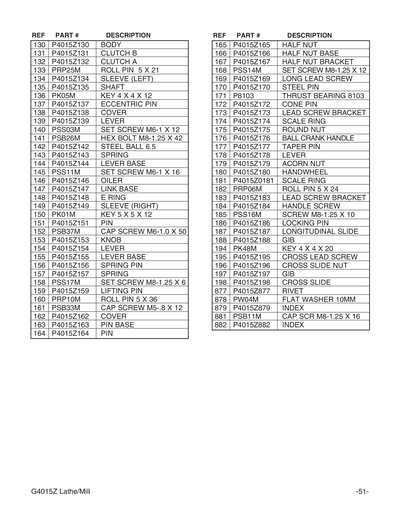

130
BODY
131
CLUTCH B
132
CLUTCH A
133
ROLL PIN 5 X 21
Price
N/A
134
SLEEVE LEFT
135
SHAFT
136
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
137
ECCENTRIC PIN
138
COVER
139
LEVER
140
SET SCREW M6-1 X 12
Price
N/A
141
Now: PB21M
HEX BOLT M8-1.25 X 42
Price
N/A
142
STEEL BALL 6.32MM
143
SPRING 0.5 X 1.5
144
LEVER BASE
145
SET SCREW M6-1 X 16
Price
N/A
146
BALL OILER 6MM PRESS-IN
Price
N/A
147
LONGITUDINAL FEED BOX V1
147V2
LONGITUDINAL FEED BOX V2.09.16
148
E-RING
149
SLEEVE RIGHT
150
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
151
PIN V1
151V2
ROLL PIN 5 X 40
Price
N/A
152
CAP SCREW M6-1 X 50
Price
N/A
152V2
CAP SCREW M6-1 X 70
Price
N/A
153
KNOB
154
LEVER
155
LEVER BASE
156
ROLL PIN 4 X 30
Price
N/A
157
SPRING .8 X 5 X 1.5
158
SET SCREW M8-1.25 X 6
Price
N/A
159
LIFTING PIN
160
ROLL PIN 5 X 36
Price
N/A
161
CAP SCREW M5-.8 X 12
Price
N/A
162
COVER
163
PIN BASE
164
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
164-1
PIN
165
HALF NUT 6 TPI
166
HALF NUT BASE
167
HALF NUT BRACKET
168
SET SCREW M8-1.25 X 12
Price
N/A
169
LONGITUDINAL LEADSCREW 6 TPI
170
STEEL PIN
171
Now: P8103
THRUST BEARING 8103
Price
N/A
172
CONE PIN
173
LEADSCREW BRACKET
174
SCALE RING
174A
SCALE RING
175
ROUND NUT M5 X 1.5
176
BALL CRANK HANDLE
177
TAPER PIN B 4 X 25
178
LEVER
179
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
180
HANDWHEEL
181
SCALE RING 100 GRADUATIONS
182
ROLL PIN 5 X 24
Price
N/A
183
LEADSCREW BRACKET
184
HANDLE SCREW 8
185
SCREW M8-1.25 X 10
186
LOCK PIN
187
LONGITUDINAL SLIDE
188
GIB 6"
189
LOCK PIN
190
SET SCREW M8-1.25 X 16
Price
N/A
191
SET SCREW M8-1.25 X 25
Price
N/A
192
TAILSTOCK BASE
193
GIB
194
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
195
CROSS LEADSCREW W/NUT 18
196
CROSS LEADSCREW W/NUT 18
Price
N/A
197
GIB 8"
198
CROSS SLIDE

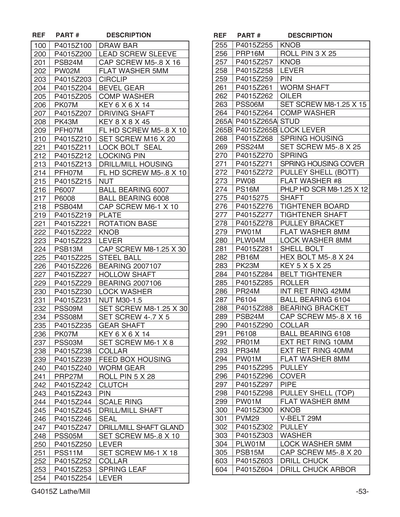

200
LEADSCREW SLEEVE 20

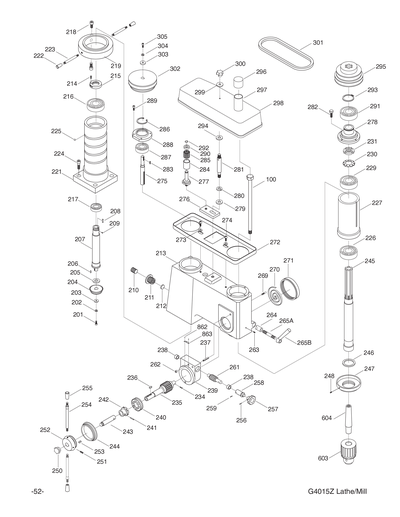

201
CAP SCREW M5-.8 X 16
Price
N/A
2016
DUPLEX GEAR
202
Now: PW02M
FLAT WASHER 5MM
Price
N/A
203
CIRCLIP
204
BEVEL GEAR
205
FLAT WASHER 22MM
206
KEY 6 X 6 X 14
Price
N/A
207
DRIVING SHAFT
208
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
209
FLAT HD SCR M5-.8 X 10
Price
N/A
210
SET SCREW M16-2 X 20
Price
N/A
211
LOCK BOLT SEAL 20
212
LOCK PIN
213
MILL/DRILL HOUSING
214
FLAT HD SCR M5-.8 X 10
Price
N/A
215
NUT 30
216
BALL BEARING 6007-2RS
Price
N/A
217
BALL BEARING 6008-2RS
Price
N/A
218
CAP SCREW M6-1 X 10
Price
N/A
219
PLATE
221
ROTATION BASE
222
KNOB
223
LEVER
224
CAP SCREW M8-1.25 X 30
Price
N/A
225
STEEL BALL 6MM
Price
N/A
226
BEARING 2007107
227
HOLLOW SHAFT
229
BEARING 2007106
230
DOMED STAR WASHER 30MM
231
NUT M30-1.5
232
SET SCREW M8-1.25 X 30
Price
N/A
234
SET SCREW M4-.7 X 5
Price
N/A
235
GEAR SHAFT
236
KEY 6 X 6 X 14
Price
N/A
237
SET SCREW M6-1 X 8
Price
N/A
238
COLLAR
239
FEED BOX HOUSING
240
WORM GEAR
241
ROLL PIN 5 X 28
Price
N/A
242
CLUTCH
243
PIN
244
SCALE RING
245
MILL/DRILL SHAFT
246
SEAL
247
MILL/DRILL SHAFT GLAND
247A
COLLAR
Price
N/A
248A
Now: PSS24
SET SCREW 10-32 X 3/16
Price
N/A
250
LEVER
251
SET SCREW M6-1 X 18
Price
N/A
252
COLLAR
252A
COLLAR
Price
N/A
253
SPRING LEAF
254
LEVER
255
KNOB
256
ROLL PIN 3 X 25
Price
N/A
257
STAR KNOB 12 X 50 V2.01.05
Price
N/A
257V2
STAR KNOB 12 X 50 V2.01.05
258
LEVER
259
PIN
261
WORM SHAFT
262
OILER
263
SET SCREW M8-1.25 X 15
Price
N/A
264
COMP WASHER 20
265A
STUD-UDE M8-1.25 X 73 13RH / 23RH
265B
LOCK LEVER
268
SPRING HOUSING
269
SET SCREW M5-.8 X 25
Price
N/A
270
COIL SPRING .6 X 19 X 1000
271
SPRING HOUSING COVER
272
PULLEY SHELF BOTTOM
273
Now: PW01M
FLAT WASHER 8MM
Price
N/A
274
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
275
SHAFT
276
TIGHTENER BOARD
277
TIGHTENER SHAFT
278
PULLEY BRACKET
279
Now: PW01M
FLAT WASHER 8MM
Price
N/A
280
LOCK WASHER 8MM
Price
N/A
281
SHELL BOLT 150
282
Now: PB16M
HEX BOLT M5-.8 X 24
Price
N/A
283
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
284
BELT TIGHTENER
285
ROLLER, SET OF 40 PINS
286
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
287
BALL BEARING 6104ZZ
Price
N/A
288
BEARING BRACKET
289
CAP SCREW M5-.8 X 16
Price
N/A
290
COLLAR
291
BALL BEARING 6108
292
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
293
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
294
Now: PW01M
FLAT WASHER 8MM
Price
N/A
295
PULLEY
296
COVER
297
PULLEY SHELF TOP W/ PIPE
Price
N/A
298
PULLEY SHELF TOP W/ PIPE
298A
PULLEY SHELF TOP W/ PIPE
Price
N/A
299
Now: PW01M
FLAT WASHER 8MM
Price
N/A
300
KNOB
301
Now: PVM29
V-BELT M29 3L290
Price
N/A
302
PULLEY
303
Now: PW03M
FLAT WASHER 6MM
Price
N/A
304
LOCK WASHER 5MM
Price
N/A
305
CAP SCREW M5-.8 X 20
Price
N/A

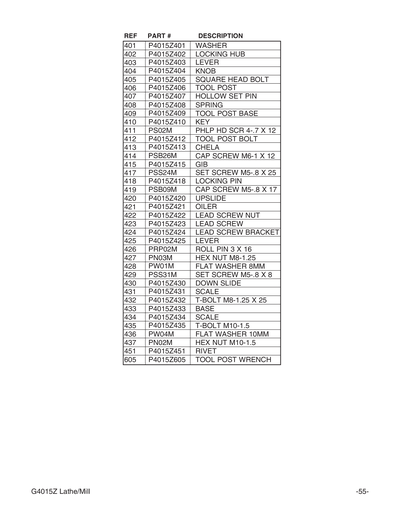

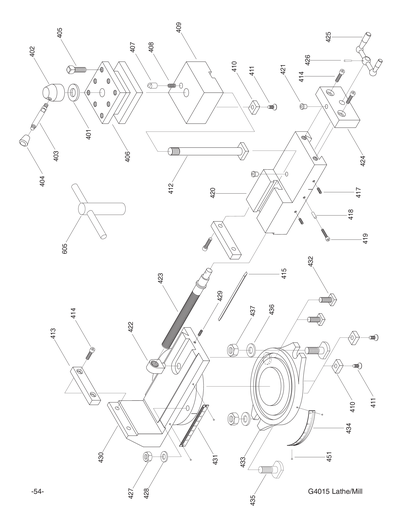

401
WASHER 25
402
LOCKING HUB
402A
LOCKING HUB
Price
N/A
403
HANDLE
Price
N/A
404
HANDLE KNOB M10-1.5
Price
N/A
405
SQUARE HEAD BOLT 8 X 25
406
TOOL POST
407
HOLLOW SET PIN
408
SPRING 5 X .6 X 30
409
TOOL POST BASE
410
KEY 14 X 12 X 8 W/ HOLE
411
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
412
T-BOLT M10-1.5 X 100
Price
N/A
413
CHELA-GIB
414
CAP SCREW M6-1 X 12
Price
N/A
415
GIB
417
SET SCREW M5-.8 X 25
Price
N/A
418
LOCK PIN
419
CAP SCREW M5-.8 X 17
Price
N/A
420
UPSLIDE
421
OILER
422
LEADSCREW NUT 15
423
LEADSCREW 15
424
LEADSCREW BRACKET
425
LEVER
426
ROLL PIN 3 X 16
Price
N/A
427
Now: PN03M
HEX NUT M8-1.25
Price
N/A
428
Now: PW01M
FLAT WASHER 8MM
Price
N/A
429
SET SCREW M5-.8 X 8
Price
N/A
430
DOWN SLIDE
431
SCALE
432
T-BOLT M8-1.25 X 25
Price
N/A
433
BASE
434
SCALE
435
T-BOLT M10-1.5
436
Now: PW04M
FLAT WASHER 10MM
Price
N/A
437
Now: PN02M
HEX NUT M10-1.5
Price
N/A
441
CHUCK 3-JAW
Price
N/A
442
STET ARBOR MT3 X JT33, 120MM L
Price
N/A
451
RIVET 2.5 X 8MM NAMEPLATE, COPPER
527
INDICATOR
Price
N/A
528
HALF NUT CASE ASSY

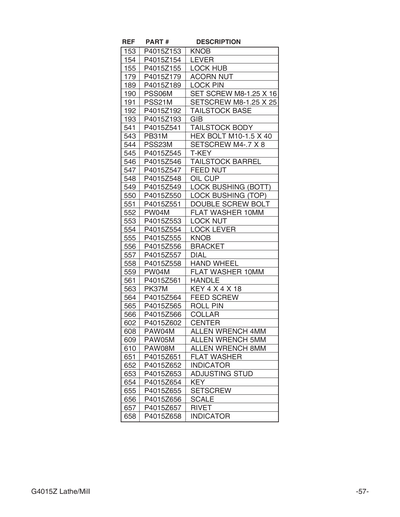

541

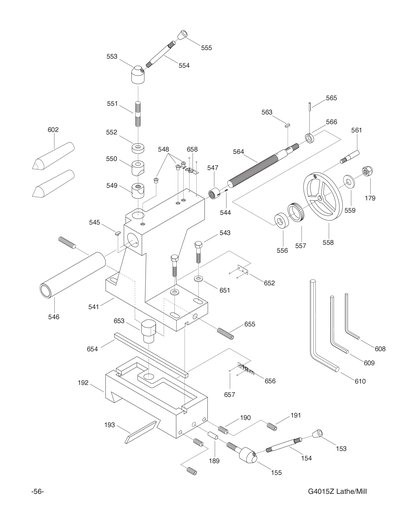

TAILSTOCK BODY
543
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
544
SET SCREW M4-.7 X 8
Price
N/A
545
T-KEY
546
TAILSTOCK BARREL
547
FEED SCREW ASSEMBLY
Price
N/A
548
BALL OILER 6MM PRESS-IN
Price
N/A
549
LOCK BUSHING ASSEMBLY
Price
N/A
550
LOCKING PAD UPPER
Price
N/A
550A
LOCK BUSHING ASSEMBLY
551
LOCK BUSHING ASSEMBLY
Price
N/A
552
Now: PW04M
FLAT WASHER 10MM
Price
N/A
553
LOCK NUT M8
554
LOCK LEVER
555
KNOB
556
BRACKET
557
DIAL
557-1
TAILSTOCK HOUSING COLLAR
558
HANDWHEEL
559
Now: PW04M
FLAT WASHER 10MM
Price
N/A
561
HANDLE
563
KEY 4 X 4 X 18
Price
N/A
564
FEED SCREW
564A
FEED SCREW ASSEMBLY
565
ROLL PIN
566
COLLAR
601
CHUCK 3-JAW
602
CENTER
603
DRILL CHUCK
603-1
*DISCD*DRILL CHUCK KEY
Item is no longer available
Price
N/A
604
STET ARBOR MT3 X JT33, 120MM L
605
TOOL POST WRENCH
606
LATHE CHUCK KEY 7.85MM STD
607
FACEPLATE 9-1/2"
608
HEX WRENCH 4MM
Price
N/A
609
HEX WRENCH 5MM
Price
N/A
610
HEX WRENCH 8MM
Price
N/A
611
CHANGE GEAR 24T
612
CHANGE GEAR 25T
613
CHANGE GEAR 27T
614
CHANGE GEAR 30T
615
CHANGE GEAR 33T
616
CHANGE GEAR 36T
617
CHANGE GEAR 42T
618
CHANGE GEAR 48T
619
CHANGE GEAR 60T
620
CHANGE GEAR 75T
621
CHANGE GEAR 120T
622
COMBINATION GEAR 60/127T
623
DUPLEX GEAR 120/127T
651
Now: PW04M
FLAT WASHER 10MM
Price
N/A
652
INDICATOR
653
ADJUSTABLE SHOULDER STUD
654
KEY 20 X 12 X 8 W/HOLE
655
SET SCREW M12-1.5 X 65
656
SCALE
657
RIVET 2.5 X 8MM NAMEPLATE, ALUMINUM
658
INDICATOR
801
STRAIN RELIEF
802
PLASTIC HOUSING
803
*DISCD*SWITCH ASSEMBLY V1
Item is no longer available
Price
N/A
803V2
SWITCH ASSEMBLY V2.01.12
803V2-1
SWITCH ASSEMBLY V2.01.12
Price
N/A
803V2-2
SWITCH ASSEMBLY V2.01.12
Price
N/A
804
SAFETY SWITCH
805
SPACER
806
*DISCD*SWITCH COVER
Item is no longer available
Price
N/A
806-1
GEAR BOX HOUSING
Price
N/A
806-2
GEAR BOX HOUSING
806-3
GEAR CHANGE LABEL
807
E-STOP BUTTON SCHN XK06-201
808
POWER INDICATOR LIGHT AND HOLDER
Price
N/A
808-1
POWER INDICATOR LIGHT AND HOLDER
Price
N/A
809
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
810
POWER INDICATOR LIGHT AND HOLDER
811
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
812
CONNECTION BUS
813
STRAIN RELIEF
814
MOUNTING BRACKET
815
COVER
816
Now: PS36M
PHLP HD SCR M4-.7 X 22
Price
N/A
817
STRAIN RELIEF
818
POWER CORD 16G X 3W 73"L
Price
N/A
819
FLEXIBLE CONDUIT
820
GUARD PLATE
821
SWITCH PLATE V2.01.12
852
END BUSHING
853
SHIFT BRACKET
854
Now: PN06M
HEX NUT M5-.8
Price
N/A
855
SET SCREW M5-.8 X 16
Price
N/A
856
END BUSHING
857
CLIP
871
CHUCK INTERNAL JAW 3PC
872
EXT CHUCK JAW 3PC
873
STEEL BALL 5MM
Price
N/A
874
SPRING
875
SCREW M6 X 8
876
SCREW M5 X 20
877
RIVET 2.5 X 8MM
878
Now: PW04M
FLAT WASHER 10MM
Price
N/A
879
INDEX
880
FLAT HD SCR M5-.8 X 10
Price
N/A
881
INDEX
882
SCUTCHEN
883
SCREW M5 X 18
MANUAL
MANUAL FOR G4015Z 05/07
