Parts for G4018 - Arbor Press - 1 Ton

Part Diagram for G4018
Part Diagram for G4018
Part Diagram for G4018
Part Diagram for G4018

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

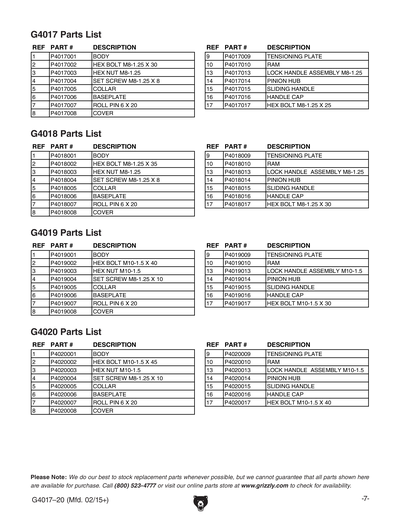

Ref #
Part #
Description
1
BODY
Item is no longer available
Price
N/A
2
HEX BOLT M8-1.25 X 35
Price
N/A
3
HEX NUT M8-1.25
Price
N/A
4
SET SCREW M8-1.25 X 8
Price
N/A
5
Price
$1.49
6
Price
$10.95
7
ROLL PIN 6 X 20
Price
N/A
8
Price
$2.30
9
TENSIONING PLATE
Item is no longer available
Price
N/A
10
Price
$17.55
11
LOCK HANDLE ASSEMBLY M8-1.25
Price
N/A
12
LOCK HANDLE ASSEMBLY M8-1.25
Price
N/A
13
LOCK HANDLE ASSEMBLY M8-1.25
Price
N/A
14
Price
$19.85
15
SLIDING HANDLE
Item is no longer available
Price
N/A
16
HANDLE CAP
Item is no longer available
Price
N/A
17
HEX BOLT M8-1.25 X 30
Price
N/A
MAN
MANUAL G4017-20 MFD-06.15 V1.06.15
Price
N/A
