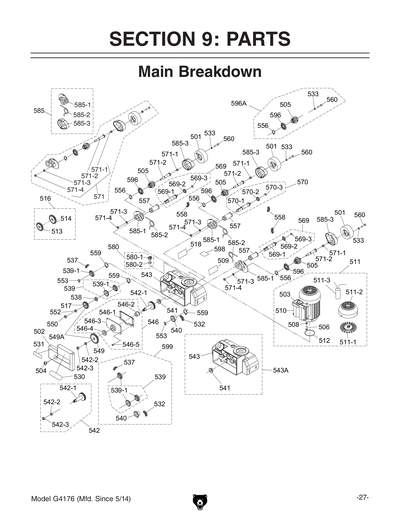

Parts for G4176 - 1/4 HP Power Feeder

1/3

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

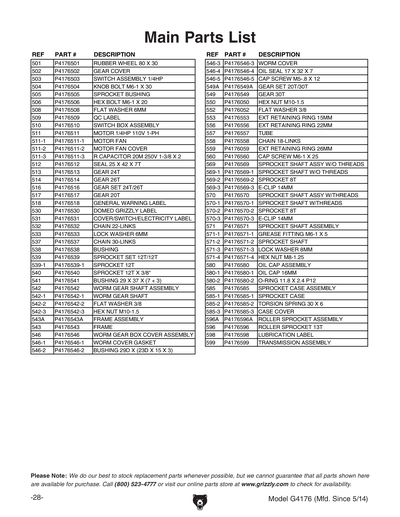

Ref #
Part #
Description
1
OIL CAP ASSEMBLY
Price
N/A
2
*DISCD*OIL CAP
Item is no longer available
Price
N/A
3
O-RING 15.8 X 2.4 P16
Price
N/A
4
*DISCD*SPROCKET CASE KIT
Item is no longer available
Price
N/A
5
SPROCKET CASE
Price
N/A
6
TORSION SPRING 30 X 6
Price
N/A
7
CASE COVER
Price
N/A
8
*DISCD*SCREW
Item is no longer available
Price
N/A
9
*DISCD*SPROCKET KIT
Item is no longer available
Price
N/A
10
SPROCKET BUSHING
Price
N/A
11
SPRING WASHER
Price
$1.00
12
CAP SCREW M6-1 X 25
Price
N/A
13
*DISCD*EXTENSION SCREW
Item is no longer available
Price
N/A
14
CHAIN 18-LINKS
Price
N/A
15
TUBE
Price
N/A
16
TUBE
Price
N/A
17
E-CLIP 13MM
Price
N/A
18
SPROCKET SHAFT KIT
Price
$18.75
19
SPROCKET SHAFT W/THREADS
Price
N/A
20
SPROCKET 8T
Price
N/A
21
SPROCKET SHAFT ASSY W/THREADS
Price
N/A
22
SPROCKET SHAFT
Price
$17.25
23
WASHER
Price
$1.00
24
E-CLIP 13MM
Price
N/A
25
SPROCKET SHAFT ASSEMBLY
Price
N/A
26
GREASE FITTING M6-1 X 5
Price
N/A
27
SPROCKET SHAFT
Price
N/A
28
LOCK WASHER 8MM
Price
N/A
29
HEX NUT M8-1.25
Price
N/A
30
*DISCD*FRAME KIT
Price
$110.75
31
*DISCD*FRAME
Price
$104.75
32
BUSHING 29 X 37 X (7 + 3)
Price
N/A
33
*DISCD*BACK COVER KIT
Price
$26.25
34
*DISCD*BACK COVER
Price
$10.25
35
KNOB BOLT M6-1 X 30
Price
N/A
36
*DISCD*TRANSMISSION KIT
Item is no longer available
Price
N/A
37
SPROCKET 12T X 3/8"
Price
N/A
38
SPROCKET SET 12T/12T
Price
N/A
39
BUSHING
Price
N/A
40
CHAIN 30-LINKS
Price
N/A
41
CHAIN 22-LINKS
Price
N/A
42
WORM GEAR SHAFT ASSEMBLY
Price
N/A
43
WORM GEAR SHAFT
Price
N/A
44
P4176044
Now: PW02
FLAT WASHER 3/8
Price
N/A
45
HEX NUT M10-1.5
Price
N/A
46
WORM GEAR BOX COVER ASSEMBLY
Price
N/A
47
WORM COVER GASKET
Price
N/A
48
BUSHING 29D X (23D X 15 X 3)
Price
N/A
49
WORM COVER
Price
N/A
50
WORM COVER GASKET
Price
N/A
51
CAP SCREW M5-.8 X 12
Price
N/A
52
GEAR SET 20T/30T
Price
N/A
53
GEAR 30T
Price
N/A
54
GEAR 20T
Price
N/A
55
GEAR SET 24T/26T
Price
N/A
56
GEAR 26T
Price
N/A
57
GEAR 24T
Price
N/A
58
*DISCD*O-RING KIT
Price
$1.00
59
SWITCH BOX ASSEMBLY
Price
N/A
60
SWITCH ASSEMBLY 1/4HP
Price
N/A
61
Synthetic Rubber Roller for G4176
Price
N/A
62
BALL BEARING 6202ZZ
Price
N/A
63
BALL BEARING 6205ZZ
Price
N/A
64
MOTOR 1/4HP 110V 1-PH
Price
N/A
64-1
R CAPACITOR 20M 250V 1-3/8 X 2
Price
N/A
65
OIL SEAL
Price
$7.50
66
*DISCD*MOTOR COVER FRONT
Price
$36.00
67
*DISCD*MOTOR SHAFT
Item is no longer available
Price
N/A
68
*DISCD*MOTOR FRAME
Item is no longer available
Price
N/A
69
*DISCD*MOTOR COVER BACK
Price
$28.75
70
MOTOR FAN
Price
N/A
71
*DISCD*SCREW
Item is no longer available
Price
N/A
72
MOTOR FAN COVER
Price
N/A
73
*DISCD*SCREW
Item is no longer available
Price
N/A
74
*DISCD*BOX HALF
Item is no longer available
Price
N/A
75
*DISCD*SCREW
Item is no longer available
Price
N/A
76
*DISCD*BOX COVER
Price
$10.00
77
*DISCD*SCREW
Item is no longer available
Price
N/A
78
*DISCD*CORD SOCKET
Item is no longer available
Price
N/A
96A
GEAR COVER
Price
N/A
100
BASE ASSEMBLY
Price
N/A
101
BASE
Price
N/A
102
*DISCD*STUD
Item is no longer available
Price
N/A
103
FLAT WASHER 8MM
Price
N/A
104
LEVER
Price
N/A
105
*DISCD*SCREW
Item is no longer available
Price
N/A
106
*DISCD*VERTICAL COLUMN KIT
Price
$82.25
107
ELEVATING SHAFT V1
Price
N/A
108
*DISCD*KEY
Price
$15.75
109
*DISCD*SCREW
Price
$1.00
110
OVER ARM CONE
Price
N/A
111
OVER ARM SHAFT V1
Price
N/A
112
*DISCD*KEY
Item is no longer available
Price
N/A
113
*DISCD*SCREW
Item is no longer available
Price
N/A
114
*DISCD*ELEVATING BRACKET KIT
Item is no longer available
Price
N/A
115
ELEVATING BRACKET
Price
N/A
116
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
LEVER
Price
N/A
119
ELEVATING SCREW
Price
N/A
120
LEADSCREW
Price
N/A
121
COLUMN CAP ASSEMBLY V1
Price
N/A
122
COLUMN CAP V1
Price
N/A
123
*DISCD*BUSHING
Price
$1.00
124
*DISCD*SET SCREW
Price
$1.00
125
OVER ARM CONE ASSEMBLY
Price
N/A
126
OVER ARM CONE
Price
N/A
127
*DISCD*LOCK STUD
Item is no longer available
Price
N/A
128
*DISCD*LEVER
Price
$8.75
129
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
130
*DISCD*WASHER
Item is no longer available
Price
N/A
131
*DISCD*SCREW
Price
$0.75
132
OVER ARM CONE KIT
Price
$59.75
133
OVER ARM CONE
Price
N/A
134
*DISCD*LOCK STUD
Item is no longer available
Price
N/A
135
*DISCD*LEVER
Price
$8.75
136
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
137
WASHER
Price
$1.00
138
*DISCD*SCREW
Item is no longer available
Price
N/A
139
SWIVEL CONE ASSEMBLY
Price
N/A
140
SWIVEL CONE
Price
N/A
141
*DISCD*LOCK STUD
Item is no longer available
Price
N/A
142
*DISCD*LEVER
Price
$8.75
143
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
144
*DISCD*CAP SCREW WRENCH
Item is no longer available
Price
N/A
145
*DISCD*HANDWHEEL
Price
N/A
146
*DISCD*HANDWHEEL
Price
$25.00
147
ROLL PIN 4 X 32
Price
N/A
148
*DISCD*BUSHING
Item is no longer available
Price
N/A
149
HANDLE M10-1.5 X 70
Price
N/A
21A
OIL CAP ASSEMBLY
Price
N/A
21A-1
OIL CAP 16MM
Price
N/A
21A-2
O-RING 14.8 X 2.4 P15
Price
N/A
47B
BASE ASSEMBLY
Price
N/A
47B-1
BASE ASSEMBLY
Price
N/A
47B-2
FLAT WASHER 8MM
Price
N/A
47B-3
LEVER M8-1.25
Price
N/A
47B-4
HEX NUT M8-1.25
Price
N/A
48B
ELEVATING BRACKET ASSEMBLY
Price
N/A
501
Synthetic Rubber Roller for G4176
Price
N/A
502
GEAR COVER
Price
$2.75
503
SWITCH ASSEMBLY 1/4HP
Price
$28.75
503-1
KNOB FOR FWD/REV SWITCH
Price
$12.00
504
KNOB BOLT M6-1 X 30
Price
$1.75
505
SPROCKET BUSHING
Price
$7.50
506
HEX BOLT M6-1 X 20
Price
N/A
508
FLAT WASHER 6MM
Price
N/A
509
QC LABEL
Price
$1.00
510
SWITCH BOX ASSEMBLY
Price
$8.75
511
MOTOR 1/4HP 110V 1-PH
Price
$235.75
511-1
MOTOR FAN
Price
$3.75
511-2
MOTOR FAN COVER
Price
$13.00
511-3
R CAPACITOR 20M 250V 1-3/8 X 2
Price
N/A
512
SEAL 25 X 42 X 7T
Price
$1.25
513
GEAR 24T
Price
$14.75
514
GEAR 26T
Price
$16.50
515
GEAR CHANGE LABEL
Price
$1.00
516
GEAR SET 24T/26T
Price
$28.25
517
GEAR 20T
Price
$11.50
518
GENERAL WARNING LABEL
Price
$2.25
519
GEAR SET 20T/30T
Price
$37.25
521
COVER/SWITCH/ELECTRICITY LABEL
Price
N/A
525
COVER/SWITCH/ELECTRICITY LABEL
Price
N/A
530
DOMED GRIZZLY LABEL
Price
$2.00
531
COVER/SWITCH/ELECTRICITY LABEL
Price
$1.00
532
CHAIN 22-LINKS
Price
$3.25
533
LOCK WASHER 6MM
Price
N/A
537
CHAIN 30-LINKS
Price
$4.50
538
BUSHING
Price
$1.00
539
SPROCKET SET 12T/12T
Price
$4.00
539-1
SPROCKET 12T
Price
$4.00
540
SPROCKET 12T X 3/8"
Price
$4.50
541
BUSHING 29 X 37 X (7 + 3)
Price
$1.50
542
WORM GEAR SHAFT ASSEMBLY
Price
$42.00
542-1
WORM GEAR SHAFT
Price
$45.00
542-2
FLAT WASHER 3/8
Price
N/A
542-3
HEX NUT M10-1.5
Price
N/A
543
FRAME
Price
$99.25
543A
FRAME ASSEMBLY
Price
$103.50
546
WORM GEAR BOX COVER ASSEMBLY
Price
$14.25
546-1
WORM COVER GASKET
Price
$1.00
546-2
BUSHING 29D X (23D X 15 X 3)
Price
$2.00
546-3
WORM COVER
Price
$8.00
546-4
OIL SEAL 17 X 32 X 7
Price
$1.25
546-5
CAP SCREW M5-.8 X 12
Price
N/A
549
GEAR 30T
Price
$23.50
549A
GEAR SET 20T/30T
Price
$34.25
550
HEX NUT M10-1.5
Price
N/A
552
P4176552
Now: PW02
FLAT WASHER 3/8
Price
N/A
553
EXT RETAINING RING 15MM
Price
N/A
556
EXT RETAINING RING 22MM
Price
N/A
557
TUBE
Price
$6.75
558
CHAIN 18-LINKS
Price
$2.50
559
EXT RETAINING RING 26MM
Price
N/A
560
CAP SCREW M6-1 X 25
Price
N/A
569
SPROCKET SHAFT ASSY W/O THREADS
Price
$23.00
569-1
SPROCKET SHAFT W/O THREADS
Price
$12.00
569-2
SPROCKET 8T
Price
$2.00
569-3
E-CLIP 14MM
Price
N/A
570
SPROCKET SHAFT ASSY W/THREADS
Price
$16.25
570-1
SPROCKET SHAFT W/THREADS
Price
$22.50
570-2
SPROCKET 8T
Price
$22.50
570-3
E-CLIP 14MM
Price
N/A
571
SPROCKET SHAFT ASSEMBLY
Price
$11.50
571-1
GREASE FITTING M6-1 X 5
Price
N/A
571-2
SPROCKET SHAFT
Price
$10.00
571-3
LOCK WASHER 8MM
Price
N/A
571-4
HEX NUT M8-1.25
Price
N/A
580
OIL CAP ASSEMBLY
Price
$1.00
580-1
OIL CAP 16MM
Price
$1.25
580-2
O-RING 11.8 X 2.4 P12
Price
N/A
585
SPROCKET CASE ASSEMBLY
Price
$7.75
585-1
SPROCKET CASE
Price
$5.00
585-2
TORSION SPRING 30 X 6
Price
$1.25
585-3
CASE COVER
Price
$1.75
596
ROLLER SPROCKET 13T
Price
$3.00
596A
ROLLER SPROCKET ASSEMBLY
Price
$13.50
598
LUBRICATION LABEL
Price
$1.00
599
TRANSMISSION ASSEMBLY
Price
$16.25
601
LEVER M6-1
Price
$14.25
615
ELEVATING BRACKET ASSEMBLY
Price
$143.25
615-1
ELEVATING BRACKET
Price
$99.00
615-2
FLAT WASHER 8MM
Price
N/A
615-3
LEVER M8-1.25
Price
$5.75
615-4
HEX NUT M8-1.25
Price
$1.00
615-5
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
615-6
LOCK WASHER 8MM
Price
N/A
618
OVER ARM SHAFT V1
Price
$76.00
618V2
OVER ARM SHAFT V2.11.16
Price
$24.00
631
LOCK WASHER 4MM
Price
N/A
632
HEX NUT M4-.7
Price
N/A
649
HANDLE M10-1.5 X 70
Price
$2.75
65B
SPROCKET CASE ASSEMBLY
Price
N/A
65B-1
*DISCD*SPROCKET CASE
Item is no longer available
Price
N/A
65B-2
TORSION SPRING 30 X 6
Price
N/A
65B-3
CASE COVER
Price
N/A
66B
*DISCD*SPROCKET KIT
Item is no longer available
Price
N/A
66B-1
SPROCKET BUSHING
Price
N/A
66B-2
ROLLER SPROCKET 13T
Price
N/A
66B-3
EXT RETAINING RING 24MM
Price
N/A
66B-4
*DISCD*EXT SCREW
Item is no longer available
Price
N/A
67B
*DISCD*CHAIN KIT 18S
Item is no longer available
Price
N/A
68B
TUBE
Price
N/A
68B-1
TUBE
Price
N/A
68B-2
EXT RETAINING RING 26MM
Price
N/A
690
BASE ASSEMBLY
Price
$72.50
690-1
BASE
Price
$63.00
690-2
FLAT WASHER 8MM
Price
N/A
690-3
LEVER M8-1.25
Price
N/A
690-4
HEX NUT M8-1.25
Price
N/A
697
HAND CRANK
Price
$9.75
697A
HANDLE ASSEMBLY
Price
$10.50
698
OVER ARM CONE ASSEMBLY
Price
$79.50
698-1
OVER ARM CONE
Price
$63.00
698-2
HEX BOLT M10-1.5 X 50
Price
N/A
698-4
LOCK WASHER 10MM
Price
N/A
69B
SPROCKET SHAFT KIT
Price
$24.50
69B-1
*DISCD*SPROCKET SHAFT
Item is no longer available
Price
N/A
69B-2
SPROCKET 8T
Price
N/A
706
ELEVATING SHAFT V1
Price
$50.75
706V2
ELEVATING SHAFT V2.11.16
Price
$23.75
70B
SPROCKET SHAFT ASSY W/THREADS
Price
N/A
70B-1
SPROCKET SHAFT W/THREADS
Price
N/A
70B-2
FLAT WASHER 3/8
Price
N/A
70B-3
HEX NUT M10-1.5
Price
N/A
710
HEX NUT M16-2
Price
N/A
715
ELEVATING SCREW
Price
$11.00
716
LEADSCREW
Price
$12.00
718
COLUMN CAP ASSEMBLY V1
Price
$16.00
718-1
COLUMN CAP V1
Price
$15.00
718-1V2
COLUMN CAP V2.11.16
Price
$10.25
718-3
SET SCREW M8-1.25 X 10
Price
N/A
718V2
COLUMN CAP ASSEMBLY V2.11.16
Price
$10.00
71B
SPROCKET SHAFT ASSEMBLY
Price
N/A
71B-1
*DISCD*GREASE NIPPLE
Item is no longer available
Price
N/A
71B-2
SPROCKET SHAFT
Price
N/A
71B-3
LOCK WASHER 8MM
Price
N/A
71B-4
HEX NUT M8-1.25
Price
N/A
723
PHLP HD SCR M4-.7 X 35
Price
N/A
731
SWIVEL CONE ASSEMBLY
Price
$52.25
731-1
SWIVEL CONE
Price
$50.75
731-2
HEX NUT M16-2
Price
N/A
731-3
LEVER M16-2
Price
$15.00
732
HEX BOLT M10-1.5 X 50
Price
N/A
733
LOCK WASHER 10MM
Price
N/A
734
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
735
BUSHING
Price
$2.50
75B
*DISCD*FRAME KIT
Item is no longer available
Price
N/A
75B-1
FRAME
Price
N/A
75B-2
BUSHING 29 X 37 X (7 + 3)
Price
N/A
76B
BACK COVER KIT
Price
$16.00
76B-1
*DISCD*BACK COVER
Price
$11.25
76B-2
*DISCD*KNOB
Item is no longer available
Price
N/A
77B
*DISCD*TRANSMISSION KIT
Item is no longer available
Price
N/A
77B-1
SPROCKET 12T X 3/8"
Price
N/A
77B-2
SPROCKET SET 12T/12T
Price
N/A
77B-3
BUSHING
Price
N/A
77B-4
CHAIN 30-LINKS
Price
N/A
77B-5
CHAIN 22-LINKS
Price
N/A
79B
WORM GEAR SHAFT ASSEMBLY
Price
N/A
79B-1
WORM GEAR SHAFT
Price
N/A
79B-2
FLAT WASHER 3/8
Price
N/A
79B-3
HEX NUT M10-1.5
Price
N/A
80B
WORM GEAR BOX COVER ASSEMBLY
Price
N/A
80B-1
WORM COVER GASKET
Price
N/A
80B-2
BUSHING 29D X (23D X 15 X 3)
Price
N/A
80B-3
*DISCD*WORM GEAR BOX COVER
Item is no longer available
Price
N/A
80B-4
OIL SEAL 17 X 32 X 7
Price
N/A
80B-5
CAP SCREW M5-.8 X 12
Price
N/A
81B
GEAR SET 20T/30T
Price
N/A
81B-1
GEAR 30T
Price
$24.50
81B-2
GEAR 20T
Price
$19.75
82B
GEAR SET 24T/26T
Price
N/A
82B-1
GEAR 26T
Price
N/A
82B-2
GEAR 24T
Price
N/A
83B
O-RING KIT
Price
$1.00
85B
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B-3
*DISCD*MOTOR 1/4HP 3PH
Item is no longer available
Price
N/A
85B-5
*DISCD*MOTOR COVER BACK
Item is no longer available
Price
N/A
85B1
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-1
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-2
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-3
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-4
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-6
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-7
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-8
MOTOR 1/4HP 110V 1-PH
Price
N/A
85B1-9
MOTOR 1/4HP 110V 1-PH
Price
N/A
85H
HAND CRANK
Price
N/A
86B
SPROCKET BUSHING
Price
N/A
86B-1
SPROCKET BUSHING
Price
N/A
86B-2
SPROCKET BUSHING
Price
N/A
86B-3
SPROCKET BUSHING
Price
N/A
86B-4
SPROCKET BUSHING
Price
N/A
86B-5
SPROCKET BUSHING
Price
N/A
87A
HANDLE M10-1.5 X 70
Price
N/A
87B
SWITCH ASSEMBLY 1/4HP
Price
N/A
90B
BASE ASSEMBLY
Price
N/A
90B-1
BASE
Price
N/A
90B-2
FLAT WASHER 5/16
Price
N/A
90B-3
LEVER M8-1.25
Price
N/A
90B-4
HEX NUT M8-1.25
Price
N/A
91B
ELEVATING SHAFT V1
Price
N/A
92B
OVER ARM CONE
Price
$80.50
93B
ELEVATING BRACKET ASSEMBLY
Price
N/A
93B-1
ELEVATING BRACKET
Price
N/A
93B-2
FLAT WASHER 5/16
Price
N/A
93B-3
CLAMP LEVER M8
Price
N/A
93B-4
HEX NUT M8-1.25
Price
N/A
93B-5
SET SCREW M8-1.25 X 20
Price
N/A
93B-6
FLAT WASHER 8MM
Price
N/A
94B
ELEVATING SCREW
Price
N/A
95B
LEADSCREW
Price
N/A
96B
COLUMN CAP ASSEMBLY V1
Price
N/A
96B-1
COLUMN CAP V1
Price
N/A
96B-2
BUSHING
Price
$1.00
96B-3
SET SCREW M8-1.25 X 12
Price
N/A
97A
KNOB BOLT M6-1 X 30
Price
N/A
97B
*DISCD*HANDWHEEL KIT
Price
$14.00
97B-1
*DISCD*HANDWHEEL
Price
$14.00
97B-2
ROLL PIN 6 X 36
Price
N/A
98B
*DISCD*OVERARM CONE KIT
Item is no longer available
Price
N/A
98B-1
OVER ARM CONE
Price
N/A
98B-2
*DISCD*NUT M14-1.5P
Price
N/A
98B-3
LEVER
Price
$13.25
98B-4
FLAT WASHER 3/8
Price
N/A
98B-5
HEX BOLT M10-1.5 X 50
Price
N/A
99B
*DISCD*SWIVEL CONE KIT
Item is no longer available
Price
N/A
99B-1
SWIVEL CONE
Price
N/A
99B-2
*DISCD*NUT M14-1.5P
Price
N/A
99B-3
LEVER M16-2
Price
N/A
BZZ-6202
BALL BEARING 6202ZZ
Price
N/A
BZZ-6205
BALL BEARING 6205ZZ
Price
N/A
MAN
MANUAL G4176 V1.06.08
Price
$11.75
MANUAL
MANUAL FOR G4176 09/12
Price
$11.50
MANV2
MANUAL G4716 MFD 12.13+ V2.04.14
Price
$8.50
P
SET SCREW M8-1.25 X 20 DOG-PT
Price
$1.00
R0-08
Synthetic Rubber Roller for G4176
Price
N/A
TEMPLATE
MOUNTING TEMPLATE STICKER
Price
$2.50
