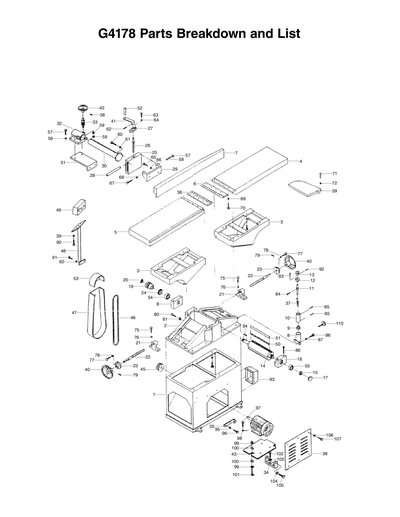

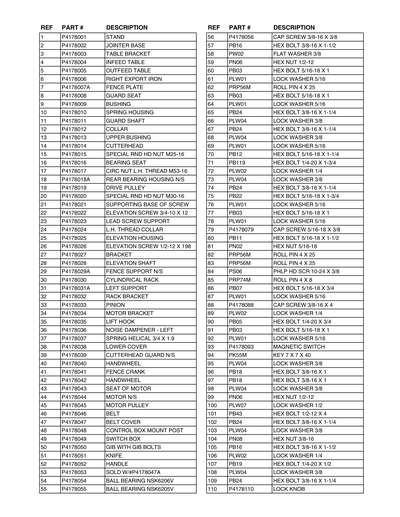

Parts for G4178 12" x 76" Professional Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
STAND
Item is no longer available
Price
N/A
2
JOINTER BASE
Item is no longer available
Price
N/A
2-1
OIL CUP 1/4" NPT X 9MM X 24MM ELBOW
2-2
TABLE GIB
3
TABLE BRACKET
Item is no longer available
Price
N/A
4
INFEED TABLE
Item is no longer available
Price
N/A
5
OUTFEED TABLE
Item is no longer available
Price
N/A
6
EXPORT IRON RIGHT SIDE TABLE
7
*DISCD*FENCE PLATE
Item is no longer available
Price
N/A
7A
FENCE PLATE
8
GUARD SEAT
9
BUSHING
10
SPRING HOUSING
11
GUARD SHAFT
12
COLLAR
13
UPPER BUSHING
14
CUTTERHEAD
15
BEARING SEAT ROUND HEAD NUT M25-16
16
BEARING SEAT
16-1
GREASE ZERK
17
CIRCULAR NUT M53-16 LH
18
REAR BEARING HOUSING V2.04.03
Price
N/A
18A
REAR BEARING HOUSING V2.04.03
19
DRIVE PULLEY
20
DRIVE PULLEY ROUND HEAD NUT M30-16
21
SUPPORTING BASE OF SCREW
22
ELEVATION LEADSCREW 3/4-10 X 12
23
LEADSCREW SUPPORT
Item is no longer available
Price
N/A
24
THREAD COLLAR LH
25
ELEVATION HOUSING
26
ELEVATION SCREW 1/2-12 X 198
27
BRACKET
28
ELEVATION SHAFT
29
FENCE SUPPORT V2.04.03
Price
N/A
29A
FENCE SUPPORT V2.04.03
30
CYLINDRICAL RACK
31
SUPPORT LEFT
Price
N/A
31A
SUPPORT LEFT
31B
SUPPORT RIGHT
Item is no longer available
Price
N/A
32
RACK BRACKET
Item is no longer available
Price
N/A
33
PINION
34
MOTOR BRACKET
Item is no longer available
Price
N/A
35
LIFT HOOK
Item is no longer available
Price
N/A
36
NOISE DAMPENER LEFT
Item is no longer available
Price
N/A
37
SPRING HELICAL 3/4 X 1.9
38
COVER LOWER
39
CUTTERHEAD GUARD V2.12.05
39A
CUTTERHEAD GUARD V1.06.98
40
HANDWHEEL
41
FENCE CRANK
42
HANDWHEEL
43
SEAT OF MOTOR
Item is no longer available
Price
N/A
44
MOTOR 3HP 220V 1-PH V2.03.06
Item is no longer available
Price
N/A
44A
MOTOR V1.06.98
Item is no longer available
Price
N/A
45
MOTOR PULLEY
45-1
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
46
Now: PVA46
V-BELT A46
Price
N/A
47
BELT COVER
Item is no longer available
Price
N/A
47-1
SCREW LONG 3/8-16 X 105MM
Item is no longer available
Price
N/A
47-2
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
48
CONTROL BOX MOUNT POST
49
SWITCH BOX
49-1
*DISCD*SWITCH PANEL ASSY
Item is no longer available
Price
N/A
50
GIB W/BOLTS 3PC SET
50-1
GIB W/O GIB BOLTS
50-2
GIB BOLT 5/16-18 X 3/8
51
KNIVES 3PC SET
Item is no longer available
Price
N/A
52
HANDLE
53
BRACKET
Item is no longer available
Price
N/A
54
BALL BEARING 6206V
55
BALL BEARING 6205V
56
CAP SCREW 3/8-16 X 3/8
Item is no longer available
Price
N/A
57
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
58
Now: PW02
FLAT WASHER 3/8
Price
N/A
59
Now: PN06
HEX NUT 1/2-12
Price
N/A
60
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
61
Now: PLW01
LOCK WASHER 5/16
Price
N/A
62
ROLL PIN 4 X 25
Price
N/A
63
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
64
Now: PLW01
LOCK WASHER 5/16
Price
N/A
65
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
66
Now: PLW04
LOCK WASHER 3/8
Price
N/A
67
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
68
Now: PLW04
LOCK WASHER 3/8
Price
N/A
69
Now: PLW01
LOCK WASHER 5/16
Price
N/A
69-1
*DISCD*SWITCH ASSY ON/OFF
69-2
*DISCD*CONTROL BOX MOUNTING POST
Item is no longer available
Price
N/A
70
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
71
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
72
Now: PLW02
LOCK WASHER 1/4
Price
N/A
73
Now: PLW04
LOCK WASHER 3/8
Price
N/A
74
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
75
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
76
Now: PLW01
LOCK WASHER 5/16
Price
N/A
77
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
78
Now: PLW01
LOCK WASHER 5/16
Price
N/A
79
CAP SCREW 5/16-18 X 3/8
Price
N/A
80
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
81
Now: PN02
HEX NUT 5/16-18
Price
N/A
82
ROLL PIN 4 X 25
Price
N/A
83
ROLL PIN 4 X 25
Price
N/A
84
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
85
ROLL PIN 4 X 8
Price
N/A
86
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
87
Now: PLW01
LOCK WASHER 5/16
Price
N/A
88
CAP SCREW 3/8-16 X 4
89
Now: PLW02
LOCK WASHER 1/4
Price
N/A
90
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
91
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
92
Now: PLW01
LOCK WASHER 5/16
Price
N/A
93
MAG SWITCH 2HP 3PH V1.01.02
Item is no longer available
Price
N/A
93A
*DISCD*MAG SWITCH 3HP 3PH V2.01.04
Item is no longer available
Price
N/A
94
Now: PK55M
KEY 7 X 7 X 40
Price
N/A
95
Now: PLW04
LOCK WASHER 3/8
Price
N/A
96
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
97
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
98
Now: PLW04
LOCK WASHER 3/8
Price
N/A
99
Now: PN06
HEX NUT 1/2-12
Price
N/A
100
Now: PLW07
LOCK WASHER 1/2
Price
N/A
101
Now: PB43
HEX BOLT 1/2-12 X 4
Price
N/A
102
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
103
Now: PLW04
LOCK WASHER 3/8
Price
N/A
104
Now: PN08
HEX NUT 3/8-16
Price
N/A
105
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
106
Now: PLW02
LOCK WASHER 1/4
Price
N/A
107
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
108
Now: PLW04
LOCK WASHER 3/8
Price
N/A
109
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
110
LOCK KNOB
111
DUST PORT
Item is no longer available
Price
N/A
112
PIVOT ARM MOTOR BRACKET
113
RED LIGHT
114
GREEN START BUTTON
115
E-STOP BUTTON RENY 250V 6A
116
*DISCD*STARTER
Item is no longer available
Price
N/A
117
*DISCD*SWITCH BOX
118
COMPLETE CUTTERHEAD GUARD TENSION ASSY
200
WARNING LABEL
Item is no longer available
Price
N/A
201
COMPLETE KNIFE GAUGE ASSY
Item is no longer available
Price
N/A
201-1
KNIFE GAUGE 1 OF 2
Item is no longer available
Price
N/A
201-2
ROD FOR KNIFE GAUGE
Item is no longer available
Price
N/A
201-3
E-CLIP FOR KNIFE GAUGE
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G4178 FACTORY
PG4178001
BASE
Item is no longer available
Price
N/A
PG4178002
PLATFORM MAIN PART
Item is no longer available
Price
N/A
PG4178003
DECALITER
Item is no longer available
Price
N/A
PG4178004
FLAT RIGHT
Item is no longer available
Price
N/A
PG4178005
FLAT LEFT
Item is no longer available
Price
N/A
PG4178006
EXPORT IRON RIGHT
Item is no longer available
Price
N/A
PG4178007
PRESS BOARD LONG
Item is no longer available
Price
N/A
PG4178008
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178009
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178010
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178011
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178012
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178013
SAFETY COVER PARTS
Item is no longer available
Price
N/A
PG4178014
KNIFE WHEEL SHAFT
Item is no longer available
Price
N/A
PG4178015
INTERNAL BIND
Item is no longer available
Price
N/A
PG4178016
KNIFE WHEEL BASE
Item is no longer available
Price
N/A
PG4178017
EXTERNAL BIND
Item is no longer available
Price
N/A
PG4178018
KNIFE WHEEL BASE
Item is no longer available
Price
N/A
PG4178019
PULLEY
Item is no longer available
Price
N/A
PG4178020
INTERNAL BAND
Item is no longer available
Price
N/A
PG4178021
SUPPORTING BASE OF SCREW
Item is no longer available
Price
N/A
PG4178022
VERTICAL SCREW
Item is no longer available
Price
N/A
PG4178023
VERTICAL SCREW SUPPORT
Item is no longer available
Price
N/A
PG4178024
EXTERNAL BIND
Item is no longer available
Price
N/A
PG4178025
BLOCK
Item is no longer available
Price
N/A
PG4178026
LONG BOARD VERTICAL SCREW
Item is no longer available
Price
N/A
PG4178027
LONG BOARD VERTICAL SCREW SHEATH
Item is no longer available
Price
N/A
PG4178028
LONG BOARD SPINDLE
Item is no longer available
Price
N/A
PG4178029
LONG BOARD SUPPORT
Item is no longer available
Price
N/A
PG4178030
ROW TOOTH TUBE
Item is no longer available
Price
N/A
PG4178031
SMALL FLAT OF L
Item is no longer available
Price
N/A
PG4178032
ROW TOOTH TUBE BASE
Item is no longer available
Price
N/A
PG4178033
ROW TOOTH TRANSMISSION SPINDLE
Item is no longer available
Price
N/A
PG4178034
SUPPORT OF MOTOR SEAT
Item is no longer available
Price
N/A
PG4178035
LIFT HOOK
Item is no longer available
Price
N/A
PG4178036
EXPORT IRON LEFT
Item is no longer available
Price
N/A
PG4178037
SPRING
Item is no longer available
Price
N/A
PG4178038
MOTOR COVER
Item is no longer available
Price
N/A
PG4178039
SAFETY COVER
Item is no longer available
Price
N/A
PG4178040
HANDWHEEL
Item is no longer available
Price
N/A
PG4178043
SEAT OF MOTOR
Item is no longer available
Price
N/A
PG4178044
MOTOR 3HP 220V 1-PH
Item is no longer available
Price
N/A
PG4178045
MOTOR PULLEY
Item is no longer available
Price
N/A
PG4178046
BELT
Item is no longer available
Price
N/A
PG4178047
BELT COVER
Item is no longer available
Price
N/A
PG4178048
ELECTRIC PILLAR
Item is no longer available
Price
N/A
PG4178049
SWITCH BOX
Item is no longer available
Price
N/A
PG4178050
KNIFE SET BOLT
Item is no longer available
Price
N/A
PG4178051
KNIFE
Item is no longer available
Price
N/A
PG4178052
HANDLE
Item is no longer available
Price
N/A
PG4178054
BEARING
Item is no longer available
Price
N/A
PG4178055
BEARING
Item is no longer available
Price
N/A
PG4178056
SOCKET SCREW
Item is no longer available
Price
N/A
PG4178057
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
PG4178058
Now: PW02
FLAT WASHER 3/8
Price
N/A
PG4178059
Now: PN06
HEX NUT 1/2-12
Price
N/A
PG4178060
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PG4178061
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178062
ROLL PIN 4 X 25
Price
N/A
PG4178063
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178064
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178065
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178066
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178067
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178068
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178069
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178070
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PG4178071
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
PG4178072
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PG4178073
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178074
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178075
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
PG4178076
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178077
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178078
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178079
CAP SCREW 5/16-18 X 3/8
Price
N/A
PG4178080
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
PG4178081
Now: PN02
HEX NUT 5/16-18
Price
N/A
PG4178082
ROLL PIN 4 X 25
Price
N/A
PG4178083
ROLL PIN 4 X 25
Price
N/A
PG4178084
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PG4178085
ROLL PIN 4 X 8
Price
N/A
PG4178086
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
PG4178087
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178088
CAP SCREW 3/8-19 X 4
Item is no longer available
Price
N/A
PG4178089
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PG4178090
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
PG4178091
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PG4178092
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PG4178094
Now: PK55M
KEY 7 X 7 X 40
Price
N/A
PG4178095
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178096
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
PG4178097
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
PG4178098
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178099
Now: PN06
HEX NUT 1/2-12
Price
N/A
PG4178100
Now: PLW07
LOCK WASHER 1/2
Price
N/A
PG4178101
Now: PB43
HEX BOLT 1/2-12 X 4
Price
N/A
PG4178102
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178103
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178104
Now: PN08
HEX NUT 3/8-16
Price
N/A
PG4178105
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
PG4178106
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PG4178107
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
PG4178108
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG4178109
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG4178110
PLUM BLOSSOM
Item is no longer available
Price
N/A
PG4178111
BANK SAFETY COVER
Item is no longer available
Price
N/A
P
DUST HOOD
