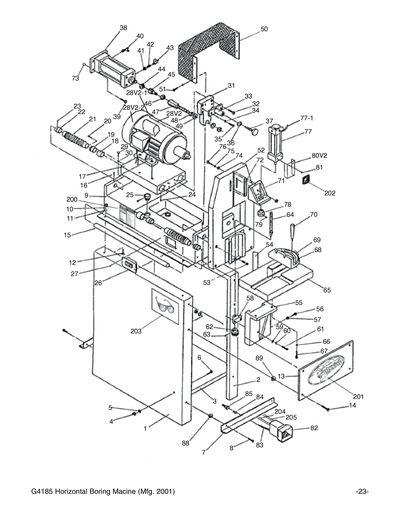

Parts for G4185 - Horizontal Boring Machine

1/2

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

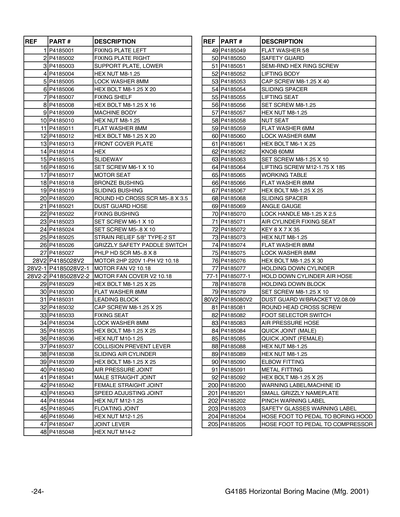

Ref #
Part #
Description
1
FIXING PLATE LEFT
Price
$241.75
2
FIXING PLATE RIGHT
Price
$241.75
3
SUPPORT PLATE, LOWER
Price
$129.00
4
HEX NUT M8-1.25
Price
N/A
5
LOCK WASHER 8MM
Price
N/A
6
HEX BOLT M8-1.25 X 20
Price
N/A
7
FIXING SHELF
Price
$60.75
8
HEX BOLT M8-1.25 X 16
Price
N/A
9
MACHINE BODY
Price
$532.00
10
HEX NUT M8-1.25
Price
N/A
11
FLAT WASHER 8MM
Price
N/A
12
HEX BOLT M8-1.25 X 20
Price
N/A
13
FRONT COVER PLATE
Price
$64.50
14
HEX NUT M8-1.25
Price
N/A
15
SLIDEWAY
Price
$96.75
16
SET SCREW M6-1 X 10
Price
N/A
17
MOTOR SEAT
Price
$198.50
18
BUSHING BRONZE
Price
$14.75
19
SLIDING BUSHING
Price
$11.00
20
ROUND HD CROSS SCR M5-.8 X 3.5
Price
$1.00
21
DUST GUARD HOSE
Price
$19.00
22
FIXING BUSHING
Price
$26.00
23
SET SCREW M6-1 X 10
Price
N/A
24
SET SCREW M5-.8 X 10
Price
N/A
25
STRAIN RELIEF 5/8" TYPE-2 ST
Price
$3.00
26
Safety Paddle Switch
Price
N/A
26A
PUSH BUTTON SWITCH V1.08.98
Price
$32.25
27
PHLP HD SCR M5-.8 X 8
Price
N/A
28
MOTOR 2HP 220V 1-PH
Price
$804.00
28-1
MOTOR FAN
Price
$20.25
28-2
MOTOR FAN COVER
Price
$20.25
28V2
MOTOR 2HP 220V 1-PH V2.10.18
Price
$1,019.00
29
HEX BOLT M8-1.25 X 25
Price
N/A
30
FLAT WASHER 8MM
Price
N/A
31
LEADING BLOCK
Price
$68.00
32
CAP SCREW M8-1.25 X 25
Price
N/A
33
FIXING SEAT
Price
$33.75
34
LOCK WASHER 8MM
Price
N/A
35
HEX BOLT M8-1.25 X 25
Price
N/A
36
HEX NUT M10-1.25
Price
N/A
37
COLLISION PREVENT LEVER
Price
$13.00
38
SLIDING AIR CYLINDER
Price
$377.50
39
HEX BOLT M8-1.25 X 25
Price
N/A
40
AIR PRESSURE JOINT
Price
$29.25
41
MALE STRAIGHT JOINT
Price
$11.00
42
FEMALE STRAIGHT JOINT
Price
$11.00
43
SPEED ADJUSTING JOINT
Price
$33.00
44
HEX NUT M12-1.25
Price
N/A
45
*DISCD*FLOATING JOINT
Item is no longer available
Price
N/A
46
HEX NUT M12-1.25
Price
N/A
47
JOINT LEVER
Price
$40.50
48
HEX NUT M14-2
Price
N/A
49
P4185049
Now: PW14
FLAT WASHER 5/8
Price
N/A
50
SAFETY GUARD
Price
$40.50
51
SEMI-ROUND HEAD HEXAGON RING SCREW M5X8
Price
$1.00
52
LIFTING BODY
Price
$670.50
53
CAP SCREW M8-1.25 X 40
Price
N/A
54
SLIDING SPACER
Price
$32.50
55
LIFTING SEAT
Price
$137.50
56
SET SCREW M8-1.25 X 25
Price
N/A
57
HEX NUT M8-1.25
Price
N/A
58
NUT SEAT
Price
$25.50
59
FLAT WASHER 6MM
Price
N/A
60
LOCK WASHER 6MM
Price
N/A
61
HEX BOLT M6-1 X 25
Price
N/A
62
KNOB 60MM
Price
$13.00
63
SET SCREW M8-1.25 X 10
Price
N/A
64
LIFTING SCREW M12-1.75 X 185
Price
$36.25
65
WORKING TABLE
Price
$193.25
66
FLAT WASHER 8MM
Price
N/A
67
HEX BOLT M8-1.25 X 25
Price
N/A
68
SLIDING SPACER
Price
$25.75
69
ANGLE GAUGE
Price
$27.00
70
LOCK HANDLE M8-1.25 X 2.5
Price
$4.00
71
AIR CYLINDER FIXING SEAT
Price
$100.00
72
KEY 8 X 7 X 35
Price
$7.50
73
HEX NUT M8-1.25
Price
N/A
74
FLAT WASHER 8MM
Price
N/A
75
LOCK WASHER 8MM
Price
N/A
76
HEX BOLT M8-1.25 X 30
Price
N/A
77
HOLDING DOWN CYLINDER
Price
$265.50
77-1
HOLD DOWN CYLINDER AIR HOSE
Price
$2.50
78
HOLDING DOWN BLOCK
Price
$29.25
79
SET SCREW M8-1.25 X 10
Price
N/A
80
*DISCD*DUST GUARD ACRYLIC V1.06.99
Item is no longer available
Price
N/A
80-1
*DISCD*DUST GUARD UPGRADE KIT
Price
$28.00
80V2
DUST GUARD W/BRACKET V2.08.09
Price
$143.25
81
PHLP HD SCR M5-.8 X 8
Price
N/A
82
FOOT SELECTOR SWITCH
Price
$251.75
83
AIR PRESSURE HOSE
Price
$30.25
84
QUICK JOINT MALE
Price
$22.00
85
QUICK JOINT FEMALE STEEL
Price
$28.50
86
*DISCD*BRAND PLATE
Item is no longer available
Price
N/A
87
*DISCD*MACHINE PLATE
Item is no longer available
Price
N/A
88
HEX NUT M8-1.25
Price
N/A
89
HEX NUT M8-1.25
Price
N/A
90
ELBOW FITTING
Price
$8.50
91
METAL FITTING
Price
$30.25
92
HEX BOLT M8-1.25 X 25
Price
N/A
200
WARNING LABEL/MACHINE ID
Price
$9.50
201
GRIZZLY NAMEPLATE 8 X 3.5"
Price
N/A
202
PINCH WARNING LABEL
Price
$22.00
203
SAFETY GLASSES WARNING LABEL
Price
$1.75
204
HOSE FOOT TO PEDAL TO BORING HOOD
Price
$26.25
205
HOSE FOOT TO PEDAL TO COMPRESSOR
Price
$26.25
206
LEAD WARNING LABEL
Price
$1.00
MANUAL
MANUAL FOR G4185 06/02
Price
$10.00
