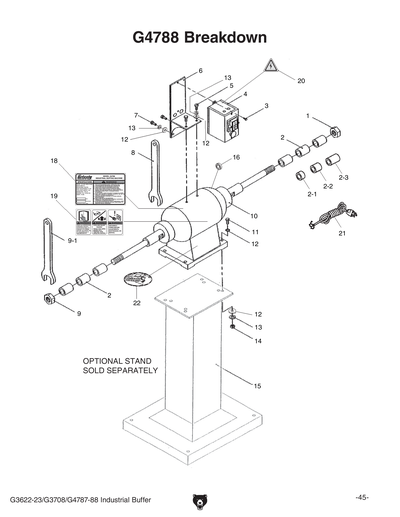

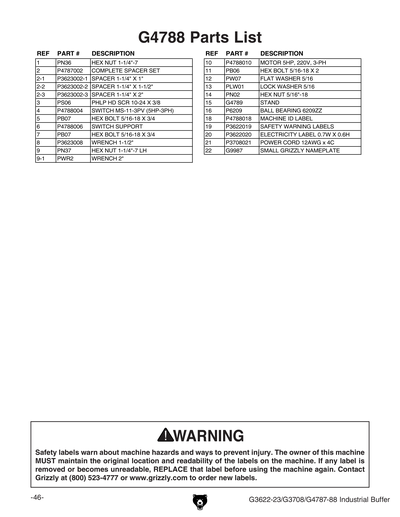

Parts for G4788 Industrial Buffing Machine - 5 HP 3-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PN36
HEX NUT 1-1/4"-7
Price
N/A
2
COLLAR
Price
N/A
2-1
*DISCD*SPACER 1-1/4" X 1"
Price
N/A
2-2
*DISCD* SPACER 1-1/4" X 1-1/2"
Price
N/A
2-3
*DISCD* SPACER 1-1/4" X 2"
Price
N/A
3
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
4
SWITCH MS-11-3PV 5HP 3-PH
Item is no longer available
Price
N/A
5
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
6
SWITCH SUPPORT
Item is no longer available
Price
N/A
7
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
8
*DISCD*WRENCH 1-1/2"
Price
N/A
9
Now: PN37
HEX NUT 1-1/4"-7 LH
Price
N/A
9-1
Now: PWR2
WRENCH 2" COMBO
Price
N/A
10
MOTOR 5HP 220V 3-PH
Item is no longer available
Price
N/A
11
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
12
Now: PW07
FLAT WASHER 5/16
Price
N/A
13
Now: PLW01
LOCK WASHER 5/16
Price
N/A
14
Now: PN02
HEX NUT 5/16-18
Price
N/A
15
Now: G4789
Buffing Stand
Price
N/A
16
BALL BEARING 6209ZZ
Price
N/A
18
MACHINE ID LABEL
Item is no longer available
Price
N/A
19
SAFETY WARNING LABEL
Price
N/A
20
ELECTRICITY LABEL 0.7W X 0.6H
Price
N/A
21
*DISCD*POWER CORD 12AWG X 4C
Price
N/A
22
Now: G9987
Nameplate - Mini
Price
N/A
MAN
MANUAL FOR G3622 04/08
Price
N/A
