Parts for G4791 - 12" x 39" Large Combo Lathe/Mill

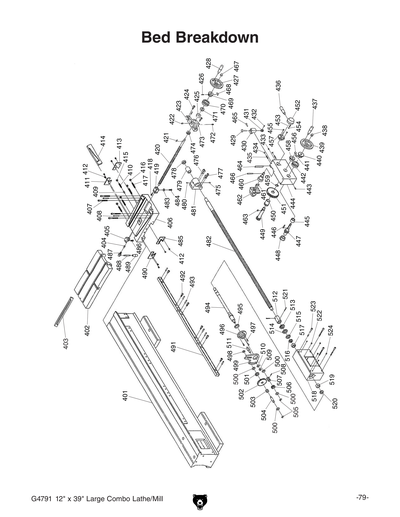

Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791
Part Diagram for G4791

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

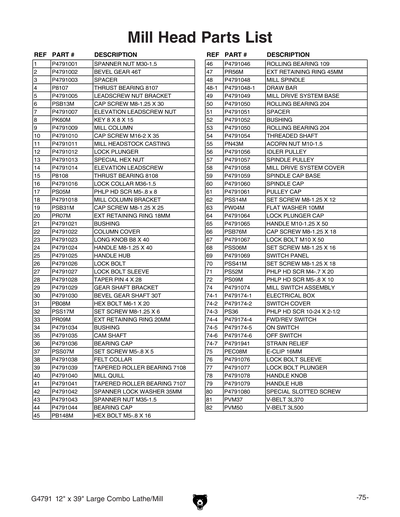

Ref #
Part #
Description

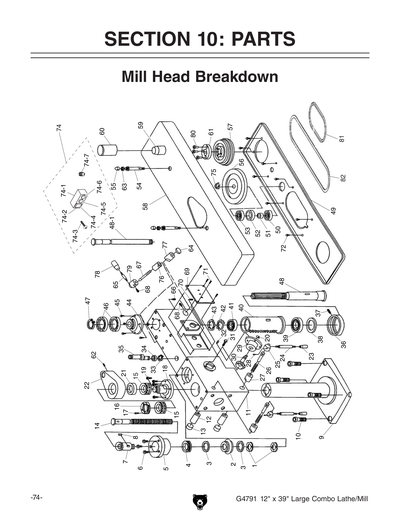

1
*DISCD*SPANNER NUT M30-1.5
Item is no longer available
Price
N/A
2
*DISCD*BEVEL GEAR 46T
Price
$92.90
3
*DISCD*SPACER
Price
$2.60
4
THRUST BEARING 51107
Price
N/A
5
*DISCD*LEADSCREW NUT BRACKET
Price
$31.05
6
CAP SCREW M8-1.25 X 30
Price
N/A
7
*DISCD*ELEVATION LEADSCREW NUT
Item is no longer available
Price
N/A
8
KEY 8 X 8 X 15
Price
N/A
9
*DISCD*MILL COLUMN
Price
$189.75
10
*DISCD*CAP SCREW M16-2 X 35
Item is no longer available
Price
N/A
11
*DISCD*MILL HEADSTOCK CASTING
Item is no longer available
Price
N/A
12
*DISCD*LOCK PLUNGER
Price
$50.60
13
*DISCD*LOCK PLUNGER HEX NUT
Item is no longer available
Price
N/A
14
*DISCD*ELEVATION LEADSCREW
Price
$83.40
15
THRUST BEARING 8108
Price
N/A
16
*DISCD*LOCK COLLAR M36-1.5
Item is no longer available
Price
N/A
17
PHLP HD SCR M5-.8 X 8
Price
N/A
18
*DISCD*MILL COLUMN BRACKET
Price
$31.05
19
CAP SCREW M8-1.25 X 25
Price
N/A
20
EXT RETAINING RING 18MM
Price
N/A
21
*DISCD*BUSHING
Price
$13.25
22
*DISCD*COLUMN COVER
Price
$90.30
23
*DISCD*HANDLE M8-1.25
Price
$4.90
24
*DISCD*HANDLE SHAFT M8-1.25 X 40
Price
$15.55
25
*DISCD*HANDLE HUB
Price
$13.25
26
*DISCD*LOCK BOLT
Price
$15.55
27
*DISCD*LOCK BOLT SLEEVE
Price
$13.25
28
*DISCD*TAPER PIN 4 X 28
Price
$1.49
29
*DISCD*GEAR SHAFT BRACKET
Price
$23.60
30
*DISCD*BEVEL GEAR SHAFT 30T
Price
$46.60
31
HEX BOLT M6-1 X 20
Price
N/A
32
SET SCREW M8-1.25 X 6
Price
N/A
33
EXT RETAINING RING 20MM
Price
N/A
34
*DISCD*BUSHING
Price
$8.05
35
*DISCD*CAM SHAFT
Item is no longer available
Price
N/A
36
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
37
SET SCREW M5-.8 X 5
Price
N/A
38
*DISCD*FELT COLLAR
Item is no longer available
Price
N/A
39
*DISCD*TAPERED ROLLER BEARING 7108
Item is no longer available
Price
N/A
40
*DISCD*MILL QUILL
Item is no longer available
Price
N/A
41
*DISCD*TAPERED ROLLER BEARING 7107
Item is no longer available
Price
N/A
42
*DISCD*SPANNER LOCK WASHER 35MM
Item is no longer available
Price
N/A
43
*DISCD*SPANNER NUT M35-1.5
Item is no longer available
Price
N/A
44
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
45
HEX BOLT M5-.8 X 16
Price
N/A
46
*DISCD*ROLLING BEARING 109
Item is no longer available
Price
N/A
47
EXT RETAINING RING 45MM
Price
N/A
48
*DISCD*MILL SPINDLE
Item is no longer available
Price
N/A
48-1
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
49
*DISCD*MILL DRIVE SYSTEM BASE
Item is no longer available
Price
N/A
50
BALL BEARING 204ZZ
Price
N/A
51
*DISCD*SPACER
Price
$22.15
52
*DISCD*BUSHING
Item is no longer available
Price
N/A
53
BALL BEARING 204ZZ
Price
N/A
54
*DISCD*THREADED SHAFT
Price
$19.55
55
ACORN NUT M10-1.5
Price
N/A
56
*DISCD*IDLER PULLEY
Item is no longer available
Price
N/A
57
*DISCD*SPINDLE PULLEY
Price
$132.00
58
*DISCD*MILL DRIVE SYSTEM COVER
Price
$185.75
59
*DISCD*SPINDLE CAP BASE
Price
$31.05
60
*DISCD*SPINDLE CAP
Price
$13.25
62
SET SCREW M8-1.25 X 12
Price
N/A
63
FLAT WASHER 10MM
Price
N/A
64
*DISCD*LOCK PLUNGER CAP
Item is no longer available
Price
N/A
65
*DISCD*HANDLE SHAFT M10-1.25 X 50
Item is no longer available
Price
N/A
66
CAP SCREW M8-1.25 X 18
Price
N/A
67
*DISCD*LOCK BOLT M10 X 50
Item is no longer available
Price
N/A
68
SET SCREW M8-1.25 X 16
Price
N/A
69
*DISCD*SWITCH PANEL
Item is no longer available
Price
N/A
70
SET SCREW M8-1.25 X 18
Price
N/A
71
PHLP HD SCR M4-.7 X 20
Price
N/A
72
PHLP HD SCR M5-.8 X 10
Price
N/A
73
*DISCD*ARBOR B16-MT#3
Price
N/A
74
*DISCD*MILL SWITCH ASSEMBLY
Item is no longer available
Price
N/A
75
E-CLIP 16MM
Price
N/A
76
*DISCD*LOCK BOLT SLEEVE
Item is no longer available
Price
N/A
77
*DISCD*LOCK BOLT PLUNGER
Item is no longer available
Price
N/A
78
*DISCD*HANDLE
Item is no longer available
Price
N/A
79
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
80
*DISCD*PULLEY CAP SLOTTED SCREW
Item is no longer available
Price
N/A
81
V-BELT M37 3L370
Price
N/A
82
V-BELT M50 3L500
Price
N/A
1000
*DISCD*LEFT CABINET ASSEMBLY
Price
N/A
1000A
*DISCD*LEFT CABINET ASSEMBLY
Item is no longer available
Price
N/A
1001
*DISCD*RIGHT CABINET ASSEMBLY
Price
N/A
1001A
*DISCD*RIGHT CABINET ASSEMBLY
Item is no longer available
Price
N/A
1002
*DISCD*CENTER PANEL
Price
$96.35
1003
*DISCD*CENTER PANEL BRACKET LEFT
Item is no longer available
Price
N/A
1004
*DISCD*CENTER PANEL BRACKET RIGHT
Item is no longer available
Price
N/A
1005
*DISCD*CABINET LEFT
Item is no longer available
Price
N/A
1006
*DISCD*CABINET DRAWER LEFT
Item is no longer available
Price
N/A
1007
*DISCD*CABINET DOOR LEFT
Item is no longer available
Price
N/A
1008
PHLP HD SCR M4-.7 X 10
Price
N/A
1009
FLAT WASHER 4MM
Price
N/A

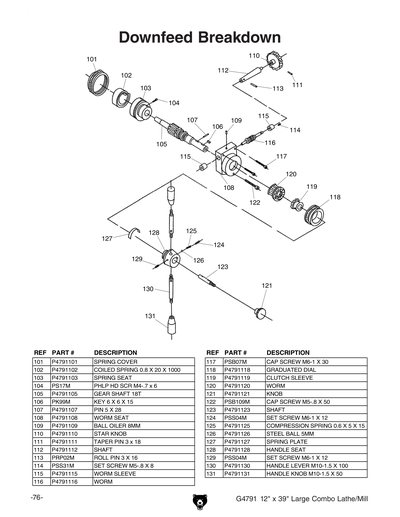

101
*DISCD*SPRING COVER
Item is no longer available
Price
N/A
1010
*DISCD*CABINET STAND RIGHT
Item is no longer available
Price
N/A
1011
PHLP HD SCR M4-.7 X 8
Price
N/A
1012
*DISCD*CABINET DOOR RIGHT
Item is no longer available
Price
N/A
1013
*DISCD*CABINET DRAWER RIGHT
Item is no longer available
Price
N/A
102
*DISCD*COILED SPRING 0.8 X 20 X 1000
Price
$17.25
103
*DISCD*SPRING SEAT
Item is no longer available
Price
N/A
104
PHLP HD SCR M4-.7 X 6
Price
N/A
105
*DISCD*GEAR SHAFT 18T
Item is no longer available
Price
N/A
106
KEY 6 X 6 X 15
Price
N/A
107
*DISCD*PIN 5 X 28
Item is no longer available
Price
N/A
108
*DISCD*WORM SEAT
Item is no longer available
Price
N/A
109
*DISCD*BALL OILER 8MM
Item is no longer available
Price
N/A
110
*DISCD*STAR KNOB
Item is no longer available
Price
N/A
1101
*DISCD*4-JAW CHUCK ASSY 8"
Price
$514.05
1101-1
*DISCD*4-JAW CHUCK 8"
Item is no longer available
Price
N/A
1101-2
*DISCD*4-JAW CHUCK JAWS SET
Item is no longer available
Price
N/A
1101-3
*DISCD*BACKPLATE 7-13/16"
Item is no longer available
Price
N/A
1102
*DISCD*3-JAW CHUCK ASSY 6"
Price
$695.20
1102-3
*DISCD*BACKPLATE 6-1/2"
Item is no longer available
Price
N/A
1103
*DISCD*FACEPLATE 8"
Item is no longer available
Price
N/A
1104
*DISCD*3-JAW CHUCK KEY
Price
$21.30
1105
*DISCD*4-JAW CHUCK KEY
Item is no longer available
Price
N/A
1106
*DISCD*3-JAW CHUCK EXT JAW SET
Item is no longer available
Price
N/A
1107
*DISCD*TOOLBOX
Item is no longer available
Price
N/A
1108
*DISCD*DEAD CENTER MT#5
Item is no longer available
Price
N/A
1109
*DISCD*DEAD CENTER MT#3
Item is no longer available
Price
N/A
111
*DISCD*TAPER PIN 3 X 18
Price
$1.49
1110
*DISCD*DRILL CHUCK B16 & KEY
Item is no longer available
Price
N/A
1111
SCREWDRIVER FLAT #2
Price
N/A
1112
SCREWDRIVER PHILLIPS #2
Price
N/A
1113
HEX WRENCH 6MM
Price
N/A
1114
HEX WRENCH 5MM
Price
N/A
1115
HEX WRENCH 4MM
Price
N/A
1116
HEX WRENCH 3MM
Price
N/A
1117
*DISCD*CRANK HANDLE
Item is no longer available
Price
N/A
1118
*DISCD*DRIFT KEY
Item is no longer available
Price
N/A
1119
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
112
*DISCD*STAR KNOB SHAFT
Item is no longer available
Price
N/A
1120
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1121
*DISCD*CHANGE GEAR 22T
Item is no longer available
Price
N/A
1122
*DISCD*CHANGE GEAR 24T
Price
$23.90
1123
*DISCD*CHANGE GEAR 25T
Item is no longer available
Price
N/A
1124
*DISCD*CHANGE GEAR 26T
Item is no longer available
Price
N/A
1125
*DISCD*CHANGE GEAR 27T
Item is no longer available
Price
N/A
1126
*DISCD*CHANGE GEAR 28T
Item is no longer available
Price
N/A
1127
*DISCD*CHANGE GEAR 30T
Item is no longer available
Price
N/A
1128
*DISCD*CHANGE GEAR 34T
Item is no longer available
Price
N/A
1129
*DISCD*CHANGE GEAR 38T
Item is no longer available
Price
N/A
113
ROLL PIN 3 X 16
Price
N/A
1130
*DISCD*CHANGE GEAR 42T
Item is no longer available
Price
N/A
1131
*DISCD*ARBOR B16-MT#3
Price
$16.10
1132
*DISCD*CHANGE GEAR 40T
Price
$14.40
114
SET SCREW M5-.8 X 8
Price
N/A
115
*DISCD*WORM SLEEVE
Price
$4.60
116
*DISCD*WORM
Price
$35.10
117
CAP SCREW M6-1 X 30
Price
N/A
118
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
119
*DISCD*CLUTCH SLEEVE
Item is no longer available
Price
N/A
120
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
121
*DISCD*KNOB
Item is no longer available
Price
N/A
122
CAP SCREW M5-.8 X 50
Price
N/A
123
*DISCD*KNOB SHAFT
Price
$6.05
124
SET SCREW M6-1 X 12
Price
N/A
125
*DISCD*COMPRESSION SPRING 0.6 X 5 X 15
Item is no longer available
Price
N/A
126
STEEL BALL 5MM
Price
N/A
127
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
128
*DISCD*HANDLE SEAT
Price
$46.60
129
SET SCREW M6-1 X 12
Price
N/A
130
*DISCD*HANDLE SHAFT M10-1.5 X 100
Item is no longer available
Price
N/A
131
*DISCD*HANDLE KNOB M10-1.5
Item is no longer available
Price
N/A

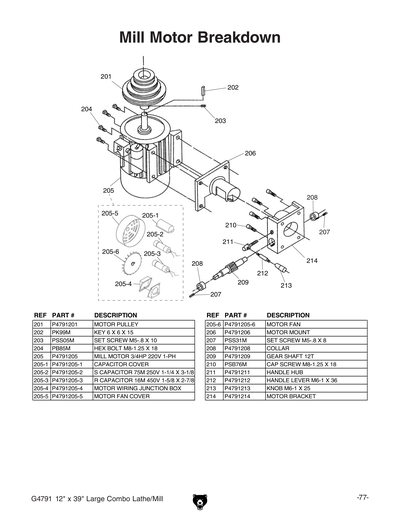

201
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
202
KEY 6 X 6 X 15
Price
N/A
203
SET SCREW M5-.8 X 10
Price
N/A
204
HEX BOLT M8-1.25 X 18
Price
N/A
205
*DISCD*MILL MOTOR 3/4HP 220V 1-PH
Item is no longer available
Price
N/A
205-1
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
205-2
*DISCD*S CAPACITOR 75M 250V 1-1/4 X 3-1/
Item is no longer available
Price
N/A
205-3
*DISCD*R CAPACITOR 16M 450V 1-5/8 X 2-7/
Item is no longer available
Price
N/A
205-4
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
205-5
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
205-6
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
206
*DISCD*MOTOR MOUNT
Price
$79.35
207
SET SCREW M5-.8 X 8
Price
N/A
208
*DISCD*COLLAR
Price
$13.25
209
*DISCD*GEAR SHAFT 12T
Price
$46.60
210
CAP SCREW M8-1.25 X 18
Price
N/A
211
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
212
*DISCD*HANDLE LEVER M6-1 X 36
Item is no longer available
Price
N/A
213
*DISCD*HANDLE M6-1 X 25
Item is no longer available
Price
N/A
214
*DISCD*MOTOR BRACKET
Price
$123.95
301

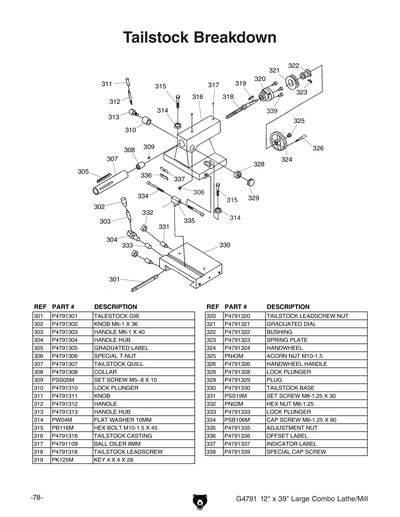

*DISCD*TAILSTOCK GIB
Item is no longer available
Price
N/A
302
*DISCD*HANDLE M6-1 X 36
Price
$2.60
303
*DISCD*HANDLE SHAFT M6-1 X 40
Price
$8.05
304
*DISCD*HANDLE HUB
Price
$6.35
305
*DISCD*GRADUATED LABEL
Price
$1.00
306
*DISCD*TAILSTOCK CASTING T-NUT
Price
$23.60
307
*DISCD*TAILSTOCK QUILL
Item is no longer available
Price
N/A
308
*DISCD*COLLAR
Item is no longer available
Price
N/A
309
SET SCREW M5-.8 X 10
Price
N/A
310
*DISCD*LOCK PLUNGER
Item is no longer available
Price
N/A
311
*DISCD*HANDLE
Price
$4.90
312
*DISCD*HANDLE SHAFT
Price
$6.35
313
*DISCD*HANDLE HUB
Price
$6.35
314
FLAT WASHER 10MM
Price
N/A
315
HEX BOLT M10-1.5 X 45
Price
N/A
316
*DISCD*TAILSTOCK CASTING
Price
$156.15
317
*DISCD*BALL OILER 8MM
Price
N/A
318
*DISCD*TAILSTOCK LEADSCREW
Item is no longer available
Price
N/A
319
KEY 4 X 4 X 28
Price
N/A
320
*DISCD*TAILSTOCK LEADSCREW NUT
Price
$23.60
321
*DISCD*GRADUATED DIAL
Price
$39.10
322
*DISCD*BUSHING
Price
$15.55
323
*DISCD*SPRING PLATE
Price
$1.49
324
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
325
ACORN NUT M10-1.5
Price
N/A
326
*DISCD*HANDWHEEL
Price
N/A
327
*DISCD*SET SCR W/CONE POINT M6 X 12
Item is no longer available
Price
N/A
328
*DISCD*LOCK PLUNGER
Price
$6.35
329
*DISCD*PLUG
Item is no longer available
Price
N/A
330
*DISCD*TAILSTOCK BASE
Price
$93.15
331
SET SCREW M8-1.25 X 30
Price
N/A
332
HEX NUT M8-1.25
Price
N/A
333
*DISCD*LOCK PLUNGER
Item is no longer available
Price
N/A
334
CAP SCREW M8-1.25 X 90
Price
N/A
335
*DISCD*ADJUSTMENT NUT
Price
$46.60
336
*DISCD*OFFSET LABEL
Item is no longer available
Price
N/A
337
*DISCD*INDICATOR LABEL
Item is no longer available
Price
N/A
338

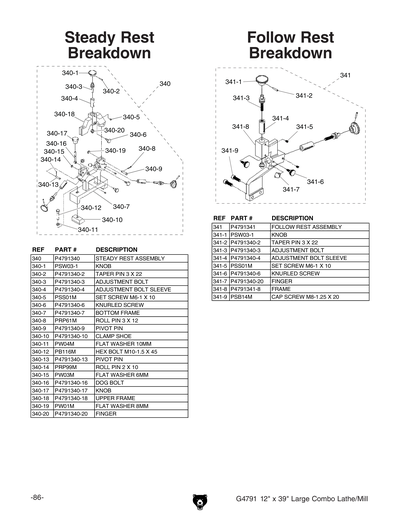

*DISCD*STEADY REST ASSEMBLY
Price
N/A
339
*DISCD*TAILSTOCK LEADSCREW CAP SCREW
Item is no longer available
Price
N/A
340
*DISCD*STEADY REST ASSEMBLY
Price
$662.15
340-1
*DISCD*ROUND KNOB
Item is no longer available
Price
N/A
340-10
*DISCD*CLAMP SHOE
Item is no longer available
Price
N/A
340-11
FLAT WASHER 10MM
Price
N/A
340-12
HEX BOLT M10-1.5 X 45
Price
N/A
340-13
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
340-14
ROLL PIN 2 X 12
Price
N/A
340-15
FLAT WASHER 6MM
Price
N/A
340-16
*DISCD*DOG BOLT
Item is no longer available
Price
N/A
340-17
*DISCD*KNOB
Item is no longer available
Price
N/A
340-18
*DISCD*UPPER CASTING
Item is no longer available
Price
N/A
340-19
FLAT WASHER 8MM
Price
N/A
340-2
*DISCD*TAPER PIN 3 X 22
Item is no longer available
Price
N/A
340-20
*DISCD*FINGER
Item is no longer available
Price
N/A
340-3
*DISCD*ADJUSTMENT BOLT
Item is no longer available
Price
N/A
340-4
*DISCD*ADJUSTMENT BOLT SLEEVE
Item is no longer available
Price
N/A
340-5
SET SCREW M6-1 X 10
Price
N/A
340-6
*DISCD*THUMB KNOB M6-1.0 X 20
Price
N/A
340-7
*DISCD*BOTTOM CASTING
Item is no longer available
Price
N/A
340-8
ROLL PIN 3 X 12
Price
N/A
340-9
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
341
*DISCD*FOLLOW REST ASSEMBLY
Item is no longer available
Price
N/A
341-1
*DISCD*ROUND KNOB
Price
N/A
341-2
*DISCD*TAPER PIN 3 X 22
Price
N/A
341-3
*DISCD*ADJUSTMENT BOLT
Price
N/A
341-4
*DISCD*ADJUSTMENT BOLT SLEEVE
Price
N/A
341-5
SET SCREW M6-1 X 10
Price
N/A
341-6
*DISCD*THUMB KNOB M6-1.0 X 20
Price
N/A
341-7
*DISCD*FINGER
Price
N/A
341-8
*DISCD*FOLLOW REST CASTING
Item is no longer available
Price
N/A
341-9
CAP SCREW M8-1.25 X 20
Price
N/A
39
*DISCD*OIL CUP
Item is no longer available
Price
N/A
401

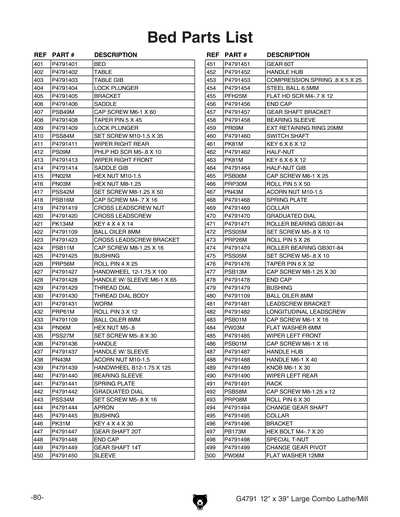

*DISCD*BED
Item is no longer available
Price
N/A
402
*DISCD*TABLE
Price
$500.00
403
*DISCD*TABLE GIB
Price
$15.55
404
*DISCD*LOCK PLUNGER
Item is no longer available
Price
N/A
405
*DISCD*BRACKET
Item is no longer available
Price
N/A
406
*DISCD*SADDLE
Item is no longer available
Price
N/A
407
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
408
*DISCD*TAPER PIN 5 X 45
Item is no longer available
Price
N/A
409
*DISCD*LOCK PLUNGER
Item is no longer available
Price
N/A
410
SET SCREW M10-1.5 X 35
Price
N/A
411
*DISCD*WIPER RIGHT REAR
Item is no longer available
Price
N/A
412
PHLP HD SCR M5-.8 X 10
Price
N/A
413
*DISCD*WIPER RIGHT FRONT
Item is no longer available
Price
N/A
414
*DISCD*SADDLE GIB
Price
$9.20
415
HEX NUT M10-1.5
Price
N/A
416
HEX NUT M8-1.25
Price
N/A
417
SET SCREW M8-1.25 X 50
Price
N/A
418
CAP SCREW M4-.7 X 16
Price
N/A
419
*DISCD*CROSS LEADSCREW NUT
Item is no longer available
Price
N/A
420
*DISCD*CROSS LEADSCREW
Item is no longer available
Price
N/A
421
KEY 4 X 4 X 14
Price
N/A
422
*DISCD*BALL OILER 8MM
Price
N/A
423
*DISCD*CROSS LEADSCREW BRACKET
Price
$31.05
424
CAP SCREW M8-1.25 X 16
Price
N/A
425
*DISCD*BUSHING
Price
$6.35
426
ROLL PIN 4 X 25
Price
N/A
427
*DISCD*HANDWHEEL M12-1.75 X 100
Price
$61.85
428
*DISCD*HANDLE W/SLEEVE M6-1 X 65
Price
$39.10
429
*DISCD*THREAD DIAL
Price
$39.10
430
*DISCD*THREAD DIAL BODY
Item is no longer available
Price
N/A
431
*DISCD*WORM
Price
$15.55
432
ROLL PIN 3 X 12
Price
N/A
433
*DISCD*BALL OILER 8MM
Price
N/A
434
HEX NUT M5-.8
Price
N/A
435
SET SCREW M5-.8 X 30
Price
N/A
436
*DISCD*HANDLE
Price
$6.35
437
*DISCD*HANDLE W/SLEEVE
Price
$39.10
438
ACORN NUT M10-1.5
Price
N/A
439
*DISCD*HANDWHEEL M12-1.75 X 125
Price
$61.85
440
*DISCD*BEARING SLEEVE
Price
$19.55
441
*DISCD*SPRING PLATE
Price
$54.65
442
*DISCD*GRADUATED DIAL
Price
$43.15
443
SET SCREW M5-.8 X 16
Price
N/A
444
*DISCD*APRON
Item is no longer available
Price
N/A
445
*DISCD*BUSHING
Item is no longer available
Price
N/A
446
KEY 4 X 4 X 30
Price
N/A
447
*DISCD*GEAR SHAFT 20T
Item is no longer available
Price
N/A
448
*DISCD*END CAP
Price
$13.25
449
*DISCD*GEAR SHAFT 14T
Price
$15.55
450
*DISCD*SLEEVE
Price
$66.15
451
*DISCD*GEAR 60T
Price
$45.45
452
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
453
*DISCD*COMPRESSION SPRING .8 X 5 X 25
Item is no longer available
Price
N/A
454
STEEL BALL 6.5MM
Price
N/A
455
FLAT HD SCR M4-.7 X 12
Price
N/A
456
*DISCD*END CAP
Item is no longer available
Price
N/A
457
*DISCD*GEAR SHAFT BRACKET
Price
$42.85
458
*DISCD*BEARING SLEEVE
Price
$19.55
459
EXT RETAINING RING 20MM
Price
N/A
460
*DISCD*SWITCH SHAFT
Price
$76.50
461
KEY 6 X 6 X 12
Price
N/A
462
*DISCD*HALF NUT
Item is no longer available
Price
N/A
463
KEY 6 X 6 X 12
Price
N/A
464
*DISCD*HALF NUT GIB
Item is no longer available
Price
N/A
465
CAP SCREW M6-1 X 25
Price
N/A
466
ROLL PIN 5 X 50
Price
N/A
467
ACORN NUT M10-1.5
Price
N/A
468
*DISCD*SPRING PLATE
Price
$1.49
469
*DISCD*COLLAR
Price
$23.60
470
*DISCD*GRADUATED DIAL
Price
$54.65
471
*DISCD*ROLLER BEARING GB301-84
Price
$23.60
472
SET SCREW M5-.8 X 10
Price
N/A
473
ROLL PIN 5 X 26
Price
N/A
474
*DISCD*ROLLER BEARING GB301-84
Price
N/A
475
SET SCREW M5-.8 X 10
Price
N/A
476
*DISCD*TAPER PIN 6 X 32
Item is no longer available
Price
N/A
477
CAP SCREW M8-1.25 X 30
Price
N/A
478
*DISCD*END CAP
Item is no longer available
Price
N/A
479
*DISCD*BUSHING
Item is no longer available
Price
N/A
480
*DISCD*BALL OILER 8MM
Price
N/A
481
*DISCD*LEADSCREW BRACKET
Price
$39.10
482
*DISCD*LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
483
CAP SCREW M6-1 X 16
Price
N/A
484
FLAT WASHER 6MM
Price
N/A
485
*DISCD*WIPER LEFT FRONT
Item is no longer available
Price
N/A
486
CAP SCREW M6-1 X 16
Price
N/A
487
*DISCD*HANDLE HUB
Price
$6.35
488
*DISCD*HANDLE SHAFT M6-1 X 40
Item is no longer available
Price
N/A
489
*DISCD*HANDLE M6-1 X 30
Item is no longer available
Price
N/A
490
*DISCD*WIPER LEFT REAR
Item is no longer available
Price
N/A
491
*DISCD*RACK
Item is no longer available
Price
N/A
492
CAP SCREW M8-1.25 X 12
Price
N/A
493
ROLL PIN 6 X 30
Price
N/A
494
*DISCD*CHANGE GEAR SHAFT
Price
$42.85
495
*DISCD*COLLAR
Item is no longer available
Price
N/A
496
*DISCD*BRACKET
Price
$23.60
497
HEX BOLT M4-.7 X 20
Price
N/A
498
*DISCD*CHANGE GEAR PIVOT T-NUT
Item is no longer available
Price
N/A
499
*DISCD*CHANGE GEAR PIVOT
Price
$58.40
500
FLAT WASHER 12MM
Price
N/A
5006
*DISCD*FELT COLLAR
Price
N/A

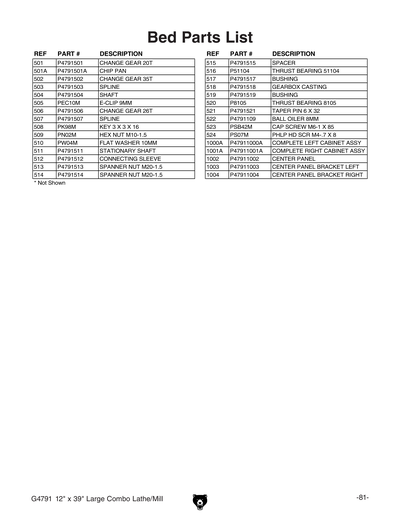

501
*DISCD*CHANGE GEAR 20T
Price
$28.75
501-1
*DISCD*CHANGE GEAR 24T
Price
N/A
501A

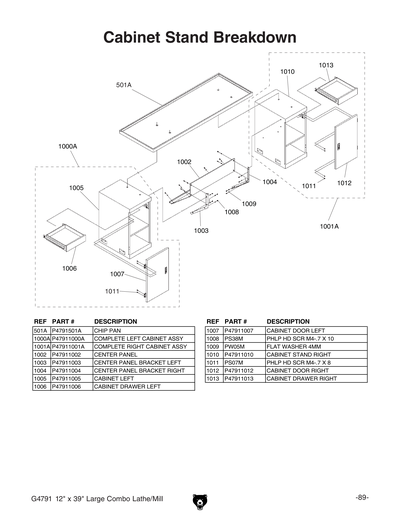

*DISCD*CHIP PAN
Price
$209.90
502
*DISCD*CHANGE GEAR 35T
Item is no longer available
Price
N/A
503
*DISCD*SPLINE
Item is no longer available
Price
N/A
504
*DISCD*SHAFT
Item is no longer available
Price
N/A
505
E-CLIP 9MM
Price
N/A
506
*DISCD*CHANGE GEAR 26T
Price
$23.60
507
*DISCD*SPLINE
Item is no longer available
Price
N/A
508
KEY 3 X 3 X 16
Price
N/A
509
HEX NUT M10-1.5
Price
N/A
510
FLAT WASHER 10MM
Price
N/A
511
*DISCD*STATIONARY SHAFT
Item is no longer available
Price
N/A
512
*DISCD*CONNECTING SLEEVE
Price
$20.70
513
*DISCD*SPANNER NUT M20-1.5
Item is no longer available
Price
N/A
514
*DISCD*SPANNER NUT M20-1.5
Item is no longer available
Price
N/A
515
*DISCD*SPACER
Item is no longer available
Price
N/A
516
THRUST BEARING 51104
Price
N/A
517
*DISCD*BUSHING
Item is no longer available
Price
N/A
518
*DISCD*GEARBOX CASTING
Item is no longer available
Price
N/A
519
*DISCD*BUSHING
Item is no longer available
Price
N/A
520
THRUST BEARING 8105
Price
N/A
521
*DISCD*TAPER PIN 6 X 32
Price
$1.49
522
BALL OILER 6MM PRESS-IN
Price
N/A
523
CAP SCREW M6-1 X 85
Price
N/A
524
PHLP HD SCR M4-.7 X 8
Price
N/A
530-1
*DISCD*THREAD DIAL ASSEMBLY
Price
$100.05
571
CAP SCREW M10-1.5 X 75
Price
N/A
572

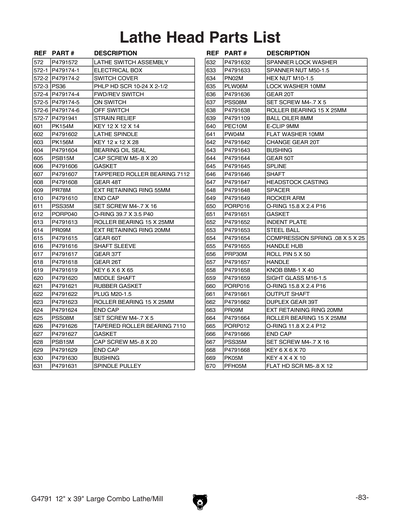

*DISCD*LATHE SWITCH ASSEMBLY
Item is no longer available
Price
N/A
572-1
*DISCD*ELECTRICAL BOX
Price
N/A
572-2
*DISCD*SWITCH COVER
Price
N/A
572-3
PHLP HD SCR 10-24 X 2-1/2
Price
N/A
572-4
*DISCD*FWD/REV SWITCH
Price
N/A
572-5
*DISCD*ON SWITCH
Price
N/A
572-6
*DISCD*OFF SWITCH
Price
N/A
572-7
*DISCD*STRAIGHT STRAIN RELIEF LT
Price
N/A

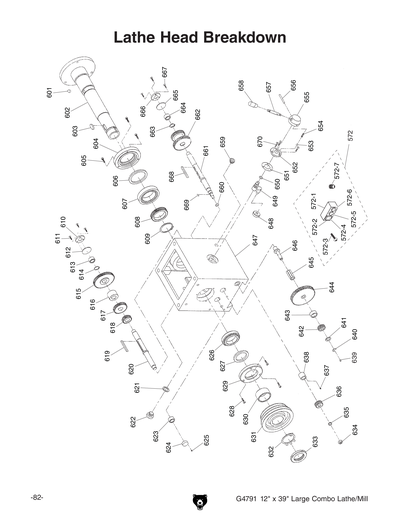

601
KEY 10 X 8 X 25
Price
N/A
602
*DISCD*LATHE SPINDLE
Item is no longer available
Price
N/A
603
KEY 12 X 12 X 28
Price
N/A
604
*DISCD*BEARING OIL SEAL
Item is no longer available
Price
N/A
605
CAP SCREW M5-.8 X 20
Price
N/A
606
*DISCD*GASKET
Item is no longer available
Price
N/A
607
*DISCD*TAPPERED ROLLER BEARING 7112
Price
$189.75
608
*DISCD*GEAR 48T
Item is no longer available
Price
N/A
609
EXT RETAINING RING 55MM
Price
N/A
610
*DISCD*END CAP
Item is no longer available
Price
N/A
611
SET SCREW M4-.7 X 16
Price
N/A
612
O-RING 39.7 X 3.5 P40
Price
N/A
613
*DISCD*ROLLER BEARING 15 X 25MM
Item is no longer available
Price
N/A
614
EXT RETAINING RING 20MM
Price
N/A
615
*DISCD*GEAR 60T
Item is no longer available
Price
N/A
616
*DISCD*SHAFT SLEEVE
Item is no longer available
Price
N/A
617
*DISCD*GEAR 37T
Item is no longer available
Price
N/A
618
*DISCD*GEAR 26T
Item is no longer available
Price
N/A
619
*DISCD*KEY 6 X 6 X 65
Item is no longer available
Price
N/A
620
*DISCD*MIDDLE SHAFT
Item is no longer available
Price
N/A
621
*DISCD*RUBBER GASKET
Item is no longer available
Price
N/A
622
*DISCD*PLUG M20-1.5
Item is no longer available
Price
N/A
623
*DISCD*ROLLER BEARING 15 X 25MM
Item is no longer available
Price
N/A
624
*DISCD*END CAP
Item is no longer available
Price
N/A
625
SET SCREW M4-.7 X 5
Price
N/A
626
*DISCD*TAPERED ROLLER BEARING 7110
Price
$138.00
627
*DISCD*GASKET
Price
$4.90
628
CAP SCREW M5-.8 X 20
Price
N/A
629
*DISCD*END CAP
Price
$45.45
630
*DISCD*BUSHING
Item is no longer available
Price
N/A
631
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
632
*DISCD*SPANNER LOCK WASHER
Item is no longer available
Price
N/A
633
*DISCD*SPANNER NUT M50-1.5
Item is no longer available
Price
N/A
634
HEX NUT M10-1.5
Price
N/A
635
LOCK WASHER 10MM
Price
N/A
636
*DISCD*GEAR 20T
Item is no longer available
Price
N/A
637
SET SCREW M4-.7 X 5
Price
N/A
638
*DISCD*ROLLER BEARING 15 X 25MM
Item is no longer available
Price
N/A
639
*DISCD*BALL OILER 8MM
Price
N/A
640
E-CLIP 9MM
Price
N/A
641
FLAT WASHER 10MM
Price
N/A
642
*DISCD*CHANGE GEAR 20T
Item is no longer available
Price
N/A
643
*DISCD*BUSHING
Item is no longer available
Price
N/A
644
*DISCD*GEAR 50T
Item is no longer available
Price
N/A
645
*DISCD*SPLINE
Item is no longer available
Price
N/A
646
*DISCD*SHAFT
Item is no longer available
Price
N/A
647
*DISCD*HEADSTOCK CASTING
Item is no longer available
Price
N/A
648
*DISCD*SPACER
Item is no longer available
Price
N/A
649
*DISCD*ROCKER ARM
Item is no longer available
Price
N/A
650
O-RING 15.8 X 2.4 P16
Price
N/A
651
*DISCD*GASKET
Item is no longer available
Price
N/A
652
*DISCD*INDENT PLATE
Item is no longer available
Price
N/A
653
*DISCD*STEEL BALL
Item is no longer available
Price
N/A
654
*DISCD*COMPRESSION SPRING .08 X 5 X 25
Item is no longer available
Price
N/A
655
*DISCD*HANDLE HUB
Price
$68.75
656
ROLL PIN 5 X 50
Price
N/A
657
*DISCD*HANDLE SHAFT
Item is no longer available
Price
N/A
658
*DISCD*KNOB M8-1.25 X 40
Item is no longer available
Price
N/A
659
*DISCD*SIGHT GLASS M16-1.5
Item is no longer available
Price
N/A
660
O-RING 15.8 X 2.4 P16
Price
N/A
661
*DISCD*OUTPUT SHAFT
Item is no longer available
Price
N/A
662
*DISCD*DUPLEX GEAR 39T
Item is no longer available
Price
N/A
663
EXT RETAINING RING 20MM
Price
N/A
664
*DISCD*ROLLER BEARING 15 X 25MM
Item is no longer available
Price
N/A
665
O-RING 11.8 X 2.4 P12
Price
N/A
666
*DISCD*END CAP
Item is no longer available
Price
N/A
667
SET SCREW M4-.7 X 16
Price
N/A
668
*DISCD*KEY 6 X 6 X 70
Item is no longer available
Price
N/A
669
KEY 4 X 4 X 10
Price
N/A
670
FLAT HD SCR M5-.8 X 12
Price
N/A

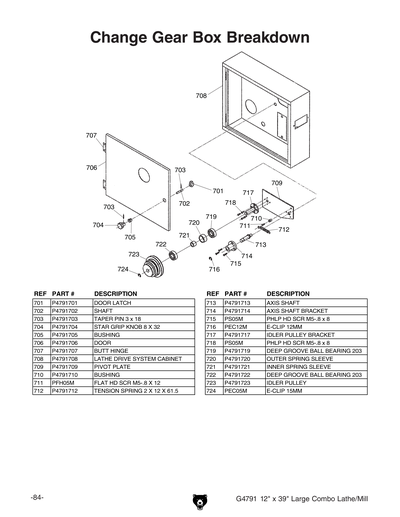

701
*DISCD*DOOR LATCH
Item is no longer available
Price
N/A
702
*DISCD*SHAFT
Item is no longer available
Price
N/A
703
*DISCD*TAPER PIN 3 X 18
Item is no longer available
Price
N/A
704
*DISCD*PINNED STAR KNOB M8 X 32
Item is no longer available
Price
N/A
705
*DISCD*BUSHING
Item is no longer available
Price
N/A
706
*DISCD*DOOR
Item is no longer available
Price
N/A
707
*DISCD*BUTT HINGE
Price
$4.90
708
*DISCD*LATHE DRIVE SYSTEM CABINET
Price
$208.45
709
*DISCD*PIVOT PLATE
Price
$19.55
710
*DISCD*BUSHING
Price
$4.90
711
FLAT HD SCR M5-.8 X 12
Price
N/A
712
*DISCD*EXTENSION SPRING 2 X 12 X 61.5
Item is no longer available
Price
N/A
713
*DISCD*AXIS SHAFT
Item is no longer available
Price
N/A
714
*DISCD*AXIS SHAFT BRACKET
Item is no longer available
Price
N/A
715
PHLP HD SCR M5-.8 X 8
Price
N/A
716
E-CLIP 12MM
Price
N/A
717
*DISCD*IDLER PULLEY BRACKET
Price
$40.25
718
PHLP HD SCR M5-.8 X 8
Price
N/A
719
BALL BEARING 203ZZ
Price
N/A
720
*DISCD*OUTER SPRING SLEEVE
Item is no longer available
Price
N/A
721
*DISCD*INNER SPRING SLEEVE
Item is no longer available
Price
N/A
722
*DISCD*DEEP GROOVE BALL BEARING 203
Item is no longer available
Price
N/A
723
*DISCD*IDLER PULLEY
Price
$107.55
724
E-CLIP 15MM
Price
N/A
74-1
*DISCD*ELECTRICAL BOX
Item is no longer available
Price
N/A
74-2
*DISCD*SWITCH COVER
Item is no longer available
Price
N/A
74-3
PHLP HD SCR 10-24 X 2-1/2
Price
N/A
74-4
*DISCD*FWD/REV SWITCH
Item is no longer available
Price
N/A
74-5
*DISCD*ON SWITCH
Item is no longer available
Price
N/A
74-6
*DISCD*OFF SWITCH
Item is no longer available
Price
N/A
74-7
*DISCD*STRAIGHT STRAIN RELIEF LT
Price
N/A
801
HEX BOLT M8-1.25 X 25
Price
N/A
802
KEY 8 X 8 X 40
Price
N/A
803
*DISCD*MOTOR 1.5HP 220V 1-PH
Item is no longer available
Price
N/A
803-1
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
803-2
*DISCD*S CAPACITOR 150M 250V 1-1/4 X 3-1
Item is no longer available
Price
N/A
803-3
*DISCD*R CAPACITOR 20M 450V 1-5/8 X 3
Item is no longer available
Price
N/A
803-4
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
803-5
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
803-6
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
804
HEX NUT M10-1.5
Price
N/A
805
FLAT WASHER 10MM
Price
N/A
806
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
807
*DISCD*DOG BOLT M10-1.5 X 70
Price
$23.60
808
*DISCD*BRACKET
Price
$15.55
809
*DISCD*AXLE SHAFT
Price
$14.40
810
ROLL PIN 6 X 28
Price
N/A
811
*DISCD*SOLID PIN 6 X 27MM
Item is no longer available
Price
N/A
812
ROLL PIN 3 X 20
Price
N/A
813
HEX BOLT M12-1.75 X 30
Price
N/A
814
LOCK WASHER 12MM
Price
N/A
815
*DISCD*MOTOR MOUNT BRACKET
Price
$7.80
816
HEX NUT M6-1
Price
N/A
817
*DISCD*ELECTRICAL BOX MOUNT
Item is no longer available
Price
N/A
818
*DISCD*MOUNTING PANEL
Item is no longer available
Price
N/A
819
*DISCD*ELECTRICAL BOX
Item is no longer available
Price
N/A
820
*DISCD*ELECTRICAL BOX SCREW
Price
$4.60
821
V-BELT M26 3L260
Price
N/A
822
V-BELT M29 3L290
Price
N/A
823
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A

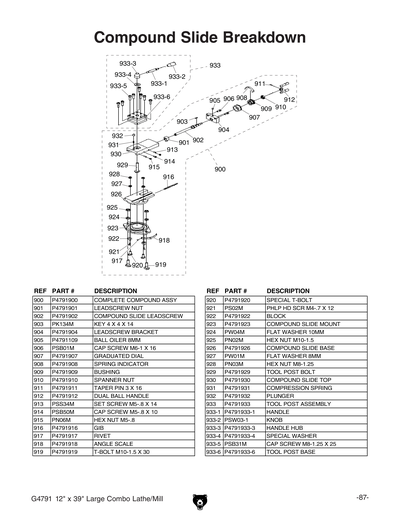

900
*DISCD*COMPLETE COMPOUND ASSY
Item is no longer available
Price
N/A
900-1
*DISCD*TOOL POST ASSEMBLY
Price
N/A
901
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
902
*DISCD*COMPOUND SLIDE LEADSCREW
Item is no longer available
Price
N/A
903
KEY 4 X 4 X 14
Price
N/A
904
*DISCD*LEADSCREW BRACKET
Item is no longer available
Price
N/A
905
*DISCD*BALL OILER 8MM
Price
N/A
906
CAP SCREW M6-1 X 16
Price
N/A
907
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
908
*DISCD*SPRING INDICATOR
Item is no longer available
Price
N/A
909
*DISCD*BUSHING
Item is no longer available
Price
N/A
910
*DISCD*SPANNER NUT
Item is no longer available
Price
N/A
911
*DISCD*TAPER PIN 3 X 16
Item is no longer available
Price
N/A
912
*DISCD*DUAL BALL HANDLE
Item is no longer available
Price
N/A
913
SET SCREW M5-.8 X 16
Price
N/A
914
CAP SCREW M5-.8 X 10
Price
N/A
915
HEX NUT M5-.8
Price
N/A
916
*DISCD*GIB
Item is no longer available
Price
N/A
917
*DISCD*RIVET 2 X 10MM
Item is no longer available
Price
N/A
918
*DISCD*ANGLE SCALE
Item is no longer available
Price
N/A
920
*DISCD*COMPOUND SLIDE MOUNT T-BOLT
Item is no longer available
Price
N/A
921
PHLP HD SCR M4-.7 X 12
Price
N/A
922
*DISCD*BLOCK
Item is no longer available
Price
N/A
923
*DISCD*COMPOUND SLIDE MOUNT
Price
$85.70
924
FLAT WASHER 10MM
Price
N/A
925
HEX NUT M10-1.5
Price
N/A
926
*DISCD*COMPOUND SLIDE BASE
Item is no longer available
Price
N/A
927
FLAT WASHER 8MM
Price
N/A
928
HEX NUT M8-1.25
Price
N/A
929
*DISCD*TOOL POST BOLT
Item is no longer available
Price
N/A
930
*DISCD*COMPOUND SLIDE TOP
Item is no longer available
Price
N/A
931
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
932
*DISCD*PLUNGER
Item is no longer available
Price
N/A
933
*DISCD*TOOL POST ASSEMBLY
Price
$57.50
933-1
*DISCD*HANDLE SHAFT
Item is no longer available
Price
N/A
933-2
KNOB
Price
N/A
933-3
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
933-4
*DISCD*TOOL POST WASHER
Item is no longer available
Price
N/A
933-5
CAP SCREW M8-1.25 X 25
Price
N/A
933-6
*DISCD*TOOL POST BASE
Item is no longer available
Price
N/A
934
*DISCD*LOCATING SLEEVE
Item is no longer available
Price
N/A
935
*DISCD*KNIFE REST
Item is no longer available
Price
N/A
936
*DISCD*HEX SOC HD CAP SCR
Item is no longer available
Price
N/A
937
*DISCD*PLAIN WASHERS
Item is no longer available
Price
N/A
938
*DISCD*HANDLE SEATS
Item is no longer available
Price
N/A
939
*DISCD*MAGNETIC CONTACTOR
Item is no longer available
Price
N/A
940
*DISCD*TERMINAL BOARD 5P
Item is no longer available
Price
N/A
941
*DISCD*STRAIGHT STRAIN RELIEF LT
Item is no longer available
Price
N/A

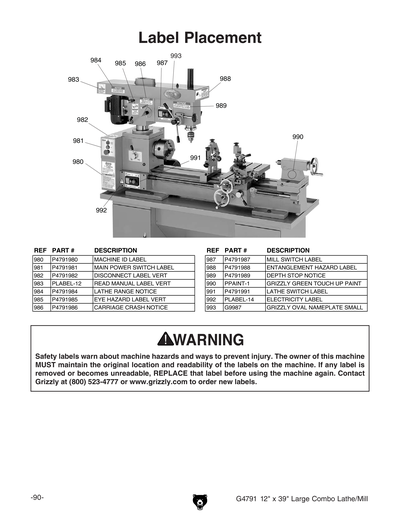

980
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
981
*DISCD*MAIN POWER SWITCH LABEL
Item is no longer available
Price
N/A
982
*DISCD*DISCONNECT LABEL VERT
Item is no longer available
Price
N/A
983
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
984
*DISCD*LATHE RANGE NOTICE
Item is no longer available
Price
N/A
985
*DISCD*EYE HAZARD LABEL VERT
Item is no longer available
Price
N/A
986
*DISCD*CARRIAGE CRASH NOTICE
Item is no longer available
Price
N/A
987
*DISCD*MILL SWITCH LABEL
Item is no longer available
Price
N/A
988
*DISCD*ENTANGLEMENT HAZARD LABEL
Item is no longer available
Price
N/A
989
*DISCD*DEPTH STOP NOTICE
Item is no longer available
Price
N/A
990
N/S GRIZZLY GREEN G1023S
Price
N/A
991
*DISCD*LATHE SWITCH LABEL
Item is no longer available
Price
N/A
992
ELECTRICITY 1.4W X 1.2H
Price
N/A
993
Nameplate - Mini
Price
N/A
994
*DISCD*LATHE HEAD SPEED LABEL
Price
$1.00
MANUAL
*DISCD*MANUAL FOR G4791 07/08
Item is no longer available
Price
N/A
