Parts for G4792 2 HP Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

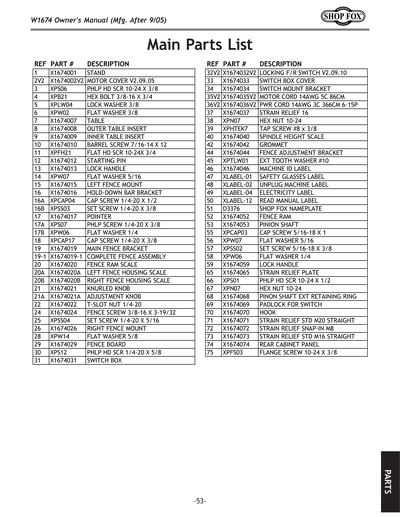

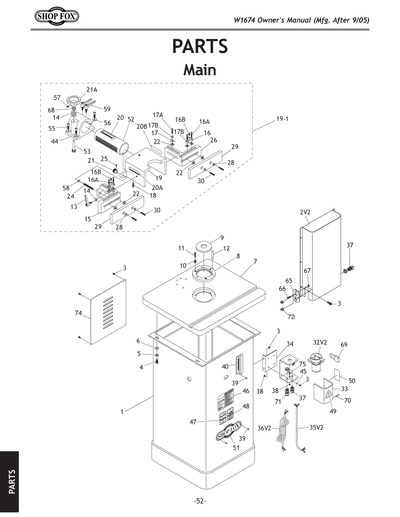

1
STAND
Price
N/A
2
MOTOR COVER W/O U OPENING V1.08.00
Price
N/A
3
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
4
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
5
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
TABLE
Price
N/A
8
OUTER TABLE INSERT
Price
N/A
9
***USE P1035009***
Price
N/A
10
BARREL SCREW 7/16-14 X 12
Price
N/A
11
Now: PFH21
FLAT HD SCR 10-24 X 3/4
Price
N/A
12
***USE P1035012***
Price
N/A
13
LOCK HANDLE
Price
N/A
14
Now: PW07
FLAT WASHER 5/16
Price
N/A
15
FENCE MOUNT LEFT
Price
N/A
16
HOLD-DOWN BAR BRACKET
Price
N/A
16A
CAP SCREW 1/4-20 X 1/2
Price
N/A
16B
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
17
POINTER
Price
N/A
17A
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
17B
Now: PW06
FLAT WASHER 1/4
Price
N/A
18
CAP SCREW 1/4-20 X 3/8
Price
N/A
19
MAIN FENCE BRACKET
Price
N/A
19A
COMPLETE FENCE ASSEMBLY
Price
N/A
20
FENCE RAM SCALE
Price
N/A
20A
FENCE HOUSING SCALE LEFT
Price
N/A
20B
FENCE HOUSING SCALE RIGHT
Price
N/A
21
KNURLED KNOB
Price
N/A
21A
ADJUSTMENT KNOB
Price
N/A
22
T-SLOT NUT 1/4-20
Price
N/A
23
*DISCD*RUBBER COVER
Price
N/A
24
FENCE SCREW 3/8-16 X 3-19/32
Price
N/A
25
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
26
FENCE MOUNT RIGHT
Price
N/A
28
Now: PW06
FLAT WASHER 1/4
Price
N/A
28A
POINTER
Price
N/A
28B
*DISCD*RUBBER COVER
Price
N/A
28C
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
29
FENCE BOARD
Price
N/A
30
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
31
SWITCH BOX
Price
N/A
32
Now: PSW03
*DISCD*FWD/REV SWITCH
Price
N/A
33
SWITCH BOX COVER
Price
N/A
34
SWITCH MOUNT BRACKET
Price
N/A
35
MOTOR POWER CORD 5W V1
Price
N/A
36
MOTOR CORD 14G 5W 86CM V2.09.10
Price
N/A
37
STRAIN RELIEF M15 TYPE-2
Price
N/A
38
Now: PN07
HEX NUT 10-24
Price
N/A
39
TAP SCREW #6 X 1/2
Price
N/A
40
SPINDLE HEIGHT SCALE
Price
N/A
42
GROMMET
Price
N/A
44
FENCE ADJUSTMENT BRACKET
Price
N/A
45
EXT TOOTH WASHER #10
Price
N/A
46
MACHINE ID LABEL
Price
N/A
47
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
48
DISCONNECT 220V 2W X 3.3H
Price
N/A
49
ELECTRICITY 1.4W X 1.2H
Price
N/A
50
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
51
*DISCD*CAST LOGO
Item is no longer available
Price
N/A
52
FENCE RAM
Price
N/A
53
PINION SHAFT
Price
N/A
55
CAP SCREW 5/16-18 X 1
Price
N/A
56
Now: PW07
FLAT WASHER 5/16
Price
N/A
57
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
58
Now: PW06
FLAT WASHER 1/4
Price
N/A
59
LOCK HANDLE
Price
N/A
62
ADJUSTMENT KNOB
Price
N/A
63
FENCE HOUSING SCALE LEFT
Price
N/A
64
FENCE HOUSING SCALE RIGHT
Price
N/A
74
REAR CABINET PANEL
Price
N/A

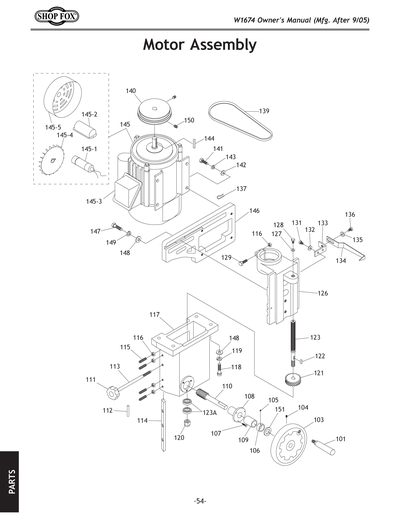

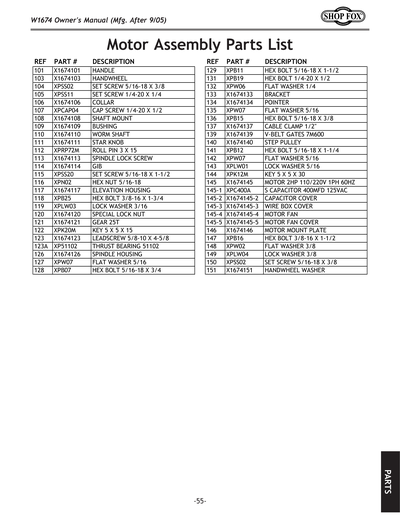

101
HANDLE
Price
N/A
103
HANDWHEEL
Price
N/A
104
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
105
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
106
COLLAR
Price
N/A
107
CAP SCREW 1/4-20 X 3/8
Price
N/A
108
SHAFT MOUNT
Price
N/A
109
BUSHING
Price
N/A
110
WORM SHAFT
Price
N/A
111
***USE P1035111***
Price
N/A
112
ROLL PIN 3 X 16
Price
N/A
113
SPINDLE LOCK SCREW
Price
N/A
114
GIB
Price
N/A
115
Now: PSS20
SET SCREW 5/16-18 X 1-1/2
Price
N/A
116
Now: PN02
HEX NUT 5/16-18
Price
N/A
117
*** USE P1035117***
Price
N/A
118
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
119
Now: PLW04
LOCK WASHER 3/8
Price
N/A
120
Now: PLN06
LOCK NUT 1/2-13
Price
N/A
121
GEAR 25T
Price
N/A
122
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
123
LEADSCREW 5/8-10 X 4-5/8
Price
N/A
123A
THRUST BEARING 51102
Price
N/A
126
SPINDLE SLIDE
Price
N/A
127
Now: PLW01
LOCK WASHER 5/16
Price
N/A
128
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
129
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
131
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
132
Now: PW06
FLAT WASHER 1/4
Price
N/A
133
BRACKET
Price
N/A
134
POINTER
Price
N/A
135
Now: PW07
FLAT WASHER 5/16
Price
N/A
136
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
137
CABLE CLAMP 1/2"
Price
N/A
139
V-BELT 7 X 600L
Price
N/A
140
STEP PULLEY
Price
N/A
141
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
142
Now: PW07
FLAT WASHER 5/16
Price
N/A
143
Now: PLW01
LOCK WASHER 5/16
Price
N/A
144
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
145
MOTOR 2HP 110/220V 1PH 60HZ
Price
N/A
145-1
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
145-2
CAPACITOR COVER
Price
N/A
145-3
WIRE BOX COVER
Price
N/A
145-4
MOTOR FAN
Price
N/A
145-5
MOTOR FAN COVER
Price
N/A
146
*** USE P1035146***
Price
N/A
147
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
148
Now: PW02
FLAT WASHER 3/8
Price
N/A
149
Now: PLW04
LOCK WASHER 3/8
Price
N/A
150
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A

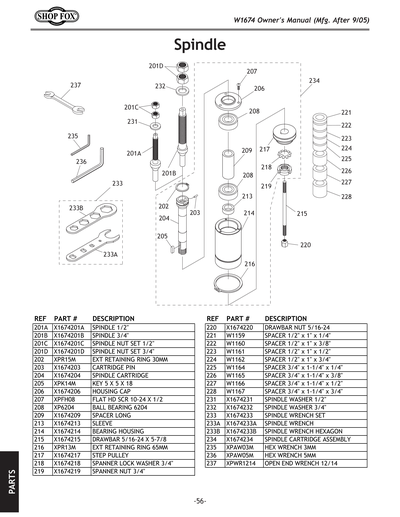

201A
SPINDLE 1/2"
Price
N/A
201B
SPINDLE 3/4"
Price
N/A
201C
SPINDLE NUT 1/2" 2PC SET
Price
N/A
201D
SPINDLE NUT 3/4" 2PC SET
Price
N/A
202
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
203
CARTRIDGE PIN
Price
N/A
204
*** USE P1035204***
Price
N/A
205
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
206
HOUSING CAP
Price
N/A
207
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
208
BALL BEARING 6204ZZ
Price
N/A
209
Now: PFH08
FLAT HD SCR 10-24 X 1/2
Price
N/A
211
SPINDLE NUT SET 1/2"
Price
N/A
212
SPINDLE NUT 3/4" 2PC SET
Price
N/A
213
SLEEVE
Price
N/A
214
*** USE P1035214***
Price
N/A
215
DRAWBAR 5/16-24 X 5-7/8
Price
N/A
216
Now: PR13M
EXT RETAINING RING 65MM
Price
N/A
217
STEP PULLEY
Price
N/A
218
SPANNER LOCKED WASHER 3/4"
Price
N/A
219
SPANNER NUT 3/4"
Price
N/A
220
***USE P1035220***
Price
N/A
221
Now: W1159
Spacer - 1/2" ID x 1" OD x 1/4" H
Price
N/A
222
Now: W1160
Spacer - 1/2" ID x 1" OD x 3/8" H
Price
N/A
223
Now: W1161
Spacer - 1/2" ID x 1" OD x 1/2" H
Price
N/A
224
Now: W1162
Spacer - 1/2" ID x 1" OD x 3/4" H
Price
N/A
225
Now: W1164
Spacer - 3/4" ID x 1-1/4" OD x 1/4" H
Price
N/A
226
Now: W1165
Spacer - 3/4" ID x 1-1/4" OD x 3/8" H
Price
N/A
227
Now: W1166
Spacer - 3/4" ID x 1-1/4" OD x 1/2" H
Price
N/A
228
Now: W1167
Spacer - 3/4" ID x 1-1/4" OD x 3/4" H
Price
N/A
231
SPINDLE WASHER 1/2"
Price
N/A
232
SPINDLE WASHER 3/4"
Price
N/A
233
SPINDLE WRENCH SET
Price
N/A
233A
SPINDLE WRENCH
Price
N/A
233B
SPINDLE WRENCH HEXAGON
Price
N/A
234
SPINDLE CARTRIDGE ASSEMBLY
Price
N/A

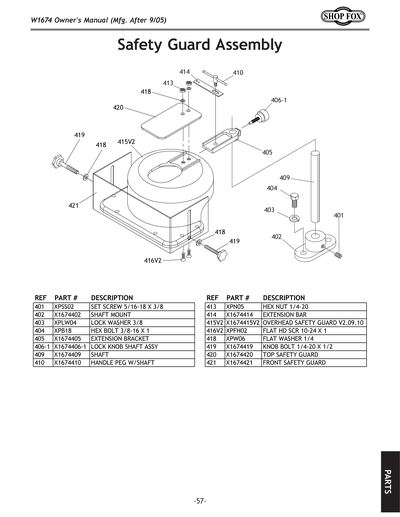

401
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
402
SHAFT MOUNT
Price
N/A
403
Now: PLW04
LOCK WASHER 3/8
Price
N/A
404
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
405
EXTENSION BRACKET
Price
N/A
406
LOCK KNOB SHAFT ASSY
Price
N/A
406-1
LOCK KNOB SHAFT ASSY
Price
N/A
407
LOCK KNOB SHAFT ASSY
Price
N/A
408
ROLL PIN 4 X 12
Price
N/A
409
SHAFT
Price
N/A
410
LOCK HANDLE
Price
N/A
411
LOCK HANDLE
Price
N/A
412
LOCK HANDLE
Price
N/A
413
Now: PN05
HEX NUT 1/4-20
Price
N/A
414
EXTENSION BAR
Price
N/A
415
SAFETY GUARD V1
Price
N/A
416
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
417
THREADED SUPPORT
Price
N/A
441
EXTENSION BAR
Price
N/A

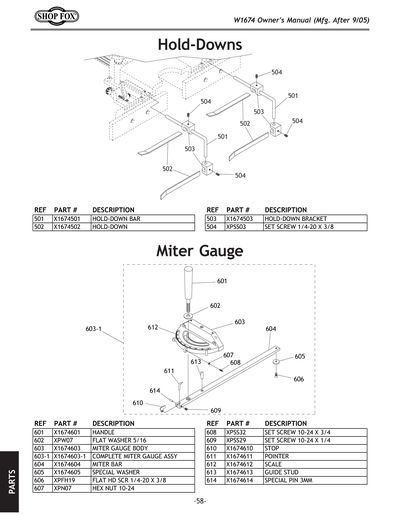

501
HOLD DOWN BAR
Price
N/A
502
HOLD DOWN
Price
N/A
503
HOLD DOWN BRACKET
Price
N/A
504
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
601
HANDLE
Price
N/A
602
Now: PW07
FLAT WASHER 5/16
Price
N/A
603
MITER GAUGE BODY
Price
N/A
603A
COMPLETE MITER GAUGE ASSY
Price
N/A
604
MITER BAR
Price
N/A
605
MITER BAR WASHER 10.5 X 22 X 3.9T
Price
N/A
606
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
607
Now: PN07
HEX NUT 10-24
Price
N/A
608
Now: PSS32
SET SCREW 10-24 X 3/4
Price
N/A
609
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
610
STOP
Price
N/A
611
POINTER
Price
N/A
612
MITER GAUGE SCALE
Price
N/A
613
GUIDE PIN
Price
N/A
614
SPRING PIN 3MM
Price
N/A
615
CARTON FOR W1674
Price
N/A
616
STYROFOAM
Price
N/A
700
COMPLETE HARDWARE BOX
Price
N/A
MANUAL
MANUAL FOR G4792 03/04
Item is no longer available
Price
N/A
