Parts for G4814 - INDUSTRIAL HOLLOW CHISEL MORTISING MACHINE

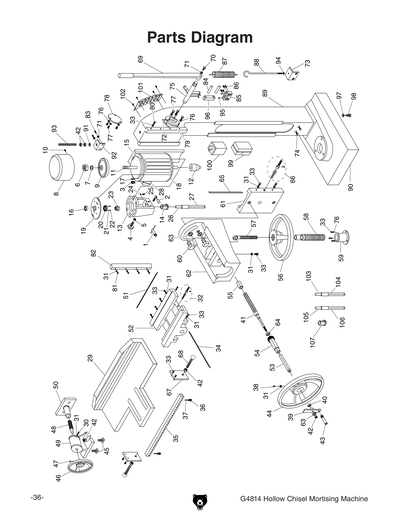

Part Diagram for G4814
Part Diagram for G4814
Part Diagram for G4814
Part Diagram for G4814
Part Diagram for G4814
Part Diagram for G4814

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

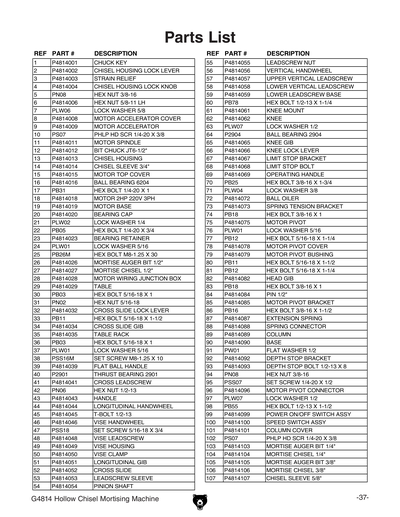

Ref #
Part #
Description
1
*DISCD* CHUCK KEY
Item is no longer available
Price
N/A
2
*DISCD*CHISEL HOUSING LOCK LEVER
Item is no longer available
Price
N/A
3
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Item is no longer available
Price
N/A
4
*DISCD*CHISEL HOUSING LOCK KNOB
Item is no longer available
Price
N/A
5
P4814005
Now: PN08
HEX NUT 3/8-16
Price
N/A
6
*DISCD*HEX NUT 5/8-11 LH
Price
N/A
7
LOCK WASHER 5/8
Price
N/A
8
*DISCD*MOTOR ACCELERATOR COVER
Item is no longer available
Price
N/A
9
*DISCD*MOTOR ACCELERATOR
Item is no longer available
Price
N/A
10
P4814010
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
11
*DISCD*MOTOR SPINDLE
Item is no longer available
Price
N/A
12
*DISCD*BIT CHUCK JT6-1/2"
Item is no longer available
Price
N/A
13
*DISCD*CHISEL HOUSING
Item is no longer available
Price
N/A
14
*DISCD*CHISEL SLEEVE 3/4"
Item is no longer available
Price
N/A
15
*DISCD*MOTOR TOP COVER
Item is no longer available
Price
N/A
16
BALL BEARING 6204ZZ
Price
N/A
17
P4814017
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
18
*DISCD*MOTOR 2HP 220V 3-PH
Price
$885.50
19
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
20
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
21
LOCK WASHER 1/4
Price
N/A
22
P4814022
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
23
*DISCD*BEARING RETAINER
Item is no longer available
Price
N/A
24
LOCK WASHER 5/16
Price
N/A
25
P4814025
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
26
*DISCD*MORTISE AUGER BIT 1/2"
Price
$13.80
27
*DISCD*MORTISING CHISEL 1/2"
Item is no longer available
Price
N/A
28
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
29
*DISCD*TABLE
Item is no longer available
Price
N/A
30
P4814030
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
31
P4814031
Now: PN02
HEX NUT 5/16-18
Price
N/A
32
*DISCD*CROSS SLIDE LOCK LEVER
Item is no longer available
Price
N/A
33
P4814033
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
34
*DISCD*CROSS SLIDE GIB
Item is no longer available
Price
N/A
35
*DISCD*TABLE RACK
Item is no longer available
Price
N/A
36
P4814036
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
37
LOCK WASHER 5/16
Price
N/A
38
SET SCREW 5/16-18 X 3/4
Price
N/A
39
*DISCD*FLAT BALL HANDLE
Item is no longer available
Price
N/A
40
THRUST BEARING 2901
Price
N/A
41
*DISCD*CROSS LEADSCREW
Item is no longer available
Price
N/A
42
P4814042
Now: PN06
HEX NUT 1/2-12
Price
N/A
43
*DISCD*HANDLE
Item is no longer available
Price
N/A
44
*DISCD*LONGITUDINAL HANDWHEEL
Item is no longer available
Price
N/A
45
*DISCD*T-BOLT 1/2-13
Price
$6.90
46
*DISCD*VISE HANDWHEEL
Item is no longer available
Price
N/A
47
SET SCREW 5/16-18 X 3/4
Price
N/A
48
*DISCD*VISE CLAMP ASSEMBLY
Price
N/A
49
*DISCD*VISE CLAMP ASSEMBLY
Price
N/A
50
*DISCD*VISE CLAMP ASSEMBLY
Price
N/A
50A
*DISCD*VISE CLAMP ASSEMBLY
Item is no longer available
Price
N/A
51
*DISCD*LONGITUDINAL GIB
Item is no longer available
Price
N/A
52
*DISCD*CROSS SLIDE
Item is no longer available
Price
N/A
53
*DISCD*LEADSCREW SLEEVE
Item is no longer available
Price
N/A
54
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
55
*DISCD*LEADSCREW NUT
Price
$32.50
56
*DISCD*VERTICAL HANDWHEEL
Item is no longer available
Price
N/A
57
*DISCD*UPPER VERTICAL LEADSCREW 7/8-6T X
Item is no longer available
Price
N/A
58
*DISCD*VERTICAL LEADSCREW LOWER 1-7/8 -6
Item is no longer available
Price
N/A
59
*DISCD*LEADSCREW BASE LOWER
Item is no longer available
Price
N/A
60
P4814060
Now: PB78
HEX BOLT 1/2-13 X 1-1/4
Price
N/A
61
*DISCD*KNEE MOUNT
Item is no longer available
Price
N/A
62
*DISCD*KNEE
Item is no longer available
Price
N/A
63
LOCK WASHER 1/2
Price
N/A
64
THRUST BEARING 2904
Price
N/A
65
*DISCD*KNEE GIB
Item is no longer available
Price
N/A
66
*DISCD*KNEE LOCK LEVER
Item is no longer available
Price
N/A
67
*DISCD*LIMIT STOP BRACKET
Item is no longer available
Price
N/A
68
*DISCD*LIMIT STOP HEX BOLT
Price
$8.35
69
*DISCD*OPERATING HANDLE
Item is no longer available
Price
N/A
70
P4814070
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
71
LOCK WASHER 3/8
Price
N/A
72
*DISCD*BALL OILER 1/4 TAP-IN
Item is no longer available
Price
N/A
73
*DISCD*SPRING TENSION BRACKET
Item is no longer available
Price
N/A
74
P4814074
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
75
*DISCD*MOTOR PIVOT
Item is no longer available
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
77
P4814077
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
78
*DISCD*MOTOR PIVOT COVER
Item is no longer available
Price
N/A
79
*DISCD*MOTOR PIVOT BUSHING
Item is no longer available
Price
N/A
80
P4814080
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
81
P4814081
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
82
*DISCD*HEAD GIB
Item is no longer available
Price
N/A
83
P4814083
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
84
*DISCD*PIN 1/2"
Item is no longer available
Price
N/A
85
*DISCD*MOTOR PIVOT BRACKET
Item is no longer available
Price
N/A
86
P4814086
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
87
*DISCD*EXTENSION SPRING 6 X 54 X 300
Item is no longer available
Price
N/A
88
*DISCD*SPRING CONNECTOR
Item is no longer available
Price
N/A
89
*DISCD*COLUMN
Item is no longer available
Price
N/A
90
*DISCD*BASE
Item is no longer available
Price
N/A
91
P4814091
Now: PW01
FLAT WASHER 1/2
Price
N/A
92
*DISCD*DEPTH STOP BRACKET
Item is no longer available
Price
N/A
93
*DISCD*DEPTH STOP BOLT
Item is no longer available
Price
N/A
94
P4814094
Now: PN08
HEX NUT 3/8-16
Price
N/A
95
SET SCREW 1/4-20 X 1/2
Price
N/A
96
*DISCD*MOTOR PIVOT CONNECTOR
Item is no longer available
Price
N/A
97
LOCK WASHER 1/2
Price
N/A
98
P4814098
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
99
*DISCD*POWER ON/OFF SWITCH ASSY
Item is no longer available
Price
N/A
100
*DISCD*SPEED SWITCH ASSY
Item is no longer available
Price
N/A
101
*DISCD*COLUMN COVER
Item is no longer available
Price
N/A
102
P4814102
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
103
*DISCD*MORTISE AUGER BIT 1/4"
Item is no longer available
Price
N/A
104
*DISCD*MORTISING CHISEL 1/4"
Item is no longer available
Price
N/A
105
*DISCD*MORTISE AUGER BIT 3/8"
Item is no longer available
Price
N/A
106
*DISCD*MORTISING CHISEL 3/8"
Item is no longer available
Price
N/A
107
*DISCD*CHISEL SLEEVE 5/8"
Item is no longer available
Price
N/A

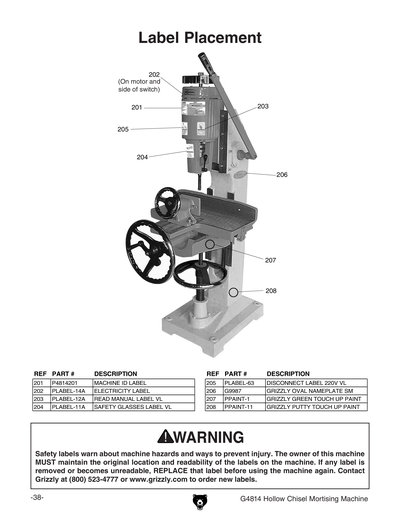

201
MACHINE ID LABEL
Item is no longer available
Price
N/A
202
ELECTRICITY 0.7W X 0.6H
Price
N/A
203
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
204
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
205
DISCONNECT 220V 2W X 3.3H
Price
N/A
206
Nameplate - Mini
Price
N/A
207
N/S GRIZZLY GREEN G1023S
Price
N/A
208
GREY PUTTY REF G0504
Price
N/A
A10
*DISCD*SAFETY COVER OF ACCELERATOR
Price
$38.85
A11
*DISCD*MOTOR ACCELERATOR
Item is no longer available
Price
N/A
A12
*DISCD*START BUTTON
Item is no longer available
Price
N/A
A12-1
*DISCD*MAG SWITCH
Price
$85.10
A13
P4814A13
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
A14
P4814A14
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
A16
*DISCD*MOTOR ROTOR
Item is no longer available
Price
N/A
A17
LOCK WASHER 1/4
Price
N/A
A18
P4814A18
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
A19
*DISCD*CHUCK 1/2"
Item is no longer available
Price
N/A
A2
*DISCD*CLAMP WRENCH
Item is no longer available
Price
N/A
A20
*DISCD*WIND PIPE WITH SQUARE SLEEVE
Price
$148.35
A21
*DISCD*WIND PIPE WITH SQUARE SLEEVE
Price
N/A
A23
*DISCD*MOTOR SPINDLE
Price
$62.70
A24
*DISCD*TOP COVER OF MOTOR BEARING
Item is no longer available
Price
N/A
A25
BALL BEARING 6204ZZ
Price
N/A
A26
P4814A26
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
A27
*DISCD*MOTOR CASE V1.04.02
Item is no longer available
Price
N/A
A27A
*DISCD*MOTOR CASE V2.01.05
Item is no longer available
Price
N/A
A28
*DISCD*MOTOR BOTTOM CASE
Item is no longer available
Price
N/A
A29
*DISCD*EXTERNAL CASE OF BOTTOM BEARING
Item is no longer available
Price
N/A
A3
*DISCD*ADJUSTABLE LEVER
Item is no longer available
Price
N/A
A30
*DISCD*INTERNAL BINDER OF BOTTOM BEARING
Item is no longer available
Price
N/A
A31
LOCK WASHER 5/16
Price
N/A
A32
P4814A32
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
A33
*DISCD*CENTER DRILL OF SQUARE CHISEL
Item is no longer available
Price
N/A
A34
*DISCD*EXTERNAL CUTTER OF SQUARE CHISEL
Item is no longer available
Price
N/A
A4
*DISCD*WIND PIPE WITH SQUARE SLEEVE
Price
N/A
A6
*DISCD*PLUM KNOB 3/8-16 X 2-3/4
Item is no longer available
Price
N/A
A7
P4814A7
Now: PN08
HEX NUT 3/8-16
Price
N/A
A9
*DISCD*HEX NUT 5/8-11 LH
Price
N/A
B1
*DISCD*WORKING STATION
Item is no longer available
Price
N/A
B11
P4814B11
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
B12
*DISCD*WORKING STATION HANDLE
Item is no longer available
Price
N/A
B13
*DISCD*STOP BEARING 2901
Item is no longer available
Price
N/A
B14
*DISCD*WORKING STATION MOVEABLE PITCH ST
Item is no longer available
Price
N/A
B15
P4814B15
Now: PN06
HEX NUT 1/2-12
Price
N/A
B16
*DISCD*BLACK PLASTIC HANDLE
Item is no longer available
Price
N/A
B17
*DISCD*WORKING STATION WHEEL
Item is no longer available
Price
N/A
B18
*DISCD*CLIP SCREW 1/2-13 X 2 SQUARE
Item is no longer available
Price
N/A
B19
*DISCD*CLIP WHEEL
Item is no longer available
Price
N/A
B2
P4814B2
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
B20
P4814B20
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
B21
*DISCD*CLIP PITCH STICK
Item is no longer available
Price
N/A
B22
*DISCD*CLIP BODY
Item is no longer available
Price
N/A
B23
*DISCD*CLIP PITCH STICK SET
Item is no longer available
Price
N/A
B28
*DISCD*IRON PEELER OF CROSS TYPE SLIDE L
Item is no longer available
Price
N/A
B29
*DISCD*CROSS TYPE SLIDE
Item is no longer available
Price
N/A
B3
P4814B3
Now: PN02
HEX NUT 5/16-18
Price
N/A
B30
*DISCD*MOVEABLE PITCH STICK SLEEVE
Item is no longer available
Price
N/A
B31
*DISCD*WS SIDES GEAR
Price
$64.40
B32
*DISCD*WS MOVEABLE PITCH STICK NUT 7/8-4
Item is no longer available
Price
N/A
B33
*DISCD*WS ELEVATED WHEEL
Item is no longer available
Price
N/A
B34
*DISCD*WS ELEVATED PITCH STICK
Item is no longer available
Price
N/A
B35
*DISCD*WS ELEVATED PITCH STICK TUBE
Item is no longer available
Price
N/A
B36
*DISCD*WS ELEVATED PITCH STICK SET
Item is no longer available
Price
N/A
B37
P4814B37
Now: PB78
HEX BOLT 1/2-13 X 1-1/4
Price
N/A
B38
*DISCD*WS ELEVATED SLIDE
Item is no longer available
Price
N/A
B39
*DISCD*WS MOVABLE SLIDE
Item is no longer available
Price
N/A
B4
*DISCD*KNOB 3/8-16 X 1-3/4
Item is no longer available
Price
N/A
B40
*DISCD*NUT FOR MOVABLE PITCH STICK RING
Item is no longer available
Price
N/A
B41
*DISCD*STOP BEARING 2904
Item is no longer available
Price
N/A
B44
*DISCD*WS IRON PEELER OF ELEVATED SIDE
Item is no longer available
Price
N/A
B5
P4814B5
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
B6
*DISCD*IRON PEELER OF CROSS TYPE SLIDE S
Item is no longer available
Price
N/A
B7
*DISCD*RACK ROW
Price
$66.70
B8
P4814B8
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
B9
P4814B9
Now: PLW01
LOCK WASHER 5/16
Price
N/A
C09
*DISCD*MOTOR ELEVATION SPINDLE
Item is no longer available
Price
N/A
C1
*DISCD*HANDLE
Price
N/A
C10
*DISCD*SPRING GASKET 5/16
Item is no longer available
Price
N/A
C11
*DISCD*FIXED SCREW 5/16-18 X 1
Item is no longer available
Price
N/A
C12
*DISCD*OIL FILLER POINT
Item is no longer available
Price
N/A
C13
*DISCD*MOTOR ELEVATED SPINDLE FIXED BASE
Price
$23.30
C14
*DISCD*MOTOR ELEVATED SPINDLE FIXED BASE
Item is no longer available
Price
N/A
C15
P4814C15
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
C16
P4814C16
Now: PN02
HEX NUT 5/16-18
Price
N/A
C17
P4814C17
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
C18
*DISCD*MOTOR SLIDE TRIANGLE PEELER
Item is no longer available
Price
N/A
C19
P4814C19
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
C2
*DISCD*HANDLE
Price
$21.60
C20
*DISCD*MTR ELVTD & FORK SHPD FIXD BASE 1
Item is no longer available
Price
N/A
C21
*DISCD*MTR ELVTD & FORK SHPD FIXD BASE
Item is no longer available
Price
N/A
C22
P4814C22
Now: PN06
HEX NUT 1/2-12
Price
N/A
C25
*DISCD*MOTOR ELEVATED SPINDLE
Item is no longer available
Price
N/A
C26
*DISCD*SPRING REGULATED SCREW HOOK
Item is no longer available
Price
N/A
C27
*DISCD*BODY BASE
Item is no longer available
Price
N/A
C28
*DISCD*FOUNDATION
Item is no longer available
Price
N/A
C29
P4814C29
Now: PN06
HEX NUT 1/2-12
Price
N/A
C3
*DISCD*HANDLE
Price
N/A
C30
P4814C30
Now: PW01
FLAT WASHER 1/2
Price
N/A
C31
*DISCD*MOTOR ELVTD & REGULATED SCREW 1/2
Item is no longer available
Price
N/A
C32
*DISCD*MOTOR ELVTD & REGULATED SCREW 1/2
Item is no longer available
Price
N/A
C34
P4814C34
Now: PN08
HEX NUT 3/8-16
Price
N/A
C35
*DISCD*MOTOR SPINDLE FORK SHAPED
Item is no longer available
Price
N/A
C36
P4814C36
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
C37
*DISCD*MOTOR ELEVATED CONNECTOR
Item is no longer available
Price
N/A
C38
P4814C38
Now: PW01
FLAT WASHER 1/2
Price
N/A
C39
P4814C39
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
C4
P4814C4
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
C40
*DISCD*MAG SWITCH
Item is no longer available
Price
N/A
C41
*DISCD*CONTROL SELECTOR SWITCHES
Item is no longer available
Price
N/A
C5
*DISCD*SPRING GASKET 3/8
Item is no longer available
Price
N/A
C6
*DISCD*OIL FILLER POINT
Item is no longer available
Price
N/A
C7
*DISCD*SPRING FIXED AND REGULATED SET
Item is no longer available
Price
N/A
C8
*DISCD*FIXED SCREW 3/8 X 1
Item is no longer available
Price
N/A
C9
*DISCD*MOTOR ELEVATED SPINDLE
Item is no longer available
Price
N/A
MAN
MANUAL FOR G4814 09/08
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G4814 10/08
Price
$14.65
