Parts for G5770 - 36" Slip Roll - 22 Gauge

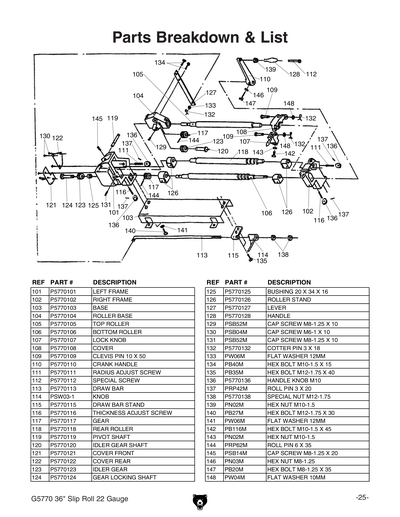

Part Diagram for G5770

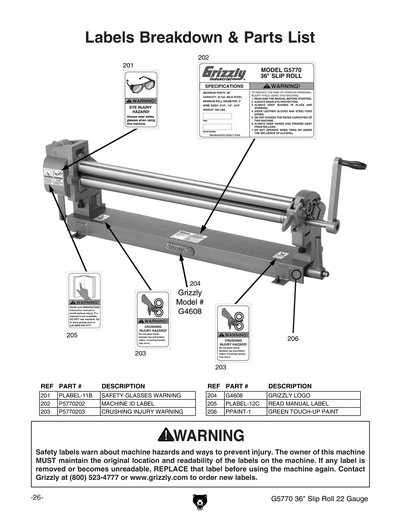

Part Diagram for G5770
Part Diagram for G5770
Part Diagram for G5770

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FRAME LEFT
Item is no longer available
Price
N/A
2
FRAME RIGHT
Item is no longer available
Price
N/A
3
BASE
Item is no longer available
Price
N/A
4
Price
$24.15
5
TOP ROLLER
Item is no longer available
Price
N/A
6
Price
$221.40
7
Price
$6.65
8
Price
$8.05
9
*DISCD*CLEVIS PIN 10 X 50
Price
$2.05
10
Price
$6.65
11
RADIUS ADJUST SCREW M16 X 85
Price
$3.45
12
Price
$2.05
13
DRAWBAR
Item is no longer available
Price
N/A
14
Price
$6.65
15
Price
$3.75
16
THICKNESS ADJUST SCREW
Item is no longer available
Price
N/A
17
GEAR
Item is no longer available
Price
N/A
18
REAR ROLLER
Item is no longer available
Price
N/A
19
PIVOT SHAFT
Item is no longer available
Price
N/A
20
Price
$3.45
21
COVER FRONT
Item is no longer available
Price
N/A
22
COVER REAR
Item is no longer available
Price
N/A
23
IDLER GEAR
Item is no longer available
Price
N/A
24
Price
$3.75
25
Price
$2.05
26
ROLLER STAND
Item is no longer available
Price
N/A
27
Price
$3.75
28
Price
$4.05
29
CAP SCREW M8-1.25 X 10
Price
N/A
30
CAP SCREW M6-1 X 10
Price
N/A
31
CAP SCREW M8-1.25 X 10
Price
N/A
32
Price
$1.49
33
FLAT WASHER 12MM
Price
N/A
34
HEX BOLT M10-1.5 X 16
Price
N/A
35
HEX BOLT M12-1.75 X 40
Price
N/A
36
Price
$1.49
37
ROLL PIN 3 X 20
Price
N/A
38
HEX NUT M12-1.75
Price
N/A
39
HEX NUT M10-1.25
Price
N/A
40
HEX BOLT M12-1.75 X 30
Price
N/A
41
FLAT WASHER 12MM
Price
N/A
42
HEX BOLT M10-1.5 X 45
Price
N/A
43
HEX NUT M10-1.25
Price
N/A
44
ROLL PIN 5 X 35
Price
N/A
45
CAP SCREW M8-1.25 X 10
Price
N/A
46
HEX NUT M8-1.25
Price
N/A
47
HEX BOLT M8-1.25 X 35
Price
N/A
48
FLAT WASHER 10MM
Price
N/A
101
FRAME LEFT
Item is no longer available
Price
N/A
102
Price
$37.95
103
BASE
Item is no longer available
Price
N/A
104
ROLLER BASE
Item is no longer available
Price
N/A
105
TOP ROLLER
Item is no longer available
Price
N/A
106
BOTTOM ROLLER
Item is no longer available
Price
N/A
107
LOCK KNOB
Item is no longer available
Price
N/A
108
Price
$8.05
109
*DISCD*CLEVIS PIN 10 X 50
Price
N/A
110
Price
$6.65
111
RADIUS ADJUST SCREW
Item is no longer available
Price
N/A
112
Price
$1.49
113
DRAW BAR
Item is no longer available
Price
N/A
114
KNOB
Price
N/A
115
DRAWBAR STAND
Item is no longer available
Price
N/A
116
THICKNESS ADJUST SCREW
Item is no longer available
Price
N/A
117
GEAR
Item is no longer available
Price
N/A
118
REAR ROLLER
Item is no longer available
Price
N/A
119
PIVOT SHAFT
Item is no longer available
Price
N/A
120
IDLER GEAR SHAFT
Item is no longer available
Price
N/A
121
COVER FRONT
Item is no longer available
Price
N/A
122
COVER REAR
Item is no longer available
Price
N/A
123
IDLER GEAR
Item is no longer available
Price
N/A
124
GEAR LOCKING SHAFT
Item is no longer available
Price
N/A
125
BUSHING 20 X 34 X 16
Item is no longer available
Price
N/A
126
ROLLER STAND
Item is no longer available
Price
N/A
127
LEVER
Item is no longer available
Price
N/A
128
Price
$3.45
129
CAP SCREW M8-1.25 X 10
Price
N/A
130
CAP SCREW M6-1 X 10
Price
N/A
131
CAP SCREW M8-1.25 X 10
Price
N/A
132
COTTER PIN 3 X 18
Price
N/A
133
FLAT WASHER 12MM
Price
N/A
134
HEX BOLT M10-1.5 X 16
Price
N/A
135
HEX BOLT M12-1.75 X 40
Price
N/A
136
Price
$2.05
137
ROLL PIN 3 X 20
Price
N/A
138
KNOB NUT M12-1.75
Item is no longer available
Price
N/A
139
HEX NUT M10-1.5
Price
N/A
140
HEX BOLT M12-1.75 X 30
Price
N/A
141
FLAT WASHER 12MM
Price
N/A
142
HEX BOLT M10-1.5 X 45
Price
N/A
143
HEX NUT M10-1.5
Price
N/A
144
ROLL PIN 6 X 35
Price
N/A
145
CAP SCREW M8-1.25 X 20
Price
N/A
146
HEX NUT M8-1.25
Price
N/A
147
HEX BOLT M8-1.25 X 35
Price
N/A
148
FLAT WASHER 10MM
Price
N/A
201
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
202
MACHINE ID LABEL
Item is no longer available
Price
N/A
203
CRUSHING INJURY WARNING
Item is no longer available
Price
N/A
204
BOSCH 1587AVS JIGSAW
Price
N/A
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL FOR G5770 01/09
Item is no longer available
Price
N/A
