Parts for G5913Z - 5 HP Professional Tilting Spindle Shaper - Z Series

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

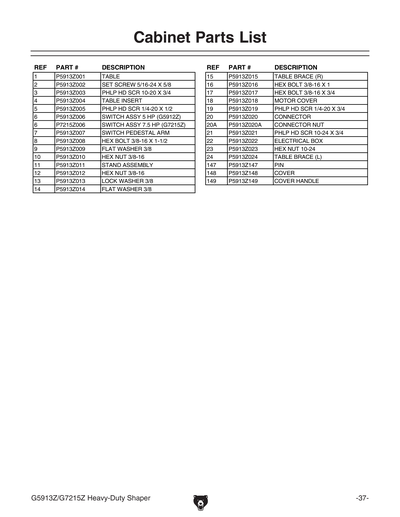

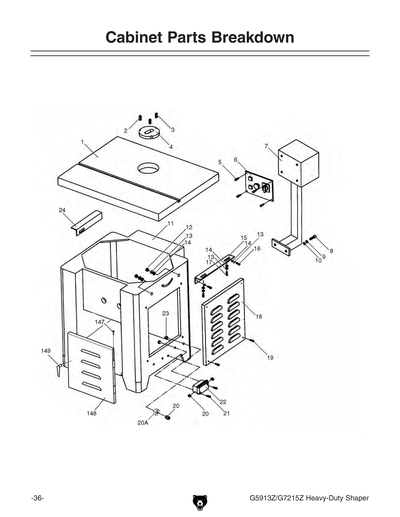

1 P5913Z001 TABLE $1,459.00

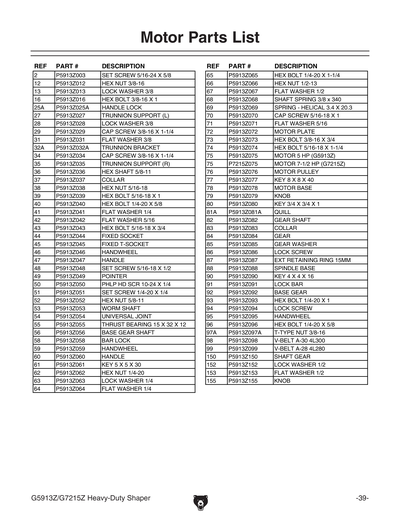

2 P5913Z002
Replaced By PSS23
SET SCREW 5/16-24 X 5/8
N/A View Replacement
3 P5913Z003
Replaced By PS08
PHLP HD SCR 10-24 X 3/4
N/A View Replacement
4 P5913Z004 TABLE INSERT $59.00
5 P5913Z005
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
6 P5913Z006 SWITCH ASSY 5 HP V2.03.07 $179.50
6-1 P5913Z006-1
Replaced By P8622006-1
E-STOP BUTTON
N/A View Replacement
6-2 P5913Z006-2
Replaced By P7214Z022-1
*DISCD*SQUARE GREEN ON SWITCH V1.08.03
N/A View Replacement
6-3 P5913Z006-3
Replaced By P7214Z022-2
*DISCD*SQUARE RED OFF SWITCH V1.08.03
N/A View Replacement
6-4 P5913Z006-4 FORWARD/REVERSE SWITCH V1.08.03 $51.75
6-4A P5913Z006-4A FORWARD/REVERSE SWITCH V2.12.06 $69.25
6A P5913Z006A
Replaced By P8622006-1
E-STOP BUTTON
N/A View Replacement
6B P5913Z006B
Replaced By P8622006-1
E-STOP BUTTON
N/A View Replacement
6C P5913Z006C
Replaced By P5912Z022B
CONTROL PANEL ASSY
N/A View Replacement
6C-1 P5913Z006C-1
Replaced By P7214Z022-3
E-STOP BUTTON 230V 6A
N/A View Replacement
6C-2 P5913Z006C-2
Replaced By P7214Z022-1A
ON SWITCH ROUND V2.09.07
N/A View Replacement
6C-3 P5913Z006C-3
Replaced By P7214Z022-2A
OFF SWITCH ROUND V2.09.07
N/A View Replacement
6C-4 P5913Z006C-4
Replaced By P5912Z022-5V2
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
N/A View Replacement
6C-5 P5913Z006C-5
Replaced By P7214Z022A-7
RED AND GREEN 220V LIGHT BULB 2PC
N/A View Replacement
6C-6 P5913Z006C-6
Replaced By P5912Z022B-1
CONTACTOR
N/A View Replacement
6C-7 P5913Z006C-7
Replaced By P5912Z022B-2
OL RELAY
N/A View Replacement
6D P5913Z006D
Replaced By P7214Z022-2
*DISCD*SQUARE RED OFF SWITCH V1.08.03
N/A View Replacement
6E P5913Z006E
Replaced By P5913Z006-4
FORWARD/REVERSE SWITCH V1.08.03
N/A View Replacement
6F P5913Z006F
Replaced By P5912Z022B
CONTROL PANEL ASSY
N/A View Replacement
7 P5913Z007 SWITCH PEDESTAL ARM $120.25
8 P5913Z008
Replaced By PB16
HEX BOLT 3/8-16 X 1-1/2
N/A View Replacement
9 P5913Z009
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
10 P5913Z010
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
11 P5913Z011 STAND ASSEMBLY $1,064.50
12 P5913Z012
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
13 P5913Z013
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
14 P5913Z014
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
15 P5913Z015 RIGHT TABLE BRACE $35.25
16 P5913Z016
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
17 P5913Z017
Replaced By PB21
HEX BOLT 3/8-16 X 3/4
N/A View Replacement
18 P5913Z018 MOTOR COVER $100.00
19 P5913Z019
Replaced By PS02
PHLP HD SCR 1/4-20 X 3/4
N/A View Replacement
20 P5913Z020
Replaced By P5912Z021
STRAIN RELIEF 5/8" TYPE-9 ELBOW
N/A View Replacement
20A P5913Z020A STRAIN RELIEF 5/8" TYPE-10 ST $2.75
21 P5913Z021
Replaced By PS08
PHLP HD SCR 10-24 X 3/4
N/A View Replacement
22 P5913Z022 ELECTRICAL BOX $23.25
23 P5913Z023
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
24 P5913Z024 LEFT TABLE BRACE $35.25
25 P5913Z025
*DISCD*LOCK HANDLE V1.11.98
Item is no longer available
N/A
25A P5913Z025A HANDLE LOCK W/SHAFT V2.03.07 $65.00
26 P5913Z026
Replaced By P5913Z025A
HANDLE LOCK W/SHAFT V2.03.07
N/A View Replacement
27 P5913Z027 LEFT TRUNNION SUPPORT $41.50
28 P5913Z028
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
29 P5913Z029
Replaced By PCAP19
CAP SCREW 3/8-16 X 1-1/4
N/A View Replacement
30 P5913Z030 TRUNNION LEFT $72.50
31 P5913Z031
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
32 P5913Z032 TRUNNION SUPPORT BRACKET V1.11.07 $125.25
32A P5913Z032A TRUNNION BRACKET V2.03.07 $483.25
33 P5913Z033
Replaced By P5913Z032
TRUNNION SUPPORT BRACKET V1.11.07
N/A View Replacement
34 P5913Z034
Replaced By PCAP19
CAP SCREW 3/8-16 X 1-1/4
N/A View Replacement
35 P5913Z035 RIGHT TRUNNION SUPPORT $41.50
36 P5913Z036 SQUARE CAPTIVE BOLT 5/8-11 $35.50
37 P5913Z037 COLLAR $16.25
38 P5913Z038
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
39 P5913Z039
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
40 P5913Z040
Replaced By PB02
HEX BOLT 1/4-20 X 5/8
N/A View Replacement
41 P5913Z041
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
42 P5913Z042
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
43 P5913Z043
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
44 P5913Z044 FIXED SOCKET $34.75
45 P5913Z045 FIXED T-SOCKET $22.75
46 P5913Z046 HANDWHEEL $94.75
47 P5913Z047
Replaced By P1023009
HANDLE V1.12.95
N/A View Replacement
48 P5913Z048
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
49 P5913Z049 POINTER $3.00
50 P5913Z050
Replaced By PS18
PHLP HD SCR 10-24 X 1/4
N/A View Replacement
51 P5913Z051
Replaced By PSS11
SET SCREW 1/4-20 X 1/4
N/A View Replacement
52 P5913Z052 ***USE P5913Z053A*** $11.50
53 P5913Z053 ***USE P5913Z053A*** $24.75
53A P5913Z053A WORM SHAFT ASSEMBLY $251.25
54 P5913Z054 ***USE P5913Z053A*** $35.00
55 P5913Z055 THRUST BALL BEARING 15 X 32 X 12 $14.75
56 P5913Z056 ***USE P5913Z053A*** $26.75
58 P5913Z058 HANDWHEEL SHAFT $6.00
59 P5913Z059
*DISCD*HANDWHEEL-PLASTIC V1.11.98
Item is no longer available
N/A
59V2 P5913Z059V2
Replaced By P5912Z095
METAL HANDWHEEL
N/A View Replacement
60 P5913Z060 HANDLE $8.50
61 P5913Z061
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
62 P5913Z062
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
63 P5913Z063
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
64 P5913Z064
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
65 P5913Z065
Replaced By PB13
HEX BOLT 1/4-20 X 1-1/4
N/A View Replacement
66 P5913Z066
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
67 P5913Z067
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
68 P5913Z068 SPRING SHAFT 3/8 X 340 $9.00
69 P5913Z069 HELICAL SPRING 3.4 X 20.3 $16.00
70 P5913Z070
Replaced By PCAP03
CAP SCREW 5/16-18 X 1
N/A View Replacement
71 P5913Z071
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
72 P5913Z072 MOTOR PLATE $132.25
73 P5913Z073
Replaced By PB21
HEX BOLT 3/8-16 X 3/4
N/A View Replacement
74 P5913Z074
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement

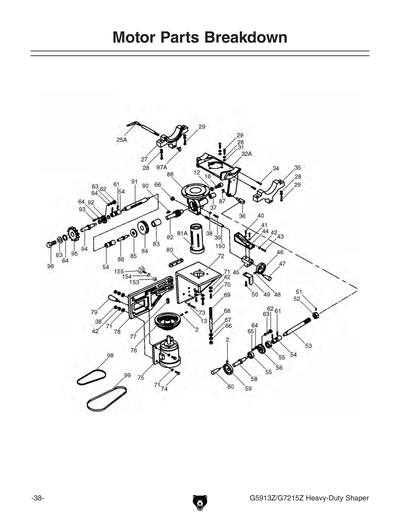

75 P5913Z075 MOTOR 5HP 220V 1-PH $589.75
75-1 P5913Z075-1 MOTOR FAN COVER $15.25
76 P5913Z076 MOTOR PULLEY $108.00
77 P5913Z077
Replaced By PK41M
KEY 8 X 8 X 40
N/A View Replacement
78 P5913Z078 MOTOR BASE $145.75
79 P5913Z079 KNOB $3.50
80 P5913Z080 KEY 10 X 20 X 120 $7.25
81 P5913Z081
*DISCD*QUILL 8-3/4" LONG V1.11.98
Item is no longer available
N/A
81-1 P5913Z081-1
*DISCD*QUILL ASSY V1
Item is no longer available
N/A
81A P5913Z081A QUILL 8-3/4" LONG V2.03.07 $350.50
81A-1 P5913Z081A-1 QUILL ASSY V2.03.07 $840.00
82 P5913Z082 GEAR SHAFT $51.75
83 P5913Z083 COLLAR $16.25
84 P5913Z084 GEAR $46.75
85 P5913Z085 GEAR FLAT WASHER $8.75
86 P5913Z086 LOCK SHAFT $11.00
87 P5913Z087
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
88 P5913Z088 SPINDLE BASE $302.50
89 P5913Z089
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
90 P5913Z090
Replaced By PK37M
KEY 4 X 4 X 16
N/A View Replacement
91 P5913Z091 LOCK BAR $48.50
92 P5913Z092 BASE GEAR $18.50
93 P5913Z093
Replaced By PB31
HEX BOLT 1/4-20 X 1
N/A View Replacement
94 P5913Z094 LOCK SCREW $11.00
95 P5913Z095 *DISCD*HANDWHEEL $15.25
96 P5913Z096
Replaced By PB02
HEX BOLT 1/4-20 X 5/8
N/A View Replacement
97 P5913Z097 THIN T-TYPE NUT 3/8"-16 V1 $9.75
97A P5913Z097A THICK T-TYPE NUT 3/8-16 V2.03.07 $4.00
98 P5913Z098
Replaced By PVA30
V-BELT A30
N/A View Replacement
99 P5913Z099
Replaced By PVA28
V-BELT A28
N/A View Replacement

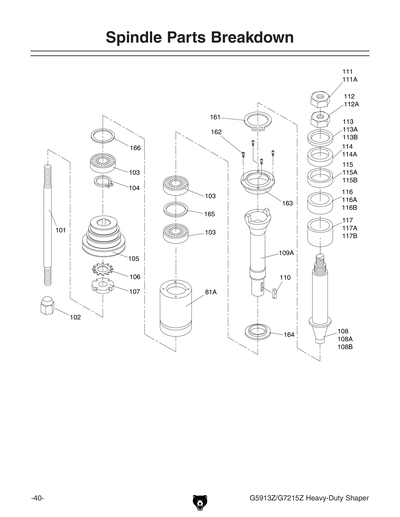

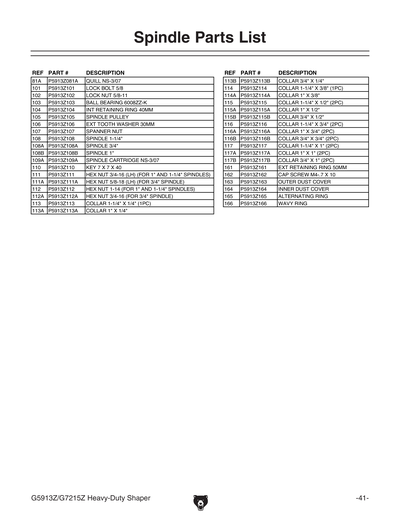

101 P5913Z101 DRAWBAR 5/8" $11.75
102 P5913Z102 LOCK NUT 5/8"-11 $9.50
103 P5913Z103
Replaced By P6008ZZ
BALL BEARING 6008ZZ
N/A View Replacement
104 P5913Z104
Replaced By PR23M
INT RETAINING RING 40MM
N/A View Replacement
105 P5913Z105
Replaced By P5913Z105A
SPINDLE PULLEY ASSEMBLY
N/A View Replacement
105A P5913Z105A SPINDLE PULLEY ASSEMBLY $398.50
106 P5913Z106
Replaced By P5913Z105A
SPINDLE PULLEY ASSEMBLY
N/A View Replacement
107 P5913Z107 SPANNER NUT $6.00
108 P5913Z108
Replaced By P5912Z036
SPINDLE 1-1/4
N/A View Replacement
108A P5913Z108A
Replaced By P5912Z036A
SPINDLE 3/4"
N/A View Replacement
108B P5913Z108B
Replaced By P5912Z036B
SPINDLE 1"
N/A View Replacement
109 P5913Z109
*DISCD*SPINDLE CARTRIDGE
Item is no longer available
N/A
109A P5913Z109A
Replaced By P5913Z105A
SPINDLE PULLEY ASSEMBLY
N/A View Replacement
109A-1 P5913Z109A-1 COMPLETE CARTRIDGE ASSEMBLY $299.25
110 P5913Z110
Replaced By PK55M
KEY 7 X 7 X 40
N/A View Replacement
111 P5913Z111
Replaced By PN03-1
HEX NUT 3/4-16 LH
N/A View Replacement
111A P5913Z111A
Replaced By PN09-1
HEX NUT 5/8-18 LH
N/A View Replacement
112 P5913Z112
Replaced By PN32
HEX NUT 1-14
N/A View Replacement
112A P5913Z112A
Replaced By PN03
HEX NUT 3/4-16
N/A View Replacement
113 P5913Z113
***USE P5912Z042***
Item is no longer available
N/A
113A P5913Z113A
Replaced By P5912Z042A
COLLAR 1" X 1/4"
N/A View Replacement
113B P5913Z113B
Replaced By P5912Z042B
COLLAR 3/4" X 1/4"
N/A View Replacement
114 P5913Z114
***USE P5912Z043***
Item is no longer available
N/A
114A P5913Z114A
Replaced By P5912Z043A
COLLAR 1" X 3/8"
N/A View Replacement
115 P5913Z115 COLLAR 1-1/4" X 1/2 2PC $29.25
115A P5913Z115A
Replaced By P5912Z044A
COLLAR 1" X 1/2"
N/A View Replacement
115B P5913Z115B
Replaced By P5912Z044B
COLLAR 3/4" X 1/2"
N/A View Replacement
116 P5913Z116
Replaced By P5912Z045
COLLAR 1-1/4" X 3/4" (2PC)
N/A View Replacement
116A P5913Z116A
Replaced By P5912Z045A
COLLAR 1" X 3/4" 2PC
N/A View Replacement
116B P5913Z116B
Replaced By P5912Z045B
COLLAR 3/4" X 3/4" 2PC
N/A View Replacement
117 P5913Z117
Replaced By P5912Z046
COLLAR 1-1/4" X 1" 2PC
N/A View Replacement
117A P5913Z117A
Replaced By P5912Z046A
COLLAR 1" X 1" 2PC
N/A View Replacement
117B P5913Z117B
Replaced By P5912Z046B
COLLAR 3/4" X 1" 2PC
N/A View Replacement

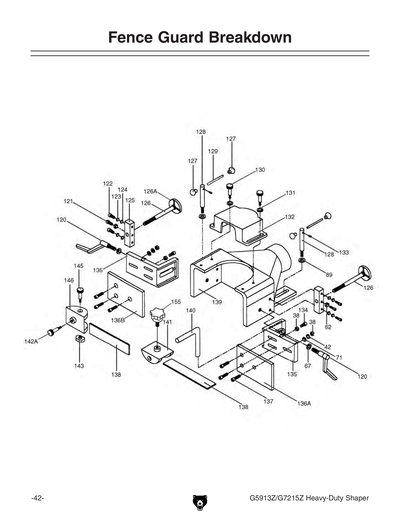

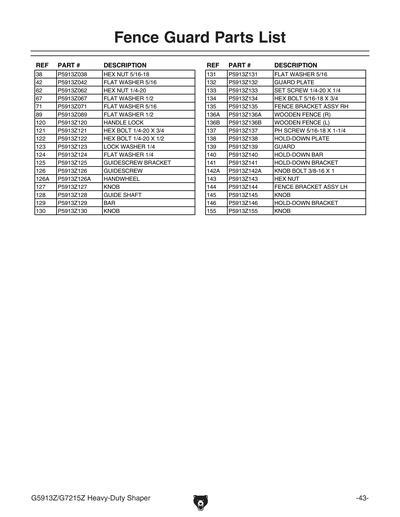

120 P5913Z120
*DISCD*BLK RATCHET LOCK HANDLE METAL V1
Item is no longer available
N/A
120V2 P5913Z120V2
Replaced By P5912Z105AV4
ADJ HANDLE 1/2" - 12
N/A View Replacement
121 P5913Z121
Replaced By PB05
HEX BOLT 1/4-20 X 3/4
N/A View Replacement
122 P5913Z122
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
123 P5913Z123
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
124 P5913Z124
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
125 P5913Z125 GUIDE SCREW BRACKET $9.25
126 P5913Z126 GUIDE SCREW $6.00
126A P5913Z126A HANDWHEEL $8.50
127 P5913Z127 KNOB $2.00
128 P5913Z128 GUIDE SHAFT $38.50
129 P5913Z129 BAR $6.00
130 P5913Z130 KNOB $14.50
131 P5913Z131
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
132 P5913Z132 GUARD PLATE $42.00
133 P5913Z133
Replaced By PSS11
SET SCREW 1/4-20 X 1/4
N/A View Replacement
134 P5913Z134
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
135 P5913Z135
***USE P5913Z144***
Item is no longer available
N/A
136 P5913Z136
Replaced By P5913Z018
MOTOR COVER
N/A View Replacement
136A P5913Z136A RIGHT WOODEN FENCE $18.50
136B P5913Z136B LEFT WOODEN FENCE $18.50
137 P5913Z137
Replaced By PS11
PHLP HD SCR 5/16-18 X 1-1/4
N/A View Replacement
138 P5913Z138
Replaced By P5912Z118
HOLD DOWN PLATE
N/A View Replacement
139 P5913Z139
Replaced By P5912Z119
GUARD/DUST HOOD
N/A View Replacement
140 P5913Z140
Replaced By P5912Z120
BAR
N/A View Replacement
141 P5913Z141
Replaced By P5912Z121
RETAINER L 5/8"
N/A View Replacement
142 P5913Z142
Replaced By P5912Z122
HANDLE LOCK V1.08.98
N/A View Replacement
142A P5913Z142A
Replaced By P5912Z167
KNOB BOLT 3/8-16 X 1
N/A View Replacement
143 P5913Z143
Replaced By P5912Z123
NUT 3/8
N/A View Replacement
144 P5913Z144 FENCE BRACKET ASSY LH $83.25
145 P5913Z145
Replaced By P5912Z125
KNOB
N/A View Replacement
146 P5913Z146
Replaced By P5912Z124
RETAINER S 1/2"
N/A View Replacement
147 P5913Z147 HINGE PIN $2.75
148 P5913Z148 FRONT STAND COVER $122.50
149 P5913Z149 COVER HANDLE $23.00
150 P5913Z150 GEAR SHAFT $56.00
150A P5913Z150A
Replaced By P5913Z156
HEX SPINDLE WRENCH
N/A View Replacement
151 P5913Z151
Replaced By PB41
HEX BOLT 1/2-12 X 1-1/2
N/A View Replacement
152 P5913Z152
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
153 P5913Z153
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
155 P5913Z155 KNOB $4.25
156 P5913Z156 HEX SPINDLE WRENCH $16.50
157 P5913Z157 WRENCH SPANNER 10-37MM $8.50
160 P5913Z160
Replaced By G8589
Name Plates - Large
N/A View Replacement
161 P5913Z161
Replaced By PR43M
EXT RETAINING RING 50MM
N/A View Replacement
162 P5913Z162
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
163 P5913Z163 OUTER DUST COVER $23.50
164 P5913Z164 INNER DUST COVER $20.50
165 P5913Z165 ALTERNATING RING $13.50
166 P5913Z166 WAVY RING $11.50

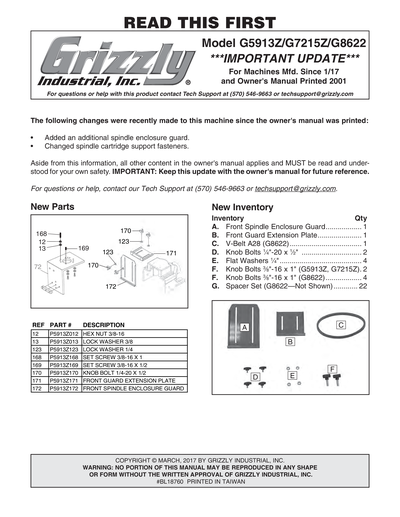

168 P5913Z168
Replaced By PSS53
SET SCREW 3/8-16 X 1
N/A View Replacement
169 P5913Z169
Replaced By PSS09
SET SCREW 3/8-16 X 1/2
N/A View Replacement
170 P5913Z170
Replaced By P5912Z168
KNOB BOLT 1/4-20 X 1/2
N/A View Replacement
171 P5913Z171
Replaced By P5912Z169
FRONT GUARD EXTENSION PLATE
N/A View Replacement
172 P5913Z172
Replaced By P5912Z170
FRONT SPINDLE ENCLOSURE GUARD
N/A View Replacement
173 P5913Z173 MITER GAUGE ASSEMBLY $85.50

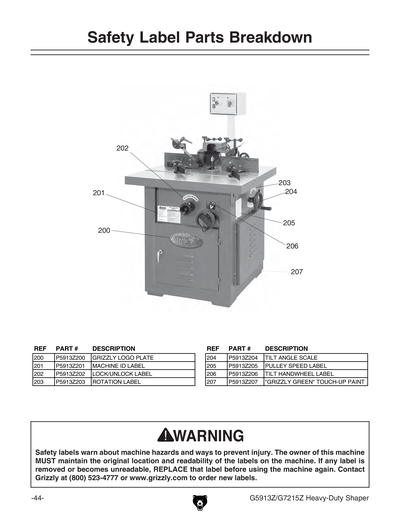

201 P5913Z201 MACHINE ID LABEL $9.50
202 P5913Z202 LOCK/UNLOCK LABEL $3.25
203 P5913Z203 ROTATION LABEL $2.00
204 P5913Z204 TILT ANGLE SCALE $6.00
205 P5913Z205 PULLEY SPEED LABEL $2.00
206 P5913Z206 TILT HANDWHEEL LABEL $23.00
207 P5913Z207
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
400 P5913Z400 WARNING LABEL $2.00
401 P5913Z401
Replaced By PLABEL-10
GRIZZLY NAMEPLATE 8 X 3.5"
N/A View Replacement
402 P5913Z402
Replaced By P86211002
PULLEY LABEL
N/A View Replacement
403 P5913Z403
*DISCD*STOP SWITCH
Item is no longer available
N/A
MANUAL P5913ZMANUAL
Replaced By P7215ZMANUAL
MANUAL FOR G7215Z 03/07
N/A View Replacement
PART P5913ZPART MISCELLANEOUS G5913Z PARTS $1.00
SAMPLE P5913ZSAMPLE
*DISCD*SAMPLE SPINDLES
Item is no longer available
N/A
