Parts for G7147 - 12" Bench Hand Brake

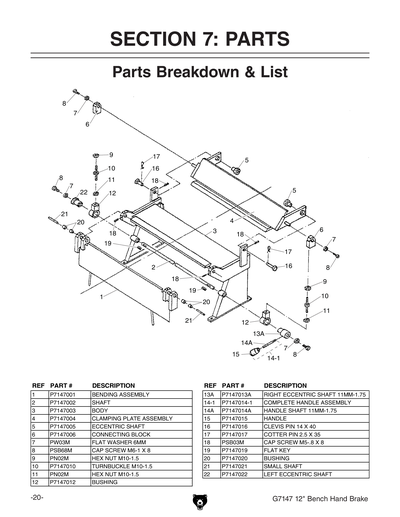

Part Diagram for G7147
Part Diagram for G7147

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BENDING ASSEMBLY
Item is no longer available
Price
N/A
2
SHAFT
Item is no longer available
Price
N/A
3
BODY
Item is no longer available
Price
N/A
4
CLAMPING PLATE ASSEMBLY
Item is no longer available
Price
N/A
5
ECCENTRIC SHAFT
Item is no longer available
Price
N/A
6
CONNECTING BLOCK
Item is no longer available
Price
N/A
7
FLAT WASHER 6MM
Price
N/A
8
CAP SCREW M6-1 X 8
Price
N/A
9
HEX NUT M10-1.5
Price
N/A
10
TURNBUCKLE M10-1.5
Item is no longer available
Price
N/A
11
HEX NUT M10-1.5
Price
N/A
12
BUSHING
Item is no longer available
Price
N/A
13
ECCENTRIC SHAFT RIGHT 10MM-1.5 V1.02.03
Price
$12.95
13A
ECCENTRIC SHAFT RIGHT 11MM-1.75 V2.01.06
Price
$25.90
14
SCREW ROD 10MM-1.5 V1.04.02
Price
$7.50
14-1
COMPLETE HANDLE ASSEMBLY
Price
$15.85
14A
HANDLE SHAFT 11MM-1.75 V2.01.06
Price
$13.55
15
Price
$3.75
16
Price
$3.75
17
COTTER PIN 2.5 X 35
Price
N/A
18
SET SCREW M5-.8 X 8
Price
N/A
19
FLAT KEY
Item is no longer available
Price
N/A
20
BUSHING
Item is no longer available
Price
N/A
21
SMALL SHAFT
Item is no longer available
Price
N/A
22
ECCENTRIC SHAFT LEFT
Item is no longer available
Price
N/A
MAN
MANUAL FOR G7147 07/08
Item is no longer available
Price
N/A
