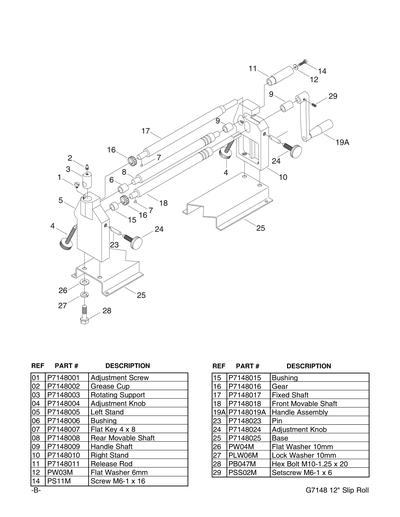

Parts for G7148 12" Slip Roll

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
ADJUSTMENT SCREW
2
GREASE CUP
Item is no longer available
Price
N/A
3
ROTATING SUPPORT
Item is no longer available
Price
N/A
4
ADJUSTMENT KNOB
5
STAND LEFT
Item is no longer available
Price
N/A
6
*DISCD*BUSHING
Item is no longer available
Price
N/A
7
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
8
REAR MOVABLE SHAFT
9
HANDLE SHAFT
Item is no longer available
Price
N/A
10
STAND RIGHT
Item is no longer available
Price
N/A
11
RELEASE ROD
12
Now: PW03M
FLAT WASHER 6MM
Price
N/A
14
CAP SCREW M6-1 X 16
Price
N/A
15
BUSHING
Item is no longer available
Price
N/A
16
*DISCD*GEAR 17T
Item is no longer available
Price
N/A
17
FIXED SHAFT
Item is no longer available
Price
N/A
18
FRONT MOVABLE SHAFT
19
HANDLE
19A
HANDLE ASSEMBLY
19A-1
HANDLE
23
PIN
Item is no longer available
Price
N/A
24
ADJUSTMENT KNOB
25
BASE
Item is no longer available
Price
N/A
26
Now: PW04M
FLAT WASHER 10MM
Price
N/A
27
LOCK WASHER 10MM
Price
N/A
28
Now: PB48M
HEX BOLT M10-1.25 X 20
Price
N/A
29
SET SCREW M6-1 X 6
Price
N/A
35
ADAPTER 5/8
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G7148 10/01
Item is no longer available
Price
N/A
