Parts for G7154 - Premium Milling Vise - 5"

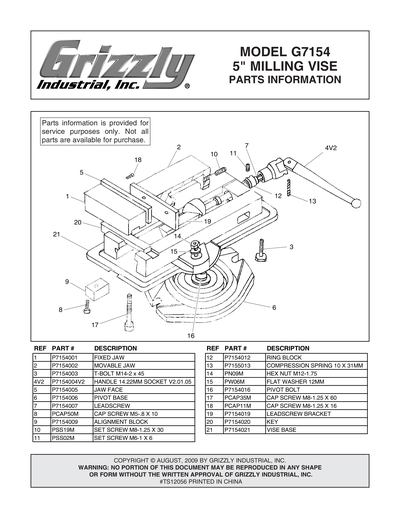

Part Diagram for G7154
Part Diagram for G7154

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
3
*DISCD*T-BOLT M14-2 X 45
Item is no longer available
Price
N/A
3V2
T-BOLT M12-1.75 X 50 V2.01.05
Price
$1.90
4
*DISCD*HANDLE 15.55MM SOCKET V1.08.98
Item is no longer available
Price
N/A
4V2
HANDLE 14.22MM SOCKET V2.01.05
Price
$28.75
5
*DISCD*JAW FACE
Item is no longer available
Price
N/A
6
Price
$29.15
7
Price
$24.70
8
CAP SCREW M5-.8 X 10
Price
N/A
9
Price
$2.60
10
SET SCREW M8-1.25 X 30
Price
N/A
11
SET SCREW M6-1 X 6
Price
N/A
12
Price
$2.60
13
SOLID PIN 35 X 8MM
Price
N/A
14
HEX NUT M12-1.75
Price
N/A
15
FLAT WASHER 12MM
Price
N/A
16
Price
$2.60
17
CAP SCREW M8-1.25 X 60
Price
N/A
18
CAP SCREW M8-1.25 X 16
Price
N/A
19
Price
$24.70
20
Price
$3.65
21
Price
$103.50
