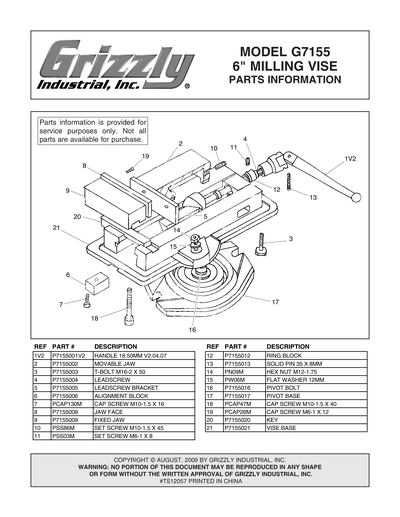

Parts for G7155 Premium Milling Vise - 6"

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*HANDLE 20.25MM V1.04.02
1A
*DISCD*HANDLE 20.25MM V1.04.02
Price
N/A
1V2
HANDLE 18.50MM V2.04.07
2
MOVABLE JAW
3
T-BOLT M16-2 X 50
4
LEADSCREW
5
LEADSCREW BRACKET
6
ALIGNMENT BLOCK
7
ALIGNMENT TAB SCREW M6-1
8
JAW FACE
9
FIXED JAW
10
SET SCREW M10-1.5 X 45
Price
N/A
11
SET SCREW M6-1 X 8
Price
N/A
12
RING BLOCK
13
SOLID PIN 35 X 8MM
14
Now: PN09M
HEX NUT M12-1.75
Price
N/A
15
Now: PW06M
FLAT WASHER 12MM
Price
N/A
16
PIVOT BOLT
17
PIVOT BASE
18
CAP SCREW M10-1.5 X 40
Price
N/A
19
CAP SCREW M6-1 X 12
Price
N/A
20
KEY 8 X 10 X 49
21
VISE BASE
