Parts for G7209 - 14" Table Saw Pro-Cabinet-Style 5 HP Single-Phase 220V

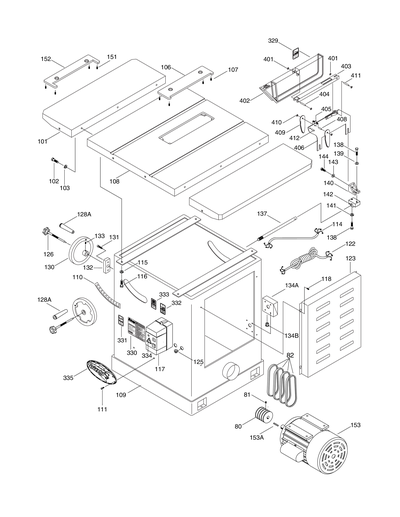

Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209
Part Diagram for G7209

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

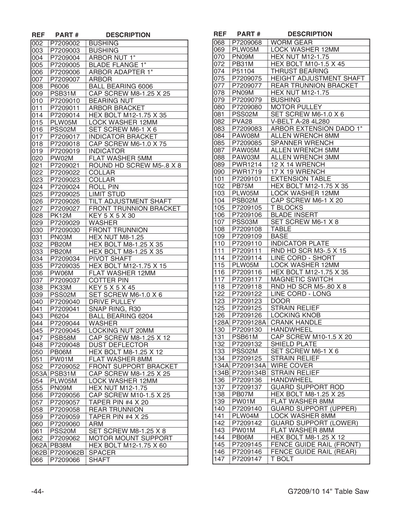

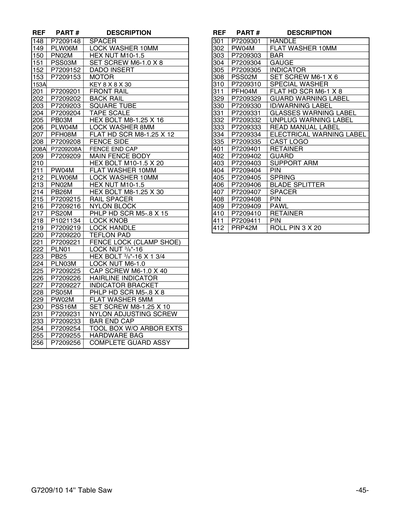

Ref #
Part #
Description
2
*DISCD*BUSHING
Price
$4.35
3
*DISCD*BUSHING
Price
$4.35
4
*DISCD*ARBOR NUT 1"-12
Price
N/A
5
*DISCD*BLADE FLANGE 1"
Price
N/A
6
*DISCD*ARBOR EXTENSION 1"ID BLADE
Price
N/A
7
*DISCD*ARBOR
Item is no longer available
Price
N/A
8
BALL BEARING 6006ZZ
Price
N/A
9
CAP SCREW M8-1.25 X 25
Price
N/A
10
*DISCD*BEARING NUT
Item is no longer available
Price
N/A
11
*DISCD*ARBOR BRACKET
Item is no longer available
Price
N/A
11A
*DISCD*ARBOR BRACKET ASSEMBLY
Item is no longer available
Price
N/A
14
HEX BOLT M12-1.75 X 35
Price
N/A
15
LOCK WASHER 12MM
Price
N/A
16
SET SCREW M6-1 X 6
Price
N/A
17
*DISCD*INDICATOR BRACKET
Price
$14.10
18
*DISCD*SOCKET HEAD BOLT M5-.8 x 75
Item is no longer available
Price
N/A
19
*DISCD*INDICATOR
Price
$1.49
20
FLAT WASHER 5MM
Price
N/A
21
PHLP HD SCR M5-.8 X 8
Price
N/A
22
*DISCD*COLLAR
Price
$4.35
23
*DISCD*COLLAR
Price
$4.35
24
ROLL PIN 5 X 36
Price
N/A
25
*DISCD*PIN BRASS
Item is no longer available
Price
N/A
26
*DISCD*TILT ADJUSTMENT SHAFT
Price
$11.80
27
*DISCD*FRONT TRUNNION BRACKET
Price
$113.00
28
KEY 5 X 5 X 30
Price
N/A
30
*DISCD*FRONT TRUNNION
Price
$73.05
31
HEX NUT M8-1.25
Price
N/A
32
HEX BOLT M8-1.25 X 35
Price
N/A
33
HEX BOLT M8-1.25 X 35
Price
N/A
38
KEY 5 X 5 X 45
Price
N/A
39
SET SCREW M6-1 X 6
Price
N/A
40
*DISCD*DRIVE PULLEY
Item is no longer available
Price
N/A
41
EXT RETAINING RING 30MM
Price
N/A
42
*DISCD*BEARING WASHER
Price
$1.49
43
BALL BEARING 6204ZZ
Price
N/A
44
*DISCD*WASHER AW04
Item is no longer available
Price
N/A
45
*DISCD*LOCK NUT 20MM AN04
Price
N/A
47
CAP SCREW M8-1.25 X 12
Price
N/A
48
*DISCD*DUST DEFLECTOR
Price
$10.35
50
HEX BOLT M8-1.25 X 12
Price
N/A
51
FLAT WASHER 8MM
Price
N/A
52
*DISCD*FRONT SUPPORT BRACKET
Price
$6.90
53A
CAP SCREW M8-1.25 X 25
Price
N/A
54
LOCK WASHER 12MM
Price
N/A
55
HEX NUT M12-1.75
Price
N/A
56
CAP SCREW M12-1.75 X 30
Price
N/A
57
*DISCD*ROLL PIN 8 X 36
Price
$1.49
58
*DISCD*REAR TRUNNION BRACKET
Price
$45.45
59
*DISCD*ROLL PIN 8 X 36
Price
N/A
60
*DISCD*ARM
Price
$72.45
61
SET SCREW M8-1.25 X 8
Price
N/A
62
*DISCD*MOTOR MOUNT SUPPORT
Price
$57.80
62A
HEX BOLT M12-1.75 X 60
Price
N/A
62B
*DISCD*SPACER
Price
$1.49
66
*DISCD*SHAFT
Item is no longer available
Price
N/A
68
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
69
LOCK WASHER 12MM
Price
N/A
70
HEX NUT M12-1.75
Price
N/A
72
HEX BOLT M10-1.5 X 40
Price
N/A
74
THRUST BEARING 2904
Price
N/A
75
*DISCD*HEIGHT ADJUSTMENT SHAFT
Price
$17.25
77
*DISCD*REAR TRUNNION BRACKET
Price
$40.00
78
HEX NUT M12-1.75
Price
N/A
80
*DISCD*MOTOR PULLEY
Price
$27.35
81
SET SCREW M6-1 X 6
Price
N/A
82
V-BELT A28
Price
N/A
83
*DISCD*ARBOR EXTENSION FOR DADO
Item is no longer available
Price
N/A
84
HEX WRENCH 8MM
Price
N/A
85
*DISCD*SPANNER WRENCH
Item is no longer available
Price
N/A
87
HEX WRENCH 5MM
Price
N/A
88
HEX WRENCH 3MM
Price
N/A
89
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
90
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
101
*DISCD*EXTENSION TABLE
Item is no longer available
Price
N/A
102
HEX BOLT M12-1.75 X 35
Price
N/A
103
LOCK WASHER 12MM
Price
N/A
106
*DISCD*BLADE INSERT
Item is no longer available
Price
N/A
107
SET SCREW M6-1 X 8
Price
N/A
108
*DISCD*TABLE
Price
$617.55
109
*DISCD*BASE
Item is no longer available
Price
N/A
110
*DISCD*INDICATOR PLATE
Item is no longer available
Price
N/A
111
PHLP HD SCR M3-.5 X 16
Price
N/A
114
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
115
LOCK WASHER 12MM
Price
N/A
116
HEX BOLT M12-1.75 X 35
Price
N/A
117
*DISCD*MAG SWITCH 5HP 220V 50/60HZ
Price
N/A
118
PHLP HD SCR M5-.8 X 8
Price
N/A
119
LOCK NUT M5-.8
Price
N/A
122
*DISCD*POWER CORD
Item is no longer available
Price
N/A
123
*DISCD*DOOR
Item is no longer available
Price
N/A
125
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
126
*DISCD*LOCK KNOB
Item is no longer available
Price
N/A
128
*DISCD*CRANK HANDLE
Price
N/A
128A
*DISCD*CRANK HANDLE
Price
N/A
130
*DISCD*TILTING HANDWHEEL
Item is no longer available
Price
N/A
131
CAP SCREW M10-1.5 X 20
Price
N/A
132
*DISCD*SHIELD PLATE
Price
$6.35
133
SET SCREW M6-1 X 6
Price
N/A
134
*DISCD*STRAIN RELIEF
Price
N/A
134A
*DISCD*WIRE COVER
Item is no longer available
Price
N/A
134B
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Price
$3.45
136
*DISCD*BLADE HEIGHT HANDWHEEL
Price
$25.05
137
*DISCD*GUARD SUPPORT ROD
Price
$5.20
138
HEX BOLT M8-1.25 X 25
Price
N/A
139
FLAT WASHER 8MM
Price
N/A
140
*DISCD*GUARD SUPPORT UPPER
Price
N/A
141
LOCK WASHER 8MM
Price
N/A
142
*DISCD*REAR SPREADER SUPPORT LOWER
Item is no longer available
Price
N/A
143
FLAT WASHER 8MM
Price
N/A
144
HEX BOLT M8-1.25 X 12
Price
N/A
151
SET SCREW M6-1 X 8
Price
N/A
152
*DISCD*DADO INSERT
Item is no longer available
Price
N/A
153
*DISCD*Motor 5hp 220v 1-ph
Item is no longer available
Price
N/A
153A
KEY 8 X 8 X 55
Price
N/A
201
*DISCD*FRONT RAIL V1.03.99
Price
$62.70
201A
COMPLETE RAIL ASSY BOX 3
Item is no longer available
Price
N/A
202
*DISCD*REAR RAIL V1.03.99
Item is no longer available
Price
N/A
203
*DISCD*GUIDE RAIL V1.03.99
Price
$53.20
204
*DISCD*TAPE SCALE 50" V1.04.98
Price
N/A
205
HEX BOLT M8-1.25 X 16
Price
N/A
206
LOCK WASHER 8MM
Price
N/A
207
HEX BOLT M8-1.25 X 16
Price
N/A
208
*DISCD*FENCE ASSY FIXED RAIL BOX 2 V2.01
Price
N/A
208A
*DISCD*FENCE ASSY FIXED RAIL BOX 2 V2.01
Price
N/A
209
*DISCD*FENCE BRACKET BODY V1.03.99
Price
$78.50
209A
*DISCD*FENCE ASSY FIXED RAIL BOX 2 V2.01
Price
N/A
209B
*DISCD*FENCE ASSY FIXED RAIL BOX 2 V2.01
Price
N/A
209V2
*DISCD*FENCE ASSY FIXED RAIL BOX 2 V2.01
Item is no longer available
Price
N/A
210
HEX BOLT M10-1.5 X 20
Price
N/A
211
FLAT WASHER 10MM
Price
N/A
212
LOCK WASHER 10MM
Price
N/A
213
HEX NUT M10-1.5
Price
N/A
214
HEX BOLT M8-1.25 X 30
Price
N/A
215
*DISCD*RAIL SPACER 350ID 0.541T V1.04.98
Price
N/A
216
*DISCD*NYLON BLOCK V1.04.98
Price
N/A
217
PHLP HD SCR M5-.8 X 15
Price
N/A
218
*DISCD*LOCK KNOB V1.03.99
Price
$1.49
219
*DISCD*LOCK HANDLE V1.04.98
Price
N/A
220
*DISCD*TEFLON PAD V1.04.98
Price
N/A
221
*DISCD*FENCE LOCK V1.04.98
Price
N/A
222
LOCK NUT 3/8-16
Price
N/A
223
P7209223
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
224
LOCK NUT M6-1
Price
N/A
225
HEX BOLT M6-1 X 45
Price
N/A
226
*DISCD*LENSE V1.03.99
Item is no longer available
Price
N/A
227
*DISCD*LENSE BRACKET V1.03.99
Item is no longer available
Price
N/A
228
PHLP HD SCR M5-.8 X 8
Price
N/A
229
FLAT WASHER 5MM
Price
N/A
230
SET SCREW M8-1.25 X 10
Price
N/A
231
*DISCD*NYLON ADJ SCR M12-1.75 X 12 V1.04
Price
N/A
233
*DISCD*TUBE END CAP V1.08.03
Price
N/A
256
*DISCD*COMPLETE GUARD ASSY
Price
N/A
301
*DISCD*HANDLE
Price
N/A
302
FLAT WASHER 10MM
Price
N/A
303
*DISCD*BAR 23-5/8"
Item is no longer available
Price
N/A
304
*DISCD*GAUGE
Item is no longer available
Price
N/A
306
*DISCD*INDICATOR
Item is no longer available
Price
N/A
308
SET SCREW M6-1 X 6
Price
N/A
310
*DISCD*ROLLER GUIDE
Price
$1.49
311
FLAT HD SCR M6-1 X 8
Price
N/A
329
GUARD WARNING LABEL
Price
$4.25
330
ID/WARNING LABEL
Price
$16.40
331
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
332
UNPLUG 220V/BLADES 2W X 3.3H
Price
N/A
333
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
334
ELECTRICITY 1.4W X 1.2H
Price
N/A
335
Nameplate - Large
Price
N/A
401
RETAINER 7/16
Price
N/A
402
*DISCD*CLEAR BLADE GUARD
Price
N/A
403
*DISCD*GUARD SUPPORT
Item is no longer available
Price
N/A
404
*DISCD*STEEL PIN 6 X 44 MM
Price
N/A
405
*DISCD*SPRING
Item is no longer available
Price
N/A
406
*DISCD*BLADE SPLITTER
Item is no longer available
Price
N/A
407
*DISCD*SPACER
Price
N/A
408
*DISCD*PIN
Item is no longer available
Price
N/A
409
*DISCD*ANTI KICKBACK PAWL
Item is no longer available
Price
N/A
410
*DISCD*SNAP RING
Item is no longer available
Price
N/A
411
*DISCD*PIN
Price
$1.49
412
ROLL PIN 3 X 20
Price
N/A
500
*DISCD*COMPLETE FENCE ASSY
Item is no longer available
Price
N/A
501
FENCE LOCKING TAB
Price
N/A
502
KNOB 3/8-16, D1-9/16, BALL
Price
N/A
503
BEARING PAD
Price
N/A
504
LOCKING LEVER
Price
N/A
507
FRONT RAIL TUBE
Price
N/A
508
FENCE BODY
Price
N/A
508A
FENCE FACING
Price
N/A
510
REAR RAIL
Price
N/A
510A
FRONT RAIL SUPPORT
Price
N/A
511
SCALE
Price
N/A
512A
CLEAR INDICATOR
Price
N/A
514
ADJUSTABLE FOOT
Price
N/A
516
CAP SCREW 1/4-20 X 1/2
Price
N/A
517
P7209517
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
518
CAP SCREW 3/8-16 X 1
Price
N/A
519
P7209519
Now: PN06
HEX NUT 1/2-12
Price
N/A
520
P7209520
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
522
P7209522
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
523
SET SCREW 3/8-16 X 3/8
Price
N/A
526
FLAT HD SCR 10-24 X 3/4
Price
N/A
527
LOCK NUT 1/4-20
Price
N/A
530
P7209530
Now: PW03
FLAT WASHER #10
Price
N/A
531
P7209531
Now: PW06
FLAT WASHER 1/4
Price
N/A
532
P7209532
Now: PW02
FLAT WASHER 3/8
Price
N/A
533
P7209533
Now: PW06
FLAT WASHER 1/4
Price
N/A
534
P7209534
Now: PN05
HEX NUT 1/4-20
Price
N/A
535
P7209535
Now: PB65
HEX BOLT 3/8-16 X 5/8
Price
N/A
536
P7209536
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
544
MAGNET
Price
N/A
545
P7209545
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
546
P7209546
Now: PW02
FLAT WASHER 3/8
Price
N/A
547
P7209547
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
548
WARNING LABEL
Price
N/A
549
*DISCD*BLADE GUARD ASSY
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G7209 10/01
Price
$14.65
