Parts for G7213Z - 24" 7-1/2 HP 3-Phase Planer

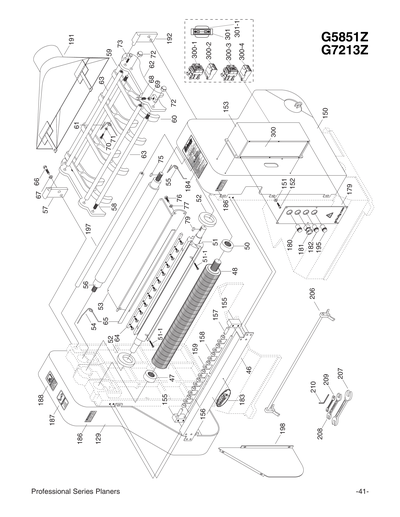

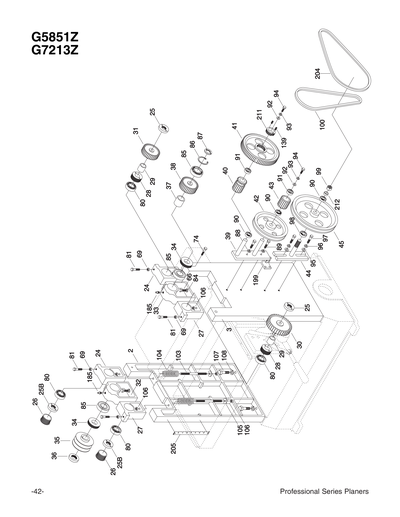

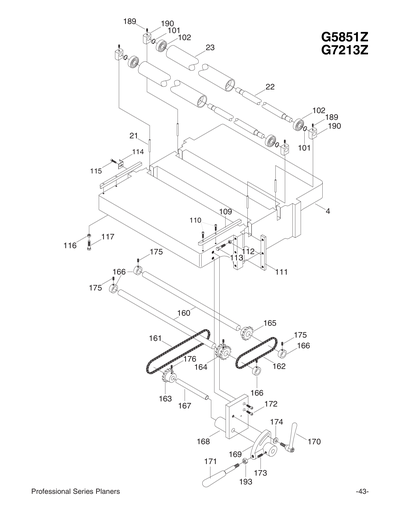

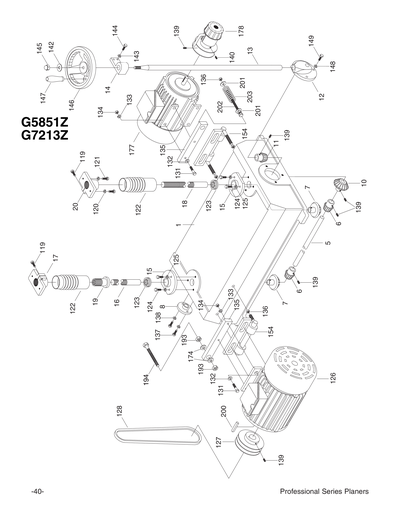

Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z
Part Diagram for G7213Z

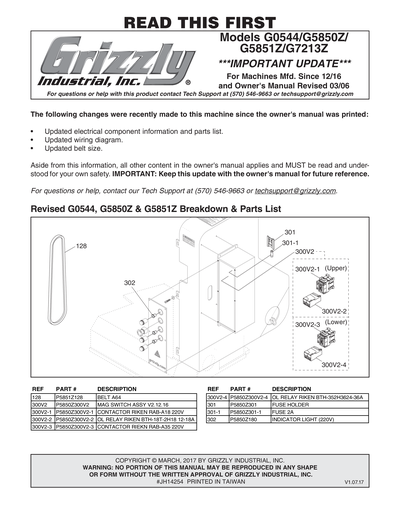

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

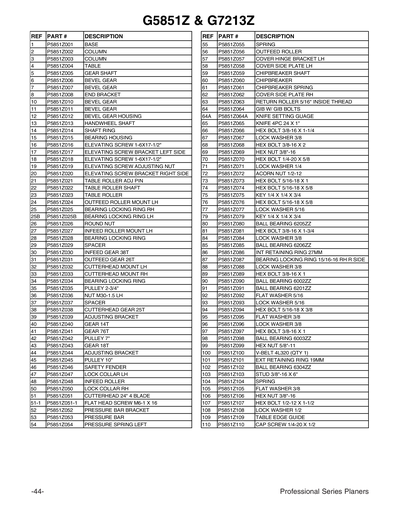

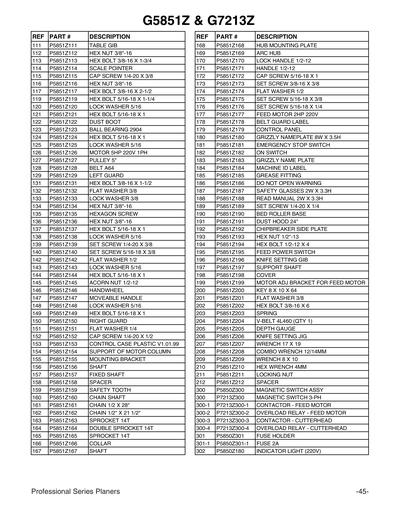

Ref #
Part #
Description
1
BASE
Price
N/A
2
LEFT COLUMN
Price
N/A
3
RIGHT COLUMN
Price
N/A
4
TABLE
Price
N/A
5
GEAR SHAFT
Price
N/A
6
BEVEL GEAR 14T
Price
N/A
7
BEVEL GEAR 24T
Price
N/A
8
END BRACKET
Price
N/A
10
BEVEL GEAR 24T
Price
N/A
11
BEVEL GEAR 13T
Price
N/A
12
BEVEL GEAR HOUSING
Price
N/A
13
HANDWHEEL SHAFT
Price
N/A
14
SHAFT RING
Price
N/A
15
BEARING HOUSING
Price
N/A
16
ELEVATION SCREW 1-6 X 17-1/2" LH
Price
N/A
17
ELEVATION SCREW BRACKET LH
Price
N/A
18
ELEVATION SCREW 1-6 X 17-1/2" LH
Price
N/A
19
ELEVATION ADJ SCR M36-2.0 RH
Price
N/A
20
ELEVATION SCR BRACKET RH
Price
N/A
21
TABLE ROLLER ADJ PIN
Price
N/A
22
TABLE ROLLER SHAFT
Price
N/A
23
TABLE ROLLER
Price
N/A
24
OUTFEED ROLLER MOUNT (R)
Price
N/A
25
BEARING LOCKING RING 15/16-16 RH R SIDE
Price
N/A
25B
BEARING LOCKING RING 15/16-16 LH L SIDE
Price
N/A
26
THREADED CAP
Price
N/A
27
INFEED ROLLER MOUNT (R)
Price
N/A
28
SPANNER NUT
Price
N/A
29
SPACER
Price
N/A
30
INFEED GEAR 38T
Price
N/A
31
OUTFEED GEAR 26T
Price
N/A
32
CUTTERHEAD MOUNT LH
Price
N/A
33
CUTTERHEAD MOUNT RH
Price
N/A
34
SPANNER NUT
Price
N/A
35
PULLEY 3-3/4" A-TYPE
Price
N/A
36
SPANNER NUT M30-1.5 LH
Price
N/A
37
SPACER
Price
N/A
38
CUTTERHEAD GEAR 25T
Price
N/A
39
ADJUSTING BRACKET
Price
N/A
40
GEAR 14T
Price
N/A
41
GEAR 76T
Price
N/A
42
PULLEY 7"
Price
N/A
43
GEAR 18T
Price
N/A
44
ADJUSTING BRACKET
Price
N/A
45
PULLEY 10"
Price
N/A
46
SAFETY FENDER
Price
N/A
47
LOCK COLLAR LH
Price
N/A
48
INFEED ROLLER
Price
N/A
50
LOCK COLLAR RH
Price
N/A
51
CUTTERHEAD 24" 4 BLADE
Price
N/A
51-1
FLAT HD SCR M6-1 X 16
Price
N/A
52
PRESSURE BAR BRACKET
Price
N/A
53
PRESSURE BAR
Price
N/A
54
LEFT PRESSURE SPRING
Price
N/A
55
RIGHT PRESSURE SPRING
Price
N/A
56
OUTFEED ROLLER
Price
N/A
57
LEFT COVER HINGE BRACKET
Price
N/A
58
LEFT COVER SIDE PLATE
Price
N/A
59
CHIPBREAKER SHAFT
Price
N/A
60
CHIPBREAKER
Price
N/A
61
CHIPBREAKER SPRING
Price
N/A
62
COVER SIDE PLATE RH
Price
N/A
63
RETURN ROLLER 5/16" INSIDE THREAD
Price
N/A
64
GIB W/ GIB BOLTS
Price
$165.45
65
KNIFE 4PC 24 X 1"
Price
N/A
66
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
67
LOCK WASHER 3/8
Price
N/A
68
HEX BOLT 3/8-16 X 2
Price
N/A
69
HEX NUT 3/8-16
Price
N/A
70
HEX BOLT 1/4-20 X 5/8
Price
N/A
71
LOCK WASHER 1/4
Price
N/A
72
ACORN NUT 1/2-12
Price
N/A
73
HEX BOLT 5/16-18 X 1
Price
N/A
74
HEX BOLT 5/16-18 X 5/8
Price
N/A
75
KEY 1/4 X 1/4 X 3/4
Price
N/A
76
HEX BOLT 5/16-18 X 5/8
Price
N/A
77
LOCK WASHER 5/16
Price
N/A
79
KEY 1/4 X 1/4 X 3/4
Price
N/A
80
BALL BEARING 6205ZZ
Price
N/A
81
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
84
LOCK WASHER 3/8
Price
N/A
85
BALL BEARING 6206RS
Price
N/A
86
INT RETAINING RING 27MM
Price
N/A
87
SPANNER NUT
Price
N/A
88
LOCK WASHER 3/8
Price
N/A
89
HEX BOLT 3/8-16 X 1
Price
N/A
90
BALL BEARING 6002ZZ
Price
N/A
91
BALL BEARING 6201ZZ
Price
N/A
92
FLAT WASHER 5/16
Price
N/A
93
LOCK WASHER 5/16
Price
N/A
94
HEX BOLT 5/16-18 X 3/8
Price
N/A
95
FLAT WASHER 3/8
Price
N/A
96
LOCK WASHER 3/8
Price
N/A
97
HEX BOLT 3/8-16 X 1
Price
N/A
98
Bearing - 35mm x 17mm
Price
N/A
99
HEX NUT 5/8-11
Price
N/A
100
V-BELT A32
Price
N/A
101
EXT RETAINING RING 19MM
Price
N/A
102
BALL BEARING 6304ZZ
Price
N/A
103
STUD-UDE 3/8-16 X 6-3/16 1-1/8RH/1-7/8RH
Price
N/A
104
COMPRESSION SPRING
Price
N/A
105
FLAT WASHER 3/8
Price
N/A
106
HEX NUT 3/8-16
Price
N/A
107
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
108
LOCK WASHER 1/2
Price
N/A
109
TABLE EDGE GUIDE
Price
N/A
110
CAP SCREW 1/4-20 X 1/2
Price
N/A
111
TABLE GIB
Price
N/A
112
HEX NUT 3/8-16
Price
N/A
113
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
114
SCALE POINTER
Price
N/A
115
CAP SCREW 1/4-20 X 3/8
Price
N/A
116
HEX NUT 3/8-16
Price
N/A
117
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
119
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
120
LOCK WASHER 5/16
Price
N/A
121
HEX BOLT 5/16-18 X 1
Price
N/A
122
DUST BOOT
Price
N/A
123
THRUST BEARING 2904
Price
N/A
124
HEX BOLT 5/16-18 X 1
Price
N/A
125
LOCK WASHER 5/16
Price
N/A
126
MOTOR 7.5HP 220V/440V 3-PH
Price
N/A
126-1
MOTOR FAN COVER
Price
$37.75
126-2
MOTOR FAN
Price
$19.10
126-3
MOTOR JUNCTION BOX
Price
$22.70
126-4
BALL BEARING 6205-2RS
Price
N/A
126-5
BALL BEARING 6204-2RS
Price
N/A
127
PULLEY 5"
Price
N/A
128
V-BELT A63
Price
N/A
129
LEFT GUARD
Price
N/A
131
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
132
FLAT WASHER 3/8
Price
N/A
133
LOCK WASHER 3/8
Price
N/A
134
HEX NUT 3/8-16
Price
N/A
135
MOTOR ADJ BRACKET
Price
N/A
136
HEX NUT 3/8-16
Price
N/A
137
HEX BOLT 5/16-18 X 1
Price
N/A
138
LOCK WASHER 5/16
Price
N/A
139
SET SCREW 1/4-20 X 3/8
Price
N/A
140
SET SCREW 5/16-18 X 3/8
Price
N/A
142
FLAT WASHER 1/2
Price
N/A
143
LOCK WASHER 5/16
Price
N/A
144
HEX BOLT 5/16-18 X 1
Price
N/A
145
ACORN NUT 1/2-12
Price
N/A
146
HANDWHEEL
Price
N/A
147
HANDLE
Price
N/A
148
LOCK WASHER 5/16
Price
N/A
149
HEX BOLT 5/16-18 X 1
Price
N/A
150
RIGHT GUARD
Price
N/A
151
FLAT WASHER 1/4
Price
N/A
152
CAP SCREW 1/4-20 X 1/2
Price
N/A
153
CONTROL CASE METAL V2.05.07
Price
N/A
154
MOTOR SUPPORT
Price
N/A
155
MOUNTING BRACKET LH/RH
Price
N/A
156
SHAFT
Price
N/A
157
FIXED SHAFT
Price
N/A
158
SPACER
Price
N/A
159
ANTI KICKBACK TOOTH
Price
$2.75
160
CHAIN SHAFT
Price
$27.80
161
CHAIN 21-1/2" X 28
Price
$29.00
162
CHAIN 1/2" X 2-1/2"
Price
$33.85
163
SPROCKET 14T
Price
$48.95
164
DOUBLE SPROCKET 14T
Price
$65.25
165
SPROCKET 14T
Price
$48.95
166
LOCK COLLAR
Price
$19.10
167
SHAFT
Price
$22.70
168
HUB MOUNTING PLATE
Price
$162.45
169
HUB
Price
$81.55
170
LOCK HANDLE 1/2-12
Price
N/A
171
HANDLE ASSEMBLY 1/2-12
Price
N/A
172
CAP SCREW 5/16-18 X 1
Price
N/A
173
SET SCREW 3/8-16 X 3/8
Price
N/A
174
FLAT WASHER 1/2
Price
N/A
175
SET SCREW 5/16-18 X 3/8
Price
N/A
176
SET SCREW 5/16-18 X 1/4
Price
N/A
177
FEED MOTOR 2HP 220V/440V 3-PH
Price
$274.75
177-1
MOTOR FAN COVER
Price
$40.20
177-2
MOTOR FAN
Price
$19.10
177-3
MOTOR JUNCTION BOX
Price
$22.70
177-4
BALL BEARING 6207-2RS
Price
N/A
177-5
BALL BEARING 6204-2RS
Price
N/A
178
VARIABLE SPEED CONTROLLER V2.10.09
Price
N/A
178V2
VARIABLE SPEED CONTROLLER V2.10.09
Price
N/A
179
CONTROL PANEL
Price
N/A
180
POWER INDICATOR LIGHT 22MM WHT
Price
N/A
181
E-STOP BUTTON 250V 10A
Price
N/A
182
CUTTERHEAD MOTOR ON BUTTON
Price
N/A
182A
LIGHT BULB 440V 3PC
Price
$2.20
183
Nameplate - Small
Price
N/A
184
MACHINE ID LABEL
Price
$16.40
185
GREASE FITTING 1/8 STRAIGHT
Price
N/A
186
DO NOT OPEN WARNING
Price
N/A
187
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
188
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
189
SET SCREW 1/4-20 X 1/4
Price
N/A
190
BED ROLLER BASE
Price
N/A
191
DUST HOOD
Price
N/A
192
LEFT COVER HINGE BRACKET
Price
N/A
193
HEX NUT 1/2-12
Price
N/A
194
HEX BOLT 1/2-12 X 4
Price
N/A
195
CUTTERHEAD MOTOR ON BUTTON
Price
N/A
197
SUPPORT SHAFT
Price
N/A
198
COVER
Price
N/A
199
MOTOR ADJ BRACKET
Price
N/A
200
KEY 8 X 10 X 64
Price
N/A
201
FLAT WASHER 3/8
Price
N/A
202
HEX BOLT 3/8-16 X 6
Price
N/A
203
COMPRESSION SPRING
Price
N/A
204
V-BELT A46
Price
N/A
205
DEPTH GAUGE
Price
N/A
206
KNIFE SETTING JIG
Price
N/A
207
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
208
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
209
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
210
HEX WRENCH 4MM
Price
N/A
211
GEAR 14T
Price
N/A
212
SPACER
Price
$1.60
213
SET SCREW 1/4-20 X 3/8
Price
N/A
214
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
215
FLAT WASHER 1/2
Price
N/A
216
HEX NUT 1/2-12
Price
N/A

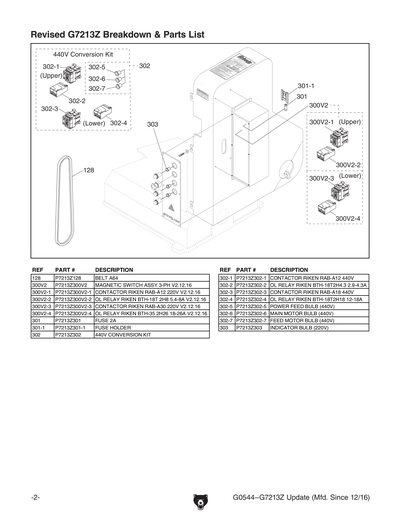

300
MAGNETIC SWITCH 3-PH V1
Price
$186.00
300-1
CONTACTOR - FEED MOTOR V1
Price
$167.35
300-2
OVERLOAD RELAY - FEED MOTOR V1
Price
$130.10
300-3
CONTACTOR - CUTTERHEAD V1
Price
$154.00
300-4
OVERLOAD RELAY - CUTTERHEAD V1
Price
$137.70
300A
CONTACTOR 220V 25T FOR 7.5HP MOTOR
Price
$114.15
300B
THERMAL RELAY BTH25 22A FOR 7.5 HP 220V
Price
$46.55
300C
CONTACTOR RIKEN FOR MOTOR 2HP 220V 12T
Price
$29.65
300D
THERMAL RELAY RIKEN FOR 2HP MOTOR 220V
Price
$26.60
300V2
MAGNETIC SWITCH ASSY 3-PH V2.12.16
Price
$474.00
300V2-1
CONTACTOR RIKEN RAB-A12 220V V2.12.16
Price
$112.30
300V2-2
OL RELAY RIKEN BTH-18T 2H8 5.4-8A
Price
$112.30
300V2-3
CONTACTOR RIKEN RAB-A30 220V V2.12.16
Price
$204.70
300V2-4
OL RELAY RIKEN BTH-35 2H26 18-26A V2.16
Price
$132.25
301
FUSE 2A
Price
$2.45
301-1
FUSE HOLDER
Price
$10.90
302
440V CONVERSION KIT
Price
$160.60
302-1
CONTACTOR RIKEN RAB-A12 440V V2.12.16
Price
$112.30
302-2
OL RELAY RIKEN BTH-18T2H4.3 2.9-4.3A
Price
$104.50
302-3
CONTACTOR RIKEN RAB-A18 440V V2.12.16
Price
$154.00
302-4
OL RELAY RIKEN BTH-18T2H18 12-18A
Price
$130.65
302-5
POWER INDICATOR BULB (440V)
Price
$17.55
302-6
MAIN MOTOR BULB (440V)
Price
$22.70
302-7
FEED MOTOR BULB (440V)
Price
$26.35
302A
CONTACTOR 440V RAB18T10 FOR MTR 7.5HP
Price
$154.00
302B
THERMAL RELAY 440V BTH18T2H18 15A RIKEN
Price
$104.50
302C
CONTACTOR 440V RAB12T10 FOR FEED MTR
Price
$102.65
302D
THERMAL RELAY 440V BTH18T2H4.3 3.6A
Price
$34.80
303
INDICATOR BULB (220V)
Price
$18.05
403
SPEED CHANGE LABEL
Price
N/A
MANUAL
MANUAL FOR G5850Z 03/06
Price
N/A
