Parts for G7215Z 7-1/2 HP 3-Phase Tilting Spindle Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

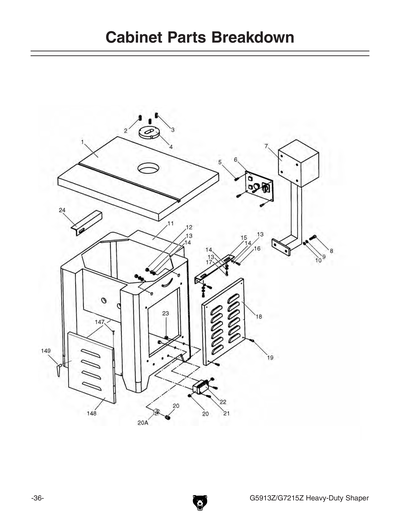

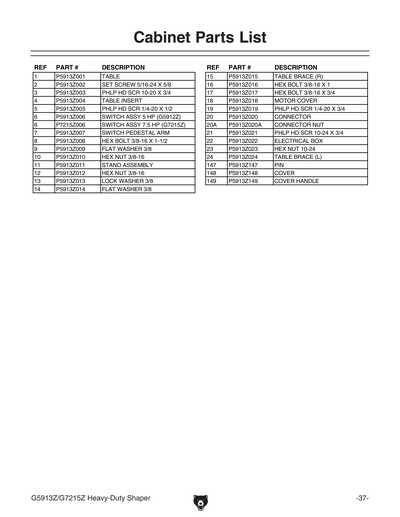

1
TABLE
Price
N/A
2
Now: PSS23
SET SCREW 5/16-24 X 5/8
Price
N/A
3
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
4
TABLE INSERT
Price
N/A
5
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
6
***USE P7214Z022V2***
Price
N/A
6A
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6B
SWITCH 7.5HP 3PH
6C
***USE P7214Z022V2***
Price
N/A
6C-1
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
6C-2
ON SWITCH ROUND V2.03.06
Price
N/A
6C-3
OFF SWITCH ROUND V2.03.06
Price
N/A
6C-4
F/O/R SWITCH KEDU ZH-HC-433-BY V2.03.06
Price
N/A
6C-5
RED AND GREEN 220V LIGHT BULB 2PC
Price
N/A
6C-6
CONTACTOR
Price
N/A
6C-7
OL RELAY
Price
N/A
7
SWITCH PEDESTAL ARM
Price
N/A
7-1
SWITCH
Item is no longer available
Price
N/A
8
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
9
Now: PW02
FLAT WASHER 3/8
Price
N/A
10
Now: PN08
HEX NUT 3/8-16
Price
N/A
11
STAND ASSEMBLY
Price
N/A
12
Now: PN08
HEX NUT 3/8-16
Price
N/A
13
Now: PLW04
LOCK WASHER 3/8
Price
N/A
14
Now: PW02
FLAT WASHER 3/8
Price
N/A
15
RIGHT TABLE BRACE
Price
N/A
16
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
17
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
18
MOTOR COVER
Price
N/A
19
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
20
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
N/A
20A
STRAIN RELIEF 5/8" TYPE-10 ST
Price
N/A
21
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
22
ELECTRICAL BOX
Price
N/A
23
Now: PN07
HEX NUT 10-24
Price
N/A
24
LEFT TABLE BRACE
Price
N/A
25
*DISCD*LOCK HANDLE V1.11.98
Price
N/A
25A
HANDLE LOCK W/SHAFT V2.03.07
Price
N/A

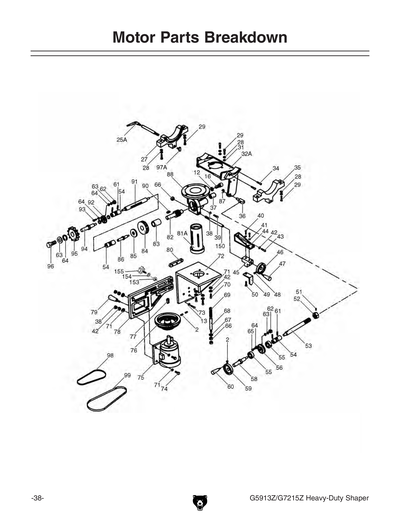

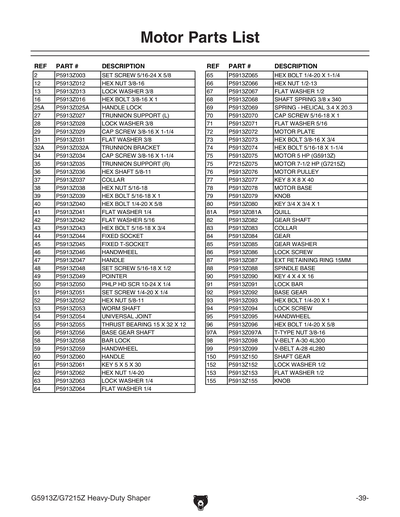

27
LEFT TRUNNION SUPPORT
Price
N/A
28
Now: PLW04
LOCK WASHER 3/8
Price
N/A
29
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
31
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
32A
TRUNNION BRACKET V2.03.07
Price
N/A
33
*DISCD*TRUNNION SUPPORT BRACKET V1.11.07
Price
N/A
34
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
35
RIGHT TRUNNION SUPPORT
Price
N/A
36
Now: PN04
HEX NUT 5/8-11
Price
N/A
37
COLLAR
Price
N/A
38
Now: PN02
HEX NUT 5/16-18
Price
N/A
39
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
40
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
41
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
44
FIXED SOCKET
Price
N/A
45
FIXED T-SOCKET
Price
N/A
46
METAL HANDWHEEL
Price
N/A
47
HANDLE V1.12.95
Price
N/A
48
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
49
POINTER
Price
N/A
50
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
51
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
52
WORM SHAFT ASSEMBLY
Price
N/A
53
WORM SHAFT ASSEMBLY
Price
N/A
54
WORM SHAFT ASSEMBLY
Price
N/A
55
THRUST BALL BEARING 15 X 32 X 12
Price
N/A
56
WORM SHAFT ASSEMBLY
Price
N/A
58
HANDWHEEL SHAFT
Price
N/A
59
METAL HANDWHEEL
Price
N/A
60
HANDLE
Price
N/A
61
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
62
Now: PN05
HEX NUT 1/4-20
Price
N/A
63
Now: PLW02
LOCK WASHER 1/4
Price
N/A
64
Now: PW06
FLAT WASHER 1/4
Price
N/A
65
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
66
Now: PN06
HEX NUT 1/2-12
Price
N/A
67
Now: PW01
FLAT WASHER 1/2
Price
N/A
68
SPRING SHAFT 3/8 X 340
Price
N/A
69
HELICAL SPRING 3.4 X 20.3
Price
N/A
70
CAP SCREW 5/16-18 X 1
Price
N/A
71
Now: PW07
FLAT WASHER 5/16
Price
N/A
72
MOTOR PLATE
Price
N/A
73
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
74
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
75
MOTOR 7-1/2 HP 3PH
Item is no longer available
Price
N/A
75A
MOTOR 5HP 220V 1-PH
Price
N/A
75B
MOTOR 7.5HP 220V/440V 3-PH
75B-1
MOTOR FAN COVER
Price
N/A
75B-2
MOTOR FAN
Price
N/A
75B-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
75B-4
BALL BEARING 6204ZZ
Price
N/A
75B-5
BALL BEARING 6206ZZ
Price
N/A
76
MOTOR PULLEY
Price
N/A
77
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
78
MOTOR BASE
Price
N/A
79
KNOB
Price
N/A
80
KEY 10 X 20 X 120
Price
N/A
81
*DISCD*QUILL 8-3/4" LONG V1.11.98
Price
N/A
81A
QUILL 8-3/4" LONG V2.03.07
Price
N/A
82
SHAFT GEAR
Price
N/A
83
COLLAR
Price
N/A
84
GEAR
Price
N/A
85
GEAR FLAT WASHER
Price
N/A
86
WORM SHAFT ASSEMBLY
Price
N/A
87
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
88
SPINDLE BASE
Price
N/A
89
Now: PW01
FLAT WASHER 1/2
Price
N/A
90
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
91
LOCK BAR
Price
N/A
92
BASE GEAR
Price
N/A
93
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
94
LOCK SCREW
Price
N/A
95
METAL HANDWHEEL
Price
N/A
96
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
97
THIN T-TYPE NUT 3/8"-16 V1
Price
N/A
97A
THICK T-TYPE NUT 3/8-16 V2.03.07
Price
N/A
98
Now: PVA30
V-BELT A30
Price
N/A
99
Now: PVA28
V-BELT A28
Price
N/A

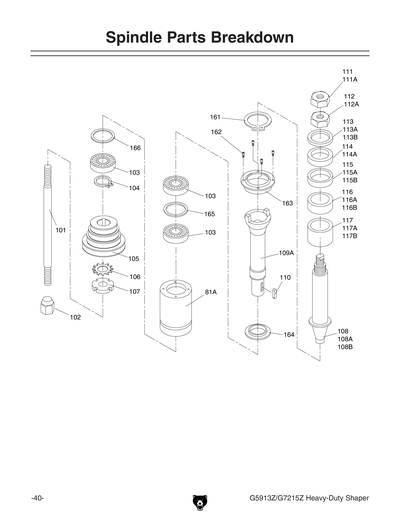

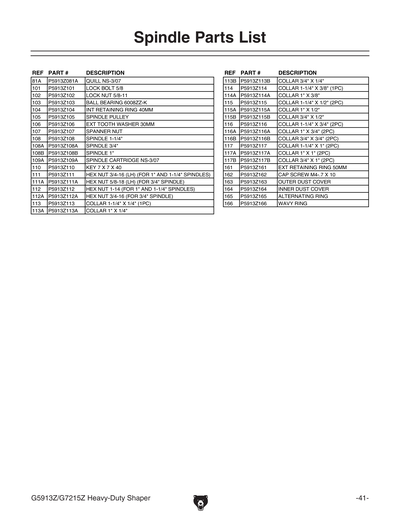

101
DRAWBAR 5/8"
Price
N/A
102
LOCK NUT 5/8"-11
Price
N/A
103
BALL BEARING 6008ZZ
Price
N/A
104
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
105
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
106
EXT TOOTH WASHER 30MM
Price
N/A
107
*DISCD*SPANNER NUT
Price
N/A
108
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
108A
***USE P5912Z036A-1***
Price
N/A
108B
SPINDLE 1" ASSY
Price
N/A
109
*DISCD*SPINDLE CARTRIDGE
Price
N/A
109A
SPINDLE PULLEY/CARTRIDGE ASSEMBLY
Price
N/A
110
Now: PK55M
KEY 7 X 7 X 40
Price
N/A
111
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
111A
HEX NUT 5/8-18 LH
Price
N/A
112
Now: PN32
HEX NUT 1-14
Price
N/A
112A
Now: PN03
HEX NUT 3/4-16
Price
N/A
113
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
113A
COLLAR 1" X 1/4"
Price
N/A
113B
COLLAR 3/4" X 1/4"
Price
N/A
114
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
114A
COLLAR 1" X 3/8"
Price
N/A
115
COLLAR 1-1/4" X 1/2 2PC
Price
N/A
115A
COLLAR 1" X 1/2"
Price
N/A
115B
COLLAR 3/4" X 1/2"
Price
N/A
116
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
116A
COLLAR 1" X 3/4" 2PC
Price
N/A
116B
SPINDLE 3/4" ASSY
Price
N/A
117
COLLAR 1-1/4" X 1" 2PC
Price
N/A
117A
COLLAR 1" X 1" 2PC
Price
N/A
117B
COLLAR 3/4" X 1" 2PC
Price
N/A
120
ADJ HANDLE 1/2" - 12
Price
N/A
121
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
122
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
123
Now: PLW02
LOCK WASHER 1/4
Price
N/A
124
Now: PW06
FLAT WASHER 1/4
Price
N/A
125
GUIDE SCREW BRACKET
Price
N/A
126
GUIDE SCREW
Price
N/A
126A
HANDWHEEL
Price
N/A
127
KNOB
Price
N/A
128
SHAFT GUIDE
Price
N/A
129
BAR
Price
N/A
130
KNOB
Price
N/A
131
Now: PW07
FLAT WASHER 5/16
Price
N/A
132
GUARD PLATE
Price
N/A
133
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
134
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
135
FENCE BRACKET ASSEMBLY
Item is no longer available
Price
N/A
136
MOTOR COVER
Price
N/A
136A
RIGHT WOODEN FENCE
Price
N/A
136B
LEFT WOODEN FENCE
Price
N/A
137
Now: PS11
PHLP HD SCR 5/16-18 X 1-1/4
Price
N/A
138
HOLD DOWN PLATE
Price
N/A
139
GUARD/DUST HOOD
Price
N/A
140
BAR
Price
N/A
141
RETAINER L 5/8"
Price
N/A
142
HANDLE LOCK V1.08.98
Price
N/A
142A
KNOB BOLT 3/8-16 X 1
Price
N/A
143
NUT 3/8
Price
N/A
144
FENCE BRACKET ASSY LH
Price
N/A
145
KNOB
Price
N/A
146
RETAINER S 1/2"
Price
N/A
147
HINGE PIN
Price
N/A
148
FRONT STAND COVER
Price
N/A
149
COVER HANDLE
Price
N/A
150
GEAR SHAFT
Price
N/A
151
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
152
Now: PLW07
LOCK WASHER 1/2
Price
N/A
153
Now: PW01
FLAT WASHER 1/2
Price
N/A
155
KNOB
Price
N/A
156
CONVERSION KIT 440V NHD V1
Price
N/A
160
Now: G8589
Nameplate - Large
Price
N/A
161
Now: PR43M
EXT RETAINING RING 50MM
Price
N/A
162
CAP SCREW M4-.7 X 10
Price
N/A
163
OUTER DUST COVER
Price
N/A
164
INNER DUST COVER
Price
N/A
165
***USE P5912Z165***
Price
N/A
166
WAVY RING
Price
N/A
168
Now: PSS53
SET SCREW 3/8-16 X 1
Price
N/A
169
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
170
KNOB BOLT 1/4-20 X 1/2
Price
N/A

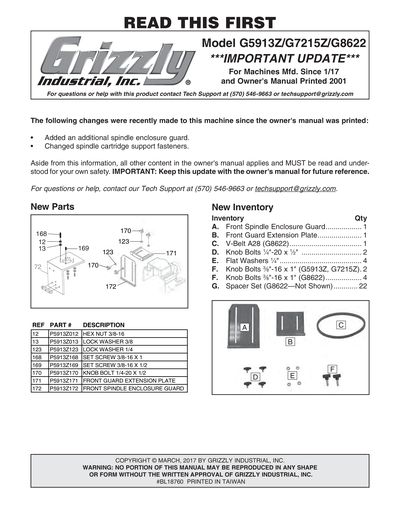

171
FRONT GUARD EXTENSION PLATE
Price
N/A
172
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A

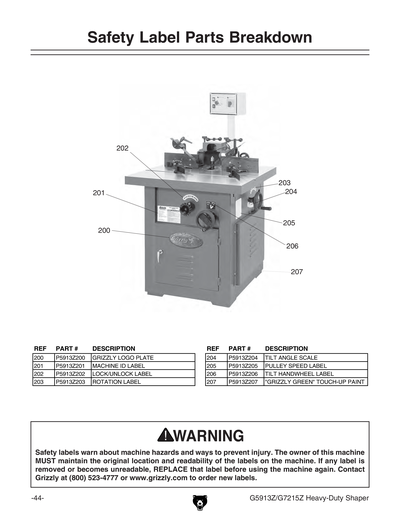

200
Now: G8589
Nameplate - Large
Price
N/A
201
MACHINE ID LABEL
Item is no longer available
Price
N/A
202
LOCK/UNLOCK LABEL
Price
N/A
203
ROTATION LABEL
Price
N/A
204
TILT ANGLE SCALE
Price
N/A
205
SPEED CHANGE LABEL
Price
N/A
206
TILT HANDWHEEL LABEL
Price
N/A
207
N/S GRIZZLY GREEN G1023S
Price
N/A
300
CONVERSION KIT 440V NHD V1
Item is no longer available
Price
N/A
300A
CONVERSION KIT 440V NHD V2.01.06
MANUAL
MANUAL FOR G7215Z 03/07
PART
MISCELLANEOUS G7215Z PARTS
Item is no longer available
Price
N/A
