Parts for G7873 - 1 HP 4-Speed 3-Roller Power Feeder, 3-Phase

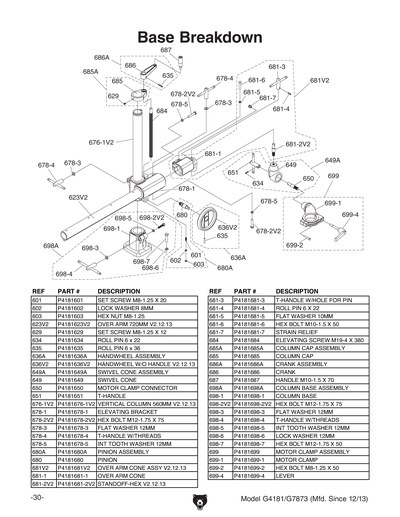

Part Diagram for G7873

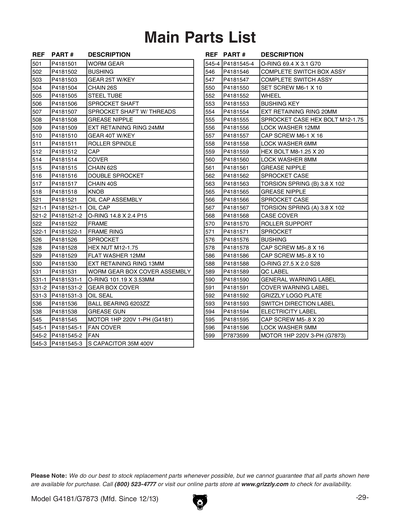

Part Diagram for G7873

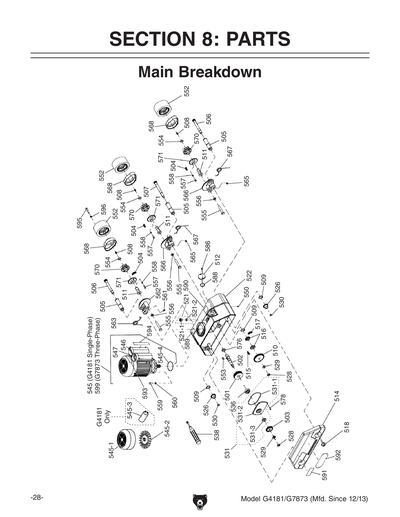

Part Diagram for G7873
Part Diagram for G7873
Part Diagram for G7873
Part Diagram for G7873

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 1HP 220V 3-PH
Price
N/A
2
***USE P1096170-1***
Price
N/A
1A
SPROCKET CASE KIT RIGHT
Price
N/A
1A-1
GREASE NIPPLE M6 X 1.0
Price
N/A
1A-2
SPROCKET CASE
Price
N/A
1A-3
SPRING 38 X 11.4
Price
N/A
1A-4
Price
$1.60
2A
SPROCKET CASE KIT LEFT
Price
N/A
2A-1
GREASE NIPPLE M6 X 1.0
Price
N/A
2A-2
SPROCKET CASE
Price
N/A
2A-3
SPRING 3.8 X 102
Price
N/A
2A-4
Price
$1.60
3A
ROLLER SUPPORT KIT
Price
N/A
3A-1
Price
$15.25
3A-2
Price
$11.80
3A-3
FLAT WASHER 6MM
Price
N/A
3A-4
CAP SCREW M6-1 X 16
Price
N/A
3A-5
LOCK WASHER 8MM
Price
N/A
3A-6
CAP SCREW M8-1.25 X 40
Price
N/A
4A
Price
$45.35
5A
TUBE KIT
Price
N/A
5A-1
Price
$28.20
5A-2
EXT RETAINING RING 26MM
Price
N/A
6A
SPROCKET SHAFT KIT
Price
N/A
6A-1
Price
$40.00
6A-2
EXT RETAINING RING 13MM
Price
N/A
7A
SPROCKET SHAFT KIT
Price
N/A
7A-1
Price
$41.15
7A-2
FLAT WASHER 1/2
Price
N/A
7A-3
HEX NUT M12-1.75
Price
N/A
8A
Price
$16.70
8A-1
GREASE NIPPLE M6 X 1.0
Price
N/A
8A-2
ROLLER SPINDLE
Price
N/A
8A-3
LOCK WASHER 12MM
Price
N/A
8A-4
SHAFT
Price
N/A
18A
KNOB BOLT M6-1 X 30
Price
N/A
21A
OIL CAP ASSEMBLY
Price
N/A
21A-1
OIL CAP
Price
N/A
21A-2
O RING 11.8 X 2.4 P12
Price
N/A
22A
Price
$472.15
22A-1
Price
$470.70
22A-2
BUSHING
Price
N/A
22A-3
SET SCREW M6-1 X 10
Price
N/A
26A
Price
$62.25
26A-1
SPROCKET 12T X 3/8"
Price
N/A
26A-2
Price
$15.25
26A-3
DOUBLE SPROCKET/KEY 12T X 3/8
Price
N/A
26A-4
Price
$10.10
28A
WORM GEAR SHAFT KIT-50HZ
Price
$122.00
28A-1
WORM GEAR SHAFT
Price
N/A
28A-2
FLAT WASHER 1/2
Price
N/A
28A-3
HEX NUT M12-1.75
Price
N/A
31A
WORM GEAR BOX COVER KIT
Price
N/A
31A-1
WORM GEAR BOX COVER O-RING 101.19 X 3.53
Price
N/A
31A-2
WORM GEAR BOX COVER
Price
N/A
31A-3
OIL SEAL
Price
N/A
31A-4
CAP SCREW M5-.8 X 16
Price
N/A
32A
WORM GEAR SHAFT KIT 60HZ
Price
N/A
32A-1
Price
$67.00
32A-2
FLAT WASHER 1/2
Price
N/A
32A-3
HEX NUT M12-1.75
Price
N/A
35A
GEAR KIT 25T/40T
Price
N/A
35A-1
Price
$24.75
35A-2
Price
$43.15
36A
O-RING
Price
N/A
38A
GREASE GUN
Price
N/A
45A
*DISCD*MOTOR 1 HP/WORM SHAFT
Item is no longer available
Price
N/A
45A-1
MOTOR 1HP 220V 3-PH
Price
N/A
45A-10
MOTOR 1HP 220V 3-PH
Price
N/A
45A-11
MOTOR 1HP 220V 3-PH
Price
N/A
45A-2
MOTOR 1HP 220V 3-PH
Price
N/A
45A-3
MOTOR 1HP 220V 3-PH
Price
N/A
45A-4
MOTOR 1HP 220V 3-PH
Price
N/A
45A-5
MOTOR 1HP 220V 3-PH
Price
N/A
45A-6
MOTOR 1HP 220V 3-PH
Price
N/A
45A-7
MOTOR 1HP 220V 3-PH
Price
N/A
45A-8
MOTOR 1HP 220V 3-PH
Price
N/A
45A-9
MOTOR 1HP 220V 3-PH
Price
N/A
45A1
MOTOR 1HP 220V 3-PH
Price
N/A
45A3
MOTOR 1HP 220V 3-PH
Price
N/A
46A
COMPLETE SWITCH BOX ASSY
Price
N/A
46A-1
COMPLETE SWITCH BOX ASSY
Price
N/A
46A-2
COMPLETE SWITCH BOX ASSY
Price
N/A
46A-3
COMPLETE SWITCH BOX ASSY
Price
N/A
46A-4
COMPLETE SWITCH BOX ASSY
Price
N/A
46A-5
COMPLETE SWITCH BOX ASSY
Price
N/A
47A
SWITCH
Price
N/A
501
WORM GEAR
Price
N/A
502
BUSHING
Price
N/A
503
GEAR 25T
Price
N/A
504
CHAIN 26S
Price
N/A
505
STEEL TUBE
Price
N/A
506
SPROCKET SHAFT
Price
N/A
507
SPROCKET SHAFT W/THREADS
Price
N/A
508
GREASE NIPPLE
Price
N/A
509
EXT RETAINING RING 24MM
Price
N/A
510
GEAR 40T
Price
N/A
511
***USE P1096125***
Price
N/A
512
COVER
Price
N/A
514
COVER
Price
N/A
515
CHAIN 62S
Price
N/A
516
DOUBLE SPROCKET
Price
N/A
517
CHAIN 40S
Price
N/A
518
KNOB
Price
N/A
521
OIL CAP ASSEMBLY
Price
N/A
521-1
OIL CAP
Price
N/A
521-2
O-RING 14.8 X 2.4 P15
Price
N/A
522
FRAME
Price
N/A
526
SPROCKET
Price
N/A
528
HEX NUT M12-1.75
Price
N/A
529
FLAT WASHER 12MM
Price
N/A
530
EXT RETAINING RING 13MM
Price
N/A
531
WORM GEAR BOX COVER ASSEMBLY
Price
N/A
531-1
O-RING 101.19 X 3.53MM
Price
N/A
531-2
GEAR BOX COVER
Price
N/A
531-3
OIL SEAL
Price
N/A
536
BALL BEARING 6203ZZ
Price
N/A
538
GREASE GUN
Price
N/A
545-1
FAN COVER
Price
N/A
545-2
FAN
Price
N/A
545-4
O-RING 69.4 X 3.1 G70
Price
N/A
546
COMPLETE SWITCH BOX ASSY
Price
N/A
547
SWITCH
Price
N/A
550
SET SCREW M6-1 X 10
Price
N/A
552
Extra Roller for G4181 & G7873
Price
N/A
553
KEY 6 X 6 X 18
Price
N/A
554
EXT RETAINING RING 20MM
Price
N/A
555
SPROCKET CASE HEX BOLT M12-1.75
Price
N/A
556
LOCK WASHER 12MM
Price
N/A
557
CAP SCREW M6-1 X 16
Price
N/A
558
LOCK WASHER 6MM
Price
N/A
559
HEX BOLT M8-1.25 X 20
Price
N/A
560
LOCK WASHER 8MM
Price
N/A
561
GREASE NIPPLE
Price
N/A
562
SPROCKET CASE
Price
N/A
563
TORSION SPRING 3.8 X 102
Price
N/A
565
GREASE NIPPLE
Price
N/A
566
SPROCKET CASE
Price
N/A
567
TORSION SPRING 3.8 X 102
Price
N/A
568
CASE COVER
Price
N/A
570
ROLLER SUPPORT
Price
N/A
571
SPROCKET
Price
N/A
576
BUSHING
Price
N/A
578
CAP SCREW M5-.8 X 16
Price
N/A
586
CAP SCREW M5-.8 X 10
Price
N/A
588
O-RING 27.5 X 2.0 S28
Price
N/A
589
QC LABEL
Price
N/A
590
GENERAL WARNING LABEL
Price
N/A
591
COVER WARNING LABEL
Price
N/A
592
Oblong Nameplate-Mini
Price
N/A
593
SWITCH DIRECTION LABEL
Price
N/A
594
ELECTRICITY 1.4W X 1.2H
Price
N/A
595
CAP SCREW M5-.8 X 20
Price
N/A
596
LOCK WASHER 5MM
Price
N/A
599
Price
$498.40
601
SET SCREW M8-1.25 X 20
Price
N/A
602
LOCK WASHER 8MM
Price
N/A
603
HEX NUT M8-1.25
Price
N/A
6203
BALL BEARING 6203ZZ
Price
N/A
623
OVER ARM 720MM V1
Price
N/A
623V2
OVER ARM 720MM V2.12.13
Price
N/A
627
RACK 650MM
Price
N/A
629
SET SCREW M8-1.25 X 12
Price
N/A
634
ROLL PIN 6 X 22
Price
N/A
635
ROLL PIN 6 X 36
Price
N/A
636
HANDWHEEL W/HANDLE V1
Price
N/A
636A
HANDWHEEL ASSEMBLY
Price
N/A
636V2
***USE P1095079A-1***
Price
N/A
649
SWIVEL CONE
Price
N/A
649A
SWIVEL CONE ASSEMBLY
Price
N/A
650
MOTOR CLAMP CONNECTOR
Price
N/A
651
T-HANDLE
Price
N/A
657
CAP SCREW M5-.8 X 10
Price
N/A
676
VERTICAL COLUMN ASSEMBLY
Price
N/A
676-1
VERTICAL COLUMN 560MM V1
Price
N/A
676-1V2
***SEE EXT. DESCRIPTION***
Price
N/A
676-2
ELEVATING KEY 450 X 8
Price
N/A
676-3
CAP SCREW M5-.8 X 10
Price
N/A
676-4
CAP SCREW M5-.8 X 16
Price
N/A
678
ELEVATING BRACKET ASSEMBLY
Price
N/A
678-1
***USE P1096214***
Price
N/A
678-2
HEX BOLT M12-1.75 X 75
Price
N/A
678-2V2
HEX BOLT M12-1.75 X 75
Price
N/A
678-3
FLAT WASHER 12MM
Price
N/A
678-4
T-HANDLE W/THREADS
Price
N/A
678-5
INT TOOTH WASHER 12MM
Price
N/A
680
PINION
Price
N/A
680A
***USE P109580A***
Price
N/A
681
OVER ARM CONE ASSY V1
Price
N/A
681-1
OVER ARM CONE
Price
N/A
681-2
STANDOFF-HEX V1
Price
N/A
681-2V2
SHOULDER STUD
Price
N/A
681-3
T-HANDLE W/HOLE FOR PIN
Price
N/A
681-4
ROLL PIN 6 X 22
Price
N/A
681-5
FLAT WASHER 10MM
Price
N/A
681-6
HEX BOLT M10-1.5 X 50
Price
N/A
681-7
STRAIN RELIEF TYPE-6 ST
Price
N/A
681V2
OVER ARM CONE ASSY V2.12.13
Price
N/A
684
ELEVATING SCREW M19-4 X 380
Price
N/A
685
COLUMN CAP V1
Price
N/A
685A
COLUMN CAP ASSEMBLY
Price
N/A
686
ELEVATION HANDLE ARM 130L
Price
N/A
686A
CRANK ASSEMBLY
Price
N/A
687
HANDLE M10-1.5 X 70
Price
N/A
698
BASE ASSEMBLY
Price
N/A
698-1
COLUMN BASE
Price
N/A
698-2
HEX BOLT M12-1.75 X 75
Price
N/A
698-2V2
HEX BOLT M12-1.75 X 75
Price
N/A
698-3
FLAT WASHER 12MM
Price
N/A
698-4
T-HANDLE W/THREADS
Price
N/A
698-5
INT TOOTH WASHER 12MM
Price
N/A
698-6
LOCK WASHER 12MM
Price
N/A
698-7
HEX BOLT M12-1.75 X 50
Price
N/A
698A
COLUMN BASE ASSEMBLY
Price
N/A
699
MOTOR CLAMP ASSEMBLY
Price
N/A
699-1
MOTOR CLAMP
Price
N/A
699-2
HEX BOLT M8-1.25 X 50
Price
N/A
699-4
LEVER
Price
N/A
72A
Price
$5.50
72A-1
Price
$1.60
72A-2
Price
$3.65
72A-3
CAP SCREW M5-.8 X 10
Price
N/A
76A
Price
$135.25
76A-1
Price
$127.75
76A-2
ELEVATING KEY 450 X 8
Price
N/A
76A-3
CAP SCREW M5-.8 X 10
Price
N/A
76A-4
CAP SCREW M5-.8 X 16
Price
N/A
77A
Price
$174.20
77A-1
Price
$100.90
77A-2
Price
$44.10
77A-3
CAP SCREW M5-.8 X 10
Price
N/A
79A
HANDWHEEL ASSEMBLY
Price
N/A
79A-1
Price
$17.25
79A-2
ROLL PIN 6 X 36
Price
N/A
80A
PINION KIT
Price
N/A
80A-1
PINION
Price
N/A
80A-3
SET SCREW M8-1.25 X 20
Price
N/A
80A-4
LOCK WASHER 8MM
Price
N/A
80A-5
HEX NUT M8-1.25
Price
N/A
82A
SWIVEL CONE ASSEMBLY
Price
N/A
82A-1
SWIVEL CONE
Price
N/A
82A-2
STUD-SE M 16-1.5 X 90 30
Price
N/A
82A-3
T-HANDLE
Price
N/A
82A-4
ROLL PIN 6 X 22
Price
N/A
83A
MOTOR CLAMP ASSEMBLY
Price
N/A
83A-1
MOTOR CLAMP
Price
N/A
83A-2
HEX BOLT M8-1.25 X 50
Price
N/A
83A-4
T-HANDLE W/THREADS
Price
N/A
84A
ELEVATING SCREW M19-4 X 380
Price
N/A
85A
COLUMN CAPE KIT
Price
N/A
85A-1
Price
$28.20
85A-2
COLUMN CAPE KIT
Price
N/A
85A-3
SET SCREW M8-1.25 X 12
Price
N/A
86A
Price
$26.00
86A-1
*DISCD*HANDWHEEL
Price
N/A
86A-2
ROLL PIN 6 X 36
Price
N/A
86A-3
*DISCD*HANDWHEEL
Price
N/A
87A
HANDLE M10-P1.5 X 70L
Price
N/A
90A
Price
$86.00
90A-1
COLUMN BASE
Price
N/A
90A-2
Price
$1.60
90A-3
FLAT WASHER 1/2
Price
N/A
90A-4
T-HANDLE W/THREADS
Price
N/A
91A
ELEVATING BRACKET ASSEMBLY
Price
N/A
91A-1
Price
$160.45
91A-2
THREADED ROD M12-1.75 X 70
Price
N/A
91A-3
FLAT WASHER 1/2
Price
N/A
91A-4
T-HANDLE W/THREADS
Price
N/A
92A
Price
$103.85
92A-1
Price
$52.35
92A-2
SHOULDER STUD
Price
N/A
92A-3
Price
$14.10
92A-4
ROLL PIN 6 X 22
Price
N/A
92A-5
FLAT WASHER 10MM
Price
N/A
92A-6
HEX BOLT M10-1.5 X 50
Price
N/A
99A-4
LEVER
Price
N/A
BOX2
COMPLETE STAND ASSY BOX 2
Price
$451.35
BZZ-6203
BALL BEARING 6203ZZ
Price
N/A
BZZ-6206
BALL BEARING 6206ZZ
Price
N/A
MAN
MAN G4181/G7873 MFD-8/97-11/13 V1.10.12
Price
$14.65
MANV2
MANUAL G4181/G7873 MFD-12.13+ V2.04.14
Price
N/A
RO-12
Extra Roller for G4181 & G7873
Price
N/A
TEMPLATE
MOUNTING TEMPLATE STICKER
Price
N/A
