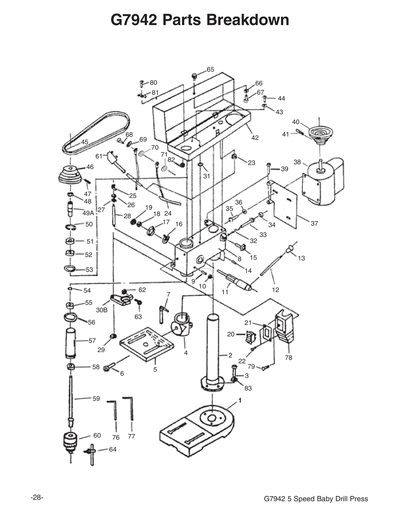

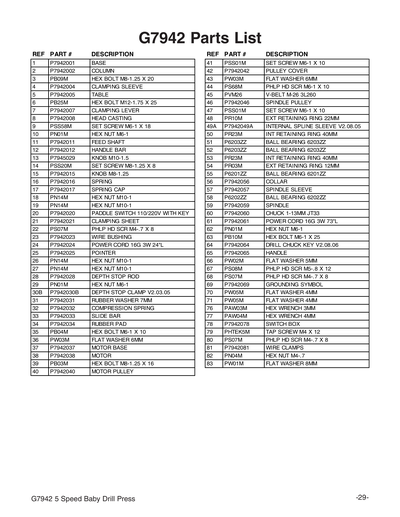

Parts for G7942 8" Baby Benchtop Drill Press & Forstner Bit Bundle

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
COLUMN
3
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
4
CLAMPING SLEEVE
5
TABLE
5-1
TABLE SCALE
6
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
7
CLAMPING LEVER
8
HEAD CASTING
Item is no longer available
Price
N/A
9
SET SCREW M6-1 X 18
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
FEED SHAFT
12
HANDLE BAR
13
KNOB M10-1.5
Price
N/A
14
SET SCREW M8-1.25 X 8
Price
N/A
15
KNOB M8-1.25
16
SPRING
17
SPRING CAP
18
Now: PN14M
HEX NUT M10-1
Price
N/A
19
Now: PN14M
HEX NUT M10-1
Price
N/A
20
Now: G8988
Safety Paddle Switch
Price
N/A
20A
YELLOW SWITCH KEY
20B
SWITCH HOUSING
20C
SWITCH PLATE
21
CLAMPING SHEET
22
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
23
WIRE BUSHING
Item is no longer available
Price
N/A
24
POWER CORD 16G X 3W 24"L
Price
N/A
25
POINTER
26
Now: PN14M
HEX NUT M10-1
Price
N/A
27
Now: PN14M
HEX NUT M10-1
Price
N/A
28
DEPTH STOP ROD
29
Now: PN01M
HEX NUT M6-1
Price
N/A
30
DEPTH STOP CLAMP V1
30A
DEPTH STOP GAUGE ASSY V2.10.02
30B
DEPTH STOP CLAMP V2.03.05
31
THRUST WASHER 8MM RUBBER
32
COMPRESSION SPRING
33
SLIDE BAR
34
RUBBER PAD
35
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
36
Now: PW03M
FLAT WASHER 6MM
Price
N/A
37
MOTOR 1/3HP 1PH 110V
Price
N/A
38
MOTOR 1/3HP 1PH 110V
39
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
39A
Now: PW01M
FLAT WASHER 8MM
Price
N/A
40
MOTOR PULLEY
41
SET SCREW M6-1 X 10
Price
N/A
42
PULLEY COVER
43
Now: PW03M
FLAT WASHER 6MM
Price
N/A
44
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
45
V-BELT K-670E
46
SPINDLE PULLEY
47
SET SCREW M6-1 X 10
Price
N/A
48
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
49
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
49A
SPINDLE SPLINED V2.08.05
50
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
51
BALL BEARING 6203ZZ
Price
N/A
52
BALL BEARING 6203ZZ
Price
N/A
53
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
54
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
55
BALL BEARING 6201ZZ
Price
N/A
56
COLLAR
57
SPINDLE SLEEVE
58
BALL BEARING 6201ZZ
Price
N/A
59
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
59V2
ARBOR FLUTED V2.08.05
60
CHUCK 1-13MM JT33
61
POWER CORD 16G X 3W 73"L
Price
N/A
62
Now: PN01M
HEX NUT M6-1
Price
N/A
63
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
64
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
64A
DRL CHK KEY 5.97MM STD 12T SD-13.75MM
65
HANDLE
66
Now: PW02M
FLAT WASHER 5MM
Price
N/A
67
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
68
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
69
GROUNDING SYMBOL
Item is no longer available
Price
N/A
70
Now: PW05M
FLAT WASHER 4MM
Price
N/A
71
Now: PW05M
FLAT WASHER 4MM
Price
N/A
76
HEX WRENCH 3MM
Price
N/A
77
HEX WRENCH 4MM
Price
N/A
78
SWITCH BOX
79
TAP SCREW M4 X 12
Price
N/A
80
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
81
WIRE CLAMPS
82
Now: PN04M
HEX NUT M4-.7
Price
N/A
83
Now: PW01M
FLAT WASHER 8MM
Price
N/A
84

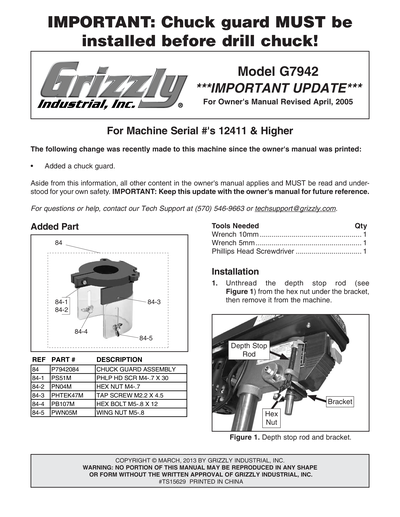

CHUCK GUARD ASSEMBLY
84-1
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
84-2
Now: PN04M
HEX NUT M4-.7
Price
N/A
84-3
TAP SCREW M2.2 X 4.5
Price
N/A
84-4
HEX BOLT M5-.8 X 12
Price
N/A
84-5
WING NUT M5-.8
Price
N/A
85
DEPTH SCALE
102
SPECIFICATIONS DATA PLATE
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G7942 04/05
