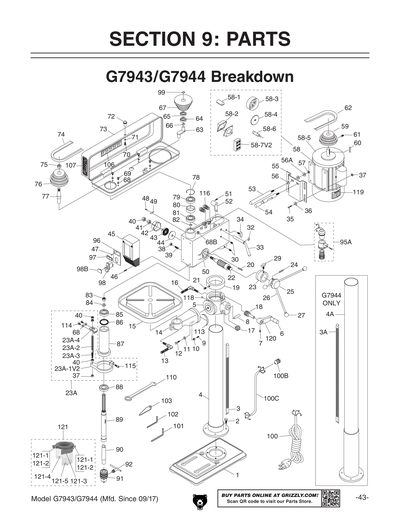

Parts for G7943 - 14" Heavy-Duty Benchtop Drill Press

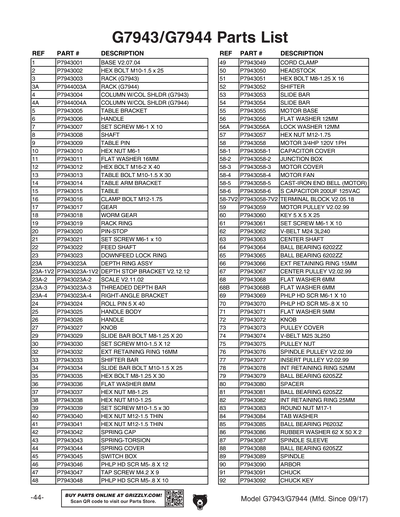

Part Diagram for G7943

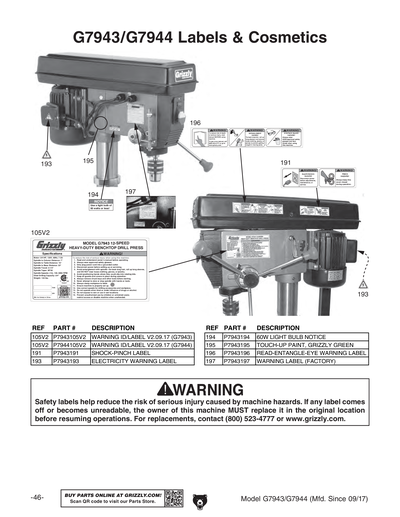

Part Diagram for G7943

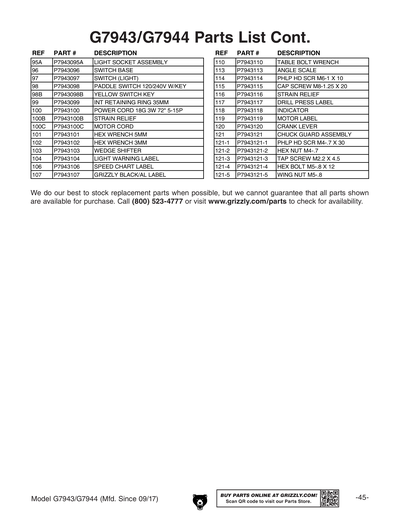

Part Diagram for G7943
Part Diagram for G7943
Part Diagram for G7943
Part Diagram for G7943
Part Diagram for G7943
Part Diagram for G7943

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE V2.07.01
Price
$136.60
1A
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
2
HEX BOLT M10-1.5 X 25
Price
N/A
3
RACK
Price
$36.35
3A
RACK
Price
N/A
4
COLUMN AND COLUMN SHOULDER
Price
$96.00
4A
COLUMN W/COL SHOULDER
Price
N/A
5
TABLE BRACKET
Price
$83.75
6
HANDLE
Price
$12.90
6-1
HANDLE
Price
N/A
7
SET SCREW M6-1 X 10
Price
N/A
8
SHAFT
Price
$2.90
9
TABLE PIN
Price
$1.90
10
HEX NUT M6-1
Price
N/A
11
FLAT WASHER 16MM
Price
N/A
12
HEX BOLT M16-2 X 40
Price
N/A
13
TABLE BOLT M10 X 30
Price
$5.45
14
TABLE ARM BRACKET
Price
$46.15
14A
TABLE ARM/BRACKET ASSEMBLY
Price
$89.90
15
TABLE
Price
$144.15
16
CLAMP BOLT M12
Price
$7.60
17
GEAR
Price
$8.65
18
WORM GEAR
Price
$13.35
19
RACK RING
Price
$6.90
20
PIN STOP
Price
$1.90
21
SET SCREW M6-1 X 10
Price
N/A
22
FEED SHAFT
Price
$17.65
23
DOWNFEED LOCK RING
Price
$9.40
23-1
*DISCD*SCALE V1.10.02
Item is no longer available
Price
N/A
23-2
POINTER
Price
$1.90
23A
DEPTH STOP GAUGE ASSY V2.10.02
Price
$27.35
23A-1
DEPTH STOP BRACKET V2.12.12
Price
N/A
23A-1V2
DEPTH STOP BRACKET V2.12.12
Price
$15.35
23A-2
SCALE V2.11.02
Price
$7.45
23A-3
DEPTH STOP SCALE RACK V2.10.02
Price
$6.90
23A-4
RIGHT ANGLE BRACKET V2.10.02
Price
$3.25
23A1
HEEL BLOCK
Price
$12.95
24
ROLL PIN 5 X 40
Price
N/A
25
HANDLE BODY
Price
$14.10
26
HANDLE
Price
$3.25
27
KNOB
Price
$4.70
28
*DISCD*FEED SHAFT CONNECTOR
Item is no longer available
Price
N/A
28A
COLUMN W/COL SHOULDER
Price
N/A
29
SLIDE BAR BOLT M8-1.25 X 22
Price
$7.60
30
SET SCREW M10-1.5 X 12
Price
N/A
31
ROLL PIN 8 X 105
Price
$2.20
32
EXT RETAINING RING 16MM
Price
N/A
33
SHIFTER BAR
Price
$8.65
34
SLIDE BAR BOLT M10-1.5 X 25
Price
$1.90
35
HEX BOLT M8-1.25 X 30
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
HEX NUT M8-1.25
Price
N/A
38
HEX NUT M10-1.25
Price
N/A
39
SET SCREW M10-1.5 X 30
Price
N/A
40
HEX NUT M12-1.5 THIN
Price
N/A
41
HEX NUT M12-1.5 THIN
Price
N/A
42
SPRING CAP
Price
$7.20
43
SPRING-TORSION
Price
$6.25
44
SPRING COVER
Price
$1.90
45
SWITCH BOX
Price
$9.40
46
PHLP HD SCR M5-.8 X 12
Price
N/A
47
TAP SCREW M4.2 X 9
Price
$1.90
47A
YELLOW SWITCH KEY
Price
N/A
47B
*DISCD*SWITCH HOUSING
Item is no longer available
Price
N/A
47C
SWITCH PLATE
Price
N/A
47D
*DISCD*SWITCH FOR LIGHT
Item is no longer available
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
CORD CLAMP
Price
$1.90
50
HEAD CASTING
Price
$118.00
50-1
COMPLETE HEADSTOCK ASSY
Price
$830.90
51
HEX BOLT M8-1.25 X 16
Price
N/A
52
SHIFTER
Price
N/A
53
SLIDE BAR
Price
$7.95
54
SLIDE BAR
Price
$8.65
55
MOTOR BASE
Price
$8.25
56
FLAT WASHER 12MM
Price
N/A
56A
LOCK WASHER 12MM
Price
N/A
57
HEX NUT M12-1.75
Price
N/A
58
MOTOR 3/4HP 110V 1-PH
Price
$328.50
58-1
CAPACITOR COVER
Price
$6.15
58-2
CONNECTION BOX
Price
$8.65
58-3
MOTOR COVER
Price
$7.60
58-4
MOTOR FAN
Price
$12.25
58-5
CAST IRON END BELL FOR MOTOR
Price
$19.10
58-6
S CAPACITOR 200M 125V 1-3/4 X 3
Price
$42.10
58-7
*DISCD*TERMINAL BLOCK 4P
Item is no longer available
Price
N/A
58-7V2
TERMINAL BLOCK 3P V2.05.18
Price
$2.20
58A
CONNECTION BOX
Price
N/A
58B
MOTOR COVER
Price
N/A
58C
MOTOR FAN
Price
N/A
59
MOTOR PULLEY V2.02.99
Price
$21.95
60
KEY 5 X 5 X 25
Price
N/A
61
SET SCREW M6-1 X 10
Price
N/A
62
V-BELT M24 3L240
Price
N/A
63
CENTER SHAFT
Price
$11.50
64
BALL BEARING 6202ZZ
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
EXT RETAINING RING 15MM
Price
N/A
67
CENTER PULLEY V2.02.99
Price
$25.65
68
FLAT WASHER 6MM
Price
N/A
68B
FLAT WASHER 6MM
Price
N/A
69
PHLP HD SCR M6-1 X 10
Price
N/A
70
PHLP HD SCR M5-.8 X 10
Price
N/A
71
FLAT WASHER 5MM
Price
N/A
72
KNOB
Price
$5.45
73
PULLEY COVER
Price
$48.20
74
V-BELT M25 3L250
Price
N/A
75
PULLEY NUT
Price
$4.00
76
SPINDLE PULLEY V2.02.99
Price
$52.90
77
INSERT PULLEY V2.02.99
Price
$56.10
78
INT RETAINING RING 52MM
Price
N/A
79
BALL BEARING 6205ZZ
Price
N/A
80
SPACER
Price
$1.90
81
BALL BEARING 6205ZZ
Price
N/A
82
INT RETAINING RING 25MM
Price
N/A
83
ROUND NUT M17 X 1
Price
$1.90
84
EXT TOOTH WASHER 16MM
Price
$2.20
85
BALL BEARING 6203Z
Price
N/A
86
THRUST WASHER 50MM RUBBER
Price
$1.90
87
SPINDLE SLEEVE
Price
$37.25
88
BALL BEARING 6205ZZ
Price
N/A
89
SPINDLE
Price
$54.90
90
DRILL CHUCK ARBOR MT2 X JT33, 110MM L
Price
$18.70
91
CHUCK W/KEY
Price
$37.40
91A
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
92
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
$4.35
93
LIGHT SOCKET AND NUT
Price
$3.50
93A
LIGHT SOCKET ASSEMBLY
Price
N/A
94
LIGHT BASE
Price
$5.20
94-1
LIGHT BASE RING
Price
$2.20
94A
LIGHT SOCKET ASSEMBLY
Price
N/A
95
LIGHT SCREW PLUG
Price
$1.49
95A
LIGHT SOCKET ASSEMBLY
Price
$12.25
96
SWITCH BASE
Price
$9.20
97
LIGHT SWITCH
Price
$9.40
98
Safety Paddle Switch
Price
N/A
98B
YELLOW SWITCH KEY
Price
N/A
99
INT RETAINING RING 35MM
Price
N/A
100
POWER CORD 16G X 3W 73"L
Price
N/A
100B
WIRE GASKET
Price
$3.65
100C
MOTOR CORD 18G 3W 11"
Price
N/A
101
HEX WRENCH 5MM
Price
N/A
102
HEX WRENCH 3MM
Price
N/A
103
WEDGE SHIFTER
Price
$4.00
104
LIGHT WARNING LABEL
Price
$1.25
105
WARNING/ID LABEL V2.09.17
Price
N/A
105V2
WARNING/ID LABEL V2.09.17
Price
$6.10
106
SPEED CHART LABEL
Price
$1.25
107
GRIZZLY BLACK/AL LABEL
Price
$2.85
108
*DISCD*SPECIFICATIONS DATA PLATE
Item is no longer available
Price
N/A
109
SPEED CHART LABEL
Price
N/A
110
TABLE BOLT WRENCH
Price
$16.95
111
MOTOR FAN
Price
N/A
112
*DISCD*DEPTH STOP COLLAR
Price
N/A
113
ANGLE SCALE
Price
$2.20
114
PHLP HD SCR M6-1 X 10
Price
N/A
115
CAP SCREW M8-1.25 X 20
Price
N/A
116
STRAIN RELIEF M20
Price
$1.90
117
DRILL PRESS LABEL
Price
$5.95
118
INDICATOR
Price
$1.90
119
MOTOR LABEL
Price
$1.90
120
CRANK LEVER
Price
$9.85
120-1
CRANK LEVER W/HANDLE
Price
$27.35
121
CHUCK GUARD ASSEMBLY
Price
$18.40
121-1
PHLP HD SCR M4-.7 X 30
Price
N/A
121-2
HEX NUT M4-.7
Price
N/A
121-3
TAP SCREW M2.2 X 4.5
Price
N/A
121-4
HEX BOLT M5-.8 X 12
Price
N/A
121-5
WING NUT M5-.8
Price
N/A
122
ENTANGLEMENT/CRUSHING LABEL
Price
$1.25
123
FACE SHIELD & SAFETY GLASSES 3.7W X 2H
Price
N/A
124
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
125
WARNING/ID LABEL V2.09.17
Price
N/A
126
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
127
RESPIRATOR 3.8W X 2H
Price
N/A
128
ELECTRICITY 1.4W X 1.2H
Price
N/A
129
LIGHT WARNING LABEL
Price
N/A
191
SHOCK PINCH WARNING LABEL
Price
N/A
193
ELECTRICITY 0.7W X 0.6H
Price
N/A
194
60W LIGHT BULB NOTICE
Price
$1.90
195
N/S GRIZZLY GREEN G1023S
Price
N/A
196
READ-ENTANGLE-EYE LABEL
Price
N/A
197
WARNING LABEL (FACTORY)
Price
$2.20
BOX2
COMPLETE BOX 2 OF 2 FOR G7943
Price
$505.70
MANUAL
MANUAL G7943-44 MFD-07.01-03.18 V1
Price
$14.65
MANV2
MANUAL G7943-44 MFD-04.18+ V2.05.18
Price
$18.75
