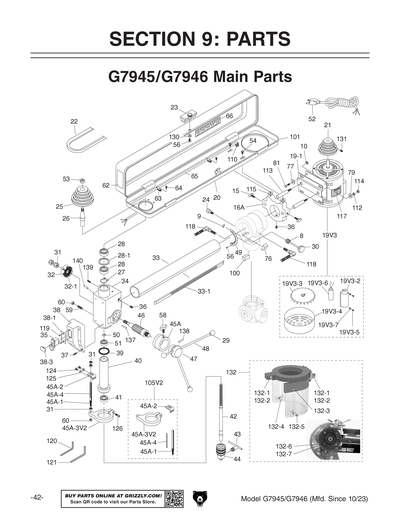

Parts for G7945 34" Benchtop Radial Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
*DISCD*FLANGE
Item is no longer available
Price
N/A
2A
COLUMN LONG W/HOLDER V3.02.99
Price
N/A
3
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
4
SHORT RACK
4A
RACK LONG
Price
N/A
5
SHORT VERTICAL COLUMN
5A
COLUMN W/HOLDER V2.02.99
Price
N/A
6
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
7
GEARED TABLE BRACKET
7-1
TABLE BRACKET ASSEMBLY
8
GEAR
9
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
10
Now: PN03M
HEX NUT M8-1.25
Price
N/A
11
CLAMP BOLT M10-1.5 X 30
12
*DISCD*LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
13
HORIZ COLUMN BRACKET 2-5/16 V2.02.99
14
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
15
SLIDE BAR BOLT M8-1.25 X 22
Price
N/A
16
MOUNT PLATE V1.02.99
16A
MOUNT PLATE V2.06.06
17
*DISCD*SPRING
18
ADJUSTMENT BOLT
19
*DISCD*MOTOR 1/2HP 110V SQUARE COVER V1.
Item is no longer available
Price
N/A
19-1
MOTOR MOUNT BRACKET V2.02.05
19-2
CAPACITOR COVER
19-3
MOTOR FAN
19-4
FAN COVER
19-5
Now: PS54M
PHLP HD SCR M5-.8 X 45
Price
N/A
19-6
S CAPACITOR 150M 125V
19-7
Now: PW05M
FLAT WASHER 4MM
Price
N/A
19A
MOTOR MOUNT BRACKET V1.08.03
19B
MOTOR 1/2HP 110V 1-PH V2.03.07
19B-1
CAPACITOR COVER V2.03.07
19V3
MOTOR 1/2HP 120V 1-PH V3.10.23
19V3-1
MOTOR MOUNT BRACKET
19V3-2
CAPACITOR COVER
19V3-3
MOTOR FAN
19V3-4
FAN COVER
19V3-6
S CAPACITOR 200M 125V 1-5/16 X 2-3/4
20
PULLEY COVER
21
MOTOR PULLEY
22
Now: PVM58
V-BELT M58 3L580
Price
N/A
23
COVER KNOB M5-.8
23-1
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
24
LOCK PIN
25
SPINDLE PULLEY
26
DRIVE SLEEVE
27
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
28
BALL BEARING 6203ZZ
Price
N/A
28-1
SPACER
28A
SPACER
Price
N/A
29
KNOB M10-1.5
30
HORIZ ADJ KNOB
31
Now: PN60M
HEX NUT M12-1.5 THIN
Price
N/A
32
COVER WITH SPRING
32-1
COILED SPRING
32-2
COVER
33
HORIZ COLUMN
33-1
HORIZ COLUMN RACK
34
HEADSTOCK
34A
COMPLETE HEADSTOCK ASSY
35
Now: G8988
Safety Paddle Switch
Price
N/A
35-1
SWITCH HOUSING
35-2
SWITCH PLATE
Price
N/A
35A
*DISCD*DEPTH STOP GAUGE ASSY V2.08.99
Item is no longer available
Price
N/A
35A-1
*DISCD*HEEL BLOCK
Item is no longer available
Price
N/A
35A-2
SCALE V2.11.02
Price
N/A
35B
*DISCD*SCALE RING
Item is no longer available
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
38
SWITCH MOUNT COVER
38-1
SWITCH PLATE
38-3
PADDLE SWITCH KEY
Price
N/A
39
THRUST WASHER 38MM RUBBER
40
QUILL SHAFT
41
BALL BEARING 6202ZZ
Price
N/A
42
SPINDLE SHAFT JT #33
43
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
44
CHUCK W/KEY
Price
N/A
45
DEPTH STOP COLLAR V1.10.98
Price
N/A
45A
DEPTH STOP COLLAR V1.10.98
45A-1
DEPTH STOP ROD
45A-2
DEPTH STOP BRACKET
45A-3
DEPTH STOP BRACKET V1
45A-3V2
DEPTH STOP BRACKET V2.12.12
45A-4
DEPTH STOP SCALE
46
PINION
46A
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
46B
*DISCD*
Item is no longer available
Price
N/A
47
FEED COLLAR
48
HANDLE
49
DEGREE SCALE
50
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
51
BALL BEARING 6201ZZ
Price
N/A
52
POWER CORD 18G 3W 5-15P
Price
N/A
53
PULLEY SET NUT
54
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
55
SPINDLE SCALE
56
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
57
POINTER
58
*DISCD*KNOB BOLT M8-1.25 X 22
Price
N/A
59
SET SCREW M8-1.25 X 25
Price
N/A
59A
YELLOW SWITCH KEY
Price
N/A
59B
SWITCH HOUSING
Price
N/A
59C
SWITCH PLATE
Price
N/A
59D
*DISCD*SWITCH FOR LIGHT
Price
N/A
60
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
HANDLE
Price
N/A
62
LOGO
63
WIRE STRAP
64
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
65
MOTOR SWITCH CORD
66
SPEED CHART
67
*DISCD*SPECIAL BOLT
Item is no longer available
Price
N/A
68
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
*DISCD*TABLE SCALE
Item is no longer available
Price
N/A
69-1
CONN. BOX COVER
69-2
FAN COVER
Price
N/A
69A
*DISCD*MOTOR 1/2HP 110V SQUARE COVER V1.
Price
N/A
69B
MOTOR 1/2HP 110V 1-PH V2.03.07
Price
N/A
70
PIN
71
WORM SHAFT
72
HANDLE
Price
N/A
72-1
CRANK HANDLE
73
SET SCREW M6-1 X 10
Price
N/A
73A
Now: PVM59
V-BELT M59 3L590
Price
N/A
74
GEAR 10T
75
SAFETY LABEL
76
LOCKING GIB
77
Now: PW01M
FLAT WASHER 8MM
Price
N/A
78
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
79
KEY 6 X 6 X 45
Price
N/A
80
COLUMN RING
81
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
82
Now: PW01M
FLAT WASHER 8MM
Price
N/A
83
SQUARE TABLE
84
*DISCD*COLUMN SUPPORT 2-3/4 V2.02.99
Item is no longer available
Price
N/A
84-1
TABLE SUPPORT EXTENSION
85
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
86
DOOR CLOSED LABEL HORIZ
86V2
SHOCK PINCH WARNING LABEL
Price
N/A
87
*DISCD*VERTICAL LOCK 1/8" DOG POINT V2.0
Item is no longer available
Price
N/A
88
LOCK GAUGE
89
*DISCD*HORIZONTAL FEED KNOB
Item is no longer available
Price
N/A
90
*DISCD*HORIZONTAL FEED GEAR
Item is no longer available
Price
N/A
91
SET SCREW M4-.7 X 5
Price
N/A
92
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
93
TIPPING WARNING LABEL
93-1
HEX BOLT M8-1.25 X 125
Price
N/A
94
TABLE SQUARE
96
CARRIAGE BOLT
97
WING NUT 8MM
98
POINTER
99
COLUMN RING
Price
N/A
100
LOCK SHOE
101
RUBBER BUMPER
102
MACHINE ID LABEL V2.04.18
Price
N/A
102V2
MACHINE ID LABEL V2.04.18
102V3
MACHINE ID LABEL V3.10.23
103
CENTRIFICAL SWITCH V2.04.00
104
CONTACT PLATE V2.04.00
105
DEPTH GAUGE KIT V1
105V2
DEPTH GAUGE KIT V2.12.12
106
*DISCD*RIGHT ANGLE BUSHING
Item is no longer available
Price
N/A
107
WIRE NUT
108
*DISCD*SQUARE DRIVE KEY
Item is no longer available
Price
N/A
109
HORIZ COLUMN RACK
Price
N/A
110
STRAIN RELIEF TYPE-1 M12-1.75
111
WARNING LABEL
112
LOCK WASHER 10MM
Price
N/A
113
GUIDE ROD 16 X 30MM
114
Now: PN02M
HEX NUT M10-1.5
Price
N/A
115
THRUST WASHER 8MM RUBBER
Price
N/A
116
ELECTRICITY 1.4W X 1.2H
Price
N/A
117
MOTOR LABEL
118
CLAMP BOLT M10-1.5 X 25
119
TAP SCREW #8 X 3/8
Price
N/A
120
HEX WRENCH 3MM
Price
N/A
121
HEX WRENCH 4MM
Price
N/A
123
COLUMN WRENCH
124
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
125
Now: PW03M
FLAT WASHER 6MM
Price
N/A
126
CAP SCREW M8-1.25 X 20
Price
N/A
130
Now: PW02M
FLAT WASHER 5MM
Price
N/A
131
SET SCREW M6-1 X 10
Price
N/A
132
CHUCK GUARD ASSEMBLY
132-1
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
132-2
Now: PN04M
HEX NUT M4-.7
Price
N/A
132-3
TAP SCREW M2.2 X 4.5
Price
N/A
132-4
HEX BOLT M5-.8 X 12
Price
N/A
132-5
Now: PW05M
FLAT WASHER 4MM
Price
N/A
132-6
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
132-7
Now: PW05M
FLAT WASHER 4MM
Price
N/A
133
SHOCK PINCH WARNING LABEL
134
READ-ENTANGLE-EYE LABEL
135
N/S GRIZZLY GREEN G1023S
Price
N/A
136
GLOSSY BLACK
Price
N/A
137
ROLL PIN 6 X 20
Price
N/A
138
ROLL PIN 5 X 40
Price
N/A
139
SET SCREW M8-1.25 X 12
Price
N/A
140
ROLL PIN 5 X 20
Price
N/A
MANUAL
MANUAL G7945 MFD_01.01-02.07 V1.02.08
MANV2
MANUAL G7945-46 MFD-03.07-08.17 V2.02.08
MANV3
MANUAL G7945-46 MFD-09.17-09.23 V2.05.18
MANV4
MANUAL G7945-46 MFD-10.23+ V4.09.23
