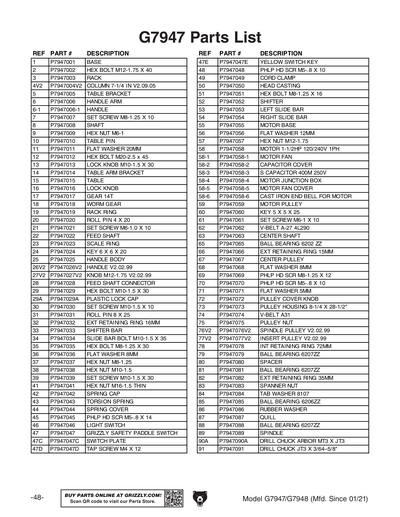

Parts for G7947 - 17" Floor Drill Press

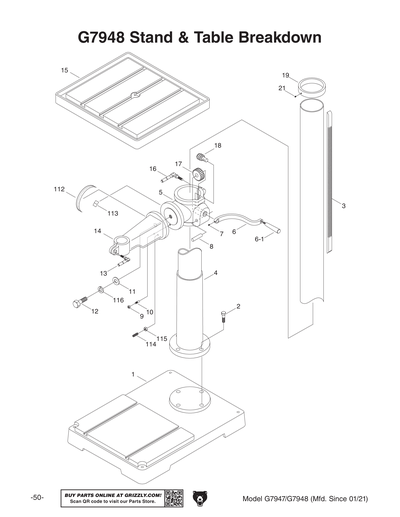

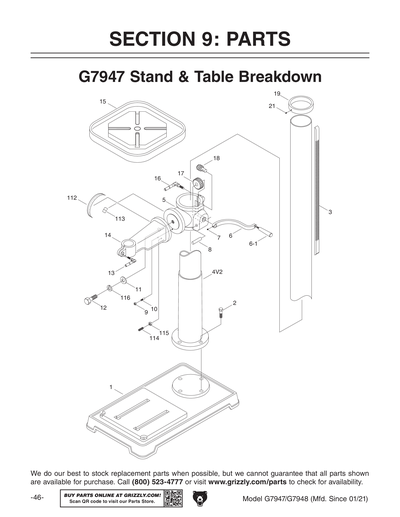

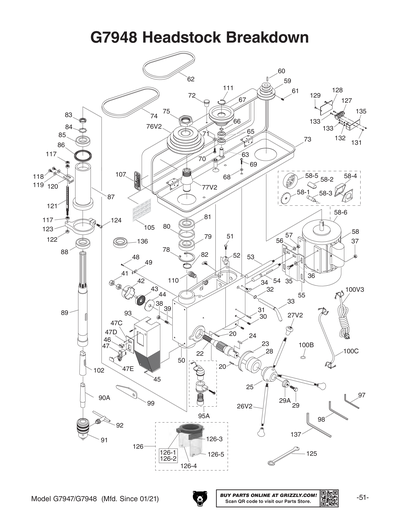

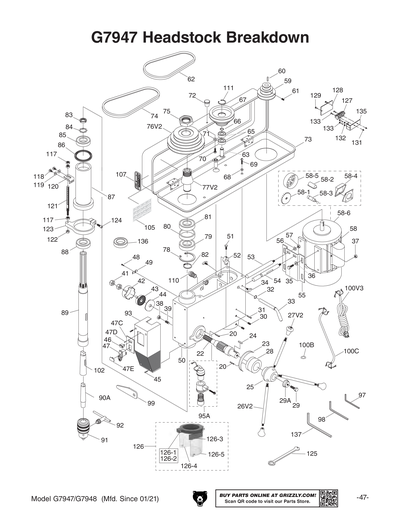

Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947
Part Diagram for G7947

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
$83.40
2
HEX BOLT M12-1.75 X 40
Price
N/A
3
RACK
Price
$39.65
4
COLUMN 7-1/4" V2.09.05
Price
$187.65
4A
COLUMN 6-1/4" V1.02.99
Price
$80.90
4V2
COLUMN 7-1/4" V2.09.05
Price
N/A
5
TABLE BRACKET
Price
$79.00
6
HANDLE ARM
Price
N/A
6-1
HANDLE
Price
N/A
7
SET SCREW M8-1.25 X 10
Price
N/A
8
SHAFT
Price
$1.90
9
HEX NUT M6-1
Price
N/A
10
TABLE PIN
Price
$1.49
11
P7947011
Now: PW13
FLAT WASHER 3/4
Price
N/A
12
HEX BOLT M20-2.5 X 45
Price
$1.90
13
TABLE BOLT M10 X 30
Price
N/A
14
TABLE ARM BRACKET
Price
$49.25
15
TABLE
Price
$145.00
16
CLAMP BOLT M12
Price
N/A
17
GEAR 14T
Price
$9.40
18
WORM GEAR
Price
$13.35
19
RACK RING
Price
$9.25
20
ROLL PIN 4 X 20
Price
N/A
21
SET SCREW M10-1.5 X 12
Price
N/A
22
FEED SHAFT
Price
$27.00
23
*DISCD*SCALE RING
Item is no longer available
Price
N/A
23A
DEPTH STOP GAUGE ASSY V2.10.02
Price
$23.40
23A-2
*DISCD*SCALE
Item is no longer available
Price
N/A
24
KEY 6 X 6 X 20
Price
N/A
25
HANDLE BODY
Price
$18.65
26
HANDLE V2.02.99
Price
$5.10
26V2
HANDLE V2.02.99
Price
N/A
27
KNOB M12-1.75 V2.02.99
Price
$3.75
27V2
KNOB M12-1.75 V2.02.99
Price
N/A
28
FEED SHAFT CONNECTOR
Price
$8.65
29
HEX BOLT M10-1.5 X 30
Price
N/A
29A
PLASTIC LOCK CAP
Price
$7.60
30
SET SCREW M10-1.5 X 10
Price
N/A
31
ROLL PIN 24 X 8.5MM
Price
$1.49
32
EXT RETAINING RING 16MM
Price
N/A
33
SHIFTER BAR
Price
$10.85
34
SLIDE BAR BOLT M10-1.5 X 35
Price
$1.90
35
HEX BOLT M8-1.25 X 30
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
HEX NUT M8-1.25
Price
N/A
38
HEX NUT M10-1.5
Price
N/A
39
SET SCREW M10-1.5 X 30
Price
N/A
40
*DISCD*NUT
Item is no longer available
Price
N/A
41
HEX NUT M16-2 THIN
Price
N/A
42
SPRING CAP
Price
$11.50
43
TORSION SPRING
Price
$23.35
44
SPRING COVER
Price
$1.90
45
PHLP HD SCR M5-.8 X 14
Price
N/A
46
LIGHT SWITCH
Price
N/A
47
Safety Paddle Switch
Price
N/A
47A
YELLOW SWITCH KEY
Price
N/A
47B
*DISCD*SWITCH HOUSING
Item is no longer available
Price
N/A
47C
SWITCH PLATE
Price
$2.20
47D
TAP SCREW M4 X 12
Price
N/A
47E
YELLOW SWITCH KEY
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
CORD CLAMP
Price
N/A
50
HEAD CASTING
Price
$142.00
51
HEX BOLT M8-1.25 X 16
Price
N/A
52
SHIFTER
Price
$4.00
53
SLIDE BAR LEFT
Price
$4.00
54
SLIDE BAR RIGHT
Price
$2.90
55
MOTOR BASE
Price
$21.60
56
FLAT WASHER 12MM
Price
N/A
57
HEX NUT M12-1.75
Price
N/A
58
MOTOR 1-1/2HP 120/240V 1PH
Price
N/A
58-1
MOTOR FAN
Price
N/A
58-2
CAPACITOR COVER
Price
$10.45
58-3
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
58-4
*DISCD*WIRING BOX COVER
Item is no longer available
Price
N/A
58-5
MOTOR FAN COVER
Price
N/A
58-6
WIRING BOX BASE
Price
$3.20
59
MOTOR PULLEY
Price
$37.40
60
KEY 5 X 5 X 25
Price
N/A
61
SET SCREW M6-1 X 10
Price
N/A
62
V-BELT A29
Price
N/A
63
CENTER SHAFT
Price
$14.10
64
BALL BEARING 6202ZZ
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
EXT RETAINING RING 15MM
Price
N/A
67
CENTER PULLEY
Price
$37.25
68
FLAT WASHER 8MM
Price
N/A
69
PHLP HD SCR M8-1.25 X 12
Price
N/A
70
PHLP HD SCR M5-.8 X 10
Price
N/A
71
FLAT WASHER 5MM
Price
N/A
72
KNOB
Price
N/A
73
PULLEY HOUSING 8-1/4 X 28-1/2 IN
Price
$106.95
74
V-BELT A31
Price
N/A
75
PULLEY NUT
Price
$3.75
76
SPINDLE PULLEY V2.02.99
Price
$90.45
76V2
SPINDLE PULLEY V2.02.99
Price
N/A
77
INSERT PULLEY V2.02.99
Price
$37.40
77V2
INSERT PULLEY V2.02.99
Price
N/A
78
INT RETAINING RING 72MM
Price
N/A
79
BALL BEARING 6207ZZ
Price
N/A
80
SPACER
Price
$4.35
81
BALL BEARING 6207ZZ
Price
N/A
82
EXT RETAINING RING 35MM
Price
N/A
83
SPANNER NUT
Price
$1.90
84
TAB WASHER 8107
Price
$1.90
85
BALL BEARING 6206ZZ
Price
N/A
86
THRUST WASHER 72MM RUBBER
Price
$1.90
87
QUILL
Price
$74.45
88
BALL BEARING 6207ZZ
Price
N/A
89
SPINDLE
Price
$70.15
89A
SPINDLE ASSY
Price
$235.40
90
DRILL CHUCK ARBOR MT2 X JT33, 110MM L
Price
N/A
90A
DRILL CHUCK ARBOR MT3 X JT3
Price
$46.75
90V2
DRILL CHUCK ARBOR MT3 X JT3
Price
N/A
91
DRILL CHUCK JT3 X 3/64-5/8
Price
$55.95
92
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
92A
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
93
SWITCH BOX
Price
$2.90
94
LIGHT SOCKET ASSEMBLY
Price
N/A
94A
PHLP HD SCR M5-.8 X 20
Price
N/A
95
LIGHT SOCKET ASSEMBLY
Price
N/A
95A
LIGHT SOCKET ASSEMBLY
Price
N/A
96
LIGHT SOCKET ASSEMBLY
Price
N/A
97
HEX WRENCH 3MM
Price
N/A
98
HEX WRENCH 4MM
Price
N/A
98B
YELLOW SWITCH KEY
Price
N/A
99
WEDGE SHIFTER
Price
N/A
100
POWER CORD 16G X 3W 73"L
Price
N/A
100B
WIRE GASKET
Price
$21.60
100C
MOTOR CORD
Price
$8.35
100V2
POWER CORD 14G 3W 72" 5-20P V3.01.21
Price
N/A
100V3
POWER CORD 14G 3W 72" 5-20P V3.01.21
Price
$48.20
101
Morse Taper Sleeve - MT4/MT3
Price
N/A
102
Morse Taper Sleeve - MT3/MT2
Price
N/A
103
MACHINE ID LABEL V1
Price
$16.40
103V2
MACHINE ID LABEL CSA V2.09.17
Price
$16.40
104
MOTOR FAN COVER
Price
$21.60
105
SPEED CHART
Price
$7.60
107
GRIZZLY BLACK/AL LABEL
Price
N/A
108

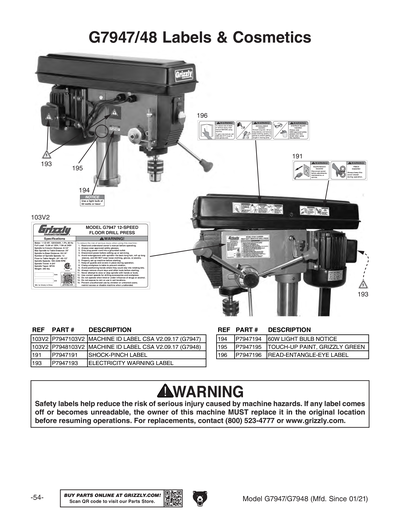

DP LIGHTS LABEL
Price
$1.90
109
*DISCD*DRILL PRESS LABEL
Item is no longer available
Price
N/A
110
STRAIN RELIEF M20
Price
N/A
111
INT RETAINING RING 35MM
Price
N/A
112
DEGREE SCALE
Price
$1.90
113
INDICATOR
Price
$2.90
114
SET SCREW M10-1.5 X 28
Price
N/A
115
HEX NUT M10-1.5
Price
N/A
116
LOCK WASHER 20MM
Price
N/A
117
HEX NUT M12-1.5
Price
N/A
118
PHLP HD SCR M5-.8 X 10
Price
N/A
119
FLAT WASHER 5MM
Price
N/A
120
DEPTH STOP BRACKET
Price
$4.00
121
DEPTH STOP SCALE RACK
Price
$1.90
122
HEX NUT M8-1.25
Price
N/A
123
QUILL CLAMP
Price
$10.45
124
CAP SCREW M8-1.25 X 20
Price
N/A
125
FLAT LOCK WRENCH 12 X 30MM
Price
$5.45
126
CHUCK GUARD ASSEMBLY
Price
$25.75
126-1
PHLP HD SCR M4-.7 X 30
Price
N/A
126-2
HEX NUT M4-.7
Price
N/A
126-3
TAP SCREW M2.2 X 4.5
Price
N/A
126-4
HEX BOLT M5-.8 X 12
Price
N/A
127
TERMINAL BAR
Price
$13.50
128
METAL COVER
Price
$2.70
129
PHLP HD SCR M4-.7 X 10
Price
N/A
131
HEX NUT M4-.7
Price
N/A
132
FLAT WASHER 4MM
Price
N/A
133
PHLP HD SCR M4-.7 X 20
Price
N/A
135
SUPPORT PLATE
Price
$4.40
136
THRUST BEARING 51107
Price
N/A
137
HEX WRENCH 5MM
Price
N/A
191
SHOCK PINCH WARNING LABEL
Price
N/A
193
ELECTRICITY 0.7W X 0.6H
Price
N/A
194
60W LIGHT BULB NOTICE
Price
N/A
195
N/S GRIZZLY GREEN G1023S
Price
N/A
196
READ-ENTANGLE-EYE LABEL
Price
N/A

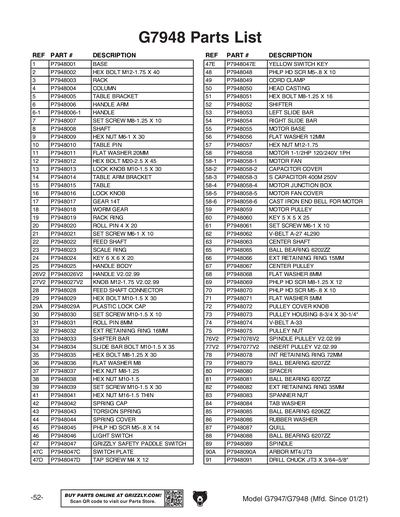

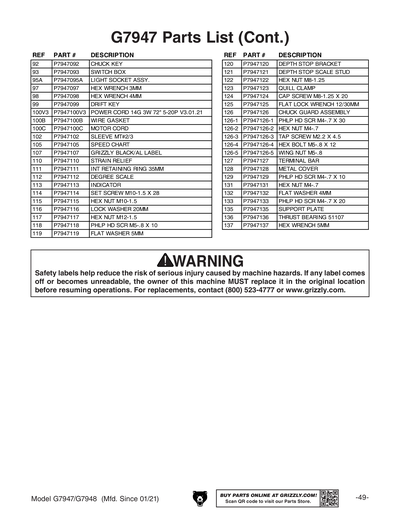

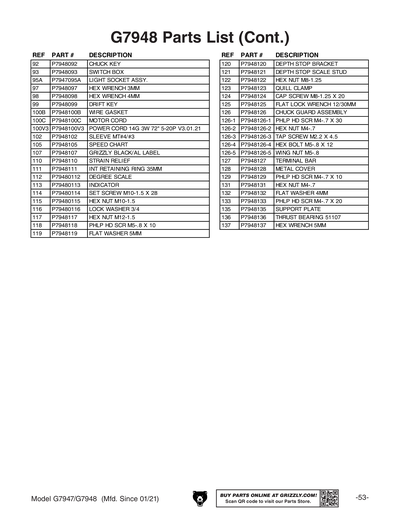

MANUAL
MANUAL G7947-48 MFD-01.07-03.18 V1
Price
$14.65
MANUALV2
MANUAL G7947-48 MFD-04.18+ V2.05.18
Price
$22.65
