Parts for G8146Z - 15-3/4" 2 HP VS Vertical Metal-Cutting Bandsaw with Inverter

Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z
Part Diagram for G8146Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

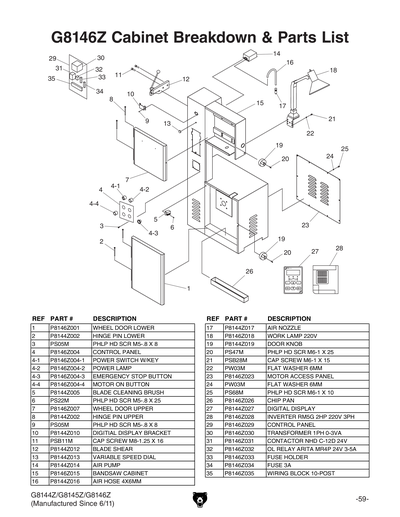

1
WHEEL DOOR LOWER
Item is no longer available
Price
N/A
2
HINGE PIN LOWER
Price
N/A
3
PHLP HD SCR M5-.8 X 8
Price
N/A
4
CONTROL PANEL
Item is no longer available
Price
N/A
4-1
POWER SWITCH W/KEY 24V FU JIN V1
Item is no longer available
Price
N/A
4-1V2
SWITCH W/KEY NHD NSS22K+CB-10 V2.06.08
Item is no longer available
Price
N/A
4-2
POWER INDICATOR LIGHT DEFOND 22MM GRN V1
Price
N/A
4-2V2
POWER LAMP NLD-22 V2.06.08
Item is no longer available
Price
N/A
4-3
E-STOP BUTTON V1
Price
$13.30
4-3V2
E-STOP NPB22-H+CB-10 V2.06.08
Item is no longer available
Price
N/A
4-4
BUTTON SWITCH V1
Item is no longer available
Price
N/A
4-4V2
BUTTON NHD NPB22-F+CB-10 GRN V2.06.08
Item is no longer available
Price
N/A
5
BLADE CLEANING BRUSH
Price
N/A
6
PHLP HD SCR M5-.8 X 25
Price
N/A
7
WHEEL DOOR UPPER
Price
$181.15
8
HINGE PIN LOWER
Price
N/A
9
PHLP HD SCR M5-.8 X 8
Price
N/A
10
DIGITIAL DISPLAY BRACKET
Price
N/A
11
CAP SCREW M8-1.25 X 16
Price
N/A
11V2
HEX BOLT M8-1.25 X 12
Price
N/A
12
*DISCD*BLADE SHEAR V1
Price
N/A
12V2
BLADE SHEAR V2.02.13
Price
N/A
13
VARIABLE SPEED DIAL
Price
N/A
14
AIR PUMP
Price
N/A
15
BANDSAW CABINET
Item is no longer available
Price
N/A
16
AIR HOSE 4X6MM
Price
N/A
17
AIR NOZZLE
Price
N/A
18
WORK LAMP 220V
Price
$115.95
19
DOOR KNOB
Price
N/A
20
PHLP HD SCR M6-1 X 25
Price
N/A
21
CAP SCREW M6-1 X 15
Price
N/A
22
FLAT WASHER 6MM
Price
N/A
23
MOTOR ACCESS PANEL
Item is no longer available
Price
N/A
24
FLAT WASHER 6MM
Price
N/A
25
PHLP HD SCR M6-1 X 10
Price
N/A
26
CHIP PAN
Item is no longer available
Price
N/A
27
***SEE EXT DESCRIPTION***
Price
N/A
27V2
DIGITAL DISPLAY KP-603A V2.02.20
Item is no longer available
Price
N/A
28
***SEE EXT DESCRIPTION***
Price
$1,028.10
28V2
INVERTER RM6-2002B3 2HP 220V V2.02.20
Item is no longer available
Price
N/A
29
CONTROL PANEL
Item is no longer available
Price
N/A
30
TRANSFORMER 220V-24V
Price
$77.30
30V2
TRANSFORMER 100VA 220V/440V V2.01.13
Price
$163.05
31
CONTACTOR NHD C-12D 24V
Price
$90.60
32
OL RELAY ARITA MR4P 24V 3-5A V1
Item is no longer available
Price
N/A
32V2
RELAY STON MY4S 24V V2.01.13
Price
$58.00
32V2-1
RELAY MOUNT STON PYF15
Item is no longer available
Price
N/A
33
FUSE HOLDER
Item is no longer available
Price
N/A
34
FUSE 3A
Price
$4.05
35
WIRING BLOCK 10-POST
Item is no longer available
Price
N/A
36
LOWER BLADE GUARD SET
Price
N/A
37
PHLP HD SCR M6-1 X 10
Price
N/A
38
FLAT WASHER 6MM
Price
N/A

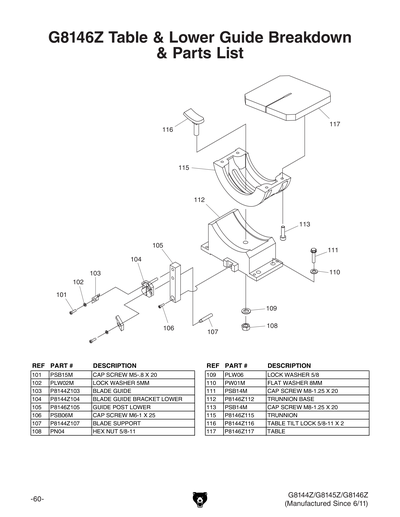

101
CAP SCREW M5-.8 X 20
Price
N/A
102
LOCK WASHER 4MM
Price
N/A
103
BLADE GUIDE
Price
N/A
104
BLADE GUIDE BRACKET LOWER
Price
N/A
105
GUIDE POST LOWER
Item is no longer available
Price
N/A
106
CAP SCREW M6-1 X 25
Price
N/A
107
BLADE SUPPORT
Price
N/A
108
HEX NUT 5/8-11
Price
N/A
109
LOCK WASHER 5/8
Price
N/A
110
FLAT WASHER 8MM
Price
N/A
111
CAP SCREW M8-1.25 X 20
Price
N/A
112
*DISCD*TRUNNION BASE
Item is no longer available
Price
N/A
113
CAP SCREW M8-1.25 X 20
Price
N/A
115
TRUNNION
Price
$144.90
116
TABLE TILT LOCK 5/8-11 X 2
Price
N/A
117
TABLE
Item is no longer available
Price
N/A

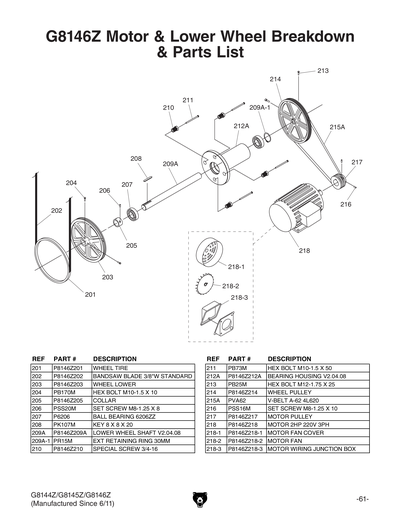

201
WHEEL TIRE
Price
$96.05
202
BANDSAW BLADE 3/8"W STANDARD
Item is no longer available
Price
N/A
203
WHEEL LOWER
Price
$362.25
204
HEX BOLT M10-1.5 X 10
Price
N/A
205
COLLAR
Price
$18.15
206
SET SCREW M8-1.25 X 8
Price
N/A
207
BALL BEARING 6204ZZ
Price
N/A
208
KEY 8 X 8 X 20
Price
N/A
209
LOWER WHEEL SHAFT V1.01.08
Item is no longer available
Price
N/A
209A
LOWER WHEEL SHAFT V2.04.08
Price
$4.30
209A-1
EXT RETAINING RING 30MM
Price
N/A
210
TENSIONING PANEL SCREW 3/4"-16
Price
$6.35
211
HEX BOLT M10-1.5 X 50
Price
N/A
212
BEARING HOUSING V1.01.08
Item is no longer available
Price
N/A
212A
BEARING HOUSING V2.04.08
Price
$105.25
213
HEX BOLT M12-1.75 X 25
Price
N/A
214
WHEEL PULLEY
Price
$234.05
215
V-BELT A66
Price
N/A
215A
V-BELT A62
Price
N/A
216
SET SCREW M8-1.25 X 10
Price
N/A
217
MOTOR PULLEY
Price
$27.90
218
MOTOR 2HP 220V 3-PH
Price
$328.90
218-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
218-2
MOTOR FAN
Price
$15.85
218-3
MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
256
BALL BEARING 609ZZ
Price
N/A

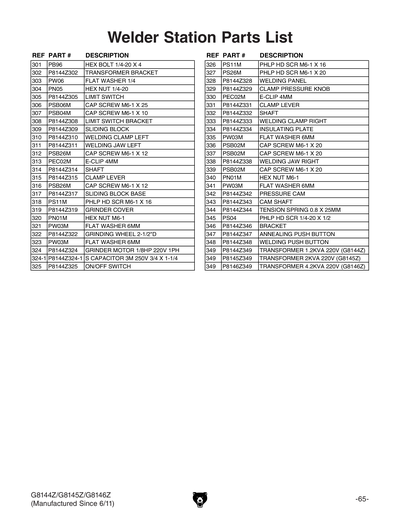

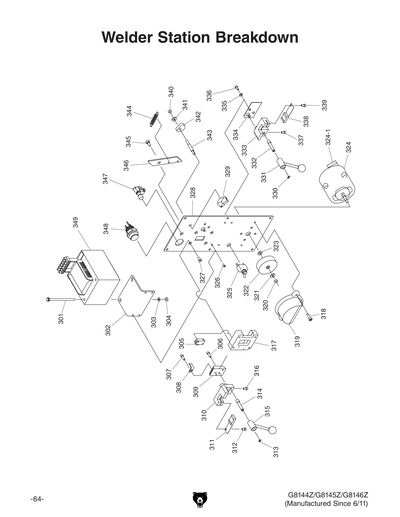

301
HEX BOLT 1/4-20 X 4
Price
N/A
302
TRANSFORMER BRACKET
Price
N/A
303
FLAT WASHER 1/4
Price
N/A
304
HEX NUT 1/4-20
Price
N/A
305
LIMIT SWITCH 220V CONTECTION
Price
N/A
306
CAP SCREW M6-1 X 25
Price
N/A
307
CAP SCREW M6-1 X 10
Price
N/A
308
LIMIT SWITCH BRACKET
Price
N/A
309
SLIDING BLOCK
Price
N/A
310
WELDING CLAMP LEFT
Price
N/A
311
WELDING JAW LEFT
Price
N/A
312
CAP SCREW M6-1 X 12
Price
N/A
313
E-CLIP 4MM
Price
N/A
314
SHAFT
Price
N/A
315
CLAMP LEVER
Price
N/A
316
CAP SCREW M6-1 X 12
Price
N/A
317
SLIDING BLOCK BASE
Price
N/A
318
PHLP HD SCR M6-1 X 16
Price
N/A
319
GRINDER COVER
Price
N/A
320
HEX NUT M6-1
Price
N/A
321
FLAT WASHER 6MM
Price
N/A
322
GRINDING WHEEL 2-1/2"D
Price
N/A
323
FLAT WASHER 6MM
Price
N/A
324
GRINDER MOTOR 1/8HP 220V 1-PH
Price
N/A
324-1
S CAPACITOR 3M 250V 3/4 X 1-1/4 MAX HSIN
Price
N/A
325
ON/OFF SWITCH 220V KEDU
Price
N/A
326
PHLP HD SCR M6-1 X 16
Price
N/A
327
PHLP HD SCR M6-1 X 20
Price
N/A
328
WELDING PANEL
Price
N/A
329
CLAMP PRESSURE KNOB
Price
N/A
330
E-CLIP 4MM
Price
N/A
331
CLAMP LEVER
Price
N/A
332
SHAFT
Price
N/A
333
WELDING CLAMP RIGHT
Price
N/A
334
INSULATING PLATE
Price
N/A
335
FLAT WASHER 6MM
Price
N/A
336
CAP SCREW M6-1 X 20
Price
N/A
337
CAP SCREW M6-1 X 20
Price
N/A
338
WELDING JAW RIGHT
Price
N/A
339
CAP SCREW M6-1 X 20
Price
N/A
340
HEX NUT M6-1
Price
N/A
341
FLAT WASHER 6MM
Price
N/A
342
PRESSURE CAM
Price
N/A
343
CAM SHAFT
Price
N/A
344
TENSION SPRING 0.8 X 25MM
Price
N/A
345
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
346
BRACKET
Price
N/A
347
ANNEALING PUSH BUTTON
Price
N/A
348
WELDING PUSH BUTTON
Price
N/A
349
TRANSFORMER 4.2KVA 220V V2.05.18
Price
N/A
349V2
TRANSFORMER 4.2KVA 220V V2.05.18
Price
$483.00

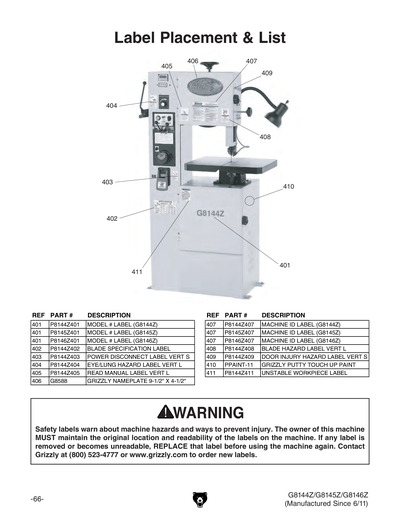

401
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
402
BLADE SPECIFICATION LABEL
Price
N/A
403
POWER DISCONNECT LABEL VERT S
Price
N/A
404
EYE/LUNG HAZARD LABEL VERT L
Price
N/A
405
READ MANUAL LABEL VERT L
Price
N/A
406
Nameplate - Small
Price
N/A
407
MACHINE ID LABEL
Price
$16.40
408
BLADE HAZARD LABEL VERT L
Price
N/A
409
DOOR INJURY HAZARD LABEL VERT S
Price
N/A
410
GREY PUTTY REF G0504
Price
N/A
411
UNSTABLE WORKPIECE LABEL
Item is no longer available
Price
N/A

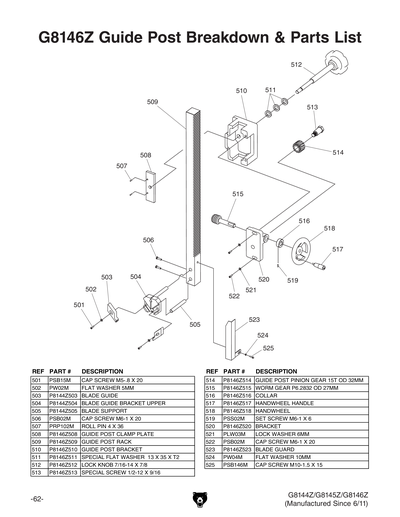

501
CAP SCREW M5-.8 X 20
Price
N/A
502
FLAT WASHER 5MM
Price
N/A
503
BLADE GUIDE
Price
N/A
504
BLADE GUIDE BRACKET UPPER
Price
N/A
505
BLADE SUPPORT
Price
N/A
506
CAP SCREW M6-1 X 20
Price
N/A
507
ROLL PIN 4 X 36
Price
N/A
508
GUIDE POST CLAMP PLATE
Price
$65.25
509
GUIDE POST RACK
Price
$2.90
510
GUIDE POST BRACKET
Price
$2.90
511
GUIDE POST FLAT WASHER
Price
$25.40
512
GUIDE POST LOCK KNOB
Price
$21.75
513
GUIDE POST SCREW
Price
$16.35
514
GUIDE POST PINION GEAR 15T OD 32MM
Price
$23.60
515
WORM GEAR P6.2832 OD 27MM V1
Price
$137.40
515V2
WORM GEAR W/9MM SHAFT V2.12.14
Price
$32.65
516
COLLAR
Price
$18.15
517
HANDWHEEL HANDLE
Price
$2.90
518
HANDWHEEL V1
Price
$27.90
518V2
HANDWHEEL W/9MM BORE V2.12.14
Price
$90.60
519
SET SCREW M6-1 X 6
Price
N/A
520
GUIDE POST ELEVATION ASSY
Price
N/A
520V2
BRACKET W/9MM BORE V2.12.14
Price
$83.35
520V2A
GUIDE POST ELEVATION ASSY
Price
$228.25
521
LOCK WASHER 6MM
Price
N/A
522
CAP SCREW M6-1 X 20
Price
N/A
523
BLADE GUARD
Item is no longer available
Price
N/A
524
FLAT WASHER 10MM
Price
N/A
525
CAP SCREW M10-1.5 X 15
Price
N/A
526
BALL BEARING 609ZZ
Price
N/A

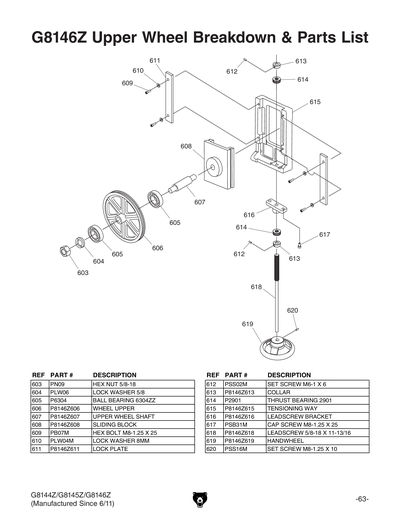

603
HEX NUT 5/8-18
Price
N/A
604
LOCK WASHER 5/8
Price
N/A
605
BALL BEARING 6304ZZ
Price
N/A
606
WHEEL UPPER
Price
$300.15
607
UPPER WHEEL SHAFT
Item is no longer available
Price
N/A
608
SLIDING BLOCK
Price
$69.00
609
HEX BOLT M8-1.25 X 25
Price
N/A
610
LOCK WASHER 8MM
Price
N/A
611
LOCK PLATE
Item is no longer available
Price
N/A
612
SET SCREW M6-1 X 6
Price
N/A
613
COLLAR
Item is no longer available
Price
N/A
614
THRUST BEARING 2901
Price
N/A
615
TENSIONING WAY
Item is no longer available
Price
N/A
616
LEADSCREW BRACKET
Item is no longer available
Price
N/A
617
CAP SCREW M8-1.25 X 25
Price
N/A
618
LEADSCREW 5/8-18 X 11-13/16
Price
$50.75
619
HANDWHEEL
Price
$27.90
620
SET SCREW M8-1.25 X 10
Price
N/A
MAN
MANUAL FOR G8144Z/G8145Z/G8146Z 12/07
Price
N/A
